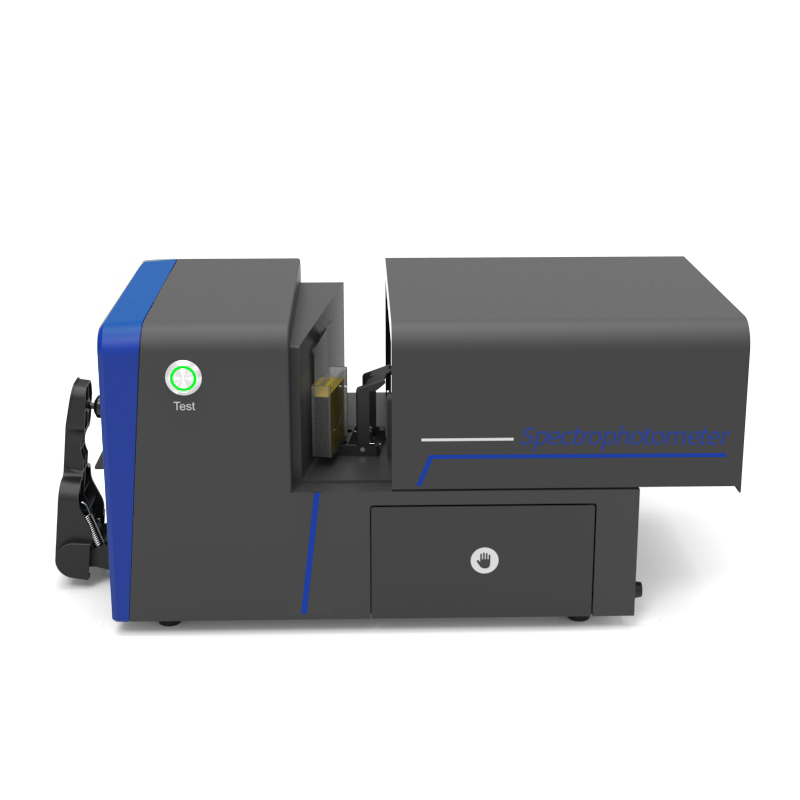

TS8500S spectrophotometer

PRODUCT DETAILS

TS8500S is a benchtop grating spectrophotometer which is developed by 3nh independently with core technology. It uses a dual-array CMOS image sensor to have high sensitivity and a wider spectral response range, which makes the test more accurate. It needs to use with SQCX color quality management software in PC, which is convenient and easy operation. The repeatability of ΔE*ab is within 0.015, and Inter-instrument Error is within 0.15, and measurement performance is super stable and accurate.

Features:

1. International common d/8, SCI/SCE , SCI+SCE Synchronous measurement

TS8500S spectrophotometer adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology, supporting SCI+SCE simultaneous rapid measurement.

 International common d/8, SCI/SCE , SCI+SCE Synchronous measurement

2. Double Array CMOS Image Sensor

It has high sensitivity and wide spectral response range, which can achieve high -precision and repeatability measurement.

Double Array CMOS Image Sensor;

3. Rich measurement index, multiple observation light sources

Support 40+measurement index, D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5,and other customized light sources.(41 light sources in total, parts will be achieve via software in PC),multiple observation light sources, meet different measuring requirement.

Rich measurement index, multiple observation light sources

4. Automatic measuring aperture distinguish

Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures.

 Automatic measuring aperture distinguish

5. Convenient measurement, widely application

Side measurement, upward measurement, and downward measurement (using accessories) and other gestures are placed and measured, open -type transmitted warehouses, adapting to more samples.

Convenient measurement, widely application

6. Automatic temperature and humidity compensation function, make the measurement data more accurate

Automatic temperature and humidity compensation function, make the measurement data more accurate

7. Adopt combination full spectrum LED light source and UV light source

Wavelength range 360nm-780nm,combined LED Light. Including UV, 400nm cut-off light source, 420nm Cut-off light source, 460nm Cut-off light source

Adopt combination full spectrum LED light source and UV light source

8. Color management software

With SQCX quality management software, TS8500S spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.

Color management software

TS8500S Benchtop Grating Spectrophotometer Specification


Model TS8500S (LED, no display pad)
Optical Geometry Reflect: D/8 (diffused illumination, 8-degree viewing angle) ;
SCI/SCE; Include UV / excluded UV light source ;
Transmittance: D/0 (diffuse illumination: 0° viewing) ;
SCI /SCE; Include UV / excluded UV light source ;
HAZE (ASTM D1003);
Standards meet: CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7,JIS Z8722 under condition C
Characteristic 1. Widely applied in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
2. Instrument can be measured on the side, upward measurement, and the downward measurement (use accessories) and other gestures.
3. Open transmission warehouse, available thickness of 54mm transmitted samples.
4. Automatic temperature and humidity compensation function.
Integrating Sphere Size Φ154mm
Light Source Device 360nm–780nm Wavelength range ,combined LED Light. Including UV, 400nm cut-off light source, 420nm Cut-off light source,460nm cut-off light source
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 360~780nm
Wavelength Interval 10nm
Semiband Width 5nm
Measured Reflectance Range 0~200%
Reflectivity Resolution 0.01
Measuring Aperture Reflective:
XLAV Φ25.4mm/Φ30mm,
LAVΦ15mm/Φ18mm ,
MAVΦ8mm/Φ10mm,
SAVΦ4mm/Φ6mm
Transmissive:
Φ25.4mm(No limit on sample height and width, but thickness≤54mm)
Remark:
1. Automatic identification of aperture switch
2. Customized Configuration caliber and lens position
Specular Component Reflectance: SCI&SCE / Transmittance: SCI&SCE
Color Space CIE LAB,XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter),ΔE*CH,555 Index
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter,Taube,Berger Stensby)
YI(ASTM D1925,ASTM 313),ISO brightness,R457
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
APHA/Hazen/Pt-Co Index,Gardner Index
8° Gloss,555 Index, Haze,Transmission(ASTM D1003),Saybolt index, ASTM D1500 Color code,carbon(My,dM),Color density CMYK(A,T,E,M),Tint,Color density(part function achieved via software in PC)
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, customized light source(41 light sources in total,part achieved via software in PC)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color assessment, haze, liquid chromaticity
Measuring Time 2.0s (Measure SCI & SCE meantime about 4s )
Repeatability Reflectance chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 ( Under LED light source, when a white calibration plate is measured 30 times at 5 second intervals after white calibration);
spectrum reflectance /transmission:≤0.1%
Inter-instrument Error Φ25.4mm/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Dimension L*W*H=440x248x283mm
Weight Approx. 13.5kg
Power AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display No
Data Port USB & Bluetooth 5.0
Data Storage Share with PC storage
Language /
Operating Environment 0~40℃(32~104°F)
Storage Environment -20~50℃(-4~122°F)
Standard Accessory Power Adapter, User Guide, U Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component, cuvette
Optional Accessory Micro Aperture(4mm) transmission test clamp component, Instrument inversion components,culture dish,Film fixture
Notes Test reports can be printed through a network printer connected to a PC or display pad,
The specifications are subject to change without notice.
