Color Bar Test Chart

Color Bar Test Chart Instructions Operating Manual Color Bar Test Chart PDF
This Color Bar Test Chart Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

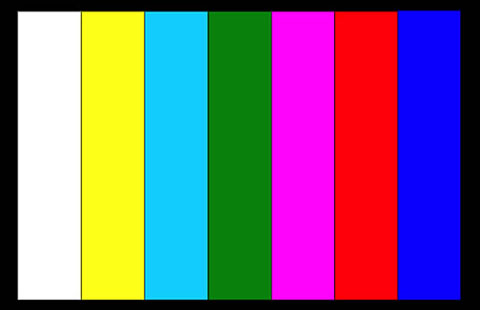

The YE0106 is designed for checking the color rendition of TV cameras. The picture area is divided into six color bars showing the three primary colors red, green and blue and the secondary colors cyan, yellow and purple; in addition there is one bar of white and black. The succession corresponds to that of an electronically generated color bar.

Color Transparent Yellow Cyan Green Magenta Red Blue
Density 0.08～1.0 1.4～2.0 0.9～1.3 1.95～2.35 1.1～1.5 1.8～3.0 0.8～1.2

Transparent Type

  Effective Area Outer Size
4:3 245×175 320×290
16:9 272×153 310×200



Our Valued Clients

  • our customer Largan Precision
  • our customer q tech smart vision
  • huawei
  • our customer xiaomi
  • our customer asus
  • our customer lenovo
  • our customer sunny optical
  • our customer SEMCO

FAQs About  Color Test Charts

During color evaluation, maintaining consistent light sources and viewing conditions is critical. Standard viewing conditions vary depending on the object being evaluated, including factors such as brightness, illumination angle, and observer position. Accurate evaluation can be achieved by establishing a proper environment that meets these requirements.

In development and production sites with extremely high color requirements, such as the automotive and cosmetics industries, accurately reproducing colors is essential. Color evaluation helps determine whether the color matches the intended image or target color. It is the process of measuring color, analyzing its characteristics, and evaluating how well it aligns with a specific target color.

color measurement and color evaluation

Visual Color Evaluation

Color differences are compared visually using standard light sources or reference colors (such as color cards). This method allows color confirmation under conditions close to natural light, making it ideal for color inspection in design and production processes.

Instrumental Color Evaluation

Measurements are performed using a spectrophotometer or colorimeter. This method eliminates the subjective influence of the operator and is widely used for product quality control and industrial applications, enabling scientific quantification of color.


Color evaluation is widely used across industries such as product development and quality control departments in manufacturing.

Typical applications include:

  • Automotive Industry

    Used for quality evaluation of automotive paint, exterior parts, and interior components.

  • Coatings & Materials Industry

    Used to maintain and manage color accuracy for coatings, plastics, glass products, and more.

  • Cosmetics Industry

    Used to verify color consistency in products such as lipsticks and foundations.

  • Molded Products (Resin & Plastics)

    Used to evaluate color difference and uniformity of surface effects in finished products.

  • Furniture & Building Materials Industry

    Used to ensure color consistency in materials such as wood and plywood. Food & Pharmaceutical Industry Used to assess color consistency of food packaging and color differences in pharmaceutical capsules.

Replace when the total hours exceed rated life, decrease in brightness, or the color temperature shifts beyond tolerance.


In the study of chemical reactions, calorimetry deals with changes in heat (energy and enthalpy). Spectrophotometry is the measurement of the light absorbance or light transmittance to determine the concentration or color of a solution. The first one monitors the thermal processes, whereas the second one addresses the aspects of light and color.


The most important equation is A = 2εcl, where A is the absorbance, 2 is a constant, ε is the molar absorptivity (L/mol cm), c is the concentration (molL-11), and l is the path length (cm). This can be used to relate the absorbance to the concentration, allowing quantification through colorimetric assays.


They provide accurate and repeatable assessments of color in various settings for the purpose of avoiding inconsistencies in mismatched items and ensuring steady production or branding.


Yes. We can supply OEM and make customized design for any specific application. Our MOQ for OEM and ODM service is 5 pcs for one model. We can not only offer standard machines, but also customized machines. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
