TS8296 ベンチトップスペクトロフォトメーター

Unleash Precision Color Analysis Laboratory Instrument

The TS8296 spectrophotometer is a high-precision color measurement instrument designed for industrial quality control and color management. Spectrophotometers serve critical roles in standard development, color formulation, and quality assurance across diverse industries—automotive, paints & coatings, plastics, textiles & apparel, cosmetics, paper, building materials, food & beverage, and beyond.


Key Highlights

  • 256-element linear CCD sensor

  • Reflection and Transmission test

  • Industrial-grade 7-inch high-definition touch screen

  • D/8 geometry (SCI/SCE) complies with international standards (CIE No.15, ASTM E1164, etc.)

  • Excellent repeatability (ΔEab ≤0.01) and inter-instrument agreement (ΔEab ≤0.12)

  • Integrates with PC software for data analysis and management

このTS8296楽器は認定されています
certify
1 年間保証 (Additional support period of 3 years)

TS8296は,光学原理に基づいて設計された実験室儀器であり,主にオブジェクト表面の色と光学特性の定量分析に使用されます.独自のコア技術であるスペクトロスコピーを使用して3nhによって開発された。これは,より高い感度とより広いスペクトラル応答範囲を持つデュアル配列CMOS画像センサーを使用し,テストをより正確にします.TS8296ベンチトップスペクトロフォトメーターの繰り返し性ΔE*abは0.01以内に簡単に制御され,儀器間の協定ΔE*abは0.12以内に制御されます.データは安定して信頼性が高く,実験室で正確な色分析と伝達に使用できます.

TS8296ベンチトップスペクトロフォトメーターの適用

TS8296ベンチトップスペクトロフォトメーターは,テストされるより多くのサンプルに適した25.4mm,15mm,8mm,4mmの4つの測定開口を装備しており,プラスチック電子工学,ペンキおよびインク,テテテテキスタイルおよび服印刷および染色,印刷および他の産業の反射サンプルおよび透明サンプルの要件を満たしています.荧光サンプル測定に使用できます。


TS8296ベンチトップ分光光計の特徴



マイクロポア開口


TS8296ベンチトップスペクトロフォトメーターは,反射を提供します:Φ0.3mm/Φ0.5mm/Φ1mm (1つのアーパーチャーを選択します) 伝達:Φ8mm/Φ4mm (1つのアーパーチャーを選択します),小さな面積の反射サンプルおよび小さな容積の伝達サンプルの色度制御に使用されます.




D/8構造、SCI/SCEおよび同時にSCI+SCEの迅速な測定をサポート


TS8296ベンチトップスペクトロフォトメーターは,国際的に適用されるD/8照明観測条件,SCI/SCE (鏡反射を含む/鏡反射を含まない) 合成技術を採用し,SCI+SCE同時の迅速な測定をサポートします.


デュアルパススペクトラル分析技術


アップグレードされたTS8298分光光計は採用します デュアルビームスペクトラル D/8およびD/0の分析技術で,SCI/SCE測定,反射率/透射率測定,D D D D/8およびD/0の分析技術をサポートします.さまざまな不透明,透明,半透明,色色管理に適しています.

TS8298について詳しく

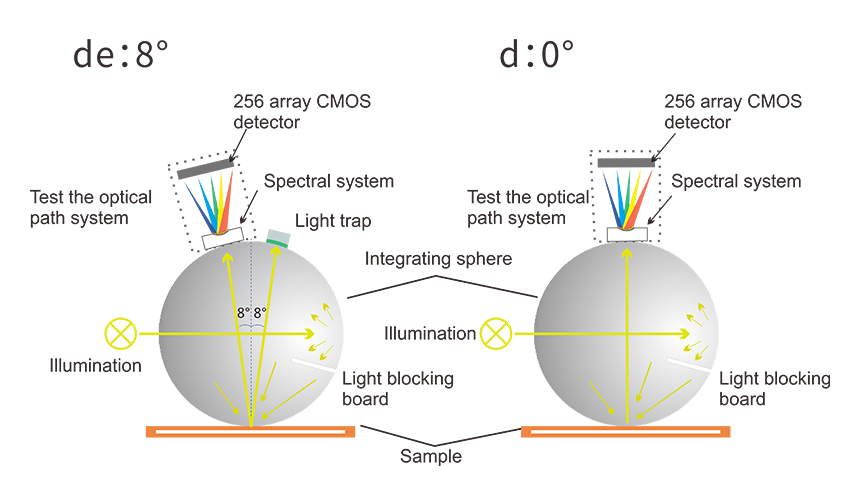

D8 and D0 optical geometry dual-beam spectral analysis technology



デュアル配列CMOS画像センサー


高感度と広いスペクトラル応答範囲により,測定速度,精度,安定性,一致性を確保します.




複数の色測定空間,複数の観測光源


TS8296ベンチトップ分光計は、CIE LAB、XYZ、Yxy、LCh、CIE LUV、Musell、s-RGB、HunterLab、βxy、DIN Lab99色スペース、およびD65、A、C、D50、D55、D75、F1、F2、F3、F4、F5、F6、F7、F8、F9、F10、F11、F12、CWF、DLF、TL83、TL84、TPL5、U30の複数の観測光源を提供します。

一般的に使用される色計測定に加えて,TS8299は,色一一一一般的に使用される色計測測定測定測定に加えて,一一色計測定指標準 (ASTM D1500), 黄色さ, 白さ, プラチナ・コバルト指数, ガードナー指数様々な業界のニーズを満たすために。




組み合わせたフルスペクトルLED光源およびUV光源を採用します

フルバンドバランスのあるLED光源は,可視光範囲で十分なスペクトル分布を保証し,特定の波長バンドで白光LEDのスペクトルの欠如を避け,儀器の測定速度と測定結果の正確性を保証します.プロフェッショナルな紫外線光源は,紫外線テストをより信頼できるようにします.


計量検証レポート

各TS8296ベンチトップスペクトロフォトメーターは検証およびテストされ,儀器は工場の権威ある検証部門の測定基準に従って検証され,測定データはNational Institute of Metrologyに追跡され,儀器テストデータの権威を確保します.


自動アーパーチャ認識

TS8296ベンチトップスペクトロフォトメーターにはΦ25.4/15/8/4mmの4つの測定開口が装備されており,顧客の特別なニーズを満たすために任意に切り替えることができます.

TS8296_four_Automatic aperture_image.jpg



産業級の高解像度タッチスクリーン、使いやすいユーザーインターフェース

7インチ産業級の高解像度タッチスクリーンを使用して,制御は滑らかで,使いやすいユーザーインターフェースは,操作を快適で便利で使いやすくします.




色管理ソフトウェア

TS8296ベンチトップスペクトロフォトメーターと一致したSQCX品質管理ソフトウェアは,様々な産業の品質監視と色データ管理に適しています.ユーザーの色管理をデータ化,色差を比較し,テストレポートを生成し,色空間測定データを提供し,顧客の色管理をカスタマイズします.


TS8296ベンチトップスペクトロフォトメーターの連絡先


ビジネスアプリケーションに1台または複数のベンチトップスペクトロフォトメーターを統合したいのですか?アドバイスが必要なのか、あるいは単なる引用が必要なのか。下記のリクエストフォームに記入して直接お問い合わせください。当社の販売および技術チームはできるだけ早く応答できます。


Technical Parameters of TS8296 Benchtop Spectrophotometer

ModelTS8296
Optical GeometryReflect: di:8°, de:8°((diffuse illumination, 8°direction reception) ;
SCI (specular component included)/SCE (specular component excluded) ;Include UV/exclud UV
Transmittance: di:0°, de:0° (diffuse illumination: 0°direction reception) ;
SCI (specular component included)/SCE (specular component excluded) ; Include UV/exclud UV
Haze(ASTM D1003),
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7
ApplicationIt is used for accurate analysis and transmission of laboratory color.
Used for color transfer and quality control of reflective samples and transparent samples in plastic electronics, paint and ink, textile and garment printing and dyeing, printing and other industries.
Integrating Sphere SizeΦ154mm
Light Source360 nm to 780 nm, Combined LED Light, 400nm cut-off light source,420nm cut-off light source
Spectrophotometric ModeConcave Grating
Sensor256 Image Element Double Array CMOS Image Sensor
Wavelength Range360-780nm
Wavelength Interval10nm
Semiband Width10nm
Measured Reflectance Range0-200%
Measuring ApertureReflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ25.4mm, Φ4mm
Remark:
1. Automatic identification of switch aperture
2.Customers can configure the aperture and lens position according to their needs
Specular ComponentReflectance: SCI/SCE, Transmittance: SCI&SCE
Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference FormulaΔE*ab,ΔE*uv,ΔE*94 ,ΔE*cmc(2:1),ΔE*cmc(1:1) ,ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric IndexWI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
Metamerism index Mt,
Staining Fastness, Color Fastness, Color Strength, Opacity,
APHA/Hazen/Pt-Co (Platinum Cobalt Index), Gardner Index
8° gloss, 555 color classification, haze (ASTM D1003), Saybolt (Sybert index), ASTM D1500 color scale, Chinese Pharmacopoeia color scale
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30
Displayed DataSpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring TimeAbout 2.4s (Measure SCI & SCE about 5s)
RepeatabilitySpectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04%
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 (After the instrument is warmed up and calibrated, measure the average value of the whiteboard 30 times at an interval of 5s)
Spectral transmittance: Φ25.4mm/SCI, Standard deviation within 0.05%
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02(After the instrument is warmed up and calibrated, measure the average value of the whiteboard 30 times at an interval of 5s)
Inter-instrument ErrorΦ25.4mm/SCI, Within ΔE*ab 0.12(Measured average value of 12 tiles of BCRA series Ⅱ)
DimensionL*W*H=370x300x200mm
WeightApprox. 9.6kg
PowerAC 24V, 3A Power adapter power supply
Illuminant Life Span5 years, more than 3 million times measurements
Display7-inch TFT color LCD, Capacitive Touch Screen
Data PortUSB, Bluetooth®5.0, print serial port
Data StorageStandard 5000 Pcs, Sample 40000 Pcs(SCI/SCE counts as one piece of data)
LanguageSimplified Chinese, Traditional Chinese, English, (German, French, Spanish can be customized)
Operating Environment0~40℃(32~104°F)
Storage Environment-20~50℃(-4~122°F)
Standard AccessoryPower adapter, manual, quality management software (download from official website), data cable, standard calibration board, black calibration box, transmission black baffle, sample holder, 25.4mm aperture, 15mm aperture, 8mm aperture, 4mm aperture, transmission test fixture assembly , Micro-hole (4mm) transmission test fixture assembly
Optional AccessoryMini printer, instrument upside down test fixture, petri dish
NotesThe specifications are subject to change without notice.


Our Valued Clients

FAQs About TS8296 ベンチトップスペクトロフォトメーター

常に大量生産の前のプリプロダクションサンプル;出荷の前に常に最終的な点検;

多くの人は「人間の目で」と答えるかもしれませんが、実際には全面的ではありません。人間の目は同じような物体の色を正確に区別できない。さらに、すべての人の色の認識は異なります。だから、人々は発展した。 色測定ツール CIE色系に基づく。

現在、一般的に使用されている色計の主要なタイプは次のように2つあります。

色計 - 色差を検出するために使用される生産ラインの品質管理(QC)のための理想的な選択です。

スペクトロフォトメーター - 実験室で色の特性および色の分析の開発に適しています。

SCI&SCE 色の測定には2つの方法があります。SCIはSpecular Component Includeを意味し、SCEはSpecular Component Excludeを意味します。

SCEの方法では,拡散反射のみをテストし,鏡反射を排除します.このように、試験結果は人間の目で観察された物体の色に似ている。

SCI方法では、拡散反射と鏡反射の両方が含まれます。このようにして、色に関する価値はより客観的です。環境状況による影響はありません。

楽器を選ぶときには、これらの要素を考慮すべきです。


色度計は、化学的浓度を確認するために色強度を適用する方法です。 これはビール・ランバート法則に基づいており、これによると、特定の波長での吸収率は浓度に比例する。 環境や生物化学の試験で人気があります。
