Haze Meter – Definition, Working Principle, and Applications

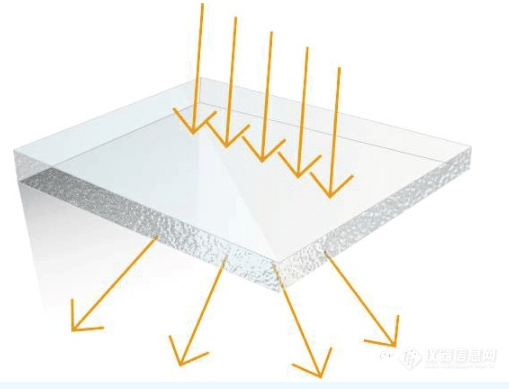

Haze refers to the example and optical quality of transparent materials such as plastics, glasses, and films. Haze describes the amount of light that is scattered as opposed to going straight through. Materials that have a high haze will appear cloudy, and materials that have a low haze will be transparent.

Haze has to be controlled and kept within a range for the packaging, automotive, and electronic industries, as packaging, automotive, and electronic industries rely on the quality and aesthetic of their products. Haze meters gauge light scattering and transmission to see if materials satisfy Optical ASTM D1003, ISO 13468, and JIS K7105 standards to guarantee the example and performance consistency of materials.

What is a Haze meter?

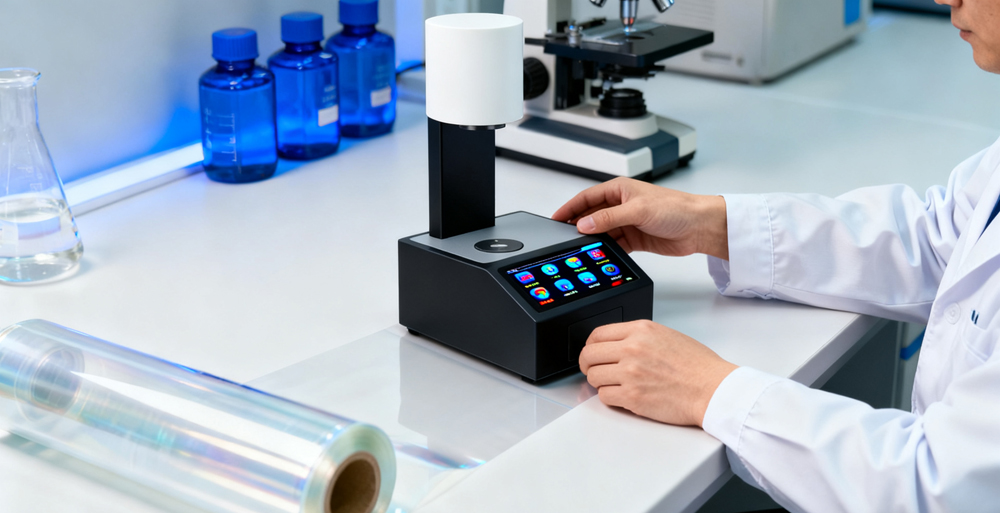

Haze meters gauge the amount of light that is scattered when a transparent or translucent material is crossed. In other words, a haze meter describes the haze percentage and total transmittance of a sample. Haze meters give two primary readings:

·         Total Transmittance (Tt): Total amount of light transmitted through the sample (directly and diffusely).

·         Haze (H): Percentage of transmitted light that is scattered above a defined angle (most commonly >2.5° from the incident light beam).

Upon making these comparisons, the haze meter assesses how “clear” or “cloudy” a material is. This is one of the measurements that enables manufacturers to determine whether products example criteria has been met prior to shipment.

Ease of operation is a standard feature in most modern haze meters. They come with user-friendly digital interfaces, automatic calibration, and data logging software. Research laboratories and production lines where the optical properties of materials are of primary concern are the most common sectors for these instruments.

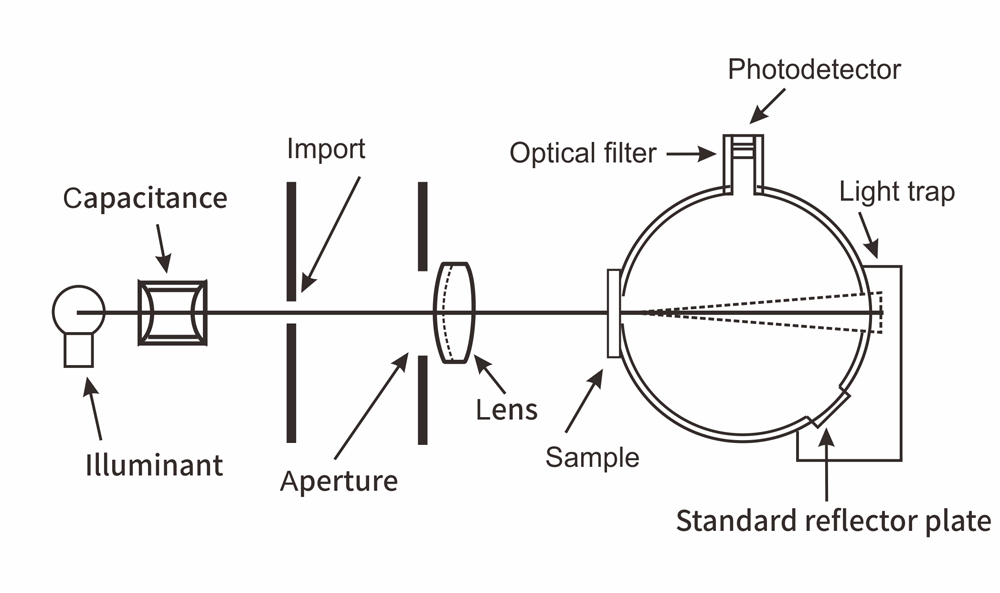

Working Principle of a Haze Meter

A haze meter operates on the principle of measuring transmitted and scattered light. Here is a simplified explanation.

For the sample, a parallel beam of light is directed onto it, and of light is transmitted straight through, while light is scattered in different directions and over the material, it is imperfect, impure, or has a rough surface.

An integrating sphere or a photodetector collects the directly transmitted and the scattered light. The haze value is determined as the proportion of the scattered light to the total transmitted light as a percentage.

Haze (%) = ( Scattered Light / Total Transmitted Light) * 100

For example, if a sample permits 90% of light to pass, with 5% of it scattered, the haze value would be 5.5%. This means a haze value of 5.5 would be less haze. Less haze means clearer material. A higher haze value means the material is cloudy.

Haze meters utilize LED or halogen light sources and are primarily designed to meet the ASTM D1003 standard for haze meters. This allows for the taking of reproducible measurements. Some of the more sophisticated meters designed for production environments have the ability to automatically compensate for ambient light interference.

Components and design of a Haze Meter.

For a haze meter to deliver accurate readings, it must have a number of well designed components.

·         Light Source: Provides a stable, uniform light beam, (LED or halogen).

·         Sample Holder: which holds and secures the sample in place.

·         Integrating Sphere: to measure the total amount transmitted. Direct and scattered light is captured.

·         Photodetector: Measures the transmitted and scattered light.

·         Display/Interface Shows haze and transmittance results and offers data logging capabilities.

Advanced haze measuring devices now include USB and wireless data transfer capabilities for easy connection to computers and quality control systems. Certain devices provide a range of functionality, including transmission and reflection measurement for analysis of both transparent and opaque materials.

Ergonomic automation, calibration, and touch screens embedded in the systems of the industries and laboratories of today provide reliability and ease of use.

Compliance and Standards (ASTM, ISO, JIS)

Consistency and comparability are governed and maintained in haze measurement through the use of International recognized standards. The ASTM D1003 standard has gained the greatest acceptance, which provides methods for measuring haze and luminous transmittance of clear plastics.

·         ASTM D1003: Specifies the use of a haze meter with an integrating sphere and standardizes the light source, detector, and geometry.

·         ISO 13468-1 and ISO14782:  Provide similar methods for measuring haze and total transmittance for plastics and films.

·         JIS K7105: Japanese Industrial Standard equivalent to ASTM D1003 for measuring haze in plastics.

Conformity to these standards guarantees that haze readings will be accurate, repeatable, and universally accepted. Businesses and laboratories that implement ASTM or ISO principles can compare outcomes and ensure cross-batch production consistency.

Applications of Haze Meters in Various Industries

Haze meters are crucial for industries that demand high standards of precision regarding the example, transparency, and overall appearance of materials. Below are some industries where haze measurement is important:

1. Measuring Haze in the Plastic Sector

In the plastic industry, the example of the plastic is extremely important in determining the quality of the end product. Haze meters are used to ensure that the plastic sheets, films, and containers are adequately transparent. Haze testers for plastic identify problems such as uneven extrusion and contamination, allowing producers to assure the plastic remains visually clean and ready for the market.

2. Manufacturing and Testing Haze in Glass

Haze meters are used in the glass industry to test the example and light diffusion in glass products such as windows, windshields, and screens. Especially when it comes to glass used in cars and buildings, manufacturers must comply to stringent standards to ensure safety and visual example.

3. Film, Coating, and Display Assessments

Displays and optical coatings require low haze levels to enhance the example and vibrancy of images. Haze meters assess the transparency and performance of films and coatings (anti-fog and anti-glare). Haze meters function to preserve the optical quality and materials compliance.

Quality Control Haze Meter Advantages

Measuring optical properties is the least function of a quality control haze meter. It supplies pivotal information that impacts a manufacturer’s quality of production and consistency and operational productivity.

1. Consistency of Product Clarity

Manufacturers are able to measure haze, and ensure a defined degree of transparency is uniform across a given production. For products like tempered glass and packaging films, consistent haze means recurring customer satisfaction.

2. Accuracy of Manufacturing

Haze levels are susceptible to the slightest changes in the composition of the material, ambient temperature, and parameters of the process. Haze meters offer the means of identifying and correcting such changes. This reduces process dispersion and waste.

3. The Impact on Costs and Rejection Rates

Without any haze measurement performed, the final inspection stage could reveal faulty materials that lead to costly rejection. Conducting regular haze measurement during different production stages enables the identification of issues early enough, thereby minimizing the costs associated with waste, rework, and unnecessary expenses.

4. Empowering Customer Trust

The customer base in the optics, automotive, and electronics industries expect a certain level of visibility and transparency with their products. Integrating ASTM or ISO compliant haze meters into your operations further strengthens this trust. It shows the organization’s willingness to adhere to internationally recognized quality standards.

Factors that Affect Haze Meter Readings

Most haze meters give precise readings, but some factors have an effect. They must be recognized and controlled to achieve dependable measurements.

1. The Surface of the Material and The Preparation

The optical quality of the prepared sample is crucial for haze readings. The presence of scratches, fingerprints or dust is meant to be removed is to be answered in.

2. Effects of Environmental Conditions and Surrounding Light

In situations where the haze meter is used in environments with surrounding light, the readings might be affected because additional light might interfere with the meter’s internal optical system. Well-designed equipment uses light-tight chambers and is able to adjust to varying surrounding light conditions. Repeatable measurements demand the same environment be maintained for all tests.

3. Maintenance and Calibration of Equipment

Calibration at regular intervals is critical to preserve the haze meter’s accuracy over time. According to manufacturer’s specifications, instruments should be calibrated at set intervals using certified reference standards. Failure to implement appropriate calibration will lead to drift and disparity in results.

4. Sample Dimensions and Hue

Sample haze readings will be influenced by the optical density and color of the sample. Light may be scattered differently by thick and tinted materials, as opposed to clear, materials. As a result, comparisons should be made between samples with the same thickness and structure.

Controlled factors will enable manufacturers to provide more reliable and standardized haze measurements in accordance with international quality standards.

Haze Meter Usage

While using a haze meter might look simple, accuracy and repeatability rely on appropriate methods.

1. Sample Preparation

·         The sample must be prepared by ensuring it is clean and free of scratches, dust, and oil.

·         Please cut it to the recommended sizes based on the haze meter’s sample holder.

·         Avoid touching the sample as much as possible.

2. Sequential Measurement Instructions

1.       Power haze meter and wait a few minutes for it to stabilize.

2.       Use the calibration glass or standard reference to calibrate the instrument.

3.       Place sample in the holder. Ensure that it is flat and in proper alignment.

4.       Close the measurement compartment to prevent interference from ambient light.

5.       Initiate the test: haze and transmittance results will be provided on the display.

6.       Document the data, or export it to a predetermined folder designated for quality control.

3. Ensure Accurate Results By:

•         Always performing calibration before a measurement session.

•         Taking several measurements to determine the average and lessen the fitting error.

•         Regularly cleaning the optical path.

•         Leaving the haze meter in a temperature and humidity controlled environment.

Proper use increases the instrument’s accuracy and lasts much longer. This is the main reason that manufacturers training programs on haze meter measurements.

Picking a Suitable Haze Meter Based on Your Sector Needs

Understanding your application, your materials, and their quality specifications will help you arrive at the most appropriate choice. The following outlines the most important considerations:

Most Important Considerations

•         Measurement Range: Confirm that the instrument can cover and accurately assess the low and high ends of the haze scale.

•         Sample Size Compatibility: Evaluate the instrument’s capacity concerning your materials, which may include sheets, films, and irregular 3D shapes.

•         Standards Compliance: Confirm compliance with ASTM D1003, ISO 13468, and JIS K7105.

•         Data Management: Higher end equipment may include functions such as remote connectivity, real time monitoring, and system software.

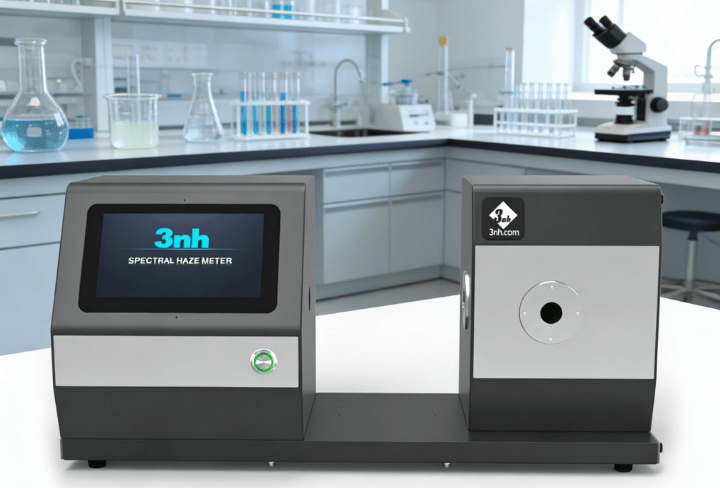

Portable and Bench-Top Units

Portable haze meters may be used for rapid field inspections and preliminary testing. Benchmark units are designed for lab and production line use and are built to deliver exceptional accuracy, dependability, and steady control for a prolonged operational timeframe.

Haze Meters of Choice

Torontech, BYK-Gardner, and HunterLab are major players in the production of high precision global standard haze meters. Their equipment is characterized by high repeatability, self calibration, and compliance with global regulations.

Haze meters of your choice is the determining factor for a production line pest in quality compliance, operational efficiency, and seamless control.

Haze Meter vs. Spectrophotometer – What’s the Difference?

Although the two instruments perform light measurement, they operate under different principles and for a haze meter and a spectrophotometer, different light measurement functions.

1. Purpose and Working Comparison

A haze meter is designed to quantify the extent of light that is scattered by a haze member, thus determining the cloudiness or diffusion of the member.

A spectrophotometer, however, is designed to quantify the absorption of light of a certain color which helps to determine the color characteristics of the sample.

A haze meter evaluates example and diffusion, while a spectrophotometer evaluates color accuracy and transparency.

2. When to Use Each Instrument

•         Use a Haze Meter when measuring the transparency, light diffusion, and optical example of plastics, glass, and films.

•         Use a Spectrophotometer when the focus of the analysis is on color and pigment composition and the reflection and transmission of light.

In the packaging industry, the spectrophotometer and haze meter serve complementary functions. The spectrophotometer is used to ensure color consistency, while the haze meter provides the needed color example.

3. Spectrophotometer Limitations in Haze Measurement

While a spectrophotometer measures light transmission, it is not capable of measuring the scattered light, thus making the use of a spectrophotometer for haze measurement more incomplete and inaccurate. For precise haze readings, use a dedicated haze meter that is compliant with ASTM D1003 or ISO 13468.

Conclusion

In the current era of quality control, the haze meter is a vital instrument that quantitatively assesses the light scattering of transparent materials, including plastic, glass, and films. It guarantees the products meet the standards of safeness and aesthetic uniformity, ranging from packaging materials to the screens of mobile devices. Accreditation to ASTM D1003, ISO 13468, and JIS K7105 standards globally trusted demonstrates the credibility of the hazard light meter. When combined with the latest technologies, such as Artificial Intelligence and automation, haze gauges calibrated and maintained to industry standards will amplify their reliability and efficiency with respect to operational value.
