Difference Between a Colorimeter and a Spectrophotometer

One of the strongest capacities in the presentation of products and branding is color. Constant color quality is not only desirable, but necessary to the industries involved in printing, automotive, textile production, and food manufacturing. The customers are used to seeing a certain product in a definite color, and any slight change will lead to either complaints or rejection. This is the kind of consistency that cannot be attained without special instruments of measurement of color.

One of the most common instruments of this type is the spectrophotometer and the colorimeter. The two are supposed to measure and compare color, but they vary a great deal regarding their technology, accuracy, and applications. It is well worth knowing such differences to make more educated purchases of equipment and have a functional workflow.

Colorimeters and Spectrocolorimeters

A colorimeter and a spectrocolorimeter might seem to have the same purpose at first glance. Both determine color and turn it into numbers that can be compared, stored, or examined. The similarities, however, end with the fundamentals.

A colorimeter can be used when the assessment is needed quickly in situations in which a lot of accuracy is not needed. However, high-definition measurement functions are available when using a spectrocolorimeter, which records more detailed spectral data to be reviewed. Each hair purpose, and choosing the appropriate one, is dependent on the needs of the given task.

Colorimeters

Colorimeters estimate color according to the human eye and portray the color using red, green, and blue suppressed sensors. The device illuminates the sample with light, identifies the reflected light, and determines the color values through the ratio of the amount of each wavelength, which is absorbed or reflected.

Colorimeters are especially helpful in taking measurements of the color difference of samples. In another example, a colorimeter can rapidly verify that a batch of printed labels has been printed to meet an approved standard in a packaging production line. The product is easy to carry and has simple controls so that it can be used in an on-site inspection.

Features and Core Characteristics of Colorimeters

A variety of features of Colorimeters make them essentially good in some applications:

● Speed of Operation: They give Instant readings with little setup. That is ideal in high-action settings.

● Lightweight Design: This makes them in the form of portable units, which can be used easily to conduct field assessments.

● Low Training Requirement: The Operators can learn basic functions in a short time.

● Budget-Friendly: They have an affordable entry cost compared to high-end color measurement devices.

● Practical Accuracy: They can easily be enough in work where only small deviations are allowed.

Spectrocolorimeters

A spectrocolorimeter is an instrument whose functions are also simplified as those of a colorimeter, but as precise as those of a spectrophotometer. A spectrocolorimeter, unlike a normal colorimeter, reads reflectance or transmittance at numerous fine sub-bands of wavelength.

The method will result in a profiled spectral curve that gives more information on the location where the refined color harmonization. The paints manufactured on vehicles, expensive fabrics, and plastics depend on spectrocolorimeters to get the right scales of coloring. Also, those materials or topographies that are tricky.

Features and Core Characteristics of Spectrocolorimeters

The design of spectrocolorimeters gives them a usage in which accuracy cannot be replaced. These features make spectrocolorimeters quite a priceless tool in any organization where the value and quality of production depend on the color perfection.

● Full Spectrum Measurement: It can capture data at discrete wavelengths to make it more accurate.

● Advanced Analysis Tools: It also supports advanced software in order to perform advanced color management.

● Broad Application Range: It may be applied on glossy, matte, textured, or transparent surfaces.

● Stable Calibration: It will behave the same with each other on repeated measurement.

● Customizable Aperture Options: Use on all sizes of samples and varieties of surfaces.

A Guide to Choosing the Best Spectrophotometer

A purchase of a spectrophotometer must be appropriate in line with the working conditions. The possible implications of choosing an incorrect model would include additional expenses, efficiency problems at the working level, and even a reduction in the quality of the product. Being aware of what is critical during the selection process enables the buyers to generate superior decisions in the long run.

1. Application-Specific Requirements

Measuring capabilities are required in different industries. As an example, a cosmetics firm may wish to be able to apply color to creamy or powdery surfaces, and a textile manufacturer needs an instrument to measure flexible, woven texture. The type of material, the finishing of the surface, and the environment are the key considerations needed in choosing the correct device.

2. Accuracy and Resolution

The spectrophotometers required in the high-precision applications are of strict tolerance levels and high resolution. As an example, an automotive paint shop can not even tolerate the slightest deviation, as all mismatched panels would be obvious. At higher resolutions, the device is able to see very minor disparities between samples that are important in color-critical production.

3. Ease of Use and Workflow Integration

The production lines should not be slowed down by spectrophotometers. The intuitive touchscreens, ease of operation with calibration programs, and rapid measurement cycles of these models aid in minimal impact of change on the routine efforts. Direct transfer of data is also possible with colour management software compatibility. This ensures that errors that would have otherwise been made through manual entry of data are avoided.

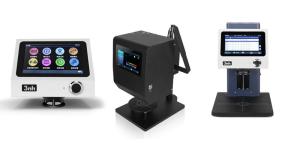

4. Portability vs. Benchtop Models

Portable spectrophotometers are perfect for running color checks in the field, at points of sale, or when large manufacturing facilities need to be mobile. The benchtop models, however, are more stable in terms of measurement. They are usually more applicable to laboratory experimentation or batch approvals in which precision is demanded.

5. Light Source and Geometry

Accuracy depends on the quality of a spectrophotometer's light source. As an example, LED members of the systems offer consistent light at all times, whereas xenon lamps deliver strong lights, used in making a high-precision measurement. Geometry, e.g., diffuse/8° or 45°/0°, influences how the device picks the light that is reflected off various surfaces. This is essential with textured or glossy surfaces.

6. Advanced Features

Performance can be enhanced by additional features in a major way. Gloss measurement can help in analysing the reflection of a surface that may interfere with colour. UV filters can be applied during the measurement of fluorescent substances, whereas variable apertures enable measurement of small details and large areas without changing instruments.

Selecting the Right Aperture: A Practical Guide

1. Understanding Measurement Aperture Sizes

Aperture defines the area of the sample that will be measured. Due to the large aperture areas, a large area for color averaging may help where the materials have random patterns. In comparison, small openings concentrate on localized targets, and this is essential in the patterned surface or multi-colored surfaces.

2. Choosing the Right Measurement Aperture

The wrong selection of the aperture may provide erroneous measurements. As an analogy, a small printed logo measured on a large aperture may have a background color that in the reading. By contrast, the small apertures of an opaque, homogeneous surface may unnecessarily lengthen the time of measurement.

3. Common Aperture Sizes Across Various Applications

The choice of aperture size is crucial to where accurate measurements are ventured. Various applications need certain apertures to accommodate the scale and the details of the sample. This can prevent variability in readings as well as minimise errors when selecting the proper-sized scale.

● 4 mm – Fine graphics, small product parts of jewelry are used. This hole can highlight tiny details and does not entrap extra colors in the periphery. It is particularly applicable to decorative motifs, elaborate logos, and small images painted on a surface.

● 8 mm – A common size of so many consumer product inspections. It has a reasonable coverage depth; thus, it is appropriate in terms of packaging, mid-sized components, and depth of pattern detail.

● 20 mm – This is good on fabrics, on painted walls, or even large panels. This slit takes a broad surface area, and therefore cannot be used in the evaluation of uniform color on large flat surfaces. It is mostly used in checking the qualities of textiles, large production of plastic sheets, and wall coatings.

The Significance of Color Measurement in Quality Control Processes

In competitive markets, the regularity of color in the product is equivalent to durability or quality. Take the example of a fashion brand, whereby every item in a collection should be of the same tone throughout. Whether at the time of production or the production location.

The manufacturers can place and maintain tight tolerances through the use of color measurement tools. This will minimize the number of rejected batches, save on the length of gaining approvals, and offer better customer satisfaction. Companies save time, resources, and money by detecting the deviations in time.

Colorimeter Spectrophotometer Common Fixes for Troubleshooting Issues

Even the best devices require maintenance and occasional troubleshooting. Some common issues include:

1. Calibration Drift

In the long run, readings can slowly drift towards false values. This usually occurs through the change of environment or constant usage under different circumstances.

Use the reference tiles supplied by the manufacturer to recalibrate regularly to maintain accuracy. Drift can also be alleviated by storing the device at a stable temperature.

2. Inconsistent Readings

The difference in the readings could be because of dirt and dust or even a scratch on the measurement lens. The lens should always be cleaned carefully using a cloth approved by the manufacturer and should also not be touched directly. Avoid changing the position of the sample so that the differences in measurements are minimized.

3. Software Connection Errors

The installation of outdated software drivers may lead to failure of a device to transmit data accurately. It is imperative always to have the most recent firmware update installed and compatible with your system. Connection problems may also be limited with the use of good-quality data cables when normal operations are followed.

4. Light Source Wear

With time, measurements could be compromised because of degraded bulbs or LEDs. Interchange spent light sources on the basis of the recommendations of the manufacturer. So as to ensure that there is even illumination at all times. Prevent direct contact with excessive moisture or high temperatures, which promote higher rates of light source degradation.

5. Mechanical Damage

With time, measurements could be compromised because of degraded bulbs or LEDs. Interchange spent light sources on the basis of the recommendations of the manufacturer so as to ensure that there is even illumination at all times. Prevent direct contact with excessive moisture or high temperatures, which promote higher rates of light source degradation.

FAQs

1. What is the main difference between a colorimeter and a spectrophotometer?

A colorimeter can determine basic RGB values. Whereas a spectrophotometer can be used to further analyze all spectral data values to be more precise.

2. Which industries commonly use colorimeters?

Practically, colorimeters find uses in printing, textile, packaging, and food processing industries to conduct a fast test of color.

3. Why is a spectrophotometer more accurate than a colorimeter?

It measures light at different wavelengths, rendering elaborate spectral curves to be able to match the color exactly.

4. How often should a colorimeter or spectrophotometer be calibrated?

The majority of the gadgets need to be calibrated either daily or before any important measurement session.

5. What aperture size is best for small printed designs?

A 4mm aperture is used on small and detailed printed designs or logos.

6. Can a spectrophotometer be used in the field?

Yes, there are portable ones, which are used to carry out the inspection and measurements in the field.

7. How do light sources affect spectrophotometer accuracy?

The stability and type of light source are also direct factors in the consistency and repeatability of measures of color.

8. What causes inconsistent color readings in these devices?

The variations are most commonly caused by lens contaminants, weaker sample positions, or low lighting conditions.

9. Why is color measurement important in quality control?

It makes products consistent in appearance and minimizes wastage, and helps ensure the integrity of a brand across batches.

10. Which is better for detailed quality control—a colorimeter or a spectrophotometer?

The spectrophotometer is superior to a quality control application that is highly detailed and has high accuracy.
