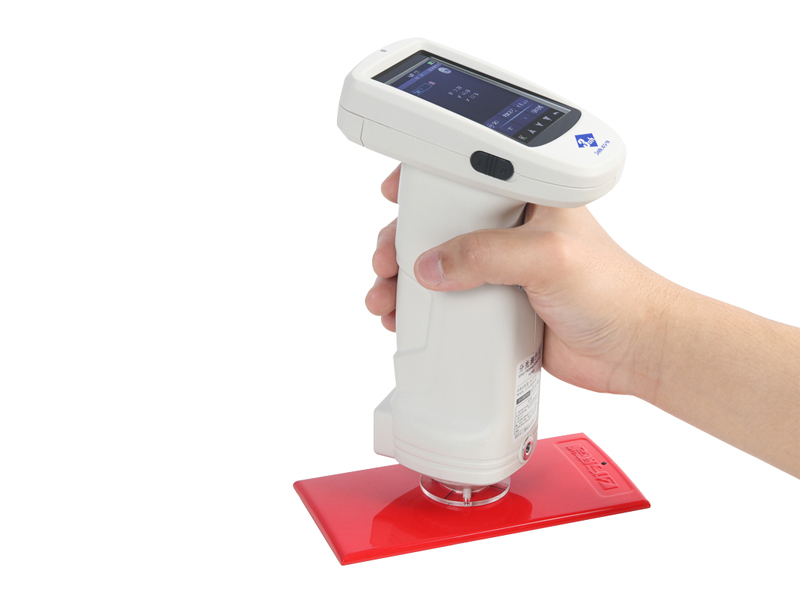

Delta E Colorimeter

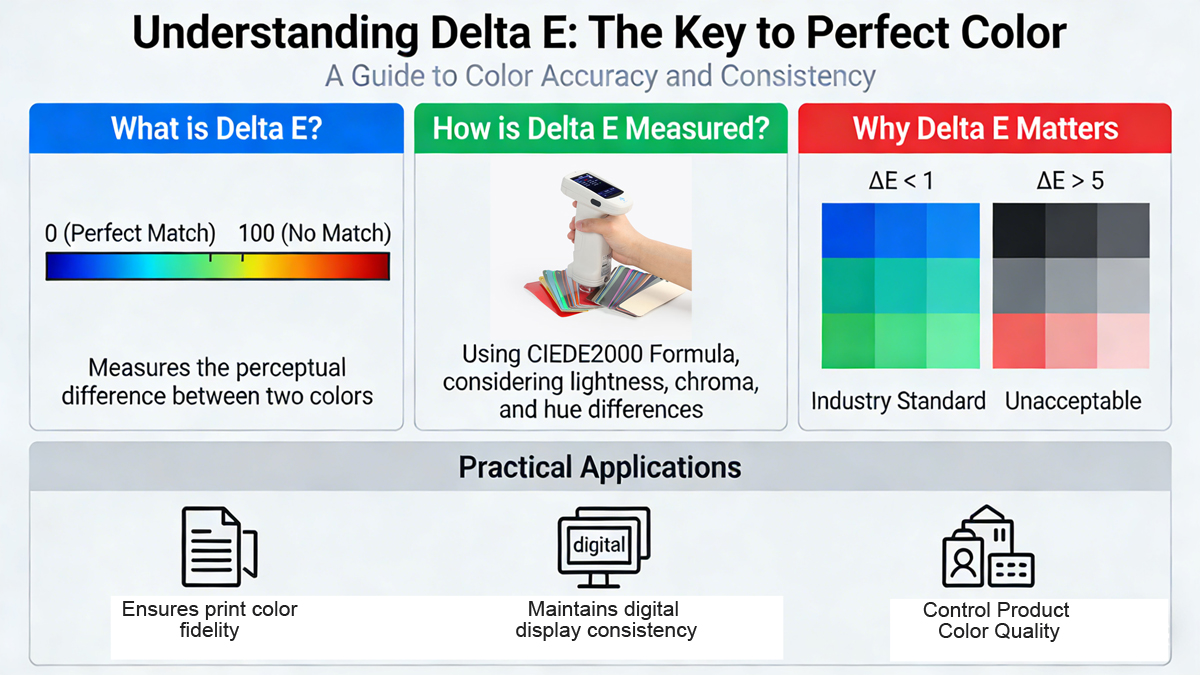

What Is Delta E? The Key to Achieving Color Accuracy

Delta E, also written as ΔE, is a number that explains how two colors differ based on human perception with the eyes. In the visually dominated industries such as printing, textiles, and automotive, exact matching and reproduction are essential to maintain brand and product standards. The difference can be accurately measured and ensured with a Delta E Colorimeter. Color printers also use delta e colorimetric devices to match the industry's expectation.

Accuracy ensures brand recognition; however, handling products that differ in batch number, date, or even production site is essential. Strict standards in performance delta e color meters help businesses monitor, control, and adjust color to required tolerances, maximizing efficiency and control. Delta E colorimeters help manufacturers avoid unnecessary processes due to errors and loss of customer satisfaction.

How To Perform A Color Test?

With a Delta cielab colorimeter, color tests can be performed, but with delta e precision and ease color tests can be performed. The Only two steps that guarantee consistency across the results are outlined

● Sample Preparation – The Sample surface is polished free of dust and illuminated evenly.

● Calibration – Prior to colorimeter utilization, the device is calibrated using a white or black standard tile considering black or white is the color opposite of all colors and preset delta e standards.

● Pick the Standard Color Measure – Identify the correct standard and pick the target or reference color.

● Measure the Sample Color – Position the colorimeter on the sample’s area to measure and record its color values.

● Compare The Results – The sample’s Delta E value is calculated confirming how well it matches the standard.

● Interpret The Data – Based on industry standards and requirements, Delta E’s below 1 are considered unnoticeable, while 1 to 2 is acceptable for most use cases.

Color difference delta E

“Color difference” is the difference between two colors in a certain colorspace and is usually labeled Delta E. There are several formulas for Delta E, including:

● ΔE*76(CIE76) – The most basic one, relies on the euclidean distance between two colors in lab* color space.

● ΔE*94(CIE94) – Accounts for difference in visual perception.

● ΔE2000 – This is the most sophisticated one, as it incorporates hue, chroma, and lightness into its calculations in a way that is closest to human eye appreciation of those elements

It is the precision and purpose of the work that will determine the choice of formula. At the same time, you can use our color difference calculator to calculate delta E.

The Importance of Delta E for Color Experts

For color experts, Delta E serves as a critical indicator of color fidelity. Designers, quality control experts, and even manufacturers depend on Delta E to confirm that the envisioned and actual colors match, especially in the final product. Especially in packing and branding, where exact shades are the identity of a company, Delta E metrics need to be adhered to, with no exceptions.

Elevated Delta E values may signal the presence of issues within raw materials, the printing processes, or even the surrounding environmental conditions. Sticking to strict Delta E limits allows businesses to retain product consistency, minimize waste, and safeguard their reputation.

Measuring Color: A Guide to Calculating Delta E

The steps to calculate Delta E are as follows:

● Recording Lab Values* – A colorimeter instrument captures a color’s lightness (L*), its green-red (a*), and blue-yellow (b*) values.

● Applying a Delta E Formula – Select from the following: ΔE76, ΔE94, or ΔE2000.

● Evaluating the Data – The resultant figure demonstrates the extent of deviation of the sample color from the original color.

For instance, a Delta E of 0 signifies perfect matching, and a Delta E greater than 3 is distinguishing for the average observer.

LAB* Color Measurement

The Lab* color space is one of the most preferred models used to measure colors as it is developed by The International Commision on Illumination (CIE) is because it closely matches human vision.

● L* means lightness given as 0 equals black while 100 equals white.

● a* represent the green–red axis with the following interpretations (negative equals green while positive equals red).

● b* represent the the blue-yellow axis with the following interpretations; (negative equals blue while positive equals yellow).

This three dimensional model captures and allows accurate color measurements across different materials and lightening thereby achieving standardization.

What is Delta E and Why Does it Matter?

Delta E matters because it quantify and transforms the subjective color perception of an individual into objective measurable data. This is helpful because person to person color can differ basing on many reasons such as; the light, tired, and perception Delta E takes and standardizes the process.

In the color printing and automotive parts manufacturing a mismatch of colors is a significant issue. Delta E measurement method prevents these errors around the world.

Let’s Review How Color is Measured

Measuring color requires capturing and saving the Lab* values of both the sample and the target. These coordinates are used to calculate the Delta E value. Important considerations are:

● Proper colorimeter calibration

● Proper lighting conditions

● Surface uniformity and texture

● Random error

● Repeated measurements

The Lab* Color Space

The Lab* color space is independent of the devices used to capture color. It is absolute meaning it measures color without reference to a monitor or print device. Because it is based on human vision (device agnostic), Lab* is the preferred standard for professional color matching. It is guaranteed that color perception will be the same regardless of devices used or medium.

Color Difference Testing for Pigments & Fillers: Application of Delta E Colorimeters in Production and Color Matching

Delta E Colorimeter Manufacturers

Well-known brands include:

● 3nh (Threenh) – Specializing in affordable and high-quality color measurement instruments.

● X-Rite – Known for their professional and industrial devices.

● Konica Minolta – Famous for color science and reliable hardware.

● HunterLab – Specializes in laboratory and industrial measurement instruments.

These manufacturers have Delta E colorimeters that differ in precision, portability, and functionality. Most of these devices are packaged with a software that can log, analyze, and report measurement data.

Delta E Colorimeter in China

In China, the manufacturing of Delta E colorimeters is in full swing. This includes affordable models for general use, as well as advanced devices suited for specific industries. 3nh and similar companies dominate the market with novel designs, easy-to-use software, and affordable prices. A number of Chinese manufacturers also sell overseas, making sure that all companies, big and small, have access to color measurement technology.
