TS7030 Portable Spectrocolorimeter

Completely Versatile, Compact Instrument TS7030

The TS7030 Portable Spectrocolorimeter takes color quality control to its highest level with D/8 design for the ultimate in color measurement preciseness, to provide stable color comparisons for materials and products wherever color control is important. Lightweight and portable, handheld TS7030 Spectrocolorimeter offer the convenience of bringing the device to the sample.


Key Highlights

  • CMOS dual-beam splitting sensor

  • Standard spaces like CIE LAB, XYZ, and s-RGB

  • D/8 optical geometry (SCI/SCE)

  • Two measurement apertures (φ8mm and φ4mm)

  • 400 - 700 nm full - waveband balanced LED light source

  • 2.8-inch TFT touchscreen ensures intuitive operation

  • Good repeatability (ΔEab ≤0.10) and inter-instrument agreement (ΔEab ≤0.3)

  • Suitable for quality control in industries like paints, plastics, and textiles

TS7030 Portable Spectrocolorimeter Instructions Operating Manual TS7030 Portable Spectrocolorimeter PDF
This TS7030 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

TS7030 is a new portable spectrocolorimeter with 3nh own core research and development technology. It is the high level colorimeter in spectral architecture. In addition to ensure accurate relative ΔE at the same time, it is also to ensure the accuracy of the absolute value of L, A and B for a long time. And it can pass the international standards and national standards of calibration any time any where. Using built-in silicon photodiode array (double row group 32) sensors, imported whiteboard, repeatability ΔE * ab is easily controlled within 0.06. The measurement speed and convenience of the operation makes it easy to use. TS7030 spectrocolorimeter can all quickly judge color difference measurement when connecting to PC software or not. With powerful functions and 8 mm aperture, it meets the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.



Application

With 8mm flat and tip apertures, TS7030 spectroclorimeter is widely suitable for the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc. TS7030 can adapt to any work area and make measuring samples an easy and cost-effective practice.



Technical Advantages

1.Adopt full waveband balanced LED light source

The full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband, and ensures the measurement speed and accuracy of the measurement results.

2.Adopt international common use d/8 SCI/SCE Synthesis technology

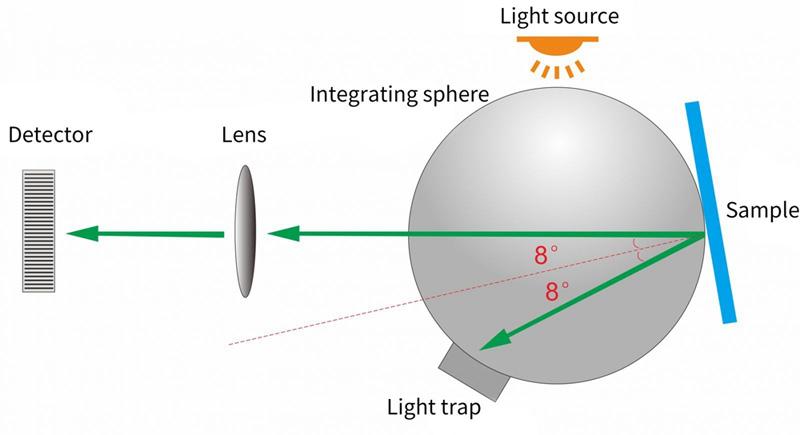

TS7030 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology. It is suitable for color management and quality control in various industries such as color matching and coating, textile, plastic, food, building materials, cosmetics, etc.

3. Ergonomic design and easy measuring device

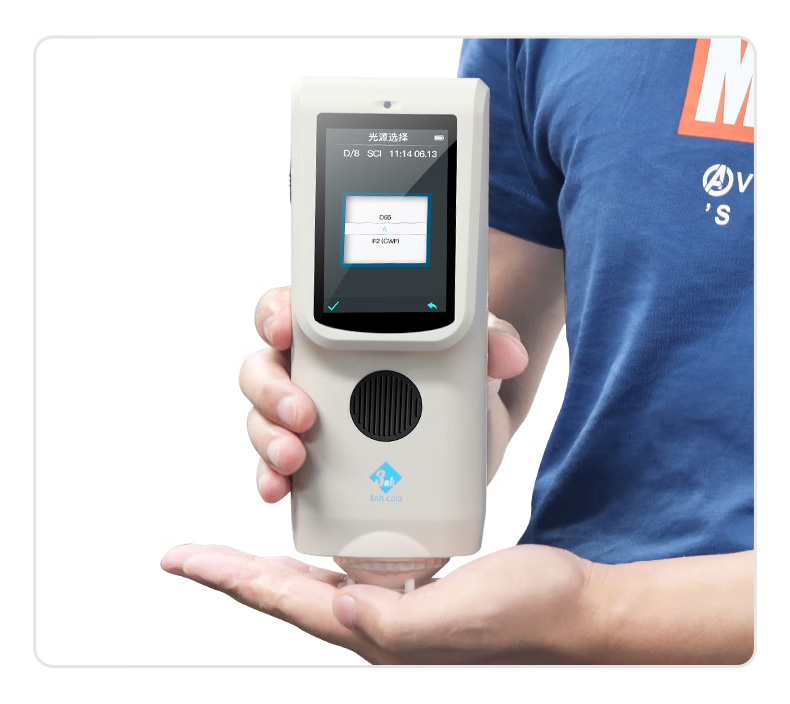

TS7030 spectrocolorimeter has a beautiful, smooth shape and comfortable grip, in line with the structure design of human mechanics, fit the palm for continuous testing, so that you can use it quickly and easily. An automatic measuring device is added, which is portable, quick and easy to measure.

4. Silicon photodiode array sensor (32 groups with double rows)

The dual-32 array sensor with larger area has strong light but not saturate, higher sensitivity of low light and wider spectral response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument.

5. Calirbation Certificate

Each TS7030 spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.

6. ETC real-time calibration technology

TS7030 spectrophotometer adopts imported standard white board, which is resistant to yelloping and dirt infiltration and can be wiped, ensuring the long-term accuracy of the instrument. An innovative ETC real-time Calibration technique is also used, with a built-in standard white board into the optical system, which is reliably accurate and repeatable for each Test.

7. Camera locating can clearly observe the measured area

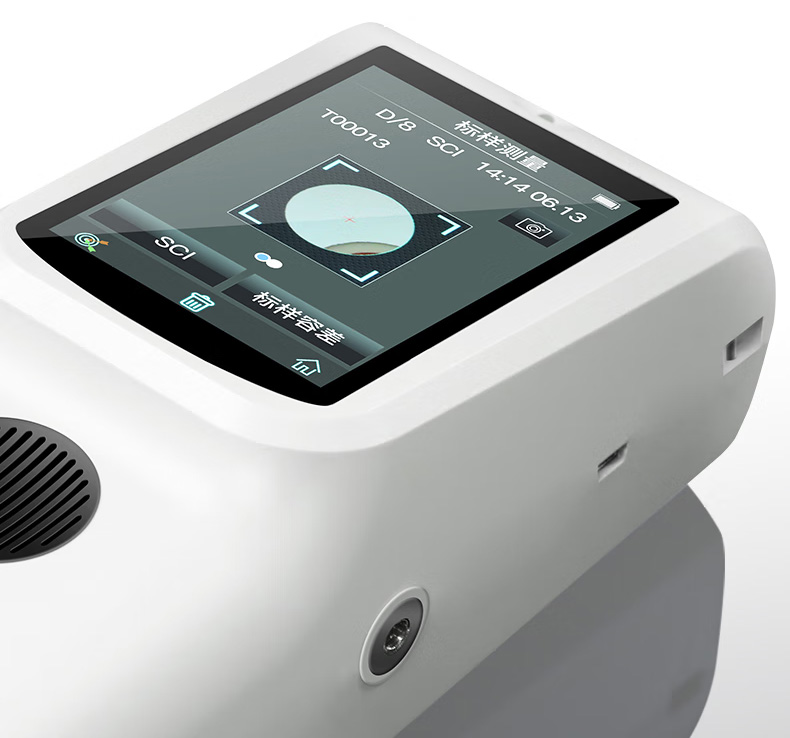

TS7030 spectrocolorimeter has a built-in camera for positioning, which can accurately determine whether the measured part of the object is the center of the target through real-time viewing by the camera, thus improving the measurement efficiency and accuracy.


TS7030 Color Management Software

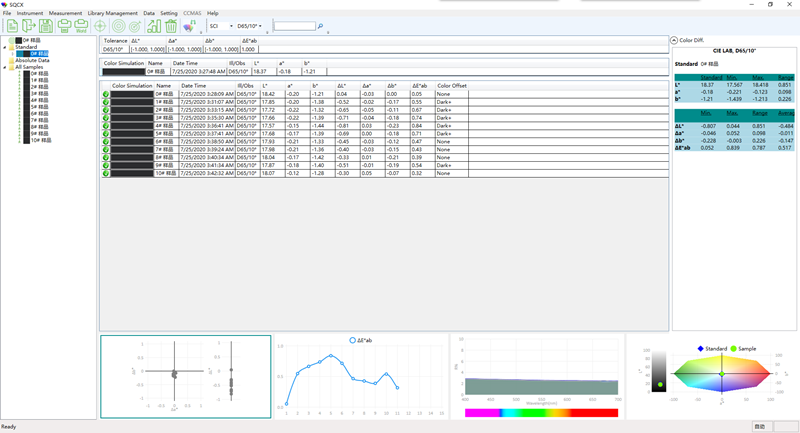

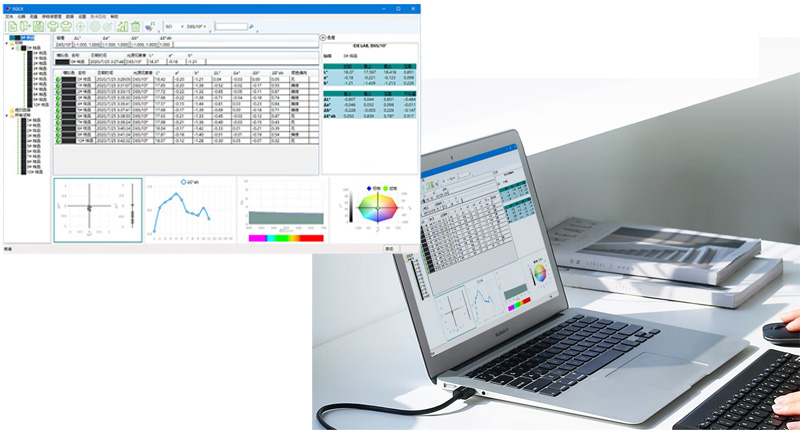

SQCX quality management software with TS7030 spectrocolorimeter is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.

SQCX_qualit_ management_software.png





 TS7030_Spectrocolorimeter_application

Technical Specification



Model TS7030
Optical Geometry D/8(diffused illumination, 8-degree viewing angle)
SCI/SCE Mode
Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic single apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Senso Silicon photodiode array (double row 32 groups)
Wavelength Range 400～700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range L:0~120; reflectivity:0~200%
Measuring Aperture Single Apertures：Φ8mm/Φ10mm
Specular Component SCI/SCE
Color Space CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search
Observer Angle 2°/10°
Illuminant D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy 0.01
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.06 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.3
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating,stabilizer cross position
Dimension L*W*H=81X71X214mm
Weight About 460g
Battery Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB
Data Storage Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE)
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture
Optional Accessory USB Micro Printer, Powder Test Box
Notes Technical parameters are only for reference, subject to the actual sale of the product




    Quick Color Comparisons Spectrocolorimeter TS7020





    The TS7020 Portable Spectrocolorimeter is a compact, handheld color measurement device designed to provide stable color comparisons for materials and products wherever color control is important. Lightweight and portable, handheld TS7020 Spectrocolorimeter offer the convenience of bringing the device to the sample











    Key Highlights












                CMOS dual-beam splitting sensor













                Standard spaces like CIE LAB, XYZ, and s-RGB













                D/8 optical geometry (SCI/SCE)













                Two measurement apertures (φ8mm and φ4mm)













                400 - 700 nm full - waveband balanced LED light source













                2.8-inch TFT touchscreen ensures intuitive operation













                Good repeatability (ΔEab ≤0.10) and inter-instrument agreement (ΔEab ≤0.3)













                Suitable for quality control in industries like paints, plastics, and textiles








    Our Valued Clients

    • BASF Plastic Company
    • Acros Pvt plastic

    FAQs About Spectrocolorimeter

    Threenh Technology colorimeter is shipped with an operating instructions and video of English version.If you need an electronic version of the user manual, you can download it from our website download center

    The gloss of the paint is defined by the measurement of light reflection at the surface of the paint with the help of a gloss meter. The angle and quantity of light reflected determine the level of gloss, with smoother and reflective surfaces having a higher level of gloss.


    a. It’s needed to perform manual calibration for NH310 when first starting.

    b. In the subsequent starting, NH310 will perform auto calibration at startup. No need to perform manual calibration.

    c. Suggestion: it’s best to perform manual calibration once a week or when NH310 measured data is not accurate.

    The ΔE (Delta E) formula of the CIELAB color space is usually used to measure color difference. The difference is measured in a colorimeter or spectrophotometer to gauge the level of perceptibility of the difference between two samples in terms of L*a*b*.


    a. Check whether the USB cable is connected. If not, please connect it. Check whether the connection is effective. You can re-plug the USB cable to test.

    b. If the USB cable is connected well but the interface still displays "USB Disconnect", please re-start the colorimeter and enter "Menu" -"Comm"to start the communication.

    c. Change the USB cable or change the USB port in you PC.

    Powder paint gloss levels are classified as:

    ● Flat: 0–10 GU

    ● Satin: 11–40 GU

    ● Semi-gloss: 41–70 GU

    ● Gloss: 71–85 GU

    ● High Gloss: 86+ GU


    These are measured at a 60° angle for standardization.
