NHG60M Small Aperture Gloss Meter

HG Series Touch Screen Gloss Meter HNG60M

HNG series economic gloss meter is independently developed by 3nh, with independent intellectual property. Manufactured according to International standard ISO2813and Chinesestandard GB/T 9754,it is the world's first full large touch screen gloss meter. With GQC6 PC software, gloss measurement is more convenient to use. Stable performance and high accuracy measurement makes it very popular all over the world.

Key Highlights

Large Touch Screen Operation, Fully Automatic Calibration
60° angle for semi gloss
Display 5 sets of measurement data
Basic measurement, statistical measurement, continuous measurement, QC measurement
Large storage to save over 5000 data
Input gloss value manually

NHG60M Small Aperture Gloss Meter Instructions Operating Manual NHG60M Small Aperture Gloss Meter PDF

This NHG60M Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

NHG60M micro aperture gloss meter adopts small aperture 2*4mm, with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

NHG60M gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

NHG60M Features:

1. Small aperture: 2*4mm

2. 60° angle for semi gloss

3. Display 5 sets of measurement data, good for comparison

4. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

5. Continuous mode to check uniformity over large areas

6. Connect to PC, more extend functions

7. Input gloss value manually

8. Large touch screen operation, easy to use

9. Beauty appearance, good man-machine communication interface

10. Powerful functions to meet many different requirements

11. Large storage to save over 5000 data

12. Built-in lithium ion rechargeable battery.

To enhance user convenience and facilitate data storage and analysis, the NHG60M is equipped with professional upper computer software, enabling professional and effective product measurement and data management. The NHG60M gloss meter boasts multiple features such as ease of use, stable performance, precise measurement, and an elegant design. Additionally, it comes with a built-in lithium battery for even greater convenience in use.

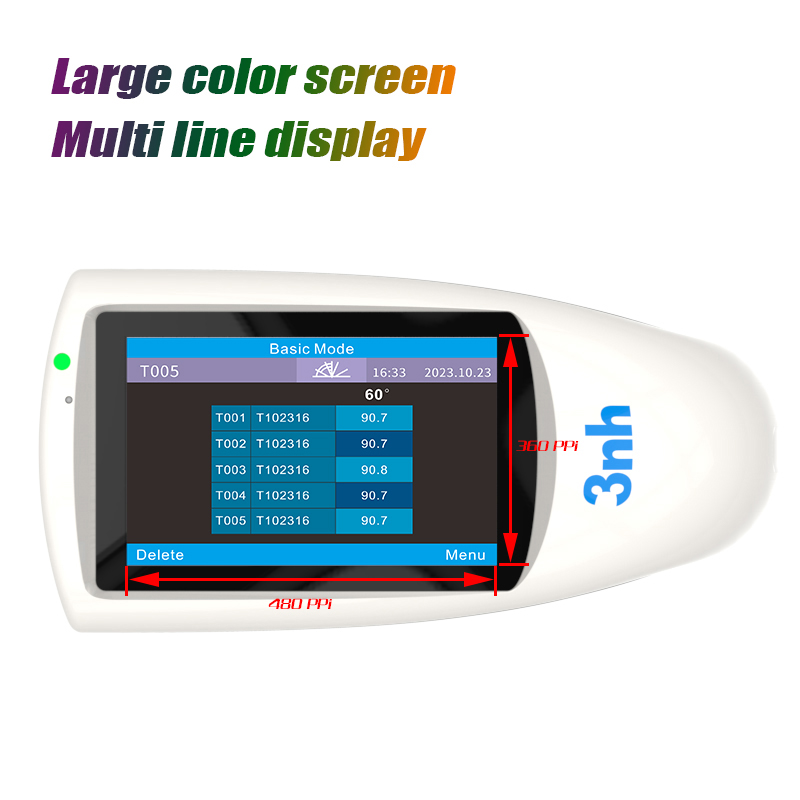

NHG60M_Gloss_Meter_large_color_screen

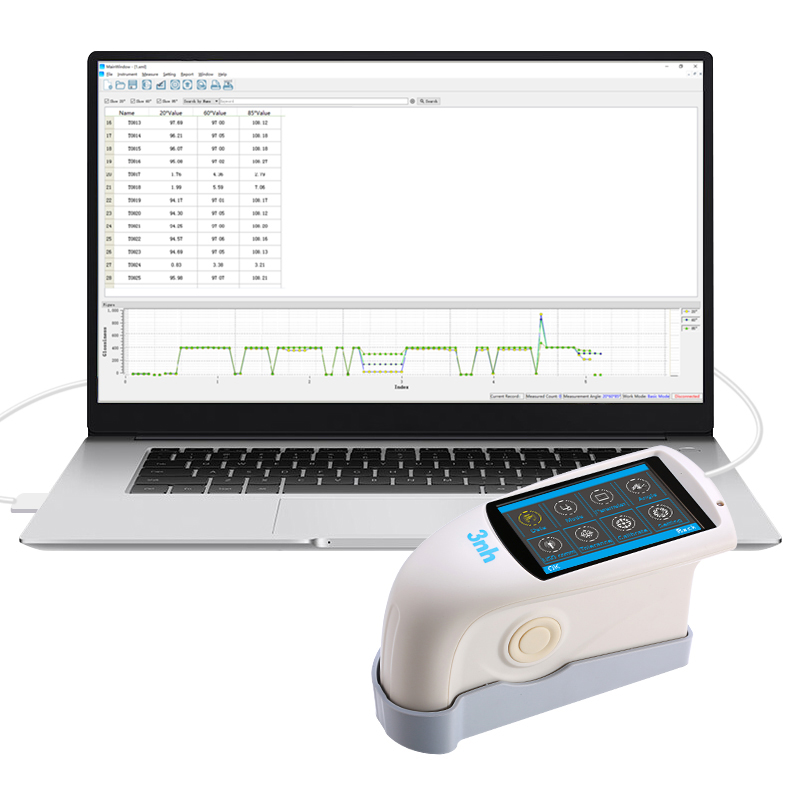

NHG60M_Gloss_Meter_connect_pc

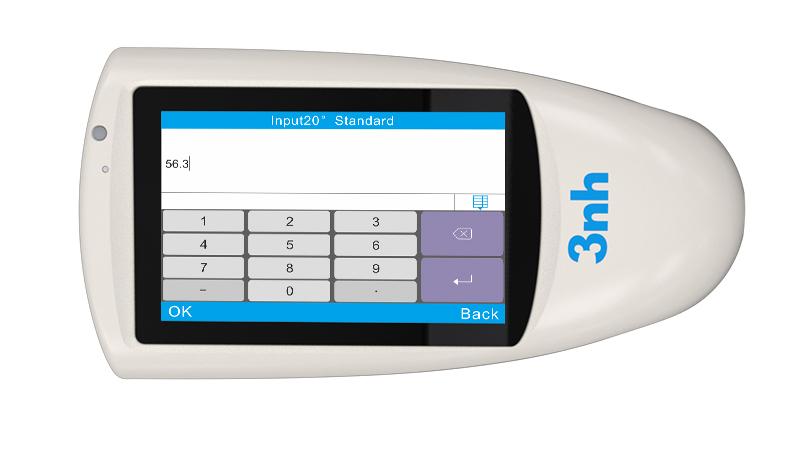

NHG60M_Gloss_Meter_gloss_value

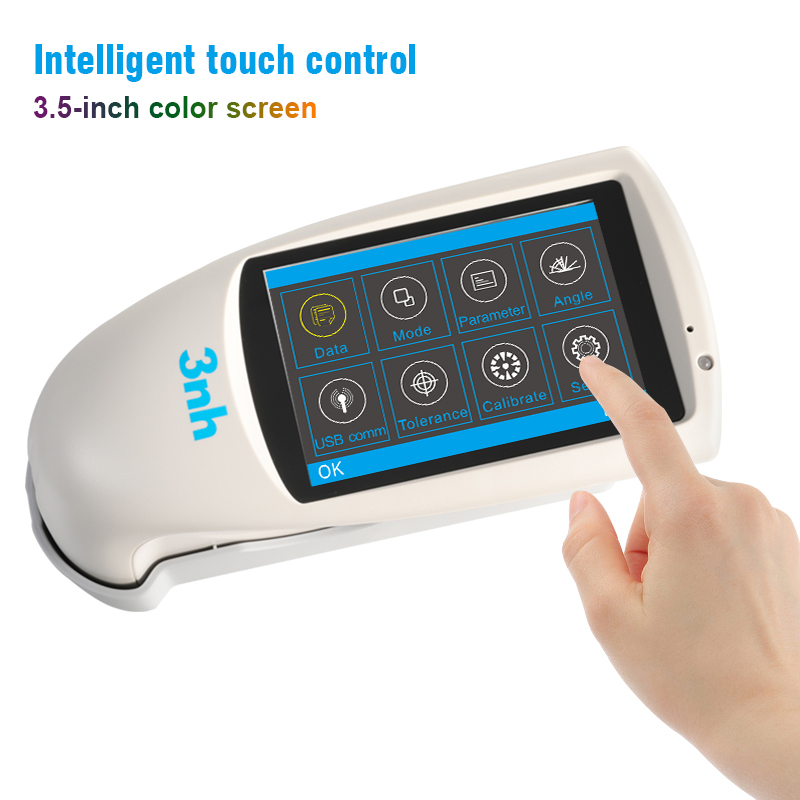

NHG60M_Gloss_Meter_intelligent_touch_screen

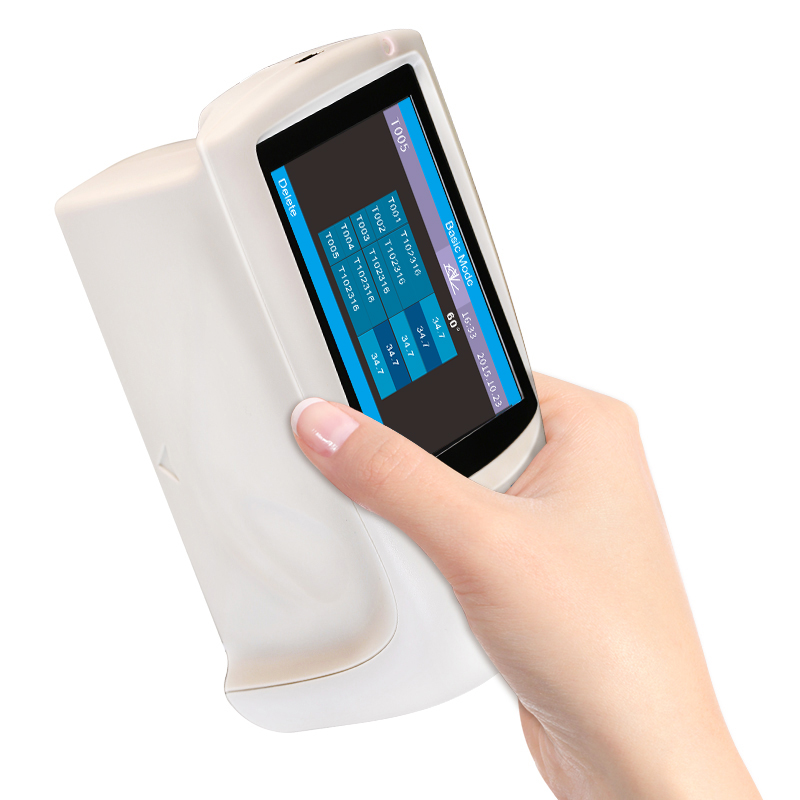

NHG60M_Gloss_Meter_Ergonomically_Designed

NHG60M_powerful_functions

NHG60M_Large_storage

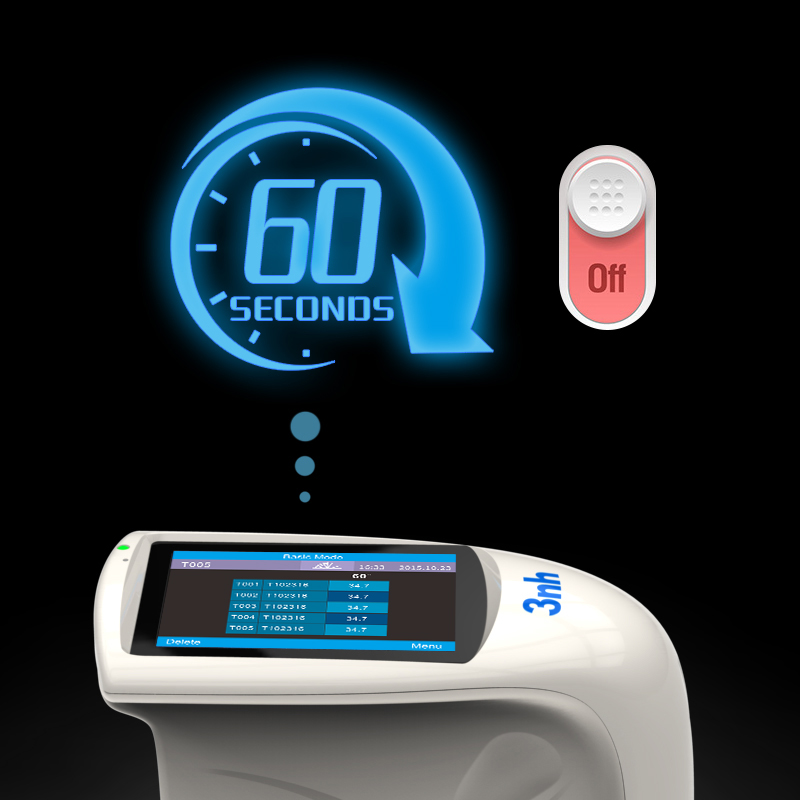

NHG60M_rechargeable_battery

Specifications:

NHG60M Micro Aperture Gloss Meter
Model	NHG60M
Measure Angle	60° Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457
Measuring Area (mm)	2*4
Measurement Range	0~1000GU
Division Value	0.1GU
Measurement Range Repeatability Reproducibility	0-10GU 10-100GU 100-1000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard	Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.5 , ± 1.5%
Measuring Time	0.5s
Dimension	LWH : 160mm75mm90mm
Weight	350g
Language	Chinese/English
Battery	3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing Screen	TFT 3.5 inch, capacitive touch screen
Interface	USB/RS-232
Data Save	Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software	GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature	0~40℃（32~104°F）
Storage Temperature	-20~50℃（-4~122°F）
Humidity	<85% relative humidity, no condensation

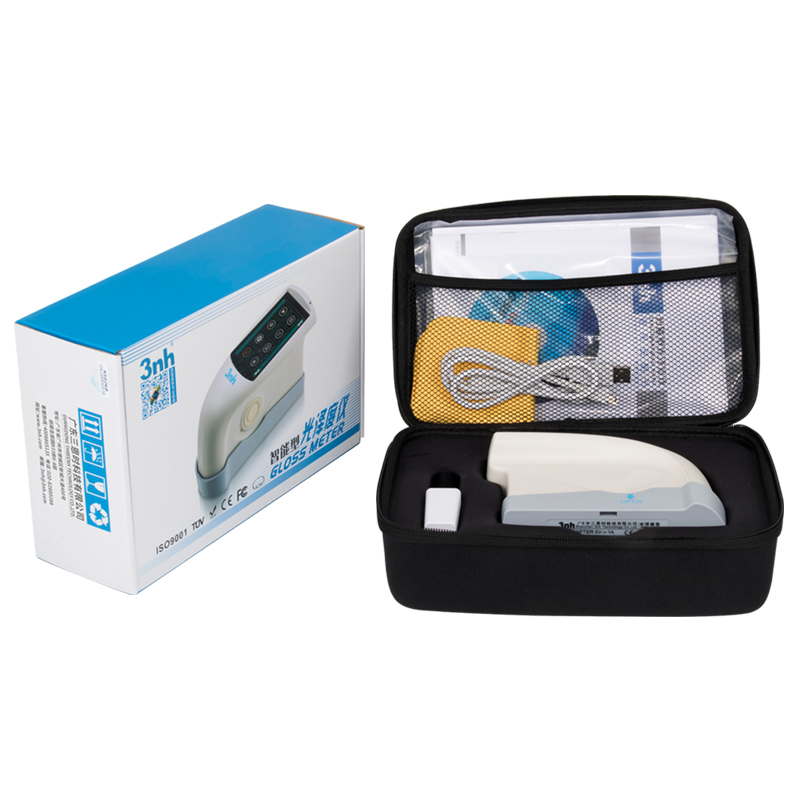

Standard Accessories	Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories	Miniature Printer
Note	The specifications are subject to change without notice.

12 Quality Inspection Processes

With 12 rigorous quality inspection processes in place, we ensure a high yield rate of up to 98% for batch processed precision parts.

DFM Analysis

Dimensional Tolerance

Material Testing

CNC Machining

FQC Detection

SPC / CPK

Problem Found

Problem Solving

OQC Detection

Surface Treatment

Full Inspection

Package

Our Valued Clients

FAQs About NHG60M Gloss meter

Powder paint gloss levels are commonly classified as:

● Flat/Matte: 0–10 GU

● Satin: 10–40 GU

● Semi-Gloss: 40–70 GU

● Gloss: 70–85 GU

High Gloss: 85+ GU
These ranges can vary by manufacturer and application angle.

Gloss is a broad term to describe the reflectivity of a surface. Whereas high gloss is a specific term that has the highest reflectance (usually more than 70 GU). High gloss finishes are shiny, mirror-like, and exhibit more surface blemishes than lower gloss finishes.

There is no generic mathematical formula for gloss value. Rather, it is measured directly with a gloss meter, which compares how strongly reflected light from a sample matches a standard (typically black glass with a known reflectance).

The gloss of the paint is defined by the measurement of light reflection at the surface of the paint with the help of a gloss meter. The angle and quantity of light reflected determine the level of gloss, with smoother and reflective surfaces having a higher level of gloss.

The gloss meter is used to measure the gloss level: it is a device that directs the light at a fixed angle and reads the intensity of the reflected light. The angles, such as 60°, 20°, or 85°, are applied depending on the type of surface and the range of gloss.
