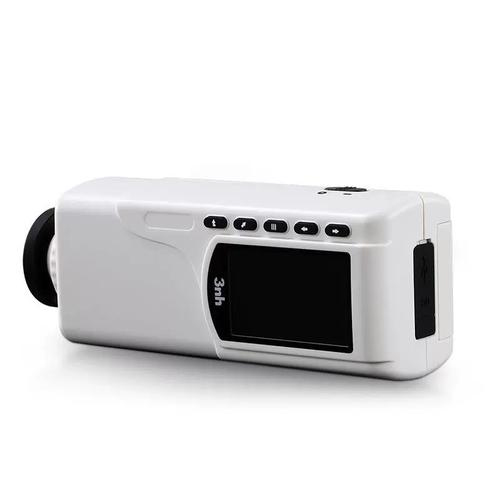

NR60CP Colorimeter-3NH

NR60CP Colorimeter

Perfect Partner for Color Measurement NR60CP

The NR60CP Colorimeter is a compact, handheld color measurement device designed for simplicity and portability; NR60CP brings you intuitive design, a high definition color screen, fast and accurate measurements, and convenient data reporting, is suitable for color detection and control in various occasions. It is an ideal choice for color management in garment factories, chemical factories, printing factories, automobile factories, hardware processing factories, mold factories, paint factories, etc.

Key Highlights

8°/ d optical geometry
Accurate spectra &Lab data , for color matching & delivery;
CIE LAB,LCh,XYZ, CIE RGB,CIE LUV Color Space
Φ8mmflat aperture; Φ4mmtip aperture
2.8-inch TFT screen for easy operation
Reliable repeatability (ΔEab ≤0.03) and inter-instrument agreement (ΔEab ≤0.4)
Large storage capacity, Apprx. 20,000 data;
On-site inspections, providing cost-effective color measurement solutions for entry-level applications

NR60CP Colorimeter Instructions Operating Manual NR60CP Colorimeter PDF

This NR60CP Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

Color Measurement Is So Easy

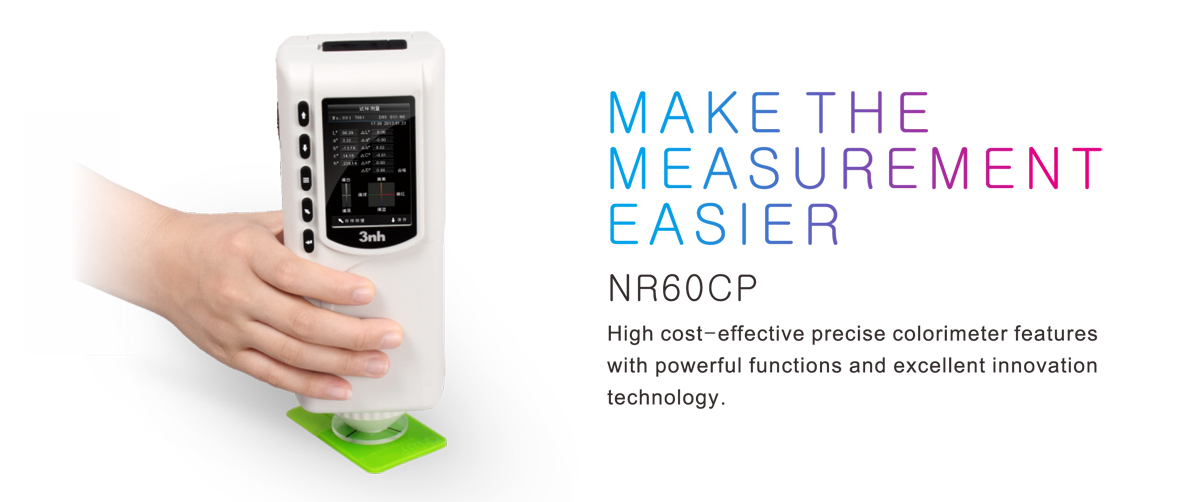

NR60CP cost-effective colorimeter has the advantages of high accuracy, powerful function and precise measurement which are warmly welcomed by customers. NR60CP is a completely versatile, compact color measurement instrument that can adapt to any work area and make measuring samples an easy and cost-effective practice.

Product Features

3NH‘s Next Generation Colorimeter

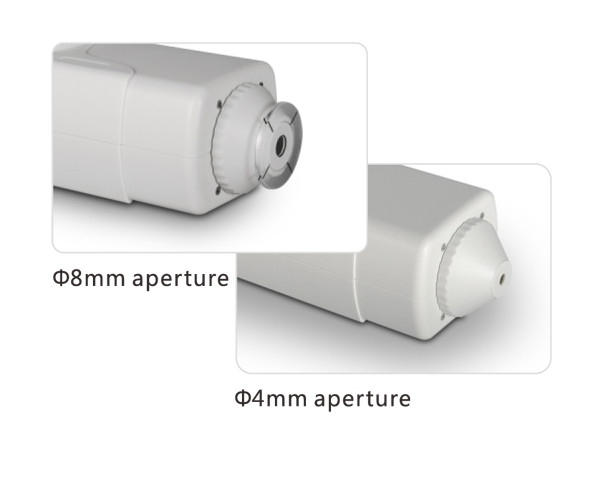

1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.

2. Higher measurement stability and accuracy, Delta E ab<0.03.

3. More color spaces, various color indexes, extensive applicability.

4. Double locating: illuminating locating and cross locating

5. Configured with high-capacity rechargeable Li-ion battery

6. Built-in white plate parameters and physical white calibration board, easy to operate;

7. New integrating sphere optical path design, more stable measurement;

8. Measurement data can pass national metrology authentication.

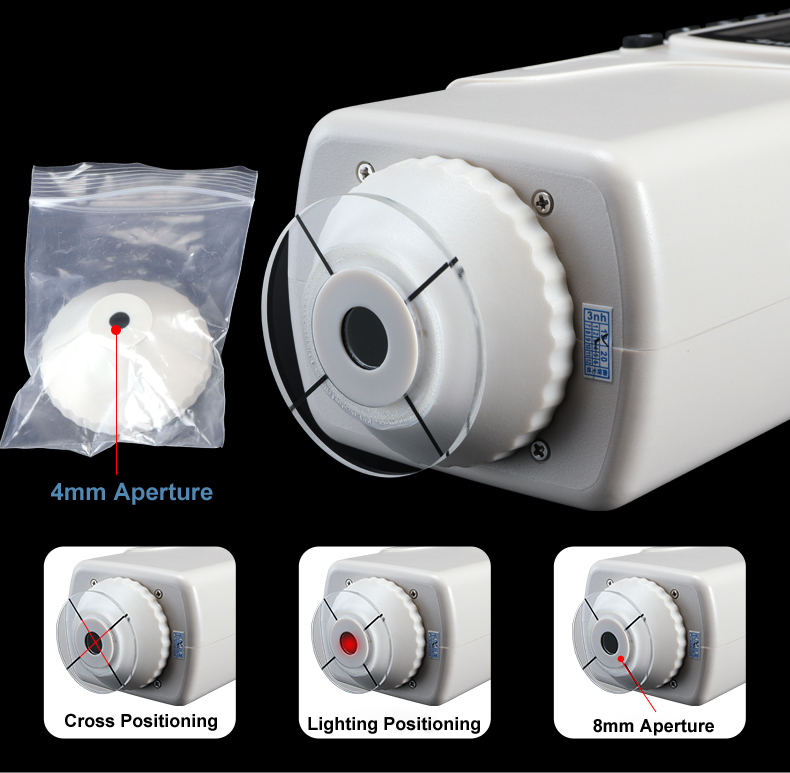

Dual positioning measurement

8/4mm measuring aperture, dual positioning of lighting and cross, suitable for multiple occasions

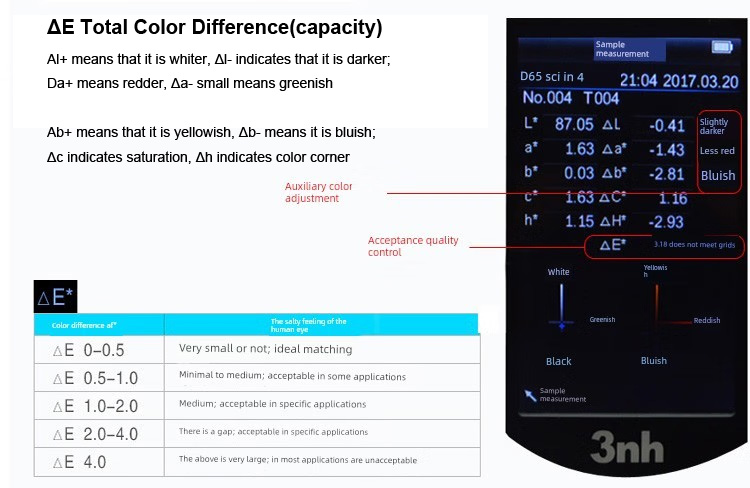

NR60CP detae total color difference

Application Industry

NR60CP spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can precisely measure kinds of color indexes in various color spaces and easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect to PC to achieve more extension functions.

The NR60CP multi-functional colorimeter is renowned for its powerful functionality and convenience. It is not only easy to operate but also boasts extremely high measurement accuracy, complying with international color management standards. Its built-in high-precision sensor can quickly capture and analyze the color of samples. The display precision of Lab values can reach 0.01, and the repeatability precision is △E < 0.03, ensuring the accuracy and reliability of measurement results.

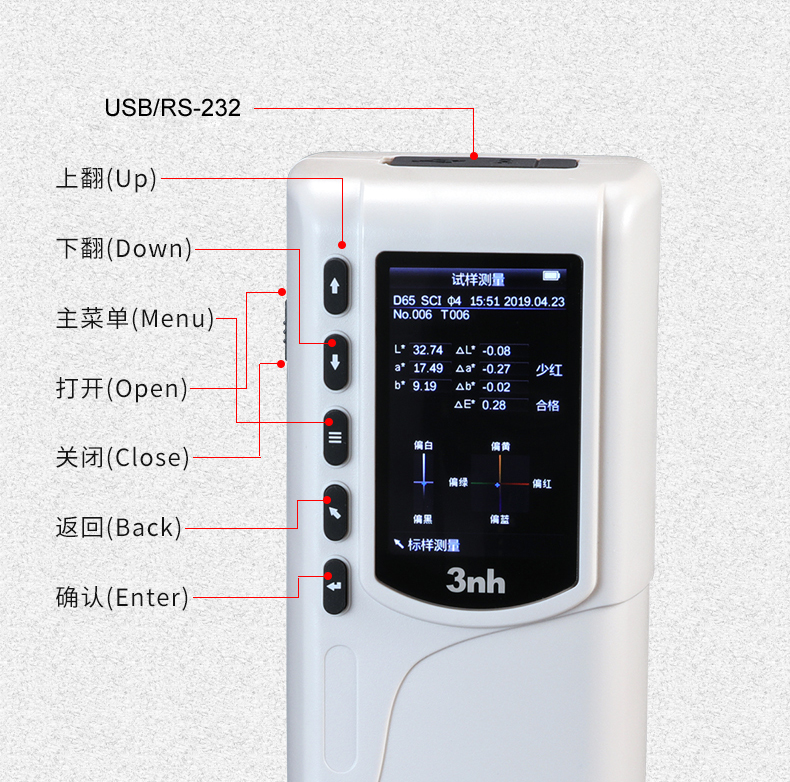

Instrument_appearance_structrue

The instrument is equipped with an advanced data processing system, supporting seamless connection with computers, which facilitates data recording, analysis, and remote management. Made of high-quality materials, the NR60CP is highly durable and suitable for various industries including plastics, printing, textiles, and chemicals, especially outstanding in color measurement of fruits and meat products. It particularly has unique advantages in color difference measurement of transparent materials.

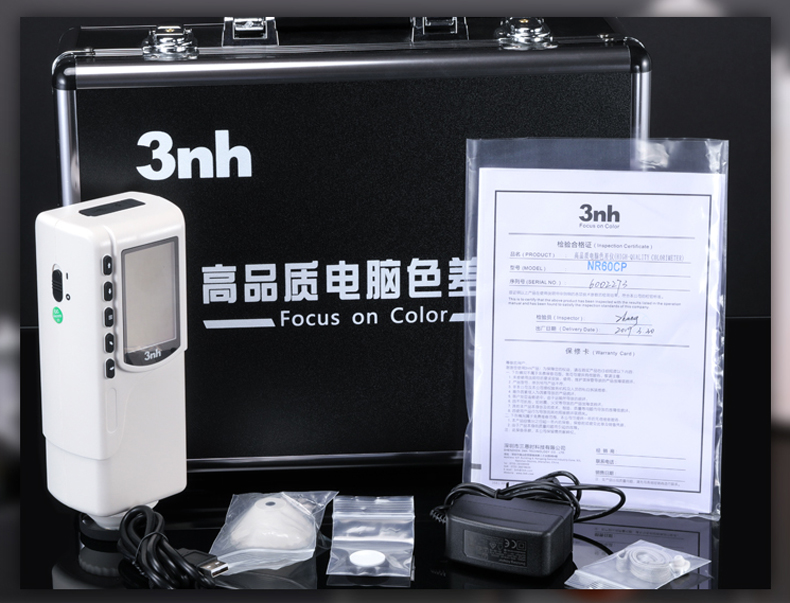

nr60cp Packing images

Illuminating/Viewing Geometry:	8°/ d
Light Source:	LED Light
Sensor:	silicon photodiode array
Measuring aperture:	Φ8mmflat aperture; Φ4mmtip aperture
Color Space：	CI E L AB，XYZ，LCh，CI E RGB，CI E LUV
Color Difference Formula:	ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔEcmc ( 2: 1) , ΔEcmc ( 1: 1) , ΔE* 00
Other Chromaticity Data:	WI ( E313，CI E, AATCC，Hunt er )，YI ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5: 1)，FMCI I
Observer:	CI E 10°
Illuminant:	D65，A，C，D50，F2，F6，F7，F8，F10，F11，F12
Display Data:	Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset,
Measuring Time:	1.5s
Repeatability:	ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s)
Errors between each instrument:	within Delta E*ab 0.2
Dimension:	2056780mm
Weight:	500g
Battery:	rechargeable lithium-ion battery 3. 7V @ 3200mAh
Lamp Life:	5 years, more than 1.6 million measurements
Screen:	TFT 2.4 inch（16: 9）
Interface:	USB/ RS- 232
Storage:	100 Standards, 20000 Samples
Operating Temperature:	0~40℃（32~104°F）
Storage temperature:	-20~50℃（-4~122°F）
PC software:	CQCS3 software
Optional accessory:	miniature thermal printer, powder test box

Our Valued Clients

FAQs About Colorimeter

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

Threenh Technology colorimeter is shipped with an operating instructions and video of English version.If you need an electronic version of the user manual, you can download it from our website download center

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on. We sell to the global market.

Color is measured using devices such as colorimeters, spectrophotometers, and spectroradiometers. Colorimeters are easier and good for simple color quality tests. Whereas spectrophotometers yield detailed spectral information. Hence, suitable for laboratories and industries.

Threenh Technology colorimeters provide a color deviation prompt function according to the Lab value, which can provide a reference for color matching. The handheld colorimeter can only indicate blacker, whiter, redder, greener, yellower or bluer, but it cannot provide accurate color formulas. Only with the help of a spectrophotometer and professional color matching software can fully realized automated color matching.
