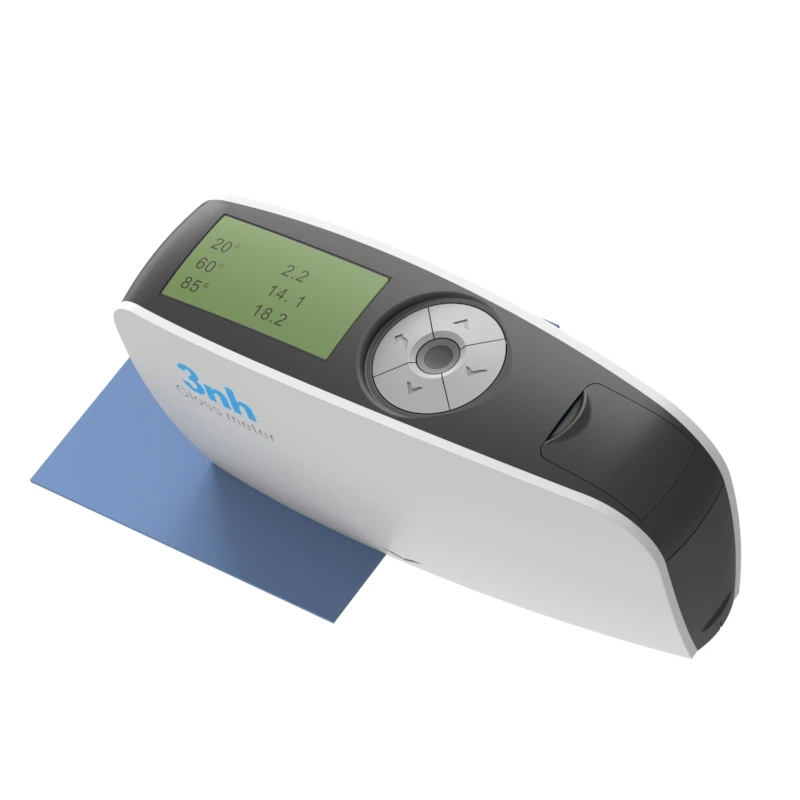

KS268 Glossmeter

KS268 Glossmeter Instructions Operating Manual KS268 Glossmeter PDF
This KS268 Glossmeter Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3NH KS268 Portable Three-Angle Glossmeter integrates three measurement angles of 20°, 60°, and 85°, suitable for high-gloss, matte, and other gloss levels of materials, saving users the cost of purchasing multiple devices. Equipped with a high-precision optical system, it features a resolution of 0.1 GU and ultra-high repeatability of ±0.2 GU in the 0-100 GU range and ±0.2% GU in the 100-2000 GU range, accurately capturing gloss differences. Compliant with the JJG 696-2015 metrological standard, the results are authoritative and traceable. Widely used in industries such as paints and inks, plastics and electronics, ceramics, and hardware, the instrument delivers fast and stable measurements, helping enterprises adjust processes, reduce defects, and efficiently control quality for standardized production.

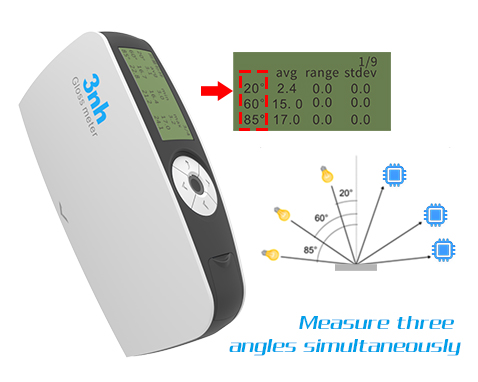

1. Professional Three-Angle Design - One Instrument Covers All Industry Needs

The KS268 Glossmeter is equipped with 20°, 60°, and 85° measurement angles to suit different gloss surfaces:

20°: For high-gloss surfaces (e.g., high-gloss automotive paint, piano lacquer, electroplated parts, mirror-finish ceramics)

60°: Universal angle, suitable for most materials (coatings, plastics, paper, etc.)

85°: For low-gloss or matte surfaces (e.g., frosted plastics, matte paint, marble)

Saves users the need to purchase multiple devices one instrument meets the full-range inspection requirements from high-gloss to matte, reducing procurement costs and management complexity.

1.专业三角度 (2).jpg

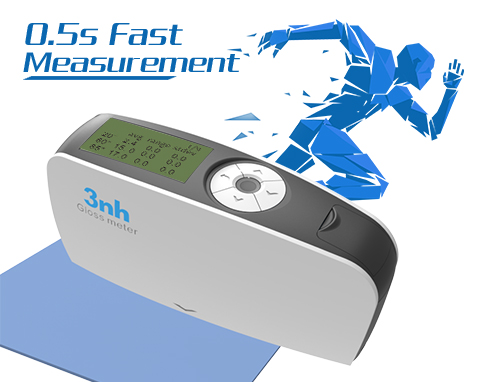

2. 0.5-Second Fast Measurement + Ultra-High Repeatability - Improves Quality Inspection Efficiency

Each angle responds in just 0.5 seconds, greatly improving efficiency for production line sampling or laboratory testing.

Repeatability reaches ±0.2 GU (0-100 GU) or ±0.2% (100-2000 GU), ensuring highly consistent data.

Saves users time by reducing waiting time and accelerating shipment schedules, while avoiding rework or misjudgment caused by data fluctuations to ensure stable quality.

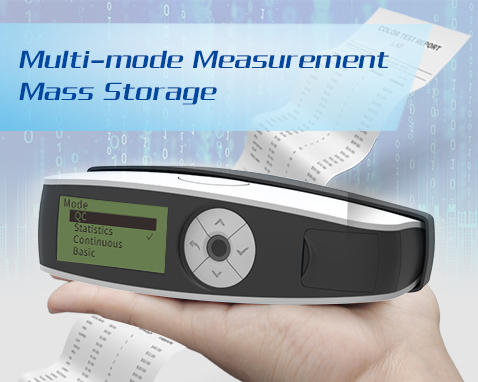

3. 35,000 Records of Massive Storage + Four Measurement Modes - Adapts to Diverse Scenarios

Offers storage for 35,000 records with four measurement modes: Basic Mode, Statistical Mode, Continuous Mode, and Quality Control Mode, flexibly meeting different needs such as incoming inspection, process control, and outgoing reporting.

Saves users from frequent data export, enabling batch analysis on-site; quality control personnel can directly generate inspection reports, eliminating manual recording and post-processing time.

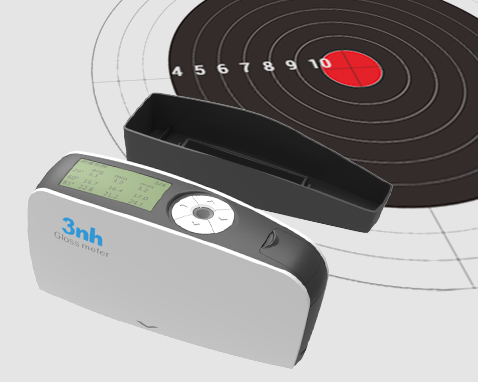

4. Automatic Calibration + Compliant with National Standard JJG 696-2015 - Authoritative and Traceable Data

Built-in automatic calibration verification function checks the instrument upon startup, ensuring accurate status before each measurement.

Complies with the JJG 696-2015 standard for working glossmeters, providing authoritative and reliable data.

Reduces the risk of customer complaints and returns due to batch quality issues; the instrument automatically calibrates upon startup without manual operation, avoiding human error and significantly improving inspection efficiency.

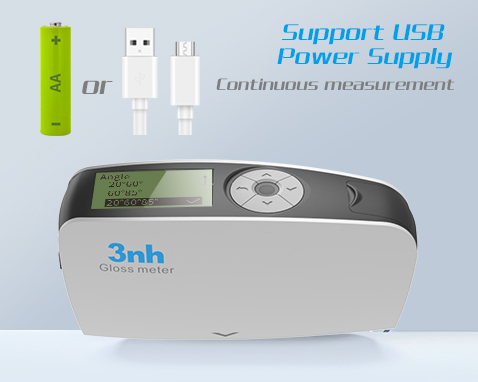

5. Ultra-Long Battery Life + USB Power Supply - Worry-Free Use Anytime, Anywhere

Powered by one AA battery, supporting over 10,000 measurements; can also be powered directly via USB port.

Automatic shutdown (adjustable from 30 to 120 seconds) for intelligent power saving.

Saves users the trouble of frequent battery replacement, making long-duration outdoor or workshop operations stress-free. The universal USB interface eliminates the need for a dedicated charger, reducing accessory costs.

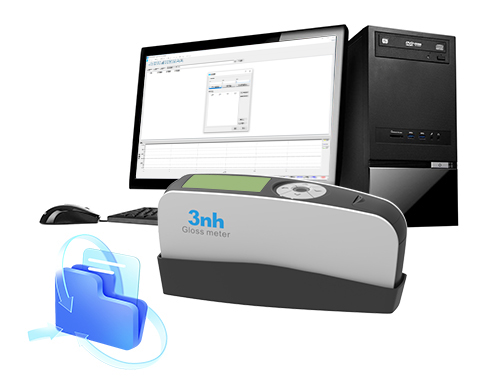

6. GQC6 Quality Management Software - Completes the Data Loop

Comes with GQC6 PC software, supporting data import, trend analysis, report printing, and color management.

Optional Bluetooth 5.0 adapter or micro printer enables wireless data transmission or on-the-spot report printing.

Saves users time by generating compliant reports with one click to meet customer audit requirements, reduces manual entry errors, and enhances the digitalization level of quality management.



Applicable IndustriesThe KS268 Glossmeter can be used for gloss measurement and gloss data transfer in industries such as paints and inks, coatings, paper printing, plastics and electronics, furniture, ceramics, electroplating, hardware, and marble. Every gloss measurement becomes a reliable testament to quality.



KS Glossmeter Technical Specifications
Product ModelKS268 Glossmeter
Measurement Angle20°/60°/85°
Measurement Spot (mm)20°:9X10 60°:9X15 85°:5X38
Measurement Range20°: 0~2000GU
60°: 0~1000GU
85°: 0~160GU
Resolution0.1GU
FeaturesSuitable for gloss measurement and gloss data transfer in industries such as paints, inks, coatings, paper printing, plastics and electronics, furniture, ceramics, electroplating, hardware, marble, etc.
Measurement ModesBasic mode, statistical mode, continuous mode, quality control mode
Measurement Time0.5 seconds per angle
Repeatability0~100GU:±0.2GU ;
100~2000GU:±0.2%GU
AccuracyMeets the requirements of JJG 696 for working glossmeters
Auto Shutdown Time30~120 seconds, adjustable
Long-Term CalibrationFeatures automatic verification of calibration standard plate function / manual calibration
LanguageSimplified Chinese, English, Traditional Chinese
Data Storage35,000 records (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode)
Display2.3-inch monochrome display
Dimensions160 X 52 X 84mm
WeightApprox. 300 g (including calibration case and battery)
Power SupplyPowered by 1 AA battery (alkaline or Ni-MH rechargeable), capable of over 10,000 measurements; or via USB port
InterfaceUSB
PC SoftwareGQC6 quality management software, inspection report printing, extended functionality
Operating Temperature Range0~40℃（32~104°F）
Storage Temperature Range-20~50℃（-4~122°F）
HumidityLess than 85% RH, non-condensing
Standard AccessoriesUSB cable, instruction manual, GQC6 quality management software (available for download from official website or provided upon request), calibration plate
Optional AccessoriesMicro printer, Bluetooth 5.0 adapter
NoteTechnical parameters are for reference only, subject to the actual product sold.


Our Valued Clients

  • our customer stn ceramica
  • Kajaria Ceramics Company
  • our new customer Amkor Technology
  • paint apollo company
  • floor tile sosuco company
  • Grupo Lamosa company
  • customer Wonke Electric
  • Grupo Fragnani Tile Company

FAQs About  Gloss meter

Smooth and uniform surfaces with a large amount of reflected light directly result in high gloss. Some of the factors are the smoothness of the surface, the type of paint that is being used, the thickness of the coating, and curing. The lesser the surface irregularities, the greater the gloss.


Gloss level is not given out in percentage but in gloss units (GU). In practice, however, 100 GU is considered 100 percent reflective. To contrast visually, the 20-40 GU is a low-gloss surface, and 85 or more is almost 100 percent mirror-like reflection.


Gloss levels are usually of five types, namely, matte, eggshell, satin, semi-gloss, and high gloss. These categories are of rising levels of reflectivity of the surface and are utilized to characterize the completion of paints, coatings, and other substances.


Gloss paint can be identified by visual inspection and using a gloss meter. The high gloss paints are shiny and reflective like a mirror, satin or eggshell has a soft sheen, whereas the matte paint is non-reflective with very little or no reflection.


The gloss meter is used to measure gloss at typical angles (typically 20°, 60°, or 85°). The instrument illuminates the material and measures the amount of light reflected and states the outcome in gloss units (GU), which is related to perceived brilliance.
