Spectrocolorimeter PS2080

D/8° Handheld Spectrocolorimeter PS2080

The 3nh PS2080 Spectrocolorimeter, also endearingly called the "fat girl", is a top - tier color measurement device renowned for its high - performance capabilities. Unleash precision color analysis with PS2080 spectrocolorimeter – redefine your color standards!


Key Highlights

  • D/8 optical geometry (diffused illumination with an 8 - degree viewing angle)

  • SCI/SCE (specular component included / specular component excluded) mode

  • International standards such as CIE No.15, GB/T 3978, and ISO 7724 - 1

  • 400 - 700 nm full - waveband balanced LED light source

  • Φ8mm (both flat and tip types), Φ4mm (both flat and tip types), and 1x3mm (both flat and tip types)

  • CIE LAB, XYZ, Yxy, LCh, CIE LUV, s - RGB, βxy, and DIN Lab99.

  • D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30), U35, NBF, ID50, ID65

  • 2.8 - inch TFT true - color capacitive touch screen

Spectrocolorimeter PS2080 Instructions Operating Manual Spectrocolorimeter PS2080 PDF
This PS2080 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Portable Color Spectrophotometer -Colorimeter 3nh PS20 Series

High-precision handheld spectrocolorimeter for accurate colorevaluation

  "Fat girl" is the nickname of PS20 series domestic color spectrometer. It is serious about color measurement and high user satisfaction. PS2080 is a professional-grade portable spectrophotometer designed for accurate and consistent color measurement. lt features industry-leading inter-instrument agreement with dEab < 0.2 and repeatability up to dEab<0.02, ensuring reliable results across different devices.

 PS2080 "Fat girl" spectrocolorimeter is 3nh developed by CMOS dual-channel  spectrocolorimeter sensor, which is not only a colorimeter, but also a spectrocolorimeter，with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management.

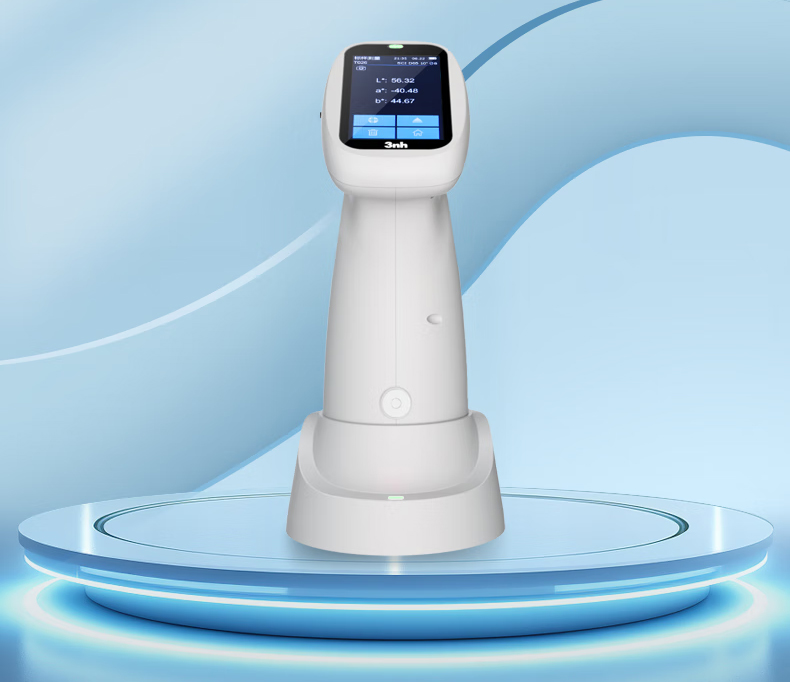

 Dual-Channel Spectrophotometer ps2080 instrument overview

 PS2080 spectrocolorimeter is equipped with six apertures MAV:Φ8mm(flat+tip)、SAV:Φ4mm (flat+tip)、LAV:1x3mm(flat+tip), widely used for plastic electronics, paint ink, textile and garment printing, printing, ceramics and other industries color difference quality control. UV is included for the measurement of fluorescent samples.



Technical Advantages

Adopt D/8 optical structure and SCI/SCE mode

PS2080 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology. It is suitable for color management and quality control in various industries such as color matching and coating, textile, plastic, food, building materials, cosmetics, etc.



Adopt full waveband balanced LED light source

The 400~700nm full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband, Fluorescent materials can also be easily measured and ensures the measurement speed and accuracy of the measurement results.

full waveband balanced LED spectrum distribution


CMOS dual beam splitting sensor


High speed and high sensitivity CMOS dual beam splitter sensor makes color data processing more efficient and accurate.

PS2080 CMOS dual beam splitting sensor



Contact automatic whiteboard calibration

The spectrocolorimeter PS2080 is equipped with an intelligent calibration base. Contact automatic whiteboard calibration is available, professional standard whiteboard reflectivity R%≥95%, good surface uniformity. It has high stability and can obtain repeated and accurate data.

PS2080 intelligent calibration base


Multiple color measurement spaces, multiple illumination source

The spectrocolorimeter PS2080 supports over 20+ color measurement parameters and nearly 40 light source options for evaluation. CIE LAB,XYZ,Yxy, LCh, CIE LUV,S- RGB, βxy, DIN Lab99 Color space and D65, A, C, D50, D55, D75, F1, F2(CWF) ,F3, F4  F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), U35, NBF, ID50, ID65 multiple illumination source, Meet different measurement requirements.

ps2080 color measurement spaces illumination source




Ergonomic design and easy measurement

The fitted palm is suitable for continuous detection, which makes you fast and easy to use. An easy to measure device for automatic measurement is added. Which is portable, fast, easy to measure and use.

ps2080 Ergonomic design


Cloud storage, carrying massive color databases

The built-in camera is used for view taking and positioning. Through real-time view taking, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.



PS2080 color database cloud


Calibration Certificate

Each PS2080 spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metro technical Institute to ensure the authority of the instrument test data.

South China National Metrology Test Center


The camera can clearly observe the measured area

The built-in camera is used for view taking and positioning. Through real-time view taking, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.

PS2080 clearly observe the measured area




Color management software

Quality management software Andriod, IOS, Windows, Wechat app and Hongmeng system are applicable to quality monitoring and color data management in various industries. Data the user's color management. compare colon differences, and generate test reports.

Andriod, IOS, Windows, Wechat Quality management software

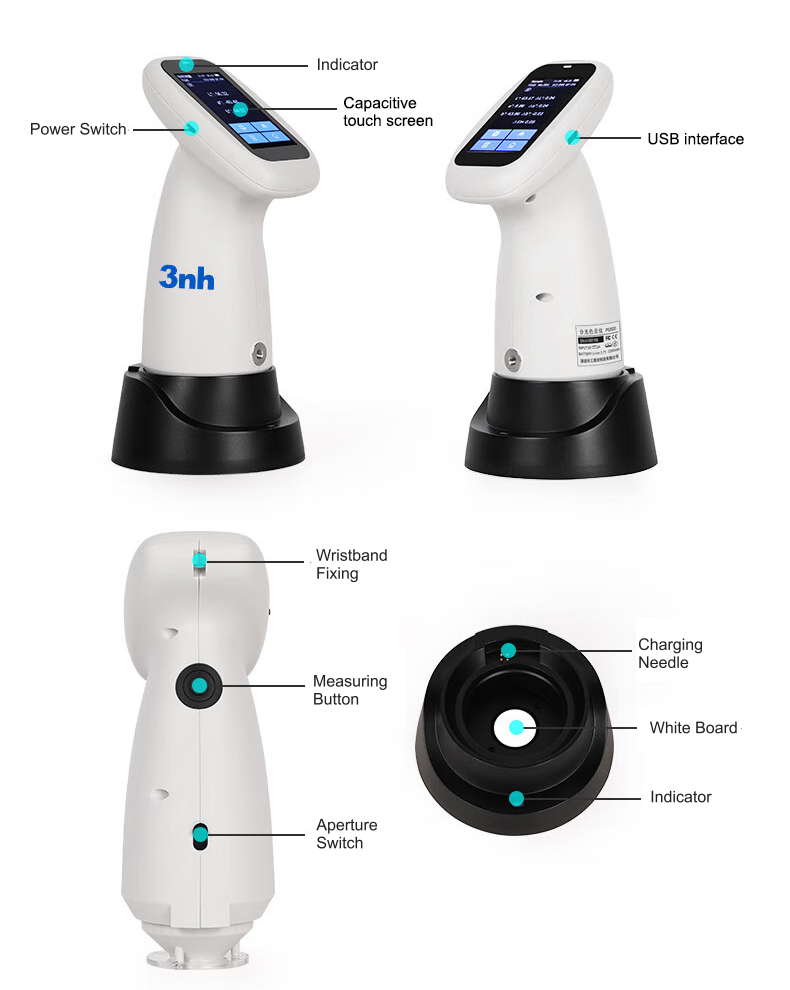

Structure diagram of PS2080 color measuring instrument


PS2080 Technical Specification


ModelPS2080 spectrocolorimeter
Optical GeometryD/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
CharacteristicAdopt CMOS dual beam splitting sensor;Used for color difference quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, also for fluorescence sample measurement.
Light SourceCombined full spectrum LED light source, UV light source
Integrating Sphere SizeΦ40mm
SensorCMOS dual beam splitting sensor
Wavelength Range400-700nm
Measuring ApertureSix Apertures: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm；LAV:1x3mm
Specular ComponentSCI/SCE
Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference FormulaΔE*ab,ΔE*uv,ΔE*94 ,ΔE*cmc(2:1),ΔE*cmc(1:1) ,ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric IndexSpectral reflectance, WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313),Metamerism Index Mt,Staining Fastness, Color Fastness,Color Strength, Opacity,555 tone classification, Munsell(C/2)(Partially realize through the PC software /APP software)
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65(Partially realize through the PC software /APP software)
DisplaySpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring TimeAbout 1s
RepeatabilityChromaticity value: MAV/SCI, within ΔE*ab 0.02 (After preheating and correction, the average value of the whiteboard was measured for 30 times at an interval of 5s);Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400nm to 700nm: within 0.18%)
Inter-instrument ErrorMAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles)
Displayed Accuracy0.01
Measured Reflectance   Range0-200%
Reflectance Resolution0.01%
Measurement ModeSingle Measurement, Average Measurement(2-99times)
Locating MethodStabilizer position+camera locating
White Calibration modeNon-contact automatic calibration
Dimension 94X68X188mm
WeightAbout 410g
BatteryLithium battery,3.7V,5000mAh,8000 cycles in 8 hours
Illuminant Life SpanMore than 1.2 million measurements over 10 years
Screen2.8 inch TFT true color, Capacitive Touch Screen
InterfaceUSB,Bluetooth®5.0
Data StorageStandard 500Pcs, Sample 10000Pcs(One data is able to include SCI/SCE); PC mass storage
Software supportAndriod,IOS,Windows,Wechat small program, Hongmeng
LanguageSimplified Chinese, English, Traditional Chinese
Operating Environment0~40℃, 0~85%RH (no condensing),Altitude < 2000m
Storage Environment  -20~50℃, 0~85%RH (no condensing)
Standard AccessoryPower Adapter, USB Cable, User Guide, SQCX PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover,  Wrist strap, Aperture
Optional AccessoryUSB Micro Printer, Powder Test Box
NotesTechnical parameters are only for reference, subject to the actual sale of  the product



Our Valued Clients

  • Lubrizol
  • Griffith UNIVERSITY
  • APPLIED MATERIALS
  • university mississippi
  • university mississippi
  • Acros Pvt plastic
  • toronto
  • YONSEI UNIVERSITY

FAQs About PS2080 Spectrocolorimeter

In industrial production and quality control, color consistency is one of the core elements determining product quality. Whether it is the metallic paint for automobile coating, the dyeing effect of textile fabrics, or the ink matching in packaging and printing, subtle color deviations may lead to cost waste or damage to brand image.

The LAB color space defines colors with a three-dimensional model:

  1. Lightness (L): It indicates the lightness or darkness of a color, ranging from 0 (pure black) to 100 (pure white).

  2. Hue and Saturation (a and b):

    • The a-axis represents the red-green tendency, with positive values leaning towards red and negative values leaning towards green;

    • The b-axis represents the yellow-blue tendency, with positive values leaning towards yellow and negative values leaning towards blue.

It is a globally recognized standard and supported by most modern color measurement equipment. Color is quantitatively analyzed by measuring Lab values with instruments.


A colorimeter is used to measure the intensity of color of a solution by measuring its absorbance at selected wavelengths of light. It is widely applied in chemistry, food, pharmaceuticals, and quality control to determine concentration, track color changes, or product uniformity.


Take L*a*b* readings of two samples using a colorimeter or spectrophotometer and calculate color difference using the 3 formula (Delta E). The difference in 0 is the reported Delta-E, which shows how visible the change is, whereas the thresholds define the acceptability as per the application requirements.


The principle of colorimetry is the law of Beer-Lambert, which says that the intensity of light absorbed by a colored solution is proportional to the concentration of the absorbing species and the path length. It measures the extent of light that is absorbed at certain wavelengths.


A calorimeter is used to measure heat that is gained or lost during a chemical or physical reaction. A sample is taken in an insulated container, and a temperature change is measured. This assists in computing the alterations in energy by the equation Q = mcΔT, where Q is heat.
