Understanding Delta E: The Key to Perfect Color

We are always enveloped by color. It characterizes the world we live in. Art displays it. We find it in common products. Color has a great influence on our perception. It determines our decisions. It affects our emotions. However, attaining color uniformity is not so easy.

How can we make sure that a certain shade appears the same? This is applied across various screens. It is used on different prints and various commodities. The answer to this dilemma lies in an accurate measurement. This is referred to as Delta E. It is an important indicator and assists us in measuring color differences, and gives us an objective criterion.

Go through this blog and understand why Delta E is a significant unit of measuring color and how to determine it.

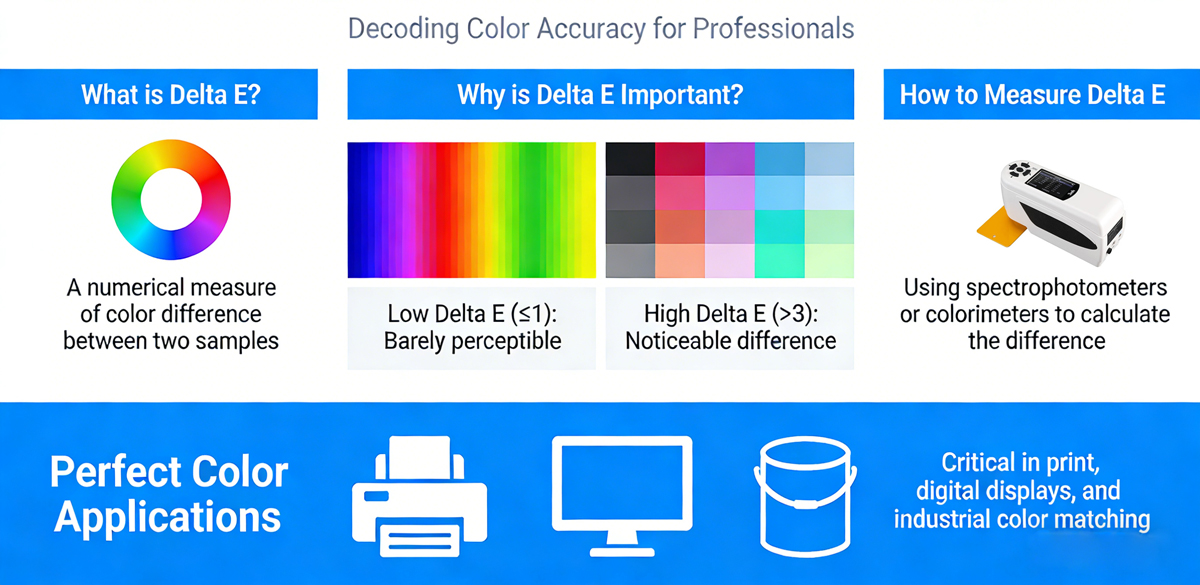

What is Delta E?

Delta E (ΔE or E)* is a standard measurement and measures the variance of two colors. Consider it as a numeral, one objective number. This number indicates how far a color is different to its original or intended state. A smaller value of Delta E indicates the acceptability of the color. It means that the shown color or the reproduced color is almost identical to the target color.

Delta is symbolized by the Greek letter Δ (triangle). It is a word that means difference. It signifies "difference, therefore, Delta E is called color difference. In most industries, the concept of color difference, Delta E, is significant. It takes us out of subjective views of color. Rather, it offers a measurable standard to measure the color accuracy.

Why is Delta E Important for Color Accuracy?

Color accuracy is essential, and this is measured in Delta E. It provides an impartial method of color reproduction. That is particularly so among creative professionals. Graphical designers and video editors, as well as photographers, depend on accurate colors. When their monitors display incorrect colors, their work is affected.

High-value jobs need constant color. Accuracy is achieved by using displays that have low values of Delta E. This eliminates color distortion that can be noticed in various screens.

As an example, consider a logo of a certain brand. It has to meet the same appearance. On a product, on a website, or in print. Delta E assists in the provision of this uniformity. It ensures that the visual gear replicates the colors correctly. This plays an essential role in any activity that requires exact color reproduction.

The CIELAB Color Space and Delta E Calculation

In order to comprehend Delta E, we need to learn about the CIELAB color space. CIELAB is a device-independent color model. This implies that it explains colors in terms of human perception. It is not based on the production or presentation of colors.

The CIELAB color space uses three axes:

● L-axis: Represents lightness. Ranges from 0 (absolute black) to 100 (diffuse white).

● A-axis: Represents the green-red spectrum. Values are from -128 (green) to +127 (red).

● B-axis: Represents the blue-yellow spectrum. Values are from -128 (blue) to +127 (yellow).

In CIELAB, colors lie in a three-dimensional space. The achromatic axis is the L-axis. It involves low volume. The axes a and b are chromatic. They outline color type and color character. Neutral colours are near the middle of the L-axis. At the ends of the a and b axes, there is a higher saturation of colors.

Delta E is computed as the difference between two points in this space, which represent the colors. This resembles the formula of Euclidean distance.

Given that Color 1 has Lab values (L1, a1, b1) and Color 2 has Lab values (L2, a2, b2). The simple Delta E formula (equivalently Delta E 76 or CIE 1976) is:

ΔE = √[ (L1 - L2)² + (a1 - a2)² + (b1 - b2)² ]

This is a square of the differences of each value L, a, and b. Then, you add the summation of these squared differences. Then that sum is taken to the square root. This is the method of calculating Delta E based on Lab values.

Evolution of Delta E Formulas

The formula of the Delta E 76 is very simple. It is not an exact representation of human perception, though. Not all colors within the entire color scheme will be perceived by our eyes to have a color difference. To solve this, more sophisticated delta e formulas exist:

1. Delta E 94 (CIE 1994)

This formula was an improvement of Delta E 76. It brought about weighting factors. These considerations explain the variation of perceptions at some color regions. It suited certain uses, such as printing better. Nevertheless, there were shortcomings to it. Particularly when it came to certain colors.

2. Delta E 2000 (CIEDE2000)

This is the latest and the finest formula. It is commonly called delta e2000 or delta e 2000. The Delta E 2000 formula is such that it takes a detailed approach of hue, brightness, and saturation into consideration.

It also compensates for such differences in perception of different areas of color. This brings it much nearer to human perception of the eyes. The gold standard has become CIELAB Delta E with the IEDE2000 standard.

It is applicable in applications where high-accuracy measurement of color difference is required. These are premium display calibration, professional image creation, and sectors such as coatings and cosmetics.

There are other formulas too. These are CMC formulas (Delta Ecmc(2:1) and Delta Ecmc(1:1) on textiles. European industry has DIN 99 99 (delta E). The preference for the delta-e equation is selective to the industry and the kind of accuracy required.

Interpreting Delta E Values: What is an Acceptable Delta E for Color?

The Delta E scale normally measures within 0 to 100. The value of 0 implies that there is no difference in color. The colours are the same. When the value equals 100, this is a pure distortion. The colors are reversed. Delta E units are not listed, because this is a calculated value of difference.

Here's a general guide to interpreting delta E values:

● ΔE = 0: No difference. Colors are identical.

● ΔE < 1.0: Not perceptible by the human eye.

● ΔE 1-2: Perceptible through close observation. Often noticeable only to experts.

● ΔE 2-3: Small difference, visible if viewed side by side.

● ΔE 3-5: Moderate difference, noticeable in normal viewing.

● ΔE 5-10: Significant difference. Colors differ.

● ΔE > 10: Huge difference. Colors look completely different.

Concerning the Delta E tolerance standard, a Delta E value of ≤2 is ideal as regards professional work. This is the level where the human eye realizes colors as they were meant to be.

The best displays are frequently under a Delta E of one or lower. Making Delta E zero is impractical since there are inherent technology and measurement variations.

An average human eye can usually see differences of about Delta E 2 as the minimum. But lesser variations can be noticed in the neutral colors.

Where less color-sensitive outputs are involved, e.g., some textiles or posters, a Delta E of ≤5 may be acceptable. This indicates that the Delta E standard can differ depending on the application.

Delta E in Practice: Industries and Applications

Delta E color measurement is very important in several industries. It guarantees the quality of color consistency.

1. Display Calibration: Delta E color has its primacy in the display industry. High Delta E would be caused by poor calibration of the monitors to produce precise colors. Thus, it plays a critical role in photo and video editing, graphic design, and animation.

2. Printing and Packaging: The color Delta E is vital in the print business. It makes sure that printed items are of the brand color and proof. It does not matter whether you are using a magazine or a brochure, or packaging; consistency in color is the most important thing.

3. Textiles: In the textile industry, color matching is vital. Delta E is useful in making sure that fabric dyes are as per specification. Fashion and home furnishings are important in this.

4. Paint and Coatings: In the case of the delta e in paint and automotive finish, consistency is of the essence. In repainting a car or matching architectural paint, the delta E value in paint acts to provide matching as accurately as possible. The advanced delta E 2000 formula comes particularly handy in this case.

5. Cosmetics: Delta E is applied in the cosmetics industry to make sure that the shades of make-up products are consistent.

6. Manufacturing: In most cases, whenever color is an important quality measurement in a manufacturing process, the calculation of Delta E is used to keep the standards..

How to Calculate Delta E

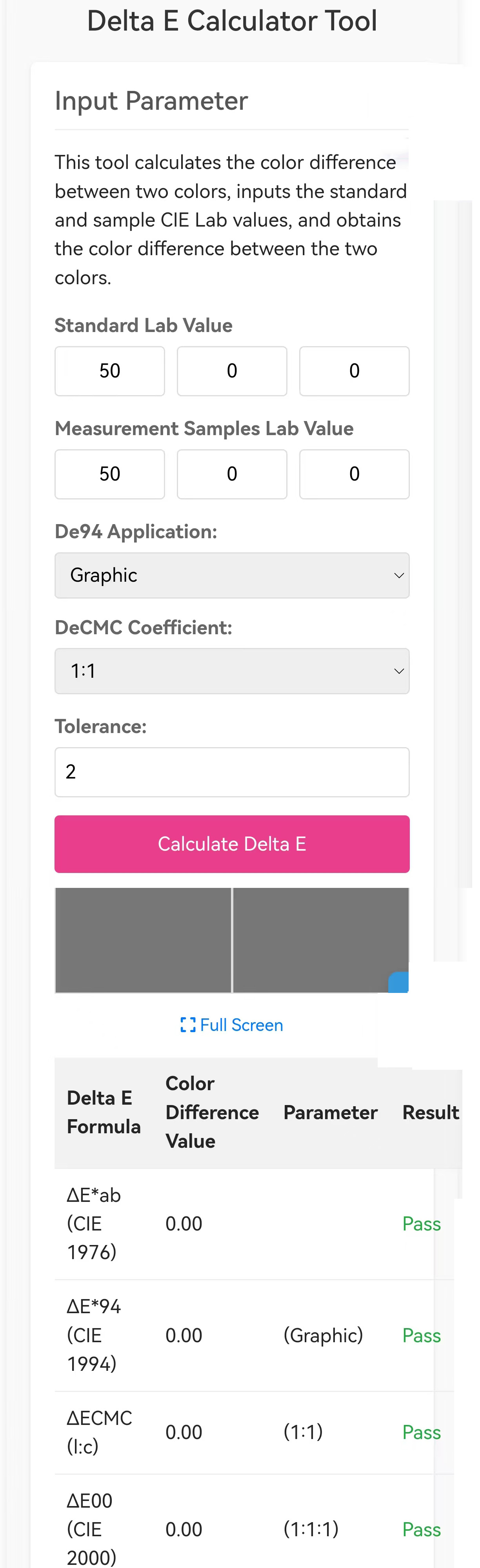

Although the simple formula for calculating delta e is easy. In modern applications, more formulae can be used, such as Delta E 2000. These calculations are done using dedicated software and tools. Online delta e calculator tools can be found as well. These elements will assist you in comprehending the concept by entering LAB values and getting the Delta E.

To perform a delta e calculation:

1. Obtain the CIELAB values (L*, a*, b*) for your two colors.

2. Choose the appropriate Delta E formula (e.g., Delta E 76, Delta E 94, or Delta E 2000).

3. Input the values into the chosen formula for delta e.

4. The result will be your Delta E value.

Summary

In summary, Delta E is not a number only. It forms a core instrument of color management. It offers a medium between objective measurement and perception by people. It enables industries to establish standards for the color that can be measured. This will guarantee uniformity and precision of various applications.

Delta E is the measure of visual difference. A small Delta E colour difference means that two colours are perceived to be very close.

When this value is large, then they are different. Colors in displays, colors on paint, colors on textiles, colors on printing, Delta E, the measure of color, brings us to visual harmony. It enables us to be exact in communicating color. This is so that the colors that we see are the colors that have been intended.

Further evolution of the delta E formula and standards indicates how correct color is valued. With the increased technology, our capacity to measure and control the color has improved.

Delta E is a very useful measure for anyone who deals with color. It sustains the purity and the effectiveness of visual communication.

Measure Perfect Color with 3NH Color Measurement Solutions

Are you having a problem with color accuracy in your work? Are you asked to maintain uniformity in the color difference between products or prints? Delta E measurement is your solution with 3NH advanced color measurement instruments.

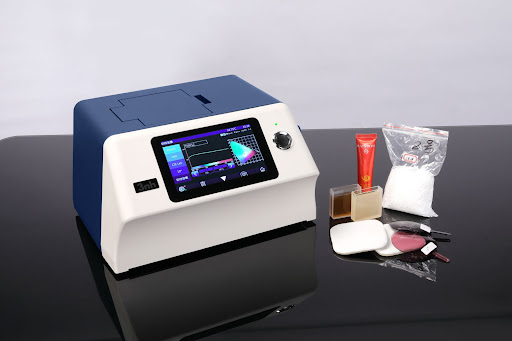

3nh provides a series of innovative color-detecting tools. These instruments are made to be precise. They are designed to be reliable. Delta E formulas are incorporated into our sophisticated spectrophotometers and colorimeters. This also consists of the very precise Delta E 2000. Delta E is easy to calculate. Our gadgets will accurately deliver Delta E values. This enables you to have high color consistency.
