Understanding Spectrophotometers: Essential Tools for Accurate Color Measurement

In some industries colour accuracy is extremely important. For example, automotive paint manufacturing textiles printing, plastics, etc. For them color measurement instruments are indispensable.

These companies use a little gadget called the spectrophotometer which is a high precision color measuring device. It ensures consistent accuracy and quality when it comes to the color of products. This article aims to educate on the usage and importance of spectrophotometers. So, without further Ado, let's get started.

What Is a Spectrophotometer?

A spectrophotometer is a scientific instrument used to measure the intensity of light at different wavelengths. In the context of colour measurement it evaluates how a material reflects or transmits light across the visible spectrum. This data is then used to determine the exact colour of the sample making it an essential colour measurement device in various industries.

Unlike simple colorimeters which provide limited colour data colour measurement spectrophotometers give detailed spectral information. This allows for precise colour analysis and colour matching especially useful in applications where slight colour differences are unacceptable, It is an enhanced version of a general colorimeter that uses spectral analysis principles to accurately measure the absolute value of color.

Optical Instruments for Measuring Object Color

A spectrophotometer is an optical instrument used for accurately measuring the color of objects. It quantifies color into numerical values by analyzing the spectral components reflected or transmitted by the sample, and its measurement principle conforms to international standards such as CIE. This instrument is mainly used for color quality control and management in industrial production, and has wide applications in various industries including food, chemical industry, printing, textiles, and building materials. According to different structures, it is mainly divided into integrating sphere type (d/8), directional type (45°/0°) and other types, with the characteristics of high precision and repeatability.

Working Principle and Core Technology

Spectrophotometers use spectroscopic elements such as gratings and prisms to decompose the reflected light of color samples, and then the sensor receives the reflected spectrum and converts it into color chromaticity values. Its working principle is that the illuminant projects the light source onto the object, and the light is split by prisms and gratings; the sensor detects the light not absorbed by the object, transmits the data to the processor or computer, and then the spectral data is displayed on the instrument.

Structures of spectrophotometers include the d/8 integrating sphere structure and the 45°/0° structure. The d/8 structure adopts diffuse illumination and 8° direction reception, which can simultaneously measure the SCI mode including specular reflection and the SCE mode excluding specular reflection. The 45°/0° structure adopts 45° annular illumination and 0° direction reception, which is often used to simulate human eye observation. Transmission measurement usually adopts the d/0° structure. Spectrophotometers can measure a variety of chromaticity indicators, including spectral reflectance/transmittance curves, chromaticity values, color difference values, whiteness index, yellowness index, metamerism index, color fastness, color strength, opacity, etc.

Key Uses of a Spectrophotometer for Color Matching

One of the most important functions of a spectrophotometer for color is its role in colour matching. Whether you are formulating new paint shades or ensuring product colour consistency across batches a spectrophotometer for color matching provides the objective data necessary to get it right.

Many paint spectrophotometers are integrated with color matching software which compares the measured colour against databases of standard colours. This capability is especially valuable in industries like

● Paint manufacturing ensuring batch to batch consistency

● Automotive matching repair paint to original finishes

● Textiles and plastics maintaining brand or design specific colours

Successful Cases of Edge Banding Accurate Color Matching

Spectrophotometer for Paint Applications

In the paint industry spectrophotometers for paint play a crucial role. These devices help manufacturers develop precise colour formulas and help end users such as automotive technicians achieve accurate paint touch ups.

Benefits of using a paint spectrophotometer:

● Eliminate guesswork from paint colour matching

● Reduce rework caused by poor colour consistency

● Improve quality control in paint production

● Create digital colour standards for quick duplication

With the advancement in technology portable spectrophotometers for color measurement are now widely used on site in paint shops and automotive garages.

Automotive Applications Spectrophotometer for Car Paint

In the automotive industry colour accuracy can make or break customer satisfaction. Whether it is for OEM manufacturing or aftermarket bodywork achieving a seamless finish requires auto paint spectrophotometers. A spectrophotometer for automotive paint ensures that the new paint matches the original colour even after years of exposure to the elements.

Modern car paint spectrophotometers are compact handheld and designed for rugged environments. They can quickly scan vehicle surfaces feed the data into color matching software and produce an accurate formulation. These auto paint colour scanners reduce trial and error and significantly cut down on time and material wastage.

In the automobile and aerospace fields, spectrophotometers are used for the measurement and quality control of special effect colors such as automobile paint, interior materials and aerospace coatings. Such applications usually require spectrophotometers with multi-angle measurement capabilities.

Types of Spectrophotometers

As a high-precision color measurement instrument, spectrophotometers are widely used in industries that require precise quantitative management and control of colors. Its main application fields include chemical industry, coatings, plastics, textile, garment and printing and dyeing, food, agricultural products, printing, packaging, papermaking, automobile, aerospace, electronics, building materials, furniture, etc.

According to uses there are several types of color measurement instruments each with varying capabilities

● Benchtop Spectrophotometers High precision lab based devices used for research or high volume production

● Portable Spectrophotometers Handheld devices ideal for field use including automotive and on site inspections

● Sphere Spectrophotometers These devices measure colour including the effects of gloss and texture

● 45 0 or 0 45 Spectrophotometers These are ideal when surface texture or gloss needs to be excluded from the measurement

Different industries have different requirements for the optical structure, measurement aperture, repeatability and inter-instrument difference of spectrophotometers according to sample characteristics and measurement scenarios. For example, for different sample characteristics such as texture, gloss and fluorescence, it is necessary to select instruments with different geometric optical structures such as d/8, 45°/0° or multi-angle. Each type has its place but handheld spectrophotometers are becoming increasingly popular due to their convenience accuracy and versatility across industries.

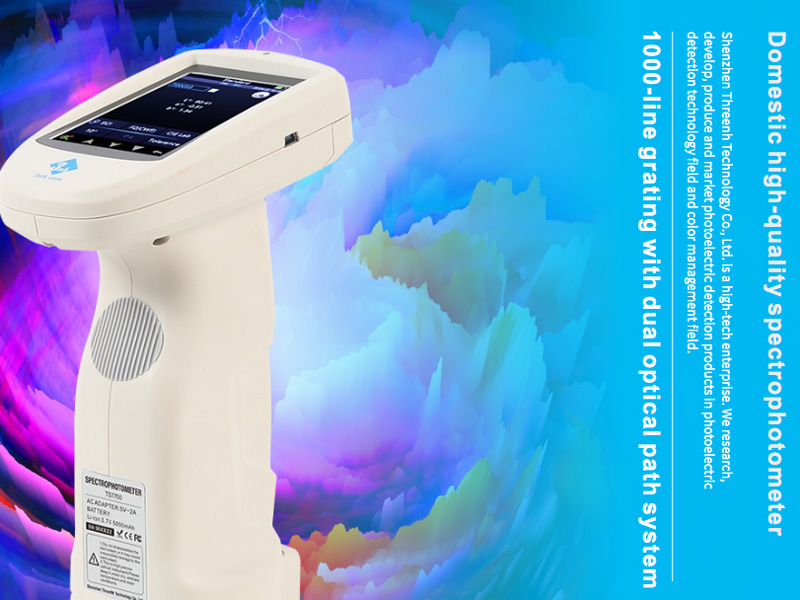

Why Choose Threenh Spectrophotometer?

Among the leading names in the industry Threenh Spectrophotometer stands out for its robust technology and user friendly design. Whether you are a paint manufacturer an automotive workshop or a quality control lab Threenh offers models tailored for a range of applications.

Key features of Threenh Spectrophotometers

● High accuracy across the visible spectrum

● Portable and ergonomic for ease of use

● Integrated with color matching software

● Available in different geometries 45 0 d 8 sphere

● Support for multiple colour spaces and standards CIE LAB LCH RGB

Threenh devices are trusted globally for their consistency and durability making them ideal for both fieldwork and laboratory environments.

Spectrophotometers Vs Other Colour Measuring Devices

While there are many colour measurement devices on the market such as colorimeters visual comparators or digital scanners spectrophotometers provide the highest level of precision. Here is how they differ

In short if your operations rely on exact colour replication or need to manage large colour libraries investing in a colour spectrophotometer is essential.

The Role of Haze Spectrophotometers

In addition to colour some industries also measure haze which is the scattering of light as it passes through a surface or medium. A haze spectrophotometer measures both colour and surface clarity which is particularly useful in applications involving transparent or semi transparent materials like plastics films and glass.

Colour Measurement In the Digital Age

With advancements in digital technology modern spectrophotometers are more powerful than ever. Many are now WiFi enabled and can be integrated directly with cloud based colour matching software. This allows for remote access to colour databases real time formulation and faster decision making.

Some systems even offer AI powered colour matching capabilities reducing human error and speeding up product development timelines.

Conclusion

Whether you are in paint manufacturing automotive refinishing packaging or any other colour critical industry investing in a high quality spectrophotometer is a smart move. These devices provide accurate consistent and repeatable measurements helping you maintain high standards in product appearance and quality.

Threenh Spectrophotometers with their cutting edge technology and ease of use are especially suitable for both industrial and on site applications. When paired with powerful color matching software they streamline the entire colour workflow from design and production to quality control and touch ups.

In a world where colour perception can be subjective spectrophotometers bring objectivity and precision to the table ensuring that what you see is exactly what you get.
