YG60S 60°Economic Gloss Meter

60 Degree Measuring Angle Affordable Gloss Meter

3NH offers portable YS60S glossmeters with highest precision for any gloss level and industry application. With independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. it can meet the second grade requirements of JJG696.


Key Highlights

  • Suitable for surface measurement with Medium Gloss

  • 60 degree micro hole precision glossiness measurement

  • Display 5 sets of measurement data

  • Ergonomic Design

  • Basic glossiness testing requirements

  • Connect to PC, more extend functions

This YG60S Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

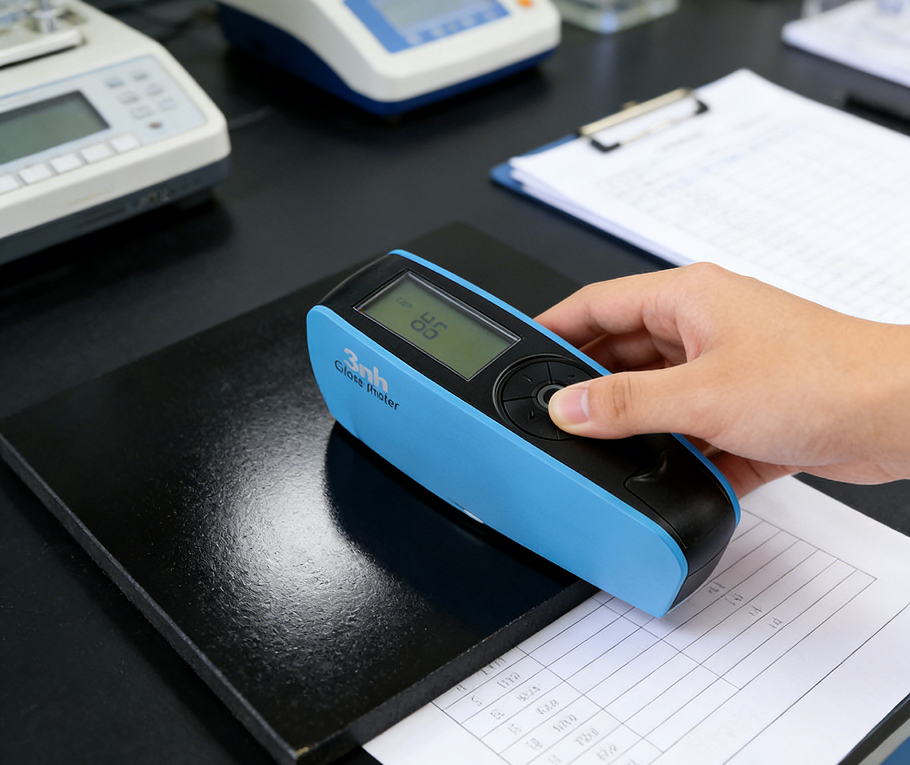

ys60s_gloss_measurement

YG60S 60°Economic Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754.  it can meet the second grade requirements of JJG696.

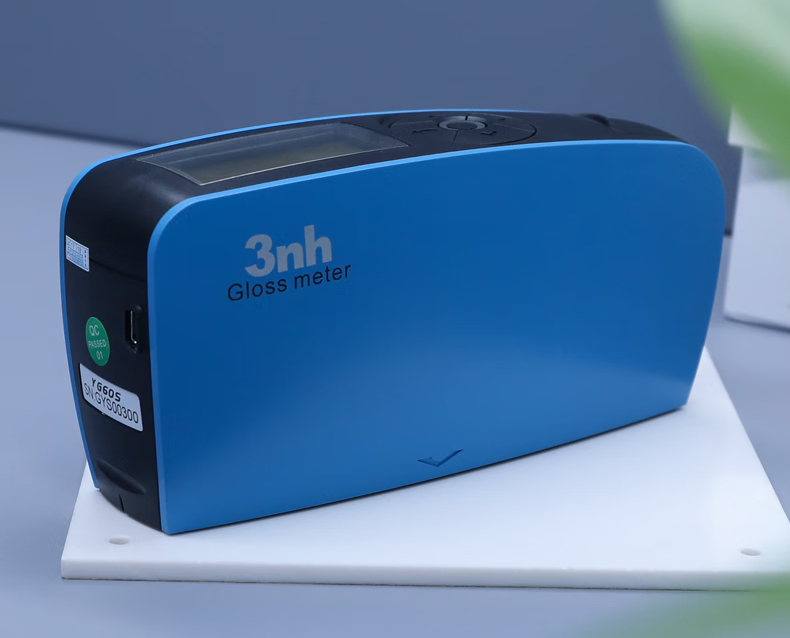

high_quality_gloss_meter_ys60s

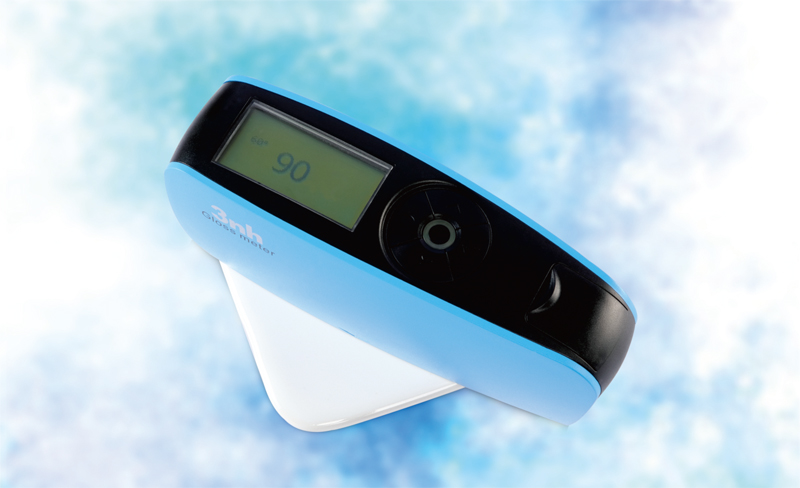

60 degree measuring angle_gloss_meter1


Features:


1. Elegant Design combined with aesthetics and ergonomics;
2. Meet the second grade requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813, ASTM523, GB/T9754;


Application:


Widely used in the filed of paints, coating, plastics, ink, rubber, printing, paper, glass, handware, ceramic, marble etc. This type of gloss meter with the best performance. The accuracy and reliability of the YG60S micro-gloss has been proven by thousands of customers.

YS60S_APPLICATIONS


Specifications:


ModelYG60S 60°Economic Gloss Meter
Measuring Angle60°
Measuring Area60°: 0-200GU
Division Value1GU
Measuring ModesBasic mode
Measuring Time0.5S
Repeatability0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU
AccurateConform with JJG696 second grade requirements of gloss meter
Auto Power-off Time30s
Long-time Calibration/
LanguageChinese & English
Storage/
Display2.3 inch white and black screen
Size160*52*84mm
WeightAbout 300g
Power Supply1pc dry-cell battery(can measure 10000 times) or use USB Charge
InterfaceUSB
PC Software/
Operation Temperature Range0-40℃(32-104° F)
Storage Temperature Range-20-50℃(-4-122° F)
Humidity Range< 85% RH, without condensation

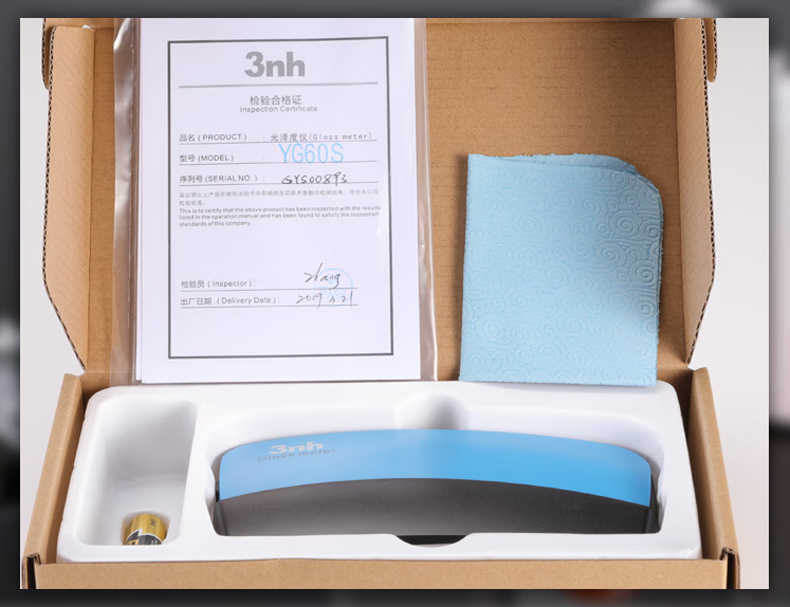

Standard AccessoriesUser manual, calibration plate
Optional AccessoriesMiniature printer
Notification: the technical parameter is only for reference



Our Valued Clients

FAQs About YG60S Gloss meter

Readings of gloss meters in gloss units (GU) are used to measure shine on the surface. Low GU (0-10) is matte, 10-70 semi-gloss or satin, and above 70 is glossy. Measurement angle is given to the readings: 60° is the normal, 20° is the high gloss, and 85° is the low gloss.


There is no generic mathematical formula for gloss value. Rather, it is measured directly with a gloss meter, which compares how strongly reflected light from a sample matches a standard (typically black glass with a known reflectance).


Smooth and uniform surfaces with a large amount of reflected light directly result in high gloss. Some of the factors are the smoothness of the surface, the type of paint that is being used, the thickness of the coating, and curing. The lesser the surface irregularities, the greater the gloss.


 A gloss meter measures the amount of light reflected from a surface at a specific angle. It's commonly used to assess surface finishes such as paint, coatings, plastics, and paper for consistency, quality control, and visual appearance evaluation.


The most common standard measuring gloss is ASTM D523, which covers the procedures of using a gloss meter at 20°, 60°, and 85° angles. The other international standard that is widely used in industrial and laboratory applications is the ISO 2813.
