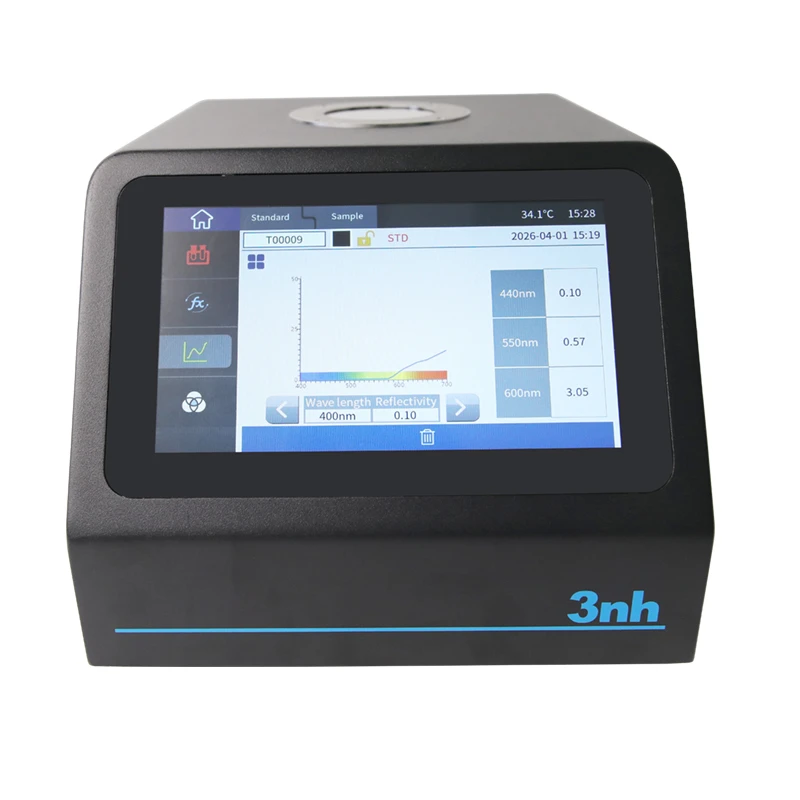

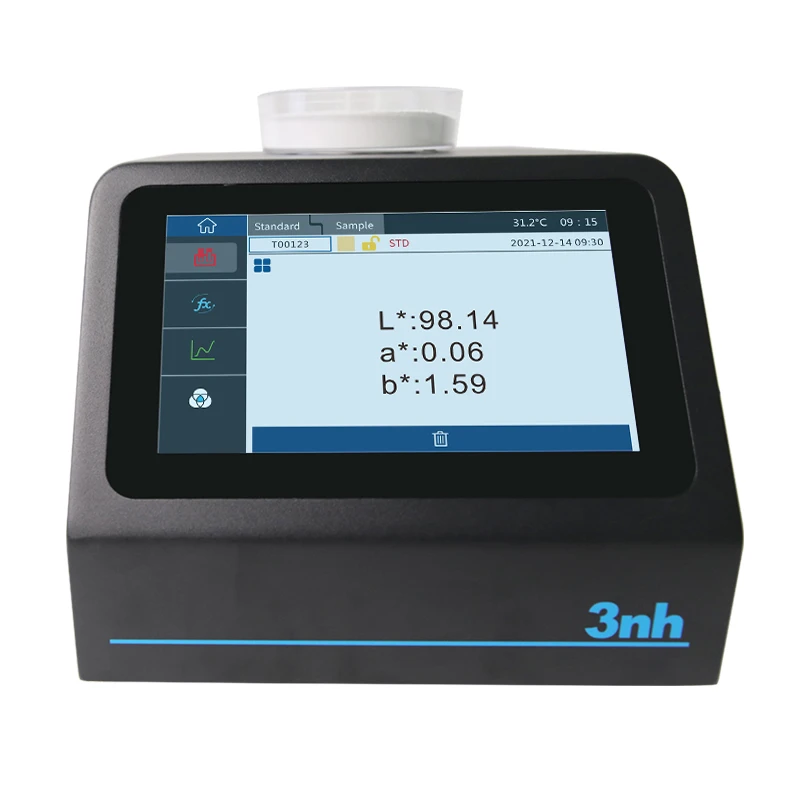

PS808 Spectrocolorimeter

PS808 Spectrocolorimeter Instructions Operating Manual PS808 Spectrocolorimeter PDF
This PS808 Spectrocolorimeter Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

I. Tailored for Particle Sample Testing, Meeting Diverse Needs

1. Special Large Aperture Design: The 50 mm measurement aperture is suitable for non-uniform samples such as granules, powders, and textured materials.

2. Full Industry Color Indices Support: whiteness (WI, supporting ASTM E313, CIE/ISO, R457, AATCC, Hunter, Taube, Berger, Stensby), yellowness (YI, supporting ASTM D1925, ASTM 313), tint (supporting CIE/ISO, ASTM E313-20), metamerism index MI, staining fastness, color change fastness, strength, hiding power, color density CMYK.

3. Compliance with International Standards: Strictly follows CIE No.15, GB/T 3978, ISO 7724-1, ASTM E1164.

Tailored for Particle Sample Testing, Meeting Diverse Needs

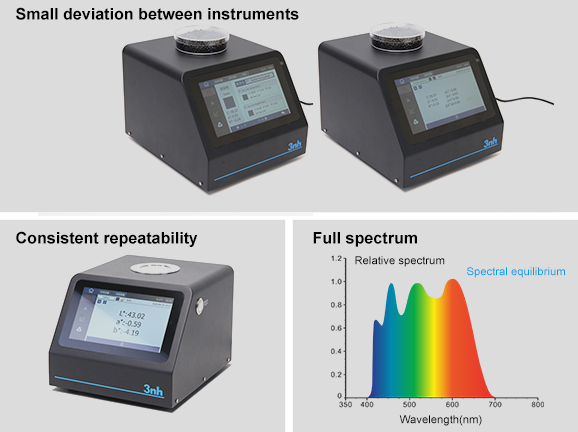

II. Precision Measurement, Reliable and Stable Data

1. High Repeatability: Color value repeatability ΔE*ab ≤ 0.03; spectral reflectance standard deviation ≤ 0.1% (≤ 0.2% in 400-700 nm band).

2. Inter-Instrument Agreement: ΔE*ab ≤ 0.35 (average of measurements on 12 BCRA Series II color tiles).

3. Full-Band Accurate Acquisition: 400-700 nm, wavelength interval 10 nm, half-bandwidth 10 nm, reflectance range 0-200%.

Precision Measurement, Reliable and Stable Data

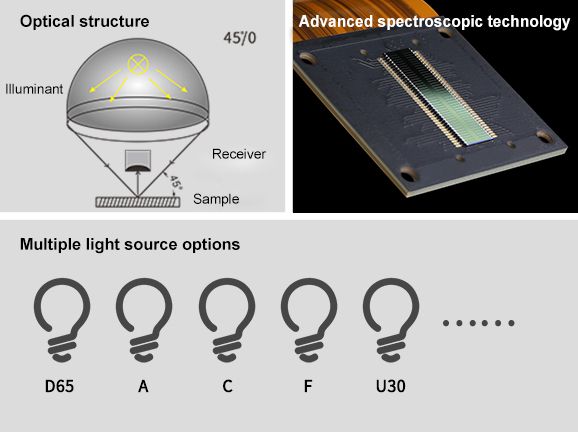

III. Professional Optical System Design, Adaptable to Various Measurement Scenarios

1. Standard 45/0 Optical Geometry: 45° annular uniform illumination and 0° reception.

2. Advanced Spectrophotometric Technology: Nano-integrated spectral device combined with a dual-array silicon photodiode array. Measurement time only about 1 second.

3. Rich Light Source Options: Built-in over 40 standard observation light sources (D65, A, C, F-series, etc.), supporting 2°/10° observer angles.

Professional Optical System Design, Adaptable to Various Measurement Scenarios


IV. Efficient and Convenient Operation & Data Management, Suited for Industrial Applications

1. Fast Measurement: Single measurement takes only about 1 second. Supports single measurement and average measurement modes (2-99 times).

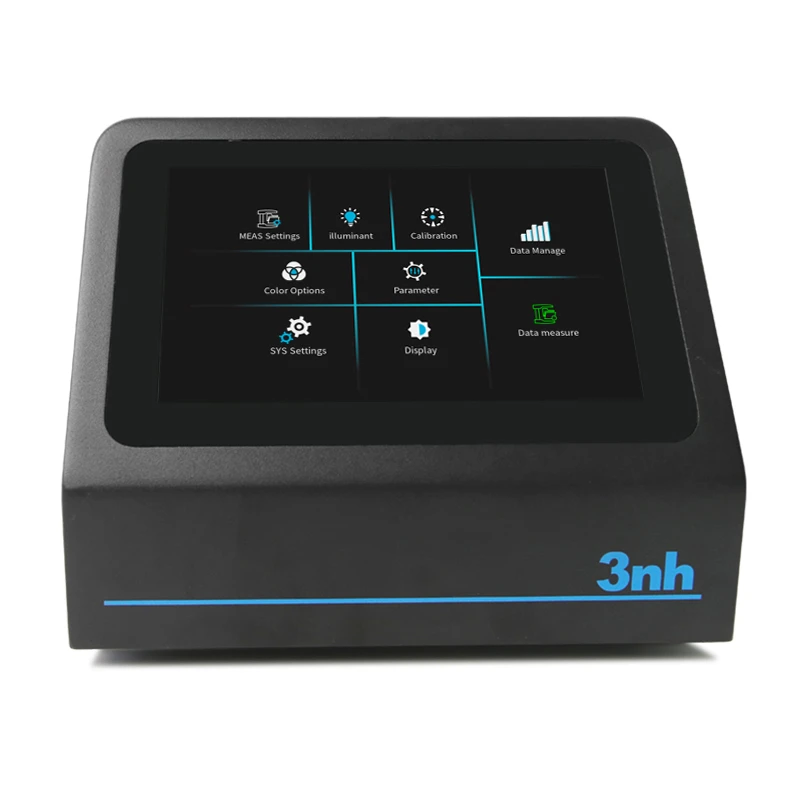

2. Intuitive Visual Operation: 7-inch true-color capacitive touchscreen.

3. Large Storage Capacity: Stores up to 1,000 master sample data and 30,000 test sample data.

4. Cross-Platform Software Compatibility: Professional quality management software (download from official website).

5. Multi-Language Support: Simplified Chinese, English, Traditional Chinese, Russian.

Data Management, Suited for Industrial Applications


V. High-Grade Durability & Strong Environmental Adaptability, Stable Under Complex Conditions

1. Long-Life Light Source: Combined LED light source with service life up to 10 years or >2 million measurements.

2. Broad Environmental Adaptability: Operating temperature range 0-40℃, 0-85%RH (non-condensing), altitude below 2000 m. Storage temperature range -20-50℃.

3. Stable Power Supply: 24 V DC, 3 A power adapter.

Strong Environmental Adaptability, Stable Under Complex Conditions


Product Model

PS808

Product Name

Particle Spectrophotometer

Optical Geometry

45/0 (45° annular uniform illumination, 0° reception);
Conforming to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164, DIN 5033 Teil 7

Features

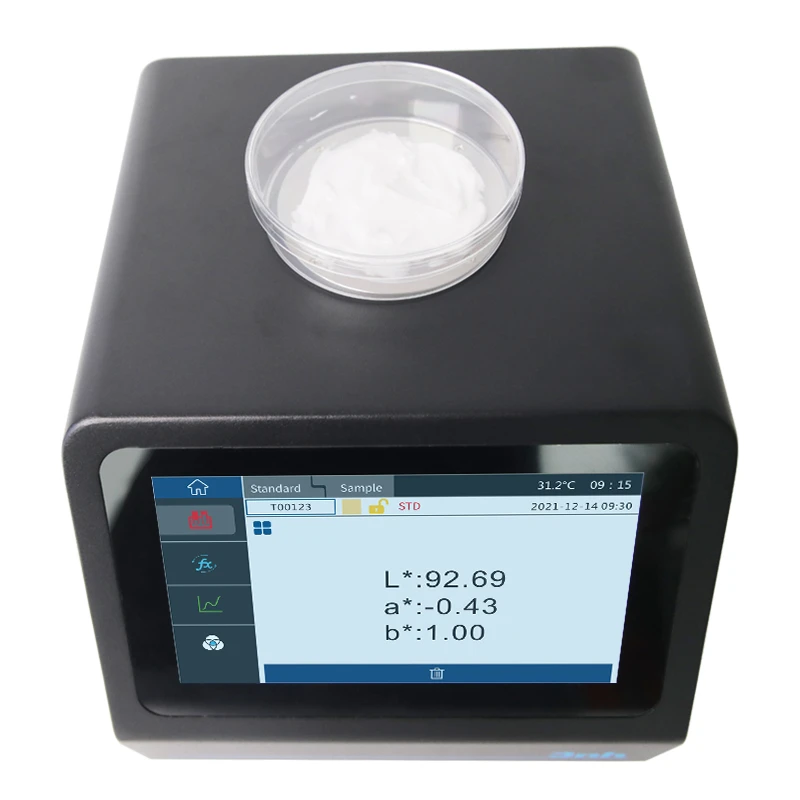

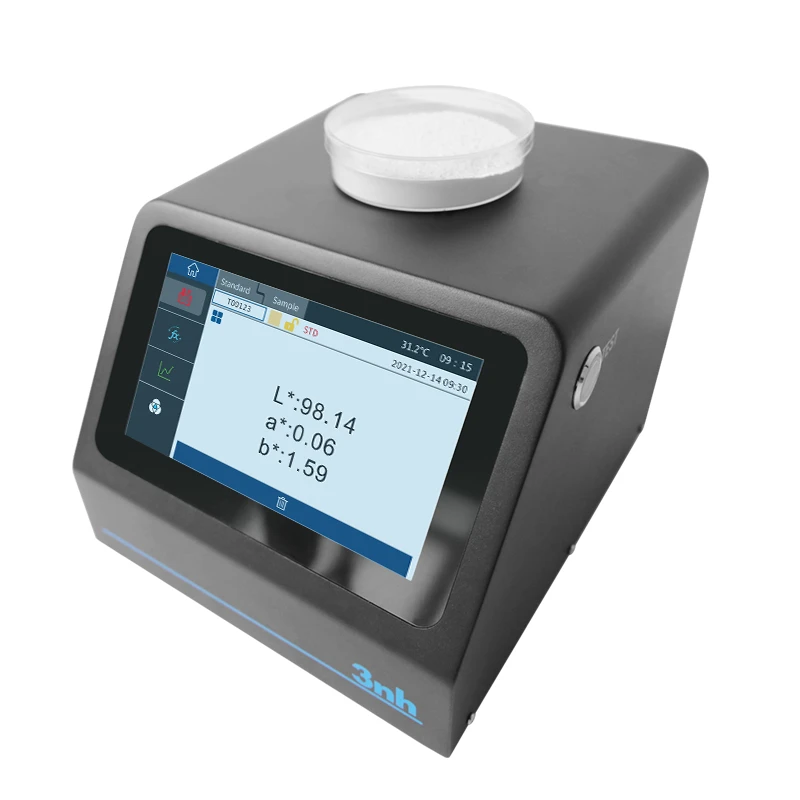

The Particle Spectrophotometer utilizes a 45/0 optical geometry and is equipped with a 50 mm large measurement aperture, complying with ASTM D6290-19 and other particle color test methods. The instrument provides a wide measurement area and highly representative data, making it ideal for color measurement of granular samples.
Widely used for precise color measurement and quality control in industries such as plastics & electronics, paints & inks, textile & apparel dyeing, printing, ceramics, and food.

Light Source

Combined LED light source

Integrating Sphere Size

/

Specular Component

/

Spectrophotometric Method

Nano-integrated spectral device

Sensor

Silicon photodiode array (dual-array, 20 groups)

Measurement Wavelength Range

400-700 nm

Wavelength Interval

10 nm

Half-Bandwidth

10 nm

Reflectance Measurement Range

0-200%

Measurement Aperture

50 mm

Observation Light Sources

D65,A,C,D50,D55,D75, F1,F2,F3,F4,F5,F6, F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5

Observer Angle

2°/10°

Color Spaces

CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99, Munsell (C/2)

Color Difference Formulas

ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE(Hunter)

Other Chromaticity Indices

Spectral reflectance, WI (ASTM E313, CIE/ISO, R457, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), Tint (CIE/ISO, ASTM E313-20), Metamerism Index MI, Staining fastness, Color change fastness, Strength, Hiding power, Color density CMYK

Repeatability

Spectral reflectance: standard deviation ≤ 0.1% (400-700 nm: ≤ 0.2%);
Colorimetric values: ΔE*ab ≤ 0.03

Inter-Instrument Agreement

ΔE*ab ≤ 0.35 (average of measurements on 12 BCRA Series II color tiles)

Display

Spectral graph/data, sample colorimetric values, color difference values/graph, pass/fail results, color bias

Measurement Time

Approx. 1 s

Measurement Mode

Single measurement, average measurement (2-99 times)

Dimensions

210 x 245 x 188 mm

Weight

3.1 kg

Power Supply

24 V DC, 3 A power adapter

Light Source Lifespan

10 years or >2 million measurements

Display Screen

TFT true-color 7-inch capacitive touchscreen

Interface

USB, Bluetooth

Storage

1,000 standard samples, 30,000 test samples

Language

Simplified Chinese, English, Traditional Chinese, Russian

Operating Temperature Range

0-40℃, 0-85%RH (non-condensing), altitude below 2000 m

Storage Temperature Range

-20-50℃, 0-85%RH (non-condensing)

Standard Accessories

Power adapter, data cable, user manual, quality management software (download from official website), white plate, Petri dishes x 2

Optional Accessories

Micro printer

Note:

Technical specifications are for reference only. Subject to change without notice.


Our Valued Clients

  • UNIVERSITÀ DEGLI STUDI DI GENOVA
  • LUND UNIVERSITY
  • laboratoire de chimie bacterienne
  • toronto
  • APPLIED MATERIALS
  • Lubrizol
  • UCDAVIS UNIVERSITY
  • THE UNIVERSITY OF sydney

FAQs About  Spectrocolorimeter

The accuracy of colors is determined by comparing the values of the colors (L*a*b*) of a sample with a standard reference sample using tools such as spectrophotometers. The variation is measured as ΔE. The smaller the value of ΔE, the more accurate, the nearer to the target color.


Record the L*a*b values of the sample and the reference with a calibrated spectrophotometer or colorimeter. Compute the difference in the color by use of ΔE. The lower the Delta E, the more accurate the result. The difference in energy, ΔE < 1, is generally assumed to be invisible to the eye.


The concentration of colored compounds in a solution is determined by the use of a colorimeter test. It can be used to measure the quality of the product. The colorimeter test determines the presence of contamination or observes chemical reactions by measuring the extent to which a solution absorbs light at a given wavelength.


The ΔE (Delta E) formula of the CIELAB color space is usually used to measure color difference. The difference is measured in a colorimeter or spectrophotometer to gauge the level of perceptibility of the difference between two samples in terms of L*a*b*.


In the study of chemical reactions, calorimetry deals with changes in heat (energy and enthalpy). Spectrophotometry is the measurement of the light absorbance or light transmittance to determine the concentration or color of a solution. The first one monitors the thermal processes, whereas the second one addresses the aspects of light and color.
