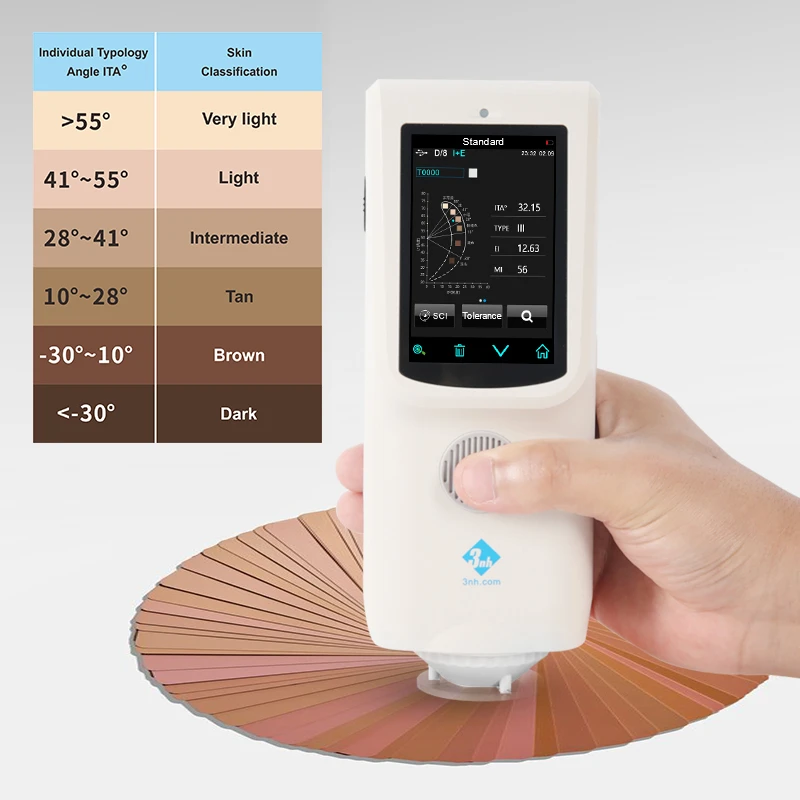

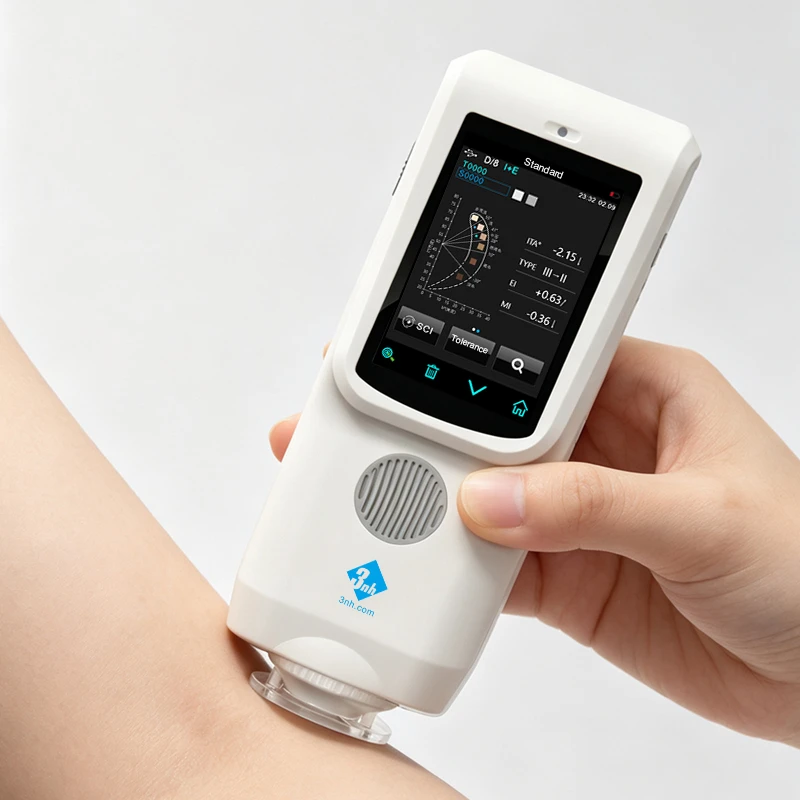

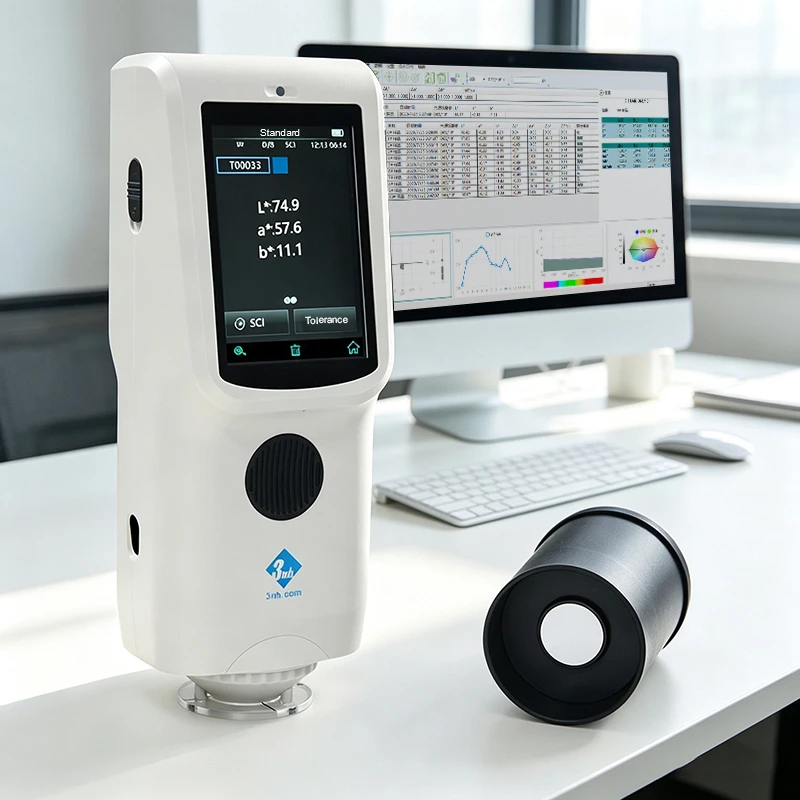

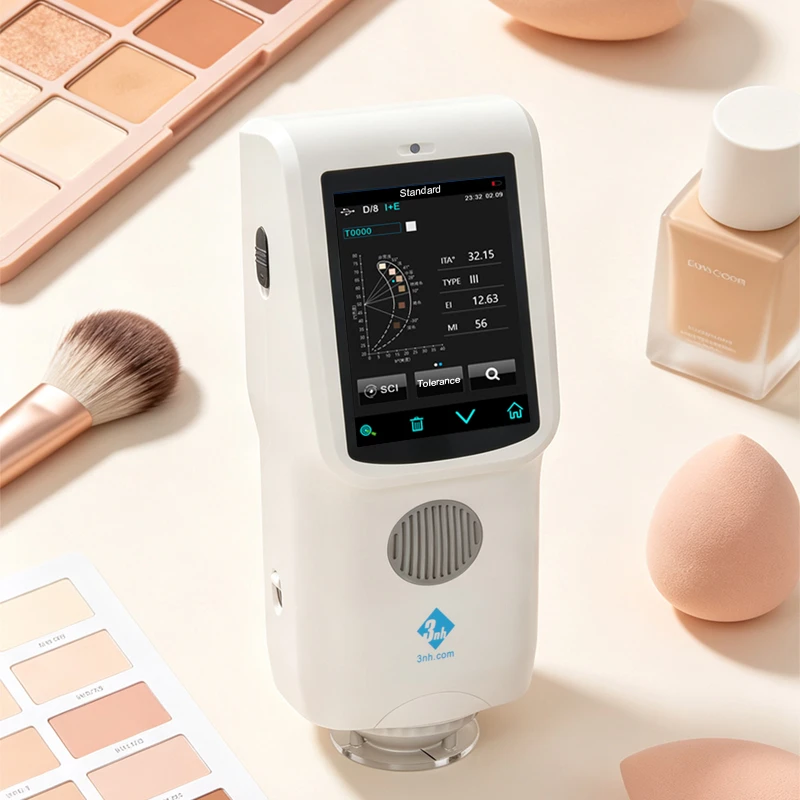

PS08 Skin Analyzer

PS08 Skin Analyzer Instructions Operating Manual PS08 Skin Analyzer PDF
This PS08 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

The 3nh PS08 is a research-grade skin analyzer tailored for cosmetics R&D, aesthetic medical efficacy evaluation, and synthetic skin verification. Utilizing a D/8 integrating sphere optical system and supporting simultaneous SCI/SCE measurements, a single skin-contact reading outputs four core indicators: Melanin Index (MI), Erythema Index (EI), Individual Typology Angle (ITA°), and CIE L*a*b* colorimetric values, providing high-precision, traceable skin color data. The core advantage of the PS08 lies in translating international standard colorimetry into objective, quantifiable, and traceable tools for skincare and medical aesthetics, substituting visual guesswork with authoritative data for formula screening, treatment tracking, and personalized skin consultation.

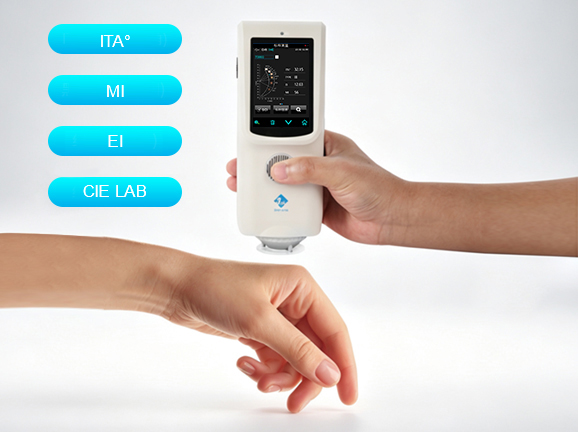

1. 4-in-1 Multi-Dimensional Skin Insight in One Touch

A single measurement outputs four core parameters simultaneously:

  • Melanin Index (MI): Measures skin pigmentation level to evaluate whitening product efficacy, monitor spot changes, and track post-sun repair.

  • Erythema Index (EI): Evaluates skin sensitivity, post-treatment recovery in medical aesthetics, and anti-allergy formulation efficacy.

  • Individual Typology Angle (ITA°): Scientifically classifies skin tone typology, eliminating subjective color guessing.

  • CIE L*a*b* Color Space: International color language for precise skin coordinate mapping.


4-in-1 Multi-Dimensional Skin Insight in One Touch

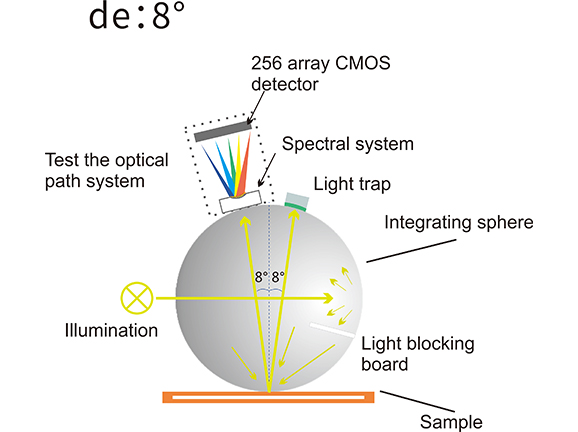

2. Research-Grade Accuracy Free from Visual Interferences

Combines a D/8 optical structure with planar grating spectrophotometry, fully compliant with CIE, GB/T, ASTM, and ISO standards. Immune to ambient lighting, surface gloss, or visual fatigue, enabling long-term, longitudinal comparative tracking.

Research-Grade Accuracy Free from Visual Interferences

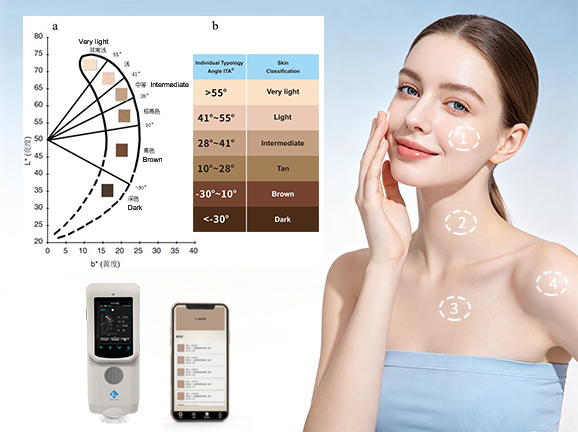

3. Skin Longitudinal Tracking & Multi-Zone Profiling

Each measurement is automatically recorded, allowing users to organize and archive data separately for different body areas, such as the face, neck, chest, and arms. By comparing measurements taken on different dates, including MI, EI, ITA°, and Lab*, users can intuitively determine whether a skincare product is truly effective in reducing dark spots, whether sunscreen effectively helps prevent skin darkening, and whether skin redness is gradually reduced. Measurement data is stored chronologically, allowing users to export the data or generate trend charts to visualize changes over time.

  • Independent Profiles for Multiple Body Areas: Create separate profiles for the face, neck, chest, arms, and other body areas, enabling zoned management of skin condition across the entire body.

  • Clear Visualization of Changes: MI, EI, ITA°, and Lab* can all be compared and analyzed. Let the data speak for itself and objectively evaluate skincare results.

  • Product Efficacy Comparison: Compare measurements taken before, during, and after product use to quantify the actual effects of whitening, soothing, and sun-protection products.

  • Local Data Storage: Data is stored locally and is not uploaded to the cloud (optional), ensuring maximum privacy and confidentiality.

  • Let the Data Speak for Itself: No more guesswork in skincare. Let numbers provide objective evidence of skincare results.


Skin Longitudinal Tracking


4. Objective Data Content Generation for Influencers & R&D

For Skincare Influencers, Beauty Experts, and Ingredient Enthusiasts:

  • Evaluate Sunscreens: Compare EI values before and after sun exposure to assess the effectiveness of sun protection.

  • Validate Brightening Serums: Continuously monitor changes in ITA° values to objectively evaluate brightening results over time.

  • Track Skincare Treatments: Monitor the erythema index to observe how quickly skin redness subsides throughout the treatment process.

Generate Data-Driven Reports: Move beyond subjective impressions and establish professional credibility with research-grade measurements and objective data.

Objective Data Content Generation for Influencers

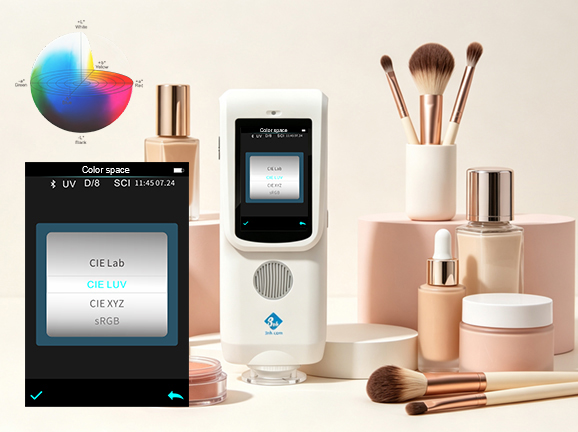

5. Advanced Colorimetric Analysis Capability

Supports CIE LAB, XYZ, Yxy, LCh color spaces and ΔE*ab color difference calculations. Provides clear axis definitions:

L* (Lightness): Lightness axis (0 = pure black, 100 = pure white); higher values indicate lighter skin tones.

a* (Redness): Red/Green axis; positive values measure redness and inflammation intensity.

b* (Yellowness): Yellow/Blue axis; correlates directly with tanning and melanin deposition.

Target Application Scenarios

Skincare Efficacy Validation: Quantitative evaluation for whitening, spot reduction, and skin barrier repair.

Medical Aesthetics & Salons: Objective treatment tracking and customer trust building.

Cosmetics R&D: Rapid formulation screening and active ingredient evaluation.

Skincare Bloggers & Content Creators: Scientific data creation and claim verification.

Advanced Colorimetric Analysis Capability


Target Application Scenarios

Skincare Efficacy Validation: Quantitative evaluation for whitening, spot reduction, and skin barrier repair.

Medical Aesthetics & Salons: Objective treatment tracking and customer trust building.
Cosmetics R&D: Rapid formulation screening and active ingredient evaluation.
Skincare Bloggers & Content Creators: Scientific data creation and claim verification.

Application


Model

PS08 Skin Analyzer

Illumination Geometry

D/8 (Diffuse illumination, 8° direction reception); SCI/SCE measurement; Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

Features

Engineered for skin color measurement; convenient assessment of Individual Typology Angle (ITA°), skin type classification, Melanin Index (MI), and Erythema Index (EI).

Integrating Sphere Size

Φ40 mm

Light Source

Combined full-spectrum LED light source

Spectrophotometric Mode

Planar grating spectrophotometry

Sensor

Silicon photodiode array (dual-row 32 groups)

Wavelength Range

400–700 nm

Wavelength Interval

10 nm

Half Bandwidth

10 nm

Measurement Range

L: 0–120; Reflectance: 0–200%

Measuring Aperture

Single aperture: Φ8 mm

Focusing Method

Optical focusing

Specular Component

Simultaneous SCI/SCE testing

Color Spaces

CIE LAB, XYZ, Yxy, LCh

Color Difference Formulas

ΔE*ab

Other Colorimetric Indices

ITA°, Skin Typology Angle, Erythema Index (EI), Melanin Index (MI)

Observer Angle

2° / 10°

Illuminant

D65

Display Features

Skin color classification chart, sample colorimetric values, color difference value/graph, PASS/FAIL result, color simulation, color bias

Display Resolution

0.01

Measurement Time

Approx. 1.5s (Simultaneous SCI/SCE approx. 3.2s)

Repeatability

Colorimetric value: MAV/SCI, ΔE*ab within 0.04 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration)

Inter-Instrument Agreement

MAV/SCI, ΔE*ab within 0.35 (Average across 12 BCRA Series II color tiles)

Accuracy Guarantee

Passed National Metrology Compliance

Measurement Method

Single measurement, Average measurement (2–99 times)

Locating Method

Stabilizer plate positioning

Dimensions

81X71X214mm

Weight

Approx. 460 g

Battery Capacity

Rechargeable lithium battery; 6000 measurements within 8 hours

Light Source Lifespan

5 years or over 3 million measurements

Display Screen

3.5-inch TFT color capacitive touchscreen

Interfaces

USB, Bluetooth

Data Storage

1000 Standards, 20,000 Samples (includes SCI/SCE); Massive APP storage

Languages

Simplified Chinese, English, Traditional Chinese

Operating Environment

0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m

Storage Environment

-20–50°C, 0–85% RH (non-condensing)

Standard Accessories

Power Adapter, Data Cable, User Manual, SQCX QC Software, Black & White Calibration Box, Protective Cover, Wrist Strap, Φ8mm Pointed Nozzle Aperture, MOBCCS APP

Optional Accessories

USB Micro Printer, Powder Test Box, Bluetooth Micro Printer

Remarks

Technical specifications are for reference only and subject to actual sales products.



Our Valued Clients

  • adidas
  • yishion company
  • toray company
  • sunshine group
  • textile company
  • tjx company
  • trident group company
  • coats

FAQs About PS08 ColorReader

CIELAB L*a*b* values are the most standardized units in the use of color measurement. These determine values of lightness (L*), red-green (a*), and blue-yellow (b*). The color differences between the two samples can be measured through ΔE.

The color measurement test applies a colorimeter or spectrophotometer to evaluate the way a sample reflects or absorbs light. It is given in objective color values (L*a*b*, RGB, or absorbance) and is usually contrasted to a standard in quality control or compliance.

The measurement of color varies according to context in several units. Such common units are L*a*b* (CIELAB), RGB (Red-Green-Blue), and color difference (Delta E). In light absorption, there are no units assigned to absorbance. But the quantitative analysis of absorbance obeys Beer's Law in colorimetry.

The color measurement theory is the quantification of the interaction of materials with light, either absorption, transmission, or reflection. It employs standard colour spaces (such as CIELAB) and devices (colorimeters, spectrophotometers) to code the visual colour into objective and reproducible data.

Techniques of measuring color are visual color comparison, colorimetry (with colorimeters) and spectrophotometry (measuring spectral reflectance), and image analysis. Both techniques measure the reflection or absorption of light by materials and are commonly quantified. Therefore standardized in color spaces such as CIELAB or RGB.
