NR145 Precision Colorimeter

Lightweight Handheld Sphere Colorimeter NR145

The NR145 Colorimeter is a compact, handheld color measurement device designed for simplicity and portability; NR145 microcomputer colorimeter is suitable for color detection and control in various occasions. It is an ideal choice for color management in garment factories, chemical factories, printing factories, automobile factories, hardware processing factories, mold factories, paint factories, etc.


Key Highlights

  • 45°/ 0° optical geometry

  • Accurate spectra &Lab data , for color matching & delivery;

  • CIE LAB,LCh, XYZ;

  • Φ8mm flat aperture;

  • 2.8-inch TFT screen for easy operation

  • Reliable repeatability (ΔEab ≤0.08) and inter-instrument agreement (ΔEab ≤0.4)

  • Large storage capacity,  Apprx. 20,000 data;

  • On-site inspections, providing cost-effective color measurement solutions for entry-level applications

NR145 Precision Colorimeter Instructions Operating Manual NR145 Precision Colorimeter PDF
This NR145 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Basic color quality control standards for multiple industries


A colorimeter is a precision instrument for measuring color differences of objects and serves multiple vital functions. In industrial production, colorimeters are primarily deployed for quality control to guarantee consistent product color. For industries such as coatings, plastics, textiles and printing, a colorimeter can accurately quantify the color difference between test samples and reference standards, ensuring the color of every production batch stays within acceptable tolerance ranges.

3nh COLORIMER deliver reliable build quality and exceptional precision, providing enterprises with cost-effective and traceable color quality control measurements.

Equipped with multiple measuring apertures, 3nh colorimeters are capable of measuring reflected color and color difference across a wide range of industrial sectors. They are widely used for color quality control in compounding, food, raw materials and finished products.

Functional Features

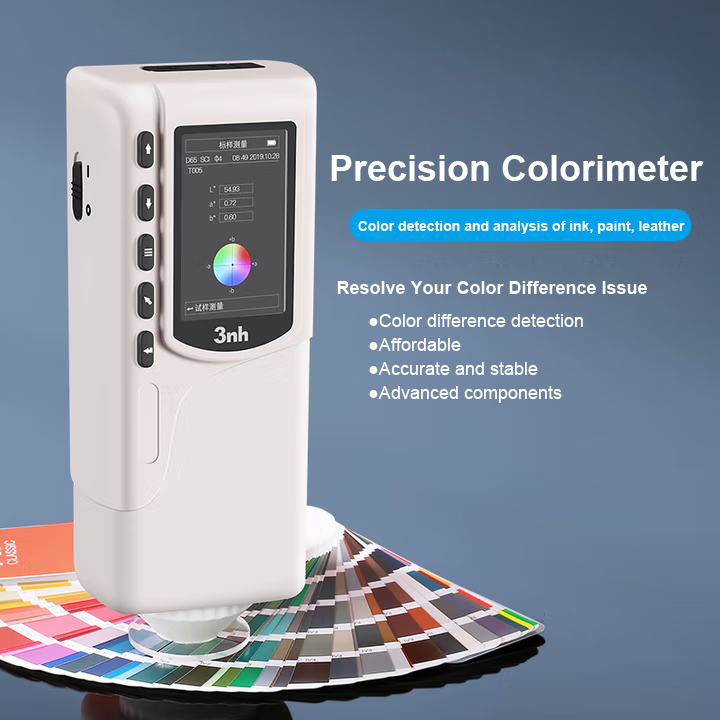

nr145 precision colorimeter color detection and analysis

NR145 Precision Colorimeter



3nh R&D team concentrates on customer needs and develops series of high-cost and high-quality products. NR145 is a precision colorimeter with 45°/0° viewing angle after NH310, NH300, NR200, NR110 and NR100 colorimeter. NR145 colorimeter has strong functions which applied a number of differential innovative technologies. It can measure accurately in 45° illumination /0° receiving under the SCE mode.

China NR145 Photoelectric Colorimeter wholesale - Select 2025 high quality Photoelectric NR145 Colorimeter products in best price



NR145 Precision Colorimeter




Product Advantages



1. Built-in white plate parameters. No need to calibrate each time which can perform measurement quickly.
2. Double Locating: Illuminating locating and precise cross locating.
3. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
4. New 45°/0° Optical Path Design: Significantly improve the measurement stability and precision.
5. 8mm Measuring Aperture.
6. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
7. Configure CQCS3 software. Connect PC computer to realize more functions.
8. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
9. Hand-head structure: small and convenient; make the measurement easier.
10.  Exquisite appearance: adopts traditional and fashionable aesthetic designs.



NR145 Precision Colorimeter



Illumination Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face



NR145 Colorimeter Applications


As a portable colorimeter with 45°/0° optical structurelaunched by 3nh, the NR145 features an 8mm small aperture, dual precision positioning and high stability, and is widely used in color detection scenarios across various industries. Its core applications are as follows:

1. Plastics & Electronics Industry

  • Suitable for small products such as plastic pellets, casings and buttons, accurately measuring color difference, yellowness index and whiteness index.

  • Applied in color consistency control of electronic accessories to ensure uniform appearance quality.

2. Coatings, Inks & Chemical Industry

  • Conduct on-site rapid color difference judgment for automotive coatings, industrial coatings and printing inks.

  • Support color data collection for powder and liquid coatings, and realize color formula traceability with CQCS3 software.

3. Automotive Manufacturing & Parts Industry

  • Used for color difference detection of automobile body paint, interior parts and plastic accessories.

  • Vertical design is suitable for measuring curved and small-area parts, meeting the whole-process quality control of vehicle coating.

4. Textile Dyeing & Leather Industry

  • Measure the color of cloth, yarn, leather and other textured samples to precisely control dyeing and matching effects.

  • Adapt to color consistency verification of mass production in clothing and home textiles.

5. Food, Pharmaceutical & Cosmetics Industry

  • Food: Detect the color of beverages, candies, sauces and other foods to monitor quality stability.

  • Pharmaceuticals/Cosmetics: Accurately measure color deviation of tablets, capsules and cosmetic powders to ensure compliance.

6. Building Materials & Printing Industry

  • Building materials: Suitable for color difference detection of hard materials such as glass, ceramic tiles and plates.

  • Printing: Measure color reproduction of packaging paper products and trademark labels, supporting multi-batch color comparison.

7. Scientific Research & Laboratory Scenarios

  • Meet the color measurement experiment needs of universities and research institutions, supporting output of various color space data.

  • Connect to a computer for data archiving and report generation, facilitating professional color analysis.

    nr145_applications


For samples with irregular or uneven surface textures such as granules, coffee, fabrics, wood, stones and bricks, the PS808C Spectrocolorimeter is your ideal solution. Featuring a unique 50 mm large aperture, it is perfectly suited for these types of samples. Without this instrument, operators would have to manually take multiple measurements and calculate averages to obtain representative and repeatable data.

NR145 Colorimeter Technical Specifications



3nh
NR145
Illuminating/Viewing Geometry
45°/0°
Measuring Aperture
Φ8mm
Measurement End-face
Large stable end face and small concave-convex end face
Detector
Silicon photoelectric diode
Locating
Illuminating Locating/Cross Locating
Color Space
CIEL*a*b*C*h* CIEL*a*b*
CIEXYZ
Color Difference Formula
△E*ab △L*a*b* △E*C*h*
Light Source
D65
Light Source Device
LED blue light excitation
Errors Between Each Equipment
≤0.80ΔE*ab
Storage
100pcs standards 20000pcs samples
Repeatability
Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Weight
500g
Dimension
205×67×80 mm
Power source
Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life
5 years, more than 1.6 million measurements
Charging Time
The first charging time is 8 hours--100% electricity
PC Software
CQCS3 Software
Printer (optional)
Miniature thermal printer




Our Valued Clients

  • customer pidilite
  • customer bridgestone
  • PHILIPS
  • customer apollo
  • SRIVASAVI
  • customer jaquar
  • customer bajaj
  • our customer crompton

FAQs About NR145 Colorimeter

3nh Instrument Recommendation for Translucent Materials

1. YS6002 / YS6002-M Color & Haze Meter

Equipped with d/8° integrating sphere and D/0 transmission structure, it comprehensively tests color difference, haze, transmittance and yellowing index. Ideal for translucent film, frosted glass, milky plastic and liquid samples, perfectly suitable for laboratory and production quality control.

2. KS1500 / KS1510 Color Haze Meter

Adopts large integrating sphere and full-spectrum optical design, delivers stable diffuse transmission data. Specially optimized for thick translucent sheets and high-haze materials, ensuring accurate and consistent color measurement.

3. TS8560 Spectrophotometer

High-precision benchtop model with dual reflection & transmission measurement modes. Supports SCI/SCE detection, with excellent inter-instrument agreement, meeting strict color inspection standards for high-end translucent materials.

4. TS8510 Portable Spectrophotometer

Compact and portable, optional transmission accessory for fast on-site testing of thin translucent samples. Great for factory spot inspection and mobile quality checking.


Calibrating a colorimeter before testing is critical for accurate, reliable color data—counteracting instrument drift, environmental interference, and component wear to ensure measurements reflect true sample colors. It guarantees compliance with industry standards, eliminates costly rework from flawed data, maintains brand consistency across batches/locations, and ensures data comparability with clients or regulators.

Calibrating a colorimeter before use is primarily to ensure the accuracy of measurement data and compensate for errors caused by the aging of internal components (such as light sources and phototubes) or environmental changes.

Below are the specific reasons:

  1. Compensation for Component Aging and Environmental Influences

  2. Compensation for Environmental Factors

  3. Standardization of Measurement Baselines

  4. Operational Specification Requirements

3nh colorimeters are designed for immediate measurement upon startup. However, calibration (via black-white correction) is mandatory for the first use, sudden environmental changes, or abnormal data to restore measurement accuracy.

3nh high-precision spectrophotometers are the best choice for accurate color matching.

  1. TS8560

    Top-grade benchtop model with low ΔE value, excellent inter-instrument agreement, SCI/SCE dual mode and stable repeatability. Ideal for precise color matching of plastics, coatings and translucent materials.

  2. YS6002

    Integrated design for color difference, haze and transmittance testing. Perfect for color consistency control of films, glass and semi-transparent products.

  3. NS800 / NR60CP

    Cost-effective portable colorimeters, fast reading and easy operation, suitable for daily incoming inspection and production line color matching.


Threenh Technology with excellent after sale service, Generally, Our warranty is one years(Additional support period of 3 years). Within the warranty period, we can offer technique support and parts to parts change, necessarily, our engineers may go to your place for better support. Our instrument have professional After-sales Dept. lf you have any technical problem or question with our goods welcome to contact us.

Because color perception depends on the following factors:

Light source - For example, incandescent lamps emit orange light, while fluorescent lamps emit cool white light. Therefore, placing an object near different light sources will result in different perceived colors.

Observed object - Different types of objects affect color perception differently. Examples include opaque objects, translucent objects, and transparent objects.

Observer's position - Each observer will describe colors differently based on the position of their eyes.

Different backgrounds - An object's color will appear duller against a light-colored background than against a dark-colored background. Different directions of light reflection from the object - Light reflected from different directions creates different color perceptions. This is particularly noticeable with metallic objects.

Different directions of light reflection from the object - Light reflected from different directions creates different color perceptions. This is particularly noticeable with metallic objects.
