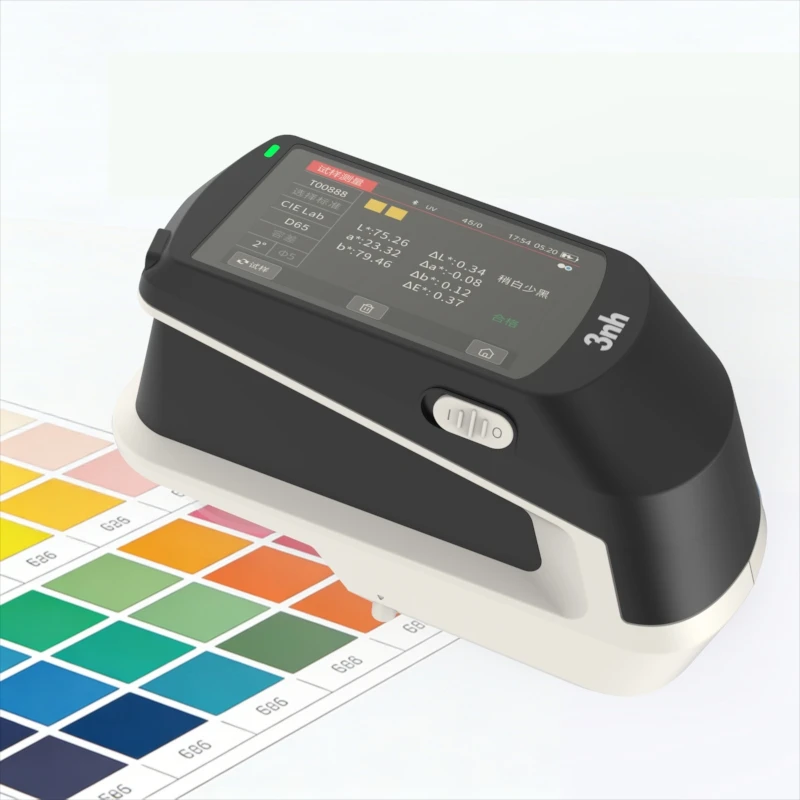

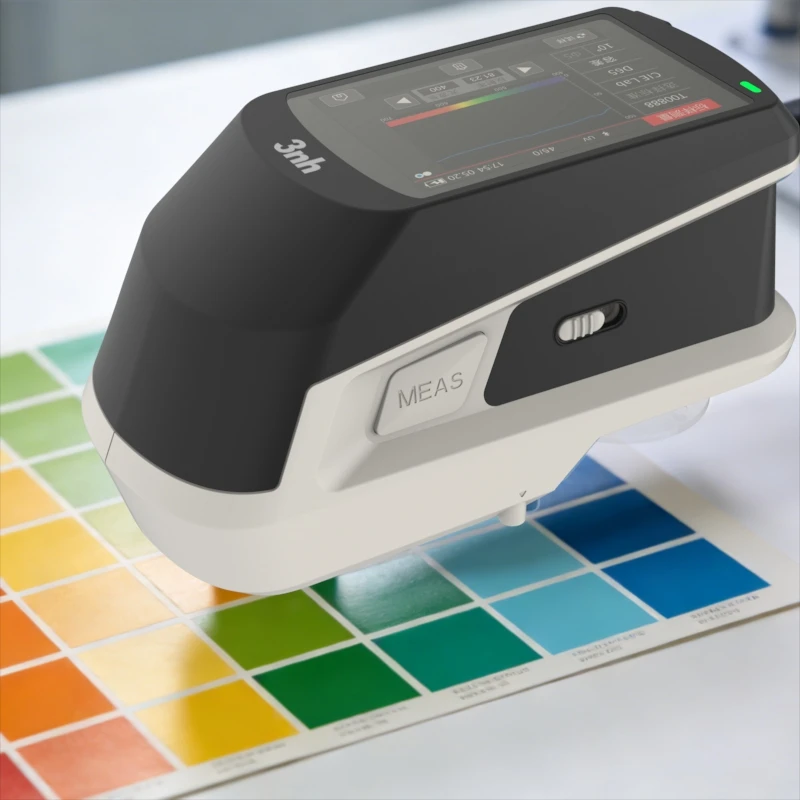

TS-26C Spectrophotometer Machine

Enhanced Laboratory‑Grade Grating Spectrophotometer

TS-26C built around industry‑trusted 45/0 circular uniform illumination geometry, it delivers measurement results closely matching human visual perception and minimizes interference from textured, grainy surfaces


Key Highlights

  • Optical Geometry: 45/0 circular uniform illumination geometry;

  • 7 interchangeable apertures (12 mm,11 mm,10 mm,6 mm,5 mm,3 mm,1×3 mm);

  • Rich color spaces & color‑difference formulas;

  • Excellent repeatability: ΔE*ab ≤0.018;

  • full‑featured PC color‑management software supported;

  • Widely applied in plastics, paints & coatings, ink, ceramic, traffic‑safety material laboratory R&D and incoming‑batch QC;

TS-26C Spectrophotometer Machine Instructions Operating Manual TS-26C Spectrophotometer Machine PDF
This TS-26C Spectrophotometer Machine Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3nh TS-26C spectrophotometer is an enhanced laboratory-grade spectrophotometer independently developed by 3nh, specifically designed for high-precision color analysis and transmission scenarios. It adopts the internationally recognized 45/0 optical structure and incorporates a high-performance optical system, achieving rapid and accurate measurements within the 400–700nm spectral range. The product is equipped with seven measurement apertures to flexibly adapt to samples of different sizes and shapes, and has the capability to measure fluorescent samples. It also meets the requirements for measuring the luminance factor and chromaticity coordinates of traffic signs, markings, and reflective films. It includes GB 2893 and GB/T 18833 standard colors and supports manually customized polygonal rectangle tolerances, providing professional solutions for color management across various industries.

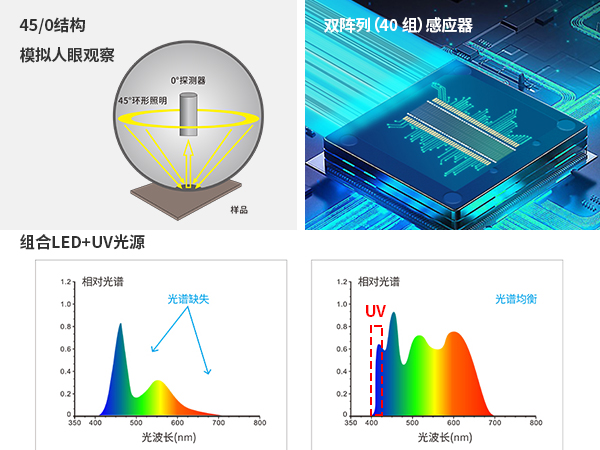

一、Precision Optical Measurement System

Optical geometry: The 45/0 illumination method (45° circular uniform illumination, 0° reception) is adopted, which complies with standards such as CIE No.15, GB/T 3978, and GB 2893 to ensure measurement standardization and data consistency.

Combined full-spectrum LED light source: It employs a combination of 400-700nm full-spectrum LED light source and UV light source, ensuring sufficient spectral distribution within the visible light range, avoiding spectral loss in specific wavelengths, preventing saturation under strong light, enhancing sensitivity under weak light, and allowing for easy measurement of fluorescent samples.

Silicon photodiode dual array (40 groups) sensor: Using larger area silicon photodiode array (40 groups in two rows) sensor effectively solves the problems of strong light saturation and weak light detection, ensuring the instrument's measurement speed and accuracy.



二、High-precision colorimetric control, inter-station difference ≤0.15


Repeatability accuracy：Within ΔE*ab 0.018，The repeatability accuracy of the instrument has reached a level that is difficult for similar products to match.

Inter-instrument Error: Within ΔE*ab 0.15，Ensure the measurement results from multiple devices are highly consistent.



三、Dedicated Measurement Solutions for Traffic Signs /Markings /Reflective Sheets

It supports the measurement of luminance factor and chromaticity coordinates of traffic signs, markings, and reflective films, and is adapted to the strict requirements of the transportation industry for the consistency of road sign colors.

Built-in GB 2893 (safety colors) and GB/T 18833 (road traffic reflective film) standard colors, no need for additional import, and can manually customize polygonal rectangle tolerances to improve industry application efficiency.

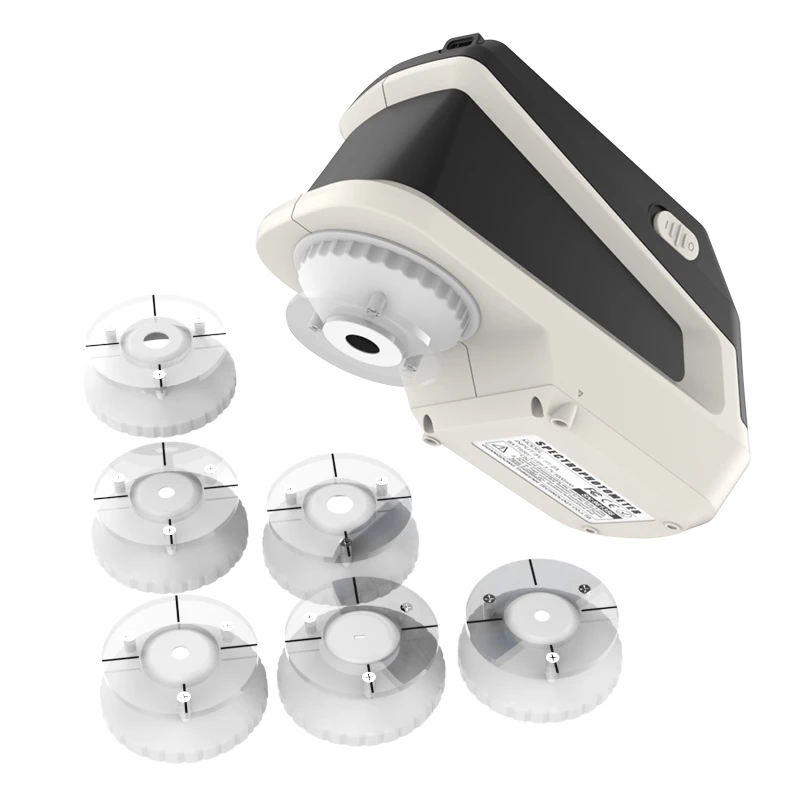

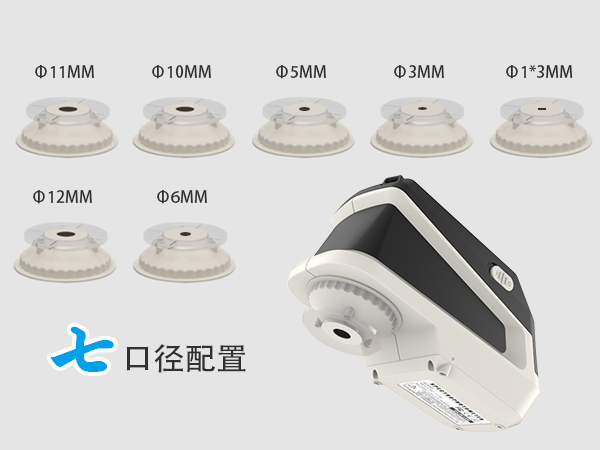

四、Seven-apertures precision, covering full-size samples

Provides seven measuring apertures (12mm、11mm、10mm、6mm、5mm、3mm、1*3mm platform)，It can be flexibly switched according to the sample size (such as small electronic components or large road signs) to adapt to diverse measurement scenarios.

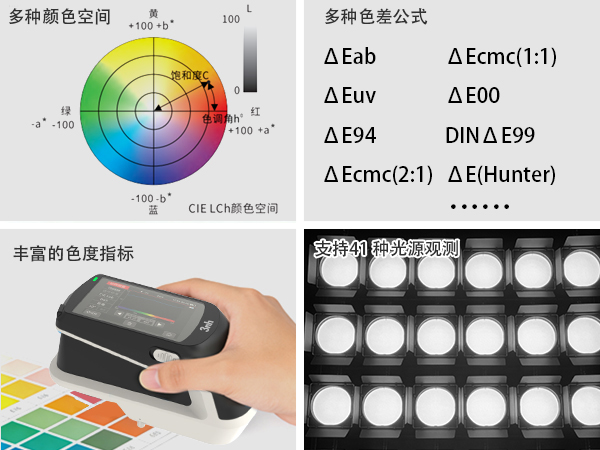

五、Comprehensive colorimetric analysis capability

Configure 10 color spaces: including CIE LAB、XYZ、Yxy、LCh、CIE LUV、s-RGB etc. It meets the color definition and analysis needs of different industries.

Supports 9 color difference formulas: including ΔEab、ΔEuv、ΔE94、ΔEcmc (2:1)、ΔE*00 etc, it can accurately quantify color differences and adapt to color difference judgment standards in different scenarios.

Rich colorimetric index: It supports measurements such as whiteness (WI), yellowness (YI), metamerism index (MI), blackness, and color density (CMYK), as well as staining fastness, color change fastness, force content, and opacity, covering the entire color evaluation process.

Supports observation of 41 light sources: including （D65、A、C、D50 etc，some are achieved through PC software）and 2°/10° view angle，It can simulate visual effects under different environments and meet the needs of color transmission across different scenarios.

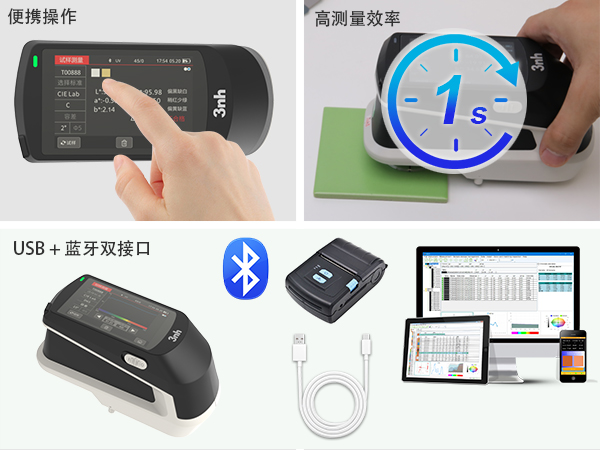

六、Convenient operation and data management

Convenient operation: Equipped with a 3.5-inch TFT true-color capacitive touchscreen, it can intuitively display spectrum/data, colorimetric values, color difference values/comparison charts, and pass/fail judgment results, making it easy to operate.

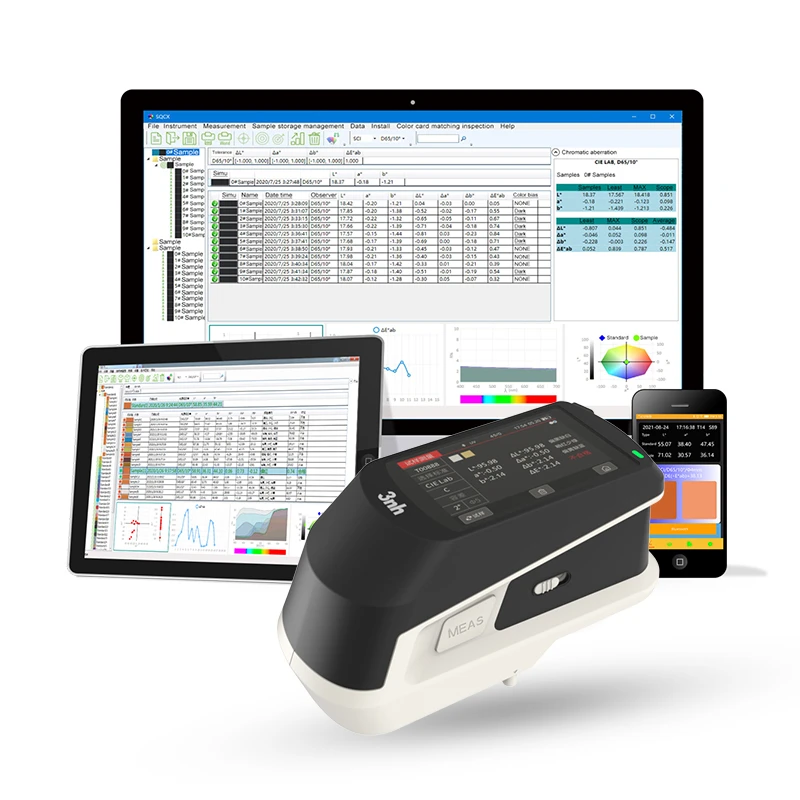

USB + Bluetooth dual interface：Support USB +Bluetooth，It can connect to computers and printers, and is compatible with Android/iOS/Windows systems and WeChat mini programs, making data transmission and report generation more flexible.

High measurement efficiency：A single measurement takes only about 1 second, and it supports the storage of 1,000 standard samples and 30,000 test samples, meeting the long-term data traceability needs of a large number of samples.

六、操作使用便捷 - 副本.jpg


Spectrocolorimeter

Model

TS-26C

Illumination

45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Features

Enhanced spectrophotometer for precise color analysis and transmission in the laboratory;
Used for precise color measurement and quality control in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics; it can also be used for fluorescent sample measurement.
It can be used to measure the luminance factor and chromaticity coordinates of traffic signs, markings, and reflective films. It includes GB 2893 and GB/T 18833 standard colors and allows manual customization of polygonal rectangle tolerances.

Light Source

Combined LED Light, UV Light

Spectral separation device

Flat Grating

Detector

Silicon photodiode array (dual array, 40 groups)

Wavelength Range

400~700nm

Wavelength Pitch

10nm

Half Bandwidth

10nm

Reflectance resolution

0.01%

Reflectance Range

0~200%

Measuring Aperture

7 aperture:12mm platform+11mm platform +10mm platform +6mm platform+5mm platform+3mm platform + 1*3mmplatform

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)

Color Difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Other Colorimetric Index

WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925，ASTM 313),
Metamerism Index MI，Blackness (My,dM)，Tint(ASTM E313-00)，Munsell(C/2)，
Staining Fastness, Color Fastness, Color Density CMYK,Opacity（Some functions are realized through PC software）

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2,F3,F4，F5，F6,F7,F8,F9，F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30，B,U35,NBF,
ID50,ID65,LED-B1,LED-B2 ,LED-B3,LED-B4,LED-B5,LED-BH1 ,LED-RGB1,LED-V1,LED-V2 ,LED-C2,LED-C3,LED-C5,Light source can be customized (a total of 41 kinds of light sources, some of which are realized through the host computer/APP)

Display Data

Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset

Measurement Time

About 1.5s

Display resolution

0.01

Repeatability

Spectral reflectance: MAV, Standard deviation within 0.07% (400 nm to 700 nm: within 0.2%)
Chromaticity value: MAV, within ΔE*ab 0.018 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error

MAV,Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)

Measurement mode

Single Measurement, Average Measurement(2-99)

Size(L*W*H)

169X73X87mm

Weight

About 446g

Battery power

Li-ion battery. 10000 measurements within 8 hours

Illuminant Life Span

5 years, more than 3 million times measurements

Display

3.5-inch TFT color LCD, Capacitive Touch Screen

Interface

USB, Bluetooth 5.0

Data memory

Standard 1000 Pcs, Sample 30000 Pcs

Language

Chinese Simplified, Chinese Traditional, English, Russian

Software

Andriod,iOS,Windows,WeChat Mini Program

Calibration

First Grade

Working Environment

Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m

Storage Environment

Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

Standard Accessory

Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover, Measuring Apertures

Optional Accessory

Micro Printer, Powder Test Box, Universal test components, Locating Plate

Note

Technical specifications are for reference only; the actual product sold shall prevail.



Our Valued Clients

  • customer hms logo
  • customer cubic logo
  • Clients honda logo
  • maruti suzuki logo
  • partner vishay logo
  • customer nesling logo
  • 3nh customer bridgestone
  • customer century laminate

FAQs About  Portable Spectrophotometers

Spectrophotometer, Colorimeter, Gloss meter, Haze Meters, Coating thickness meter, window tint meter, UV meter, Leeb hardness tester, Light booth, Color Test Chart, Ultrasonic thickness gauge. Threenh Technology company adheres to independent design, research and development, production and sales of various measuring instruments.

SCI&SCE are two method in the color measurement. SCI means Specular Component Include,SCE means Specular Component Exclude.

Under the method of SCE, only test diffuse refection and exclude specular reflection. In that way, the test result is similar to object color was observed by human eyes.

Under the method SCI, both the diffuse refection and specular reflection will be included. In that way, the value about the color is more objective. It will not effect by the environment condition.

When we choose the instrument, those elements should be taking into consideration.


When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on. We sell to the global market.

With centers in 20 countries, including India, Japan, USA, Germany, Singapore, China, South Korea, and Taiwan, Threenh Technology’ s service network aims to provide customers with convenient access to service globally. With over 1 million measuring instruments sold, our expertise is our greatest asset, enabling us to work with our customers on solutions to complex measurement challenges.

For premier ink quality control (CMYK, spot colors, printing density, formulation & press-side QC), these 3nh spectrophotometers / spectrodensitometers stand above the rest:


1. YD5050 / YD5010 (Best for Printing & Ink Press QC)

  • 45/0 ring illumination, ISO 5-4 / ISO 13655 (M0/M1/M2/M3)

  • Measures density (Status T/E/A/I), dot gain, trap, print contrast

  • ΔE*ab ≤ 0.03, density ≤ 0.01D

  • Small apertures (Φ2/4/8mm) for fine print & ink dots

  • Ideal: packaging, label, gravure, flexo, CMYK/spot color control

    YD5050


2. TS8560 Benchtop (Lab Formulation & Highest Accuracy)

  • d/8° sphere, SCI/SCE, UV control

  • ΔE*ab ≤ 0.01 (repeatability), IIA ≤ 0.1

  • Multi-apertures (Φ3/8/15/25mm)

  • Best for: R&D, ink formulation, batch consistency, fluorescent inks

    TS8560_Benchtop_colorimeter


3. TS7700 Portable (Production & Field Matching)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Fast, handheld, large Φ20mm aperture

  • Best for: press-side checks, warehouse incoming ink, on-site matching

    TS7700_Portable_colorimeter
    3nh TS7700

4. YS6060 Benchtop (High-End Lab & Transmissive Inks)

  • 360–780nm, UV adjustable, dual CMOS

  • Reflection & transmission modes

  • Multi-aperture (Φ4/8/15/25.4mm)

  • Best for: high-precision lab R&D, transparent/fluorescent inks

    YS6060_Benchtop_colorimeter


Short Recommendation

  • Best press-side / print QC: YD5050

  • Top lab formulation: TS8560

  • Best portable production: TS7700

  • High-end lab R&D: YS6060

All ensure ultra-precise color, density & consistency for offset, flexo, gravure, screen-printing & packaging inks.
