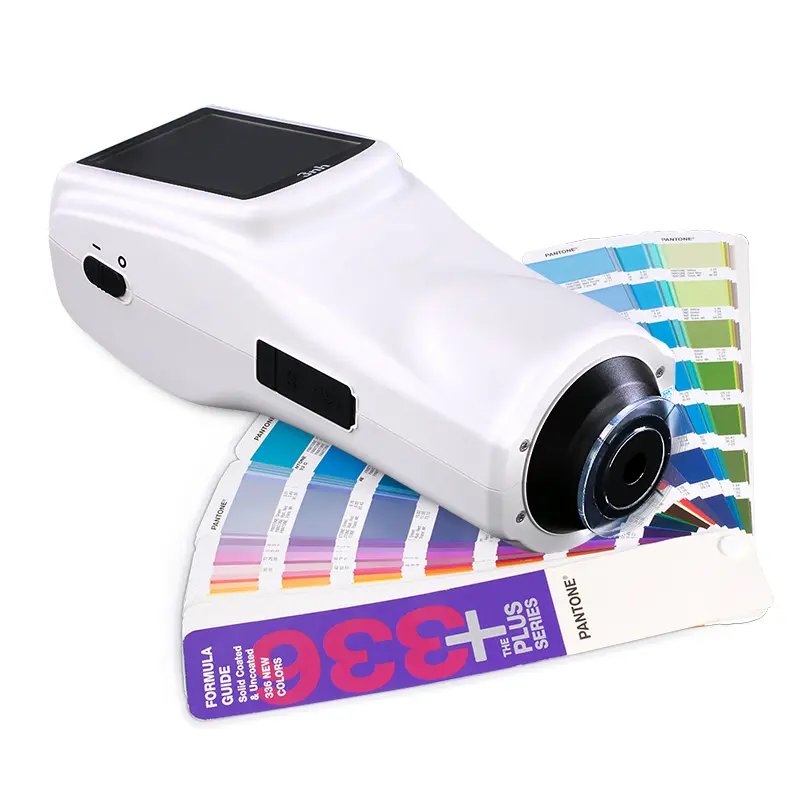

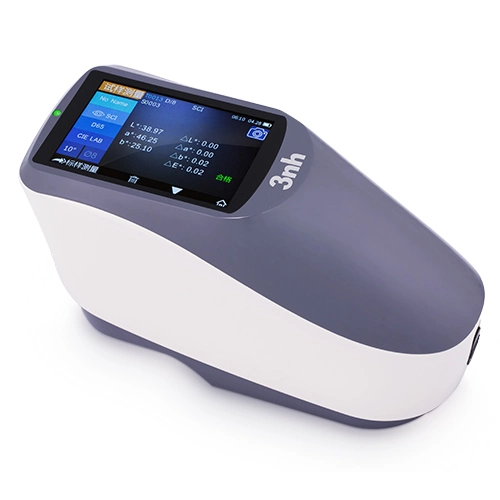

Spectrophotometer machine Make the color difference clear, a Ultra high-precision spectrophotometer, for the objective measurement

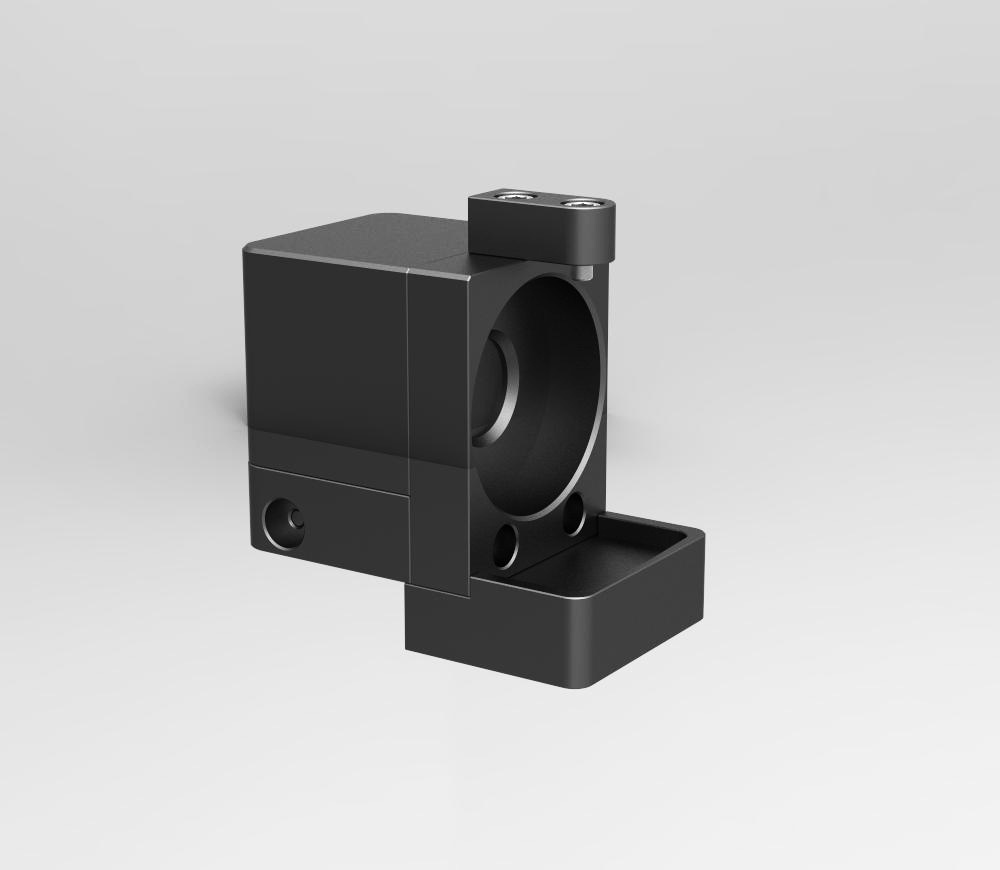

• When measuring with the multi-functional module, the instrument must be in a lying position.

• After confirming that the instrument is properly installed, align the small pressure block with the nut hole of the instrument. Use a wrench to lock in the provided M5 bolt, and tighten both bolts simultaneously.

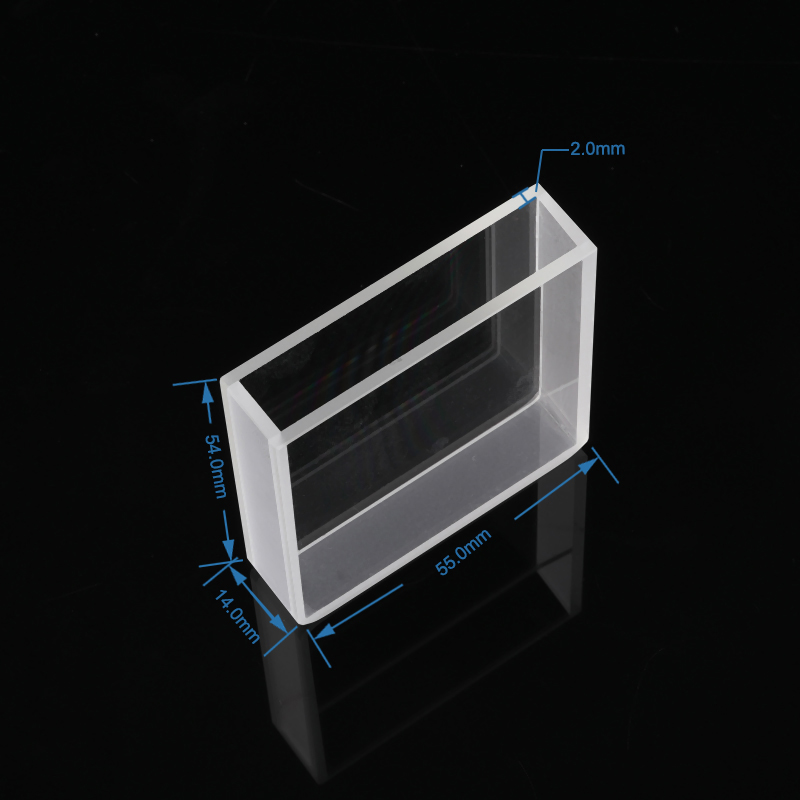

• Open the clamp, insert the cuvette containing the prepared sample to be tested. Release the clamp slowly to make the cuvette fit tightly against the measuring aperture.

• Cover with the light shield, and then you can operate the instrument to perform the relevant measurements.

Make the color difference clear, a high-precision spectrophotometer, for the objective measurement

• Large-area silicon photodiode array

• Optical resolution in the visible range is less than 10nm

• Excellent repeatability (ΔEab ≤ 0.018) and inter - instrument error (ΔEab ≤ 0.18)

• 5 Measuring Apertures

It can be used to test liquid reagents, pastes (e.g., tomato sauce, coatings), powders (e.g., coffee), and more

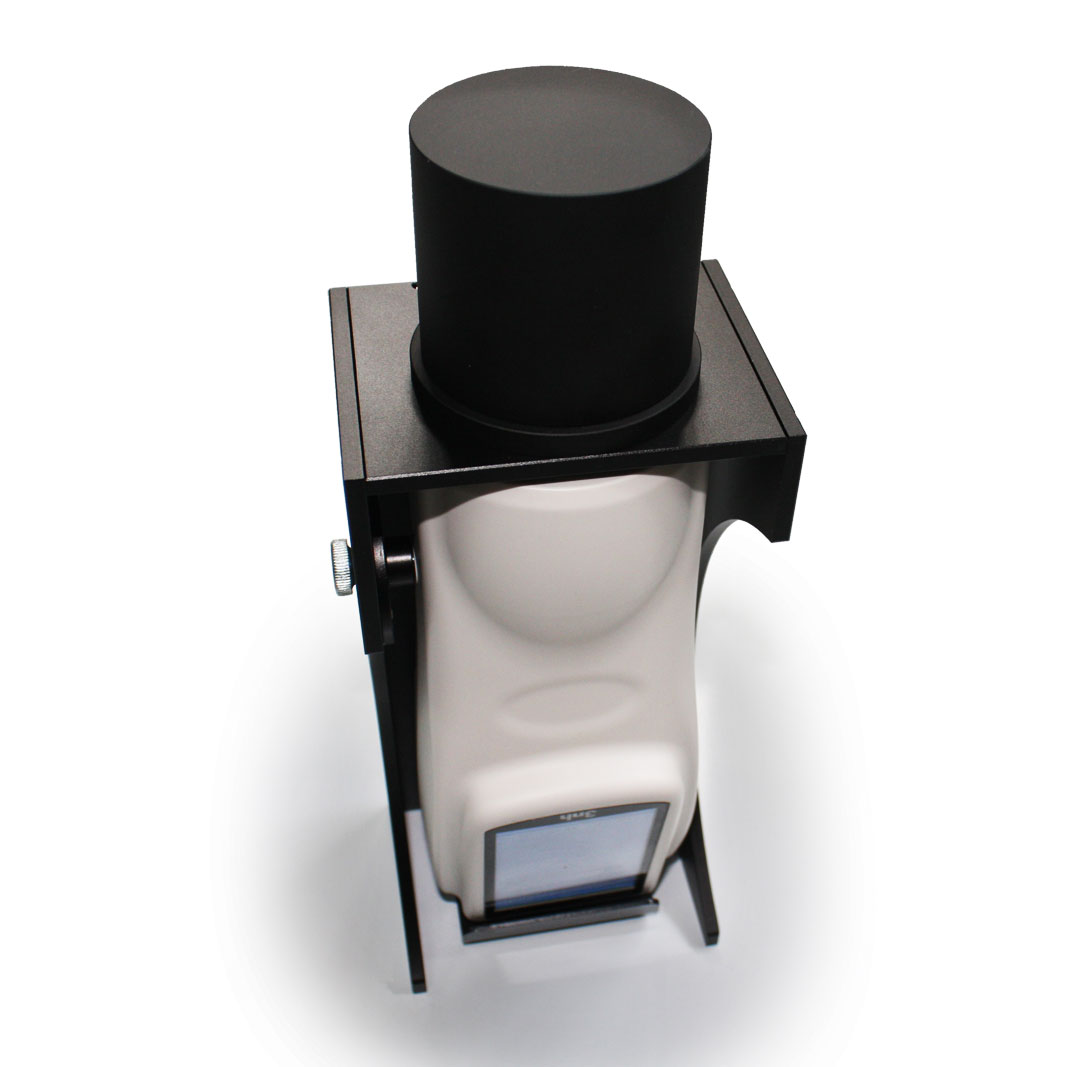

• First, perform black and white plate calibration on the colorimeter

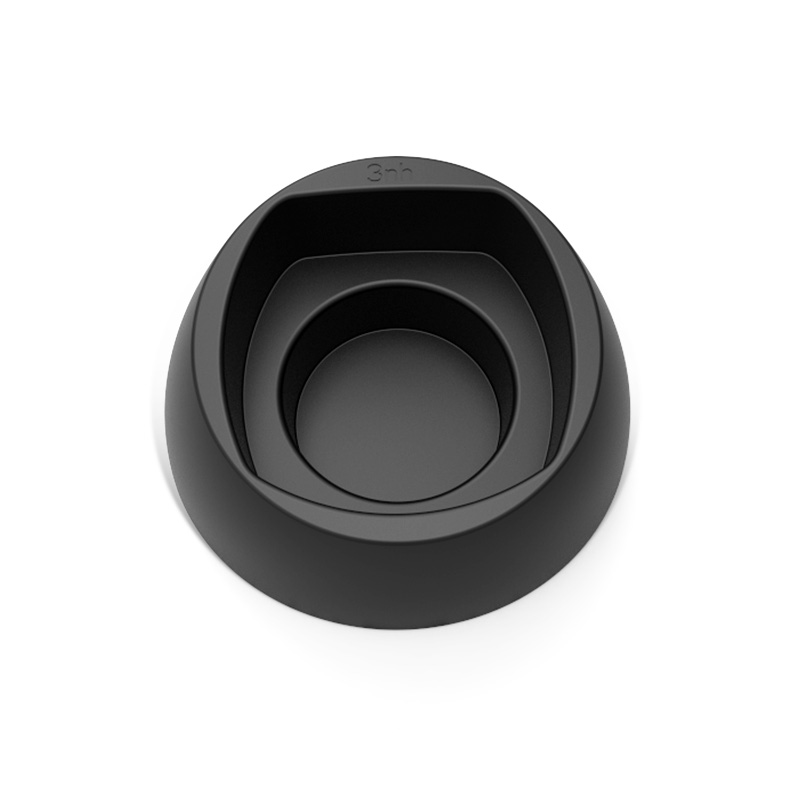

• Place the colorimeter into the base and tighten the screws to ensure the colorimeter is fixed securely.

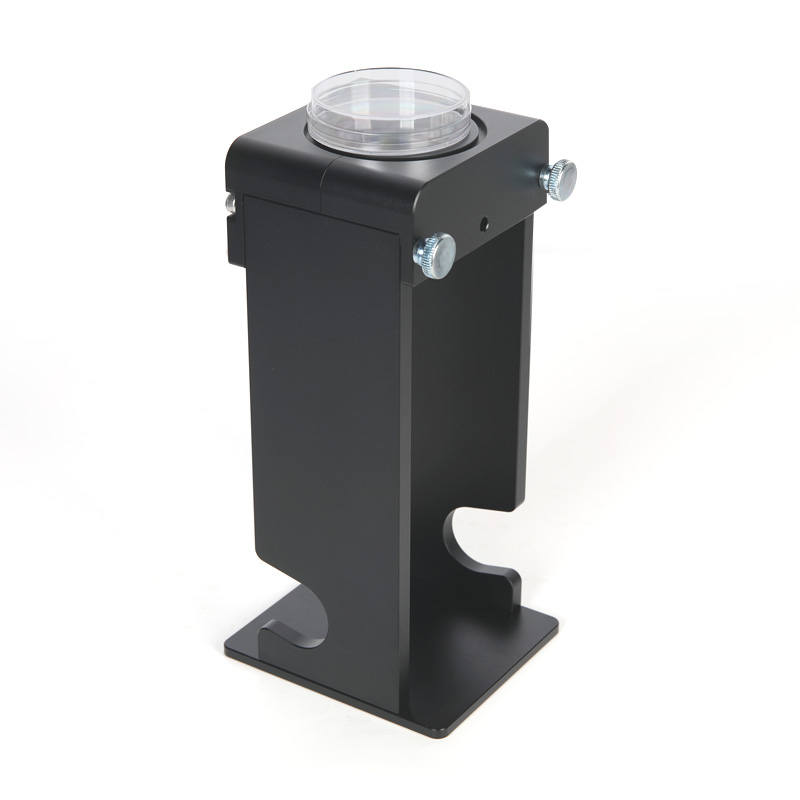

• Select a sample cup of appropriate capacity based on the characteristics of the sample. Put the sample to be tested into the sample cup, then place the sample cup with the sample into the black cavity. Cover the black cavity with its cover and measure the color data according to the colorimeter's testing method.

• After the measurement is completed, take out the sample cup, remove the colorimeter, and store the colorimeter properly.

It can be used for reflectance color measurement of samples such as high-concentration liquid reagents, pastes (e.g., tomato sauce, coatings), and powders (e.g., coffee).

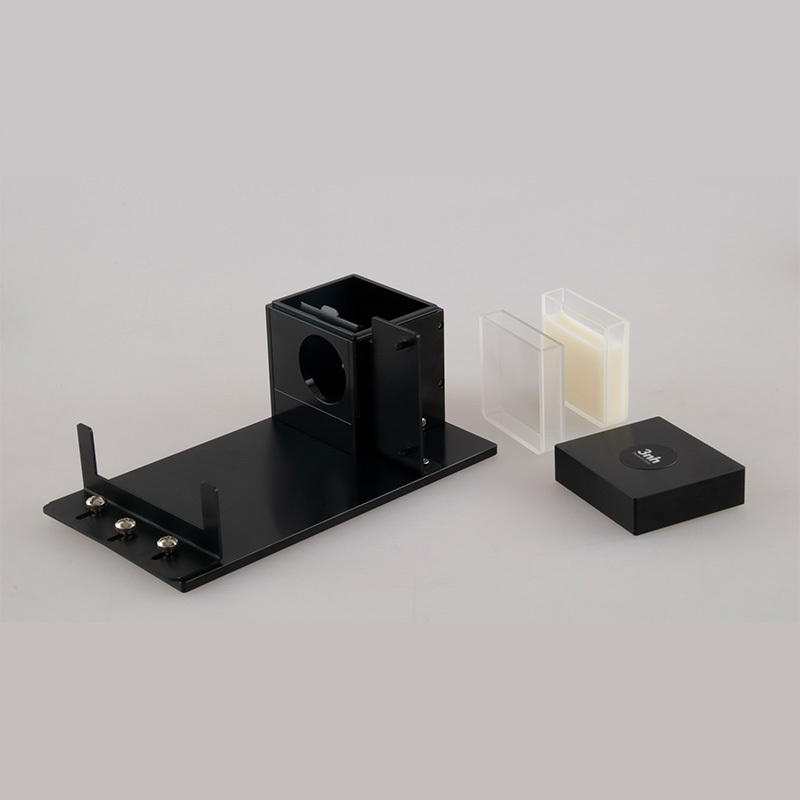

• The YS multi-functional test module must be used in conjunction with the YS series spectrophotometers. Before use, the YS series spectrophotometers should first undergo black and white plate calibration.

• The measurement port of the YS series colorimeter should be properly docked with the measurement port of the bracket. At the same time, the pins on the two base baffles should be aligned with the reference holes on the bottom plate of the YS colorimeter. Then, push the push plate against the colorimeter and tighten the screws.

• Insert the cuvette containing the sample to be tested into the bracket. Gently push open the rotatable pressure plate and carefully place the cuvette in.

• Cover the cover plate to ensure that the interior of the cuvette is in a completely dark environment.

Accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished surface

• Supports 12 angles simultaneous measurement

• Supports the measurement of sample flashiness, color flashiness, and granularity

• The display is more intuitive, show the measurement results of all angles

• 256 - pixel dual - array CMOS image sensor enables higher optical resolution

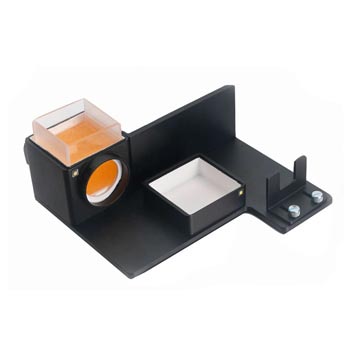

Powerful accessory with high sensitivity which is used to measure liquid, paste and powder.

• Place the NH series colorimeter in the module

• Insert the cuvette into the square integrating sphere

• 256 Image Element Double Array CMOS Image Sensor

• After inserting the cuvette into the square integrating sphere, cover it with the cover plate.

• After completing the above steps, you can start the NH series colorimeter for measurement

One key to achieve traffic signs, markings, reflective film brightness factor, color coordinates measurement.

• 45/0° optical geometry

• Concave grating for spectrometry

• Dual - aperture setup (Φ8mm and Φ4mm)

• Separate UV source, enabling the measurement of fluorescent samples

• Plastic electronics, paint and ink, textile and garment printing, and traffic sign color assessment

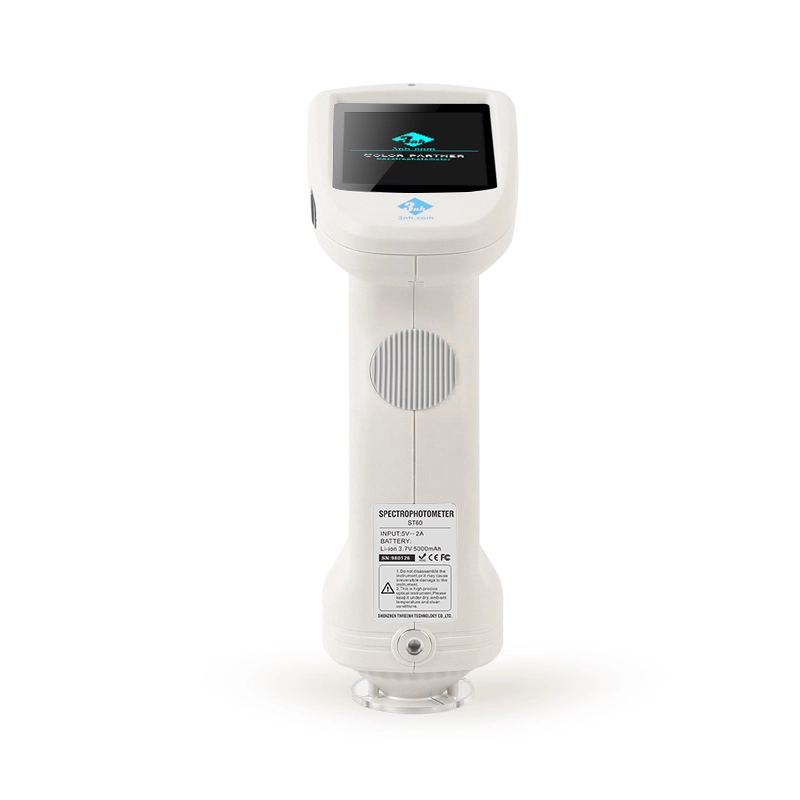

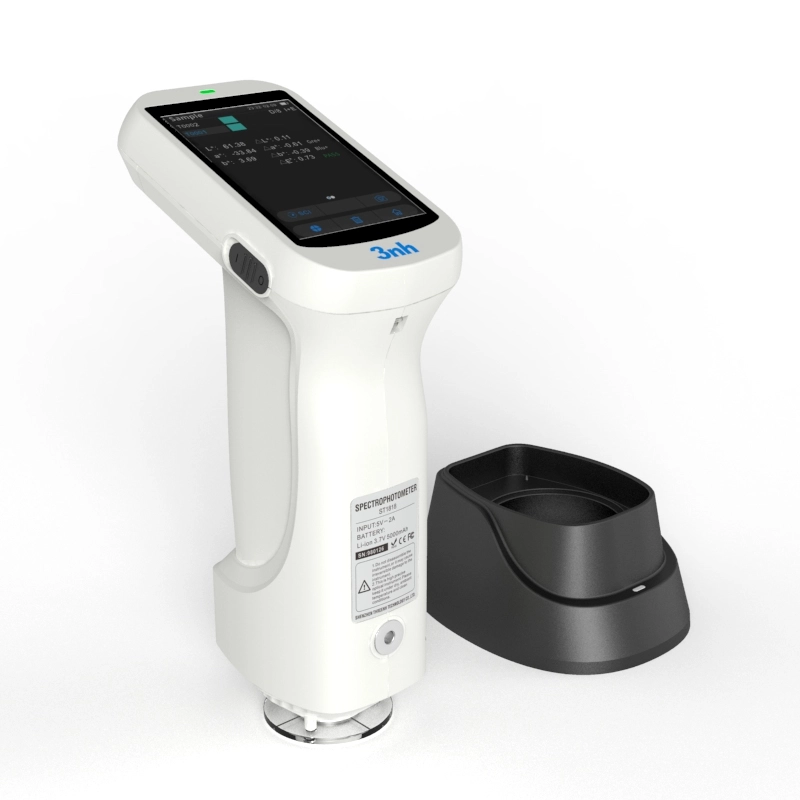

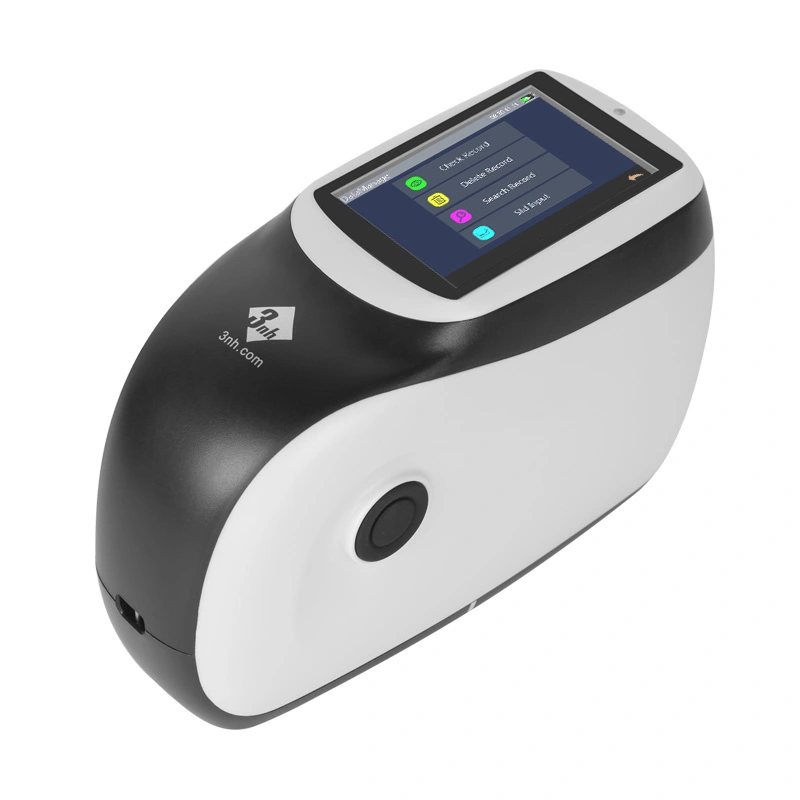

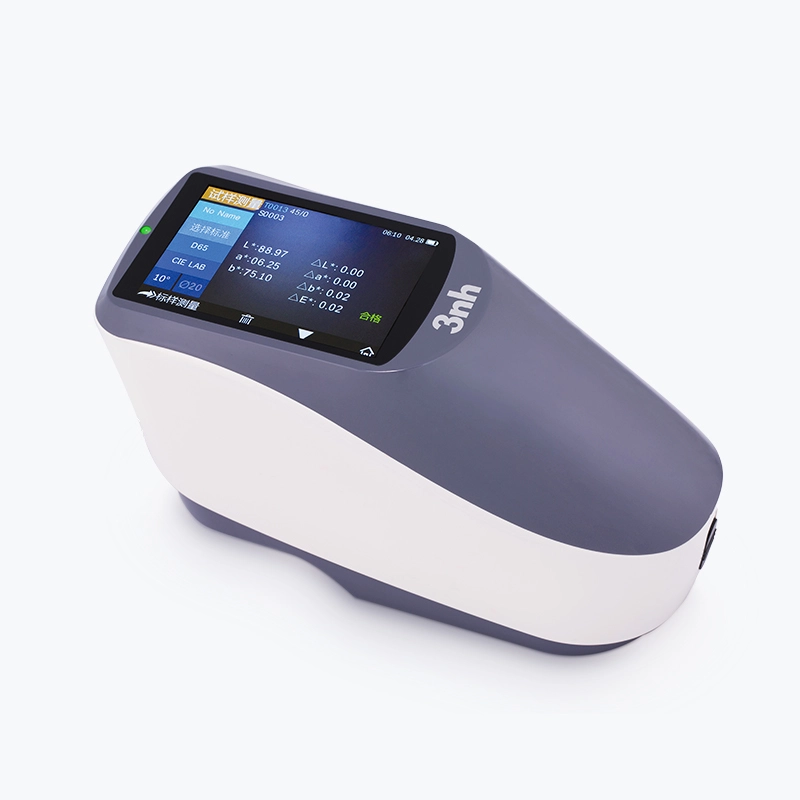

New handheld color spectrophotometer, developed with 3NH's proprietary core technology, very sensitive to any color

• Standard 45°/0 geometric optical structure

• variety of light source modes, variety of standard chromaticity indicators

• Φ58mm Large integrating sphere

• SCI/SCE, Yellowness & Whiteness Color Fastness

• 15° screen tilt angle, more in line with human eye observation habits

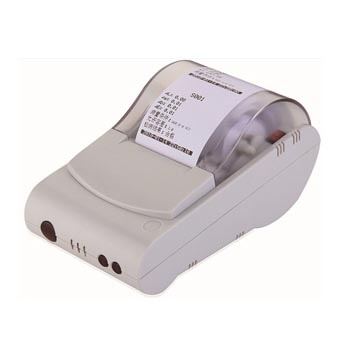

The miniature printer is compatible with all models of 3nh color difference meters. It is portable, can continuously print various measured parameters without connecting to a computer, and facilitates data storage.

• The miniature printer is an optional accessory for color difference meters

• Concave grating for spectrometry

• Dual - aperture setup (Φ8mm and Φ4mm)

• Separate UV source, enabling the measurement of fluorescent samples

• Plastic electronics, paint and ink, textile and garment printing, and traffic sign color assessment

One key to achieve traffic signs, markings, reflective film brightness factor, color coordinates measurement.

• 45/0° optical geometry

• Concave grating for spectrometry

• Dual - aperture setup (Φ8mm and Φ4mm)

• Separate UV source, enabling the measurement of fluorescent samples

• Plastic electronics, paint and ink, textile and garment printing, and traffic sign color assessment

One key to achieve traffic signs, markings, reflective film brightness factor, color coordinates measurement.

• 45/0° optical geometry

• Concave grating for spectrometry

• Dual - aperture setup (Φ8mm and Φ4mm)

• Separate UV source, enabling the measurement of fluorescent samples

• Plastic electronics, paint and ink, textile and garment printing, and traffic sign color assessment
