PS01 Skin ColorReader

PS01 Skin ColorReader Instructions Operating Manual PS01 Skin ColorReader PDF
This PS01 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

The 3nh PS01 is an entry-level, ultra-portable Skin ColorReader designed for quick skin tone reference, rapid colorimetric evaluation, and cost-effective batch deployment across chain stores and small-to-medium skincare studios. Utilizing a 45/0 circumferential uniform illumination optical system paired with nanometer integrated spectroscopic components, it packs core professional indicators into an ultra-compact body weighing just 88g. The primary advantage of the PS01 is offering quantized skin color data at an accessible price point. By sharing identical core algorithmic indicators—Individual Typology Angle (ITA°), Melanin Index (MI), and Erythema Index (EI)—with higher-end models, PS01 replaces visual estimation with objective metrics, facilitating brand-wide standardized skin analysis.

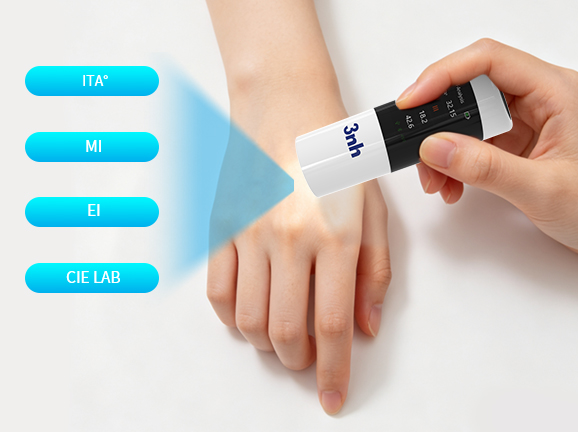

1. Four Core Skin Metrics Fully Equipped

Outputs ITA° (Individual Typology Angle), skin typology classification, Melanin Index (MI), and Erythema Index (EI). Core analytical metrics align with high-end models for reliable daily skin assessment.

Four Core Skin Metrics Fully Equipped

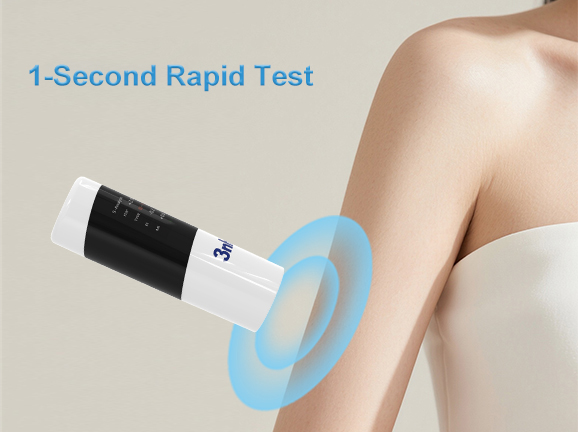

2. Ultra-Fast 1-Second Measurement

Requires only 1.0 second per test, minimizing client waiting time and optimizing workflow efficiency during peak store hours.

Ultra-Fast 1-Second Measurement

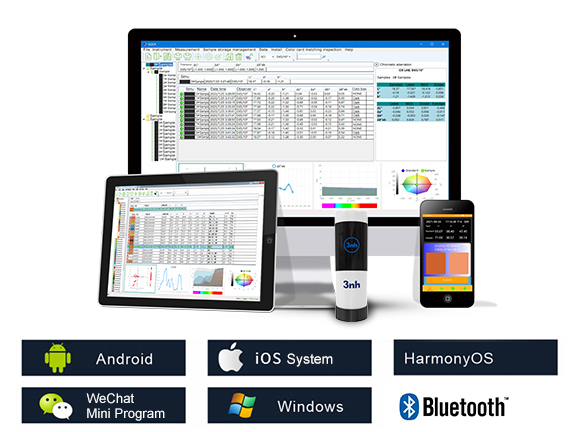

3. Full-Platform Interconnectivity & Zero-Threshold Operation

Compatible with Android, iOS, Windows, WeChat Mini-Programs, and HarmonyOS. Features automatic white-board calibration and average measurement mode (2–99 tests) to minimize accidental operator errors.

Full-Platform Interconnectivity

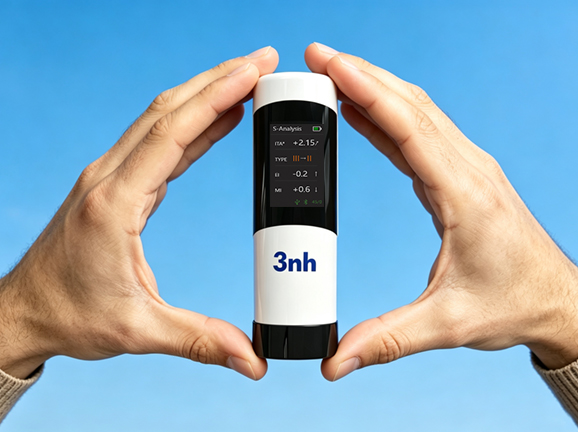

4. Cost-Effective Batch Deployment for Standardization

Budget-friendly pricing allows franchise brands and multi-store chains to deploy dedicated skin detection equipment across all branches, building unified service standards.

Cost-Effective Batch Deployment for Standardization


Target Application Scenarios

Skincare Studios & Salons: Build customer skin archives and quantify pre/post treatment results at a low operational cost.

Skincare Content Creators: Acquire multi-dimensional skin data to bolster review credibility.

Beauty Consultants & Sales: Ultra-portable design for instant skin measurements during customer consultations.

Efficacy Testing: Track subtle skin tone shifts to verify cosmetic formulation efficacy.

Application



Model

PS01 Skin ColorReader

Illumination Geometry

45/0 (45° circumferential uniform illumination, 0° reception); Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

Features

Portable skin color measurement; convenient assessment of Individual Typology Angle (ITA°), skin type, Melanin Index (MI), and Erythema Index (EI). Highly compact.

Integrating Sphere Size

/

Light Source

Full-spectrum LED light source

Spectrophotometric Mode

Nanometer integrated spectroscopic components

Sensor

Silicon photodiode array (dual-row 16 groups)

Wavelength Range

400–700 nm

Measuring Aperture

Φ8 mm

Specular Component

/

Color Spaces

CIE LAB

Color Difference Formulas

ΔE*ab

Other Colorimetric Indices

ITA°, Skin Typology Angle, Erythema Index (EI), Melanin Index (MI)

Display Resolution

0.1

Observer Angle

10°

Illuminant

D65

Display Features

Sample colorimetric values, color difference, PASS/FAIL result, color simulation, color bias, reflectance (partially via mobile APP)

Measurement Time

Approx. 1.0s

Repeatability

Colorimetric value: ΔE*ab within 0.05 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration)

Accuracy Guarantee

No requirement

Measurement Method

Single measurement, Average measurement (2–99 times via mobile APP)

Locating Method

/

Dimensions

Ø32X100mm

Weight

Approx. 88 g

Battery Capacity

Lithium battery; up to 12,000 continuous measurements on a full charge

Light Source Lifespan

5 years or over 3 million measurements

Display Screen

1.14-inch IPS full-color screen

Interfaces

USB, Bluetooth

Data Storage

Expandable massive storage via mobile APP

Software Support

Android, iOS, Windows, WeChat Mini-Program, HarmonyOS

Calibration

Automatic Whiteboard Calibration

Languages

Simplified Chinese, English

Operating Environment

0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m

Storage Environment

-20–50°C, 0–85% RH (non-condensing)

Standard Accessories

Data Cable, User Manual, Calibration Box, Quality Management Software (downloadable), APP (downloadable)

Optional Accessories

USB Micro Printer, Powder Test Box

Remarks

Technical specifications are for reference only and subject to actual sales products.


Our Valued Clients

  • adidas
  • coats
  • textile company
  • converse company
  • yishion company
  • toray company
  • trident group company
  • sunshine group

FAQs About PS01 ColorReader

CIELAB L*a*b* values are the most standardized units in the use of color measurement. These determine values of lightness (L*), red-green (a*), and blue-yellow (b*). The color differences between the two samples can be measured through ΔE.

Techniques of measuring color are visual color comparison, colorimetry (with colorimeters) and spectrophotometry (measuring spectral reflectance), and image analysis. Both techniques measure the reflection or absorption of light by materials and are commonly quantified. Therefore standardized in color spaces such as CIELAB or RGB.

Color is a qualitative and quantitative measure. Qualitatively, it can be characterized by the hue, the saturation, and the brightness. It is quantified in terms of color spaces, such as L*a*b* or RGB, in terms of numerical values based on devices such as colorimeters or spectrophotometers.

The color may be quantified in L*a*b* (CIELAB units), RGB values, CMYK (printing), and ΔE (color difference). Colorimetric assessment measures also apply spectral reflectance and absorbance (A), particularly in liquids and solutions.

The color measurement theory is the quantification of the interaction of materials with light, either absorption, transmission, or reflection. It employs standard colour spaces (such as CIELAB) and devices (colorimeters, spectrophotometers) to code the visual colour into objective and reproducible data.
