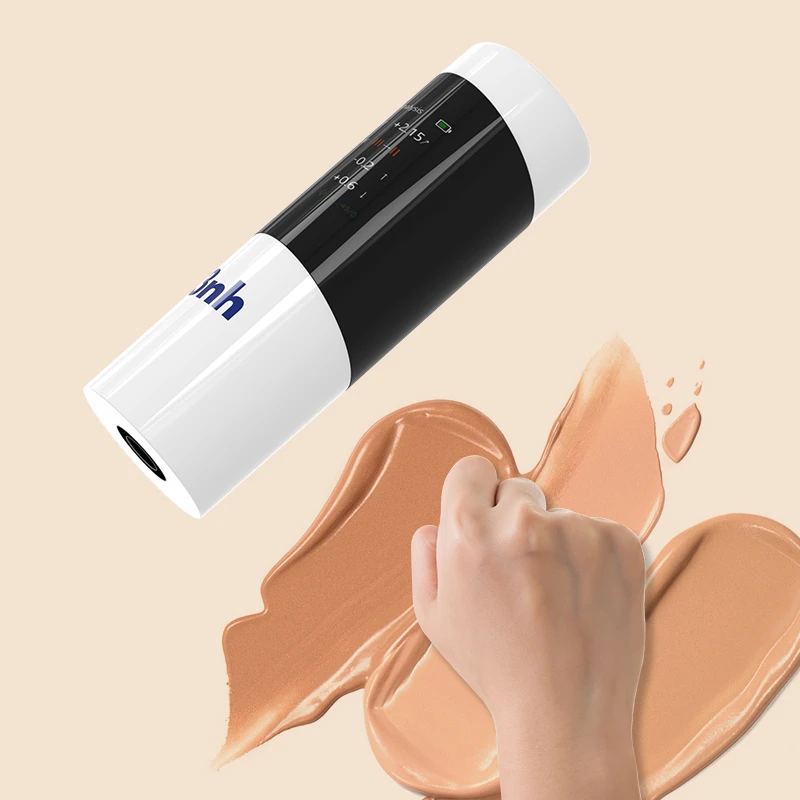

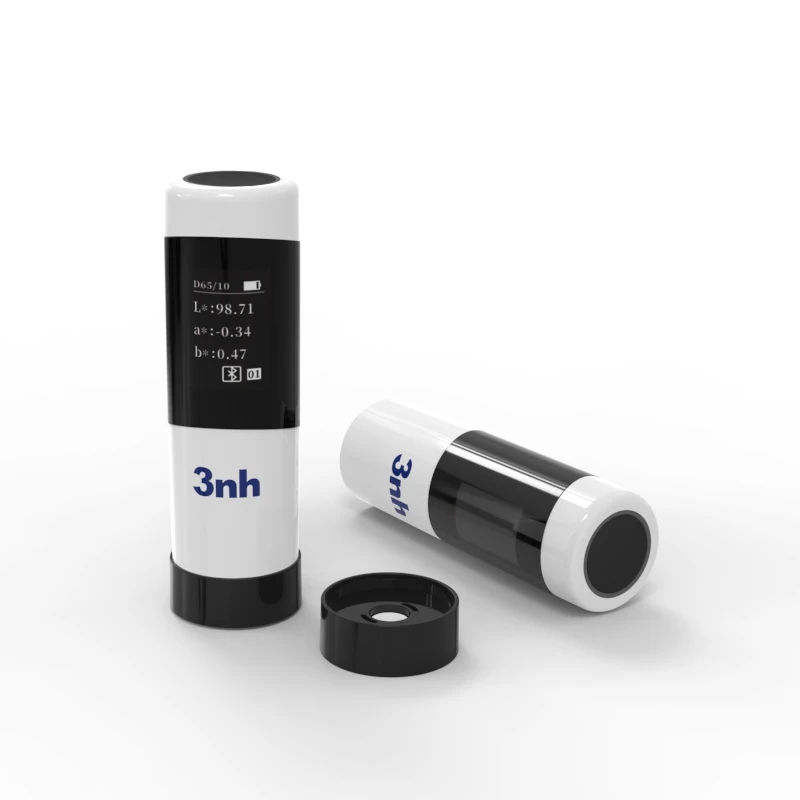

PS02 Skin ColorReader

PS02 Skin ColorReader Instructions Operating Manual PS02 Skin ColorReader PDF
This PS02 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

The 3nh PS02 is a flagship portable Skin ColorReader engineered for mobile detection, high-end aesthetic medical services, and skincare efficacy research. Utilizing an international standard 45/0° circumferential uniform optical system paired with nanometer integrated spectroscopic components, it achieves superior repeatability (ΔE*ab ≤ 0.03) and national metrology certification in a lipstick-sized 88g frame. The PS02 excels in turning national metrology-approved color measurement precision into an accessible, pocket-sized device. Delivering high-precision, traceable metrics—Individual Typology Angle (ITA°), Melanin Index (MI), Erythema Index (EI), and CIE LAB—in a 1-second single touch, PS02 bridges mobile convenience with rigorous scientific proof.

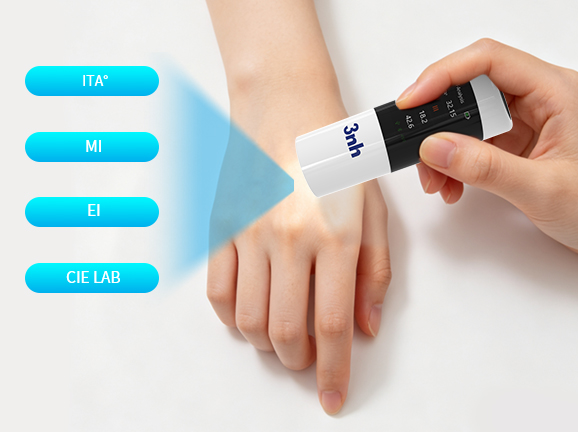

1. 1-Second Fast Measurement & 4 Core Metrics Output

A single 1-second skin contact measurement outputs four vital skin parameters simultaneously:


  • Individual Typology Angle (ITA°): Higher values indicate lighter skin tones; simplifies precise skin typology categorization.

  • Melanin Index (MI): Quantifies skin pigmentation level to track whitening treatments and spot reduction.

  • Erythema Index (EI): Measures redness and inflammation intensity for sensitive skin and soothing care evaluation.

  • CIE LAB Color Space: International standard color coordinates for precise objective color mapping.


4 Core Metrics Output

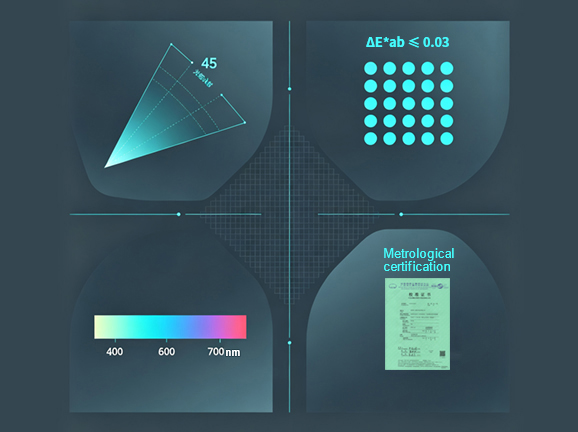

2. High Precision, Metrology Certification & Traceable Data

  • Illumination/Viewing Geometry: 45/0°, compliant with international and national standards including CIE No. 15, GB/T 3978, and ISO 7724-1.

  • Repeatability: ΔE*ab ≤ 0.03 (after preheat and calibration, based on the average of 30 measurements of the white tile at 5-second intervals).

  • Wavelength Range: Full coverage from 400 to 700 nm.

  • National Metrology Certification:Certified by national metrology authorities.

    Advanced Spectral Technology: Featuring a nano-integrated spectral device combined with a silicon photodiode array (dual-row, 16-channel configuration), the instrument accurately captures true skin color data and detects even subtle changes in skin tone after the use of brightening products. Replacing subjective visual assessment with precise instrumental measurement, it provides more convincing data for efficacy evaluation and supports product claims with objective measurement results.


High Precision, Metrology Certification

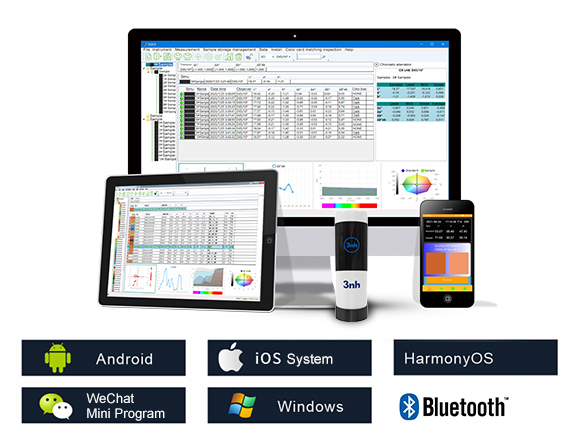

3. Full-Platform Interconnectivity & Zero-Threshold Operation

Seamless Bluetooth data syncing across Android, iOS, Windows, WeChat Mini-Programs, and HarmonyOS. Features automatic whiteboard calibration and auto-generated detection reports for zero-learning-curve operation.

Full-Platform Interconnectivity

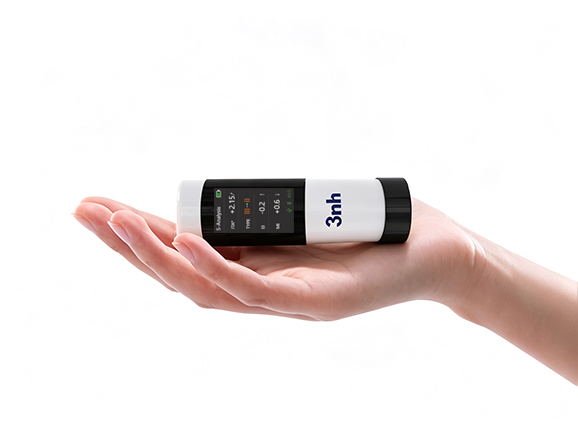

4. Ultra-Portable Pocket Design with Long Battery Life

Compact lipstick-like dimensions (Ø32×100mm) weighing only 88g. Integrated rechargeable lithium battery supports up to 12,000 continuous measurements on a full charge for hassle-free mobile or door-to-door testing.

Ultra-Portable Pocket Design with Long Battery Life


Target Application Scenarios

Aesthetic Salons & Skincare Studios: Visualize pre- and post-treatment results to enhance client trust.

Skincare Brands & R&D: High-precision metrology-certified data supporting efficacy testing and product filings.

Content Creators & Reviewers: Rapid, multi-dimensional quantitative comparison charts for convincing reviews.

Research & Educational Institutions: Standard-compliant and reproducible data meeting academic research and teaching requirements.

Application



Model

PS02 Skin ColorReader

Illumination Geometry

45/0 (45° circumferential uniform illumination, 0° reception); Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

Features

Flagship portable skin color measurement; convenient assessment of Individual Typology Angle (ITA°), skin type, Melanin Index (MI), and Erythema Index (EI). Ultra-compact.

Integrating Sphere Size

/

Light Source

Full-spectrum LED light source

Spectrophotometric Mode

Nanometer integrated spectroscopic components

Sensor

Silicon photodiode array (dual-row 16 groups)

Wavelength Range

400–700 nm

Measuring Aperture

Φ8 mm

Specular Component

/

Color Spaces

CIE LAB

Color Difference Formulas

ΔE*ab

Other Colorimetric Indices

ITA°, Skin Typology Angle, Erythema Index (EI), Melanin Index (MI)

Display Resolution

0.01

Observer Angle

10°

Illuminant

D65

Display Features

Sample colorimetric values, color difference, PASS/FAIL result, color simulation, color bias, reflectance (partially via mobile APP)

Measurement Time

Approx. 1.0s

Repeatability

Colorimetric value: ΔE*ab within 0.03 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration)

Accuracy Guarantee

Passed National Metrology Compliance

Measurement Method

Single measurement, Average measurement (2–99 times via mobile APP)

Locating Method

/

Dimensions

Ø32X100mm

Weight

Approx. 88 g

Battery Capacity

Lithium battery; up to 12,000 continuous measurements on a full charge

Light Source Lifespan

5 years or over 3 million measurements

Display Screen

1.14-inch IPS full-color screen

Interfaces

USB, Bluetooth

Data Storage

Expandable massive storage via mobile APP

Software Support

Android, iOS, Windows, WeChat Mini-Program, HarmonyOS

Calibration

Automatic Whiteboard Calibration

Languages

Simplified Chinese, English

Operating Environment

0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m

Storage Environment

-20–50°C, 0–85% RH (non-condensing)

Standard Accessories

Data Cable, User Manual, Calibration Box, Quality Management Software (downloadable), APP (downloadable)

Optional Accessories

USB Micro Printer, Powder Test Box

Remarks

Technical specifications are for reference only and subject to actual sales products.



Our Valued Clients

  • tjx company
  • textile company
  • coats
  • converse company
  • toray company
  • adidas
  • lululemon company
  • sunshine group

FAQs About PS02 ColorReader

The color may be quantified in L*a*b* (CIELAB units), RGB values, CMYK (printing), and ΔE (color difference). Colorimetric assessment measures also apply spectral reflectance and absorbance (A), particularly in liquids and solutions.

The color measurement test applies a colorimeter or spectrophotometer to evaluate the way a sample reflects or absorbs light. It is given in objective color values (L*a*b*, RGB, or absorbance) and is usually contrasted to a standard in quality control or compliance.

The color measurement theory is the quantification of the interaction of materials with light, either absorption, transmission, or reflection. It employs standard colour spaces (such as CIELAB) and devices (colorimeters, spectrophotometers) to code the visual colour into objective and reproducible data.

Color is a qualitative and quantitative measure. Qualitatively, it can be characterized by the hue, the saturation, and the brightness. It is quantified in terms of color spaces, such as L*a*b* or RGB, in terms of numerical values based on devices such as colorimeters or spectrophotometers.

Color measurement methods involve visual approximation (against color charts), colorimetry (by means of filters and detectors), spectrophotometry (a more detailed spectral analysis), and image analysis by computer. These are color measurement methods that are applied in the laboratory, production, and quality assessment.
