Color Densitometer and Spectrodensitometer: Complete Guide for Printing Professionals

In the printing industries, it is necessary to focus on accuracy, uniformity, and input of the color. Given that even the smallest detail is a factor, including close gradation and contrast, it is necessary to employ adequate measuring equipment.

One of the most popular instruments in the area of print/color management is a non-destructive densitometer. Coupled with it, there have also surfaced complex instruments termed spectrodensitometers and spectrophotometers, which have proved to be very vital in the respect of being concerned with the quality of color.

This guide explains what a densitometer is, what it does, how to use it, the differences between densitometers and other measurement devices, and why you should care about them. We will also look into the spectrodensitometers, their uses, comparison of spectrophotometers, their prices, and finally take on the reliable 3NH Color Densitometer.

What is a Color Reflection Densitometer?

A densitometer measures the optical density of any material. It measures the effectiveness or ineffectiveness by which a surface absorbs and reflects light simply. The measurement enables the printers, photographers, and color technicians to identify and match uniformity in the production.

Densitometers have a variety of uses in various processes of printing, as well as films, apart from medical photography. Densitometers would also form a consideration during the printing process, in that they would help in the verification of the density of the ink. Even the colour of the prints on the paper. They also ensure that they do not have a mismatch between the end product and the intended design.

It measures the interaction of the ink with the paper in such a way that cyan, magenta, yellow, and black inks (CMYK) are at the right density. In order to stabilise the colours, it is important that there is no excessive amount of ink paper. It is a handheld device, therefore, conveniently applicable in the on-site pressroom evaluation.

Densitometer Working Principle

The working principle of the densitometer is not that complex, but extremely effective. The device aids in throwing a light beam on the material surface. It is a reflection or transmission densitometer, and measures the light that enters or exits through the material, depending on the type.

This light information is deciphered by the densitometer to provide density values in numerical format on the display facilities. The values will aid the printers to know how to print the ink too heavy, too light, or strike it balance to print properly.

Densitometers are precise; calibrated so that they will not be affected by the slightly different results obtained after several print runs.

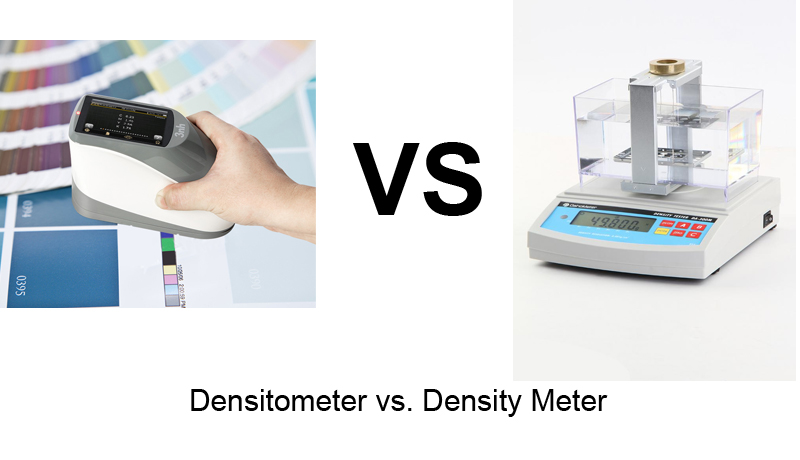

Densitometer vs. Density Meter

The optical density can be determined on the prints, films, and photographs on a densitometer. It is the quantification of the light consumed or reflected. Therefore, it aids in maintaining the quality consistency in the print and rectifying the setting of designs. In the printing sector, densitometers find a lot of importance in the packaging and imaging industry because of the need to control color precisely.

A density meter, on the other hand, measures the density of liquids, gases, or solids, up to the mass of the materials. It reports physical density values as opposed to optical density, which are important to scientific, engineering, and manufacturing.

Here is a quick comparison table for you for clarity:

Evaluation of Printing Color Quality

Print quality does not lie in the ability to create sharp images and bold colours. It demands pin stain, repetition, and repeatability during manufacture. The amount of difference between an ink or color mixture can be the smallest amount to affect it.

This is why densitometers become the key component in printing. As they provide accurate and quantifiable data to maintain high levels of printing.

1. Checking Ink Density on Substrates

The amount of ink deposited on a paper/substrate is measured using the help of a densitometer. Appropriate density does not eliminate the liveliness of the colors and makes them neither too saturated nor dull. Balanced use of ink also reduces wastage, besides lowering manufacturing costs.

2. Ensuring CMYK Color Balance

When printing in CMYK, it is especially important that the balance of cyan, magenta, yellow, and black ink is kept accurately. The densitometer allows operators to confirm that no individual color is dominating. And it produces natural colors and an accurate reproduction of images.

3. Detecting Printing Inconsistencies

The issue is that inconsistency in some production runs will always exist because of ink spread, paper absorption, or press adjustment. These irregularities may be felt with the help of densitometers in a short period. Therefore, preemptive measures can be implemented before the occurrence of massive waste.

4. Supporting Calibration and Profiling

Proper Calibration matters in longevity across several jobs. Densitometers are useful in profiling presses to achieve uniform quality at any volume or scale of printing.

Densitometer for Printing

A densitometer can be used in printing to check the density of color as quality control. It helps the printers keep track of the thickness of ink and reproduce images correctly on subsequent uses of the images. It gives quantitative data and thus does not subject a worker to guesswork and ensures consistency in the findings.

1. Checking Solid Ink Density

Checking of solid ink density is one of the most important applications. This allows every color to manifest itself in an acceptable vibrancy and balance, such as cyan, magenta, yellow, and black. A print can turn grey or overly saturated when lacking the correct density, compromising professional quality.

2. Gray Balance Measurement

The other important role is the gray balance measurement that ensures neutral tones. Printers can prevent color casts by carefully managing the way the CMY colored inks combine to generate natural-looking images.

3. Dot Gain Analysis

Dot gain analysis can be done in a densitometer, which identifies the flush of ink on paper. Because dot gain influences the detail and sharpness of the image. Its assessment makes it possible to preserve graphic and photographic detail during printing.

4. Trapping Evaluation

Finally, the evaluation of trapping is performed with densitometers so that correct ink overprinting is achieved. Trapping makes sure the ink fits properly on top of each other without creating gaps, misregistration, or a color mismatch.

Densitometer for Offset Printing

Among the largest industries where densitometers are used is the print industry because of offset printing. Indeed, in the process, dense ink control provides predictable and reproducible print results.

The offset printing presses have to engage in large volumes of printing; therefore, a densitometer plays an imperative role in terms of efficiency and accuracy. Various density differences of little importance can significantly produce visible flaws in commercial printing on thousands of printed pages.

Operations can be satisfied fast and at a professional level as long as operators are informed by using a densitometer.

1. Preventing Over-Inking and Under-Inking

Correct coverage of ink is one of the major problems associated with offset printing. Excessive ink may result in smudges, difficulty in drying, and waste of ink, whereas less ink will produce faded and lifeless prints. A densitometer also gets rid of the estimation by supplying accurate values of the density of each ink layer.

2. Achieving Balanced CMYK Output

Offset printing depends on the proper CMYK combination printing of the four colors, which are cyan, magenta, yellow, and black. A densitometer assists the operators in adjusting the exact level of ink to ensure that the colors of the design are bright, uniform, and true to the initial design. This kind of balance is necessary when printing quality brochures, magazines, and packaging.

3. Reducing Waste and Boosting Efficiency

In the absence of a densitometer, operators tend to make judgments on trial-and-error adjustments. This is time-wasting and wastes paper and ink. Pressrooms minimize wastage, accelerate calibration, and enhance the overall productivity when they have regular readings.

4. Guaranteeing Customer Satisfaction

Professional printing is characterised by consistency. It can also be used on different print runs, which is possible due to a densitometer that provides repeatability. The customers are confident in the quality and reliability of the selected print service.

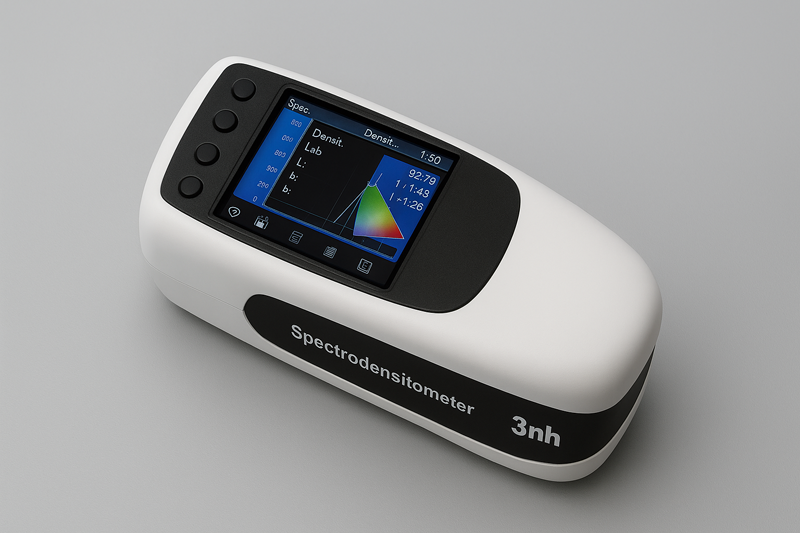

What is a Spectrodensitometer?

A spectrodensitometer is a multipurpose instrument that carries both a spectrophotometer and a densitometer function. It will measure optical densities and spectral color values, therefore, requiring the professional as a more advanced reader.

When compared to simple densitometers, a spectrodensitometer can yield in-depth data concerning the color hues, saturation, and balance. This allows it to be used endlessly in precision printing, packaging, and color-critical areas.

Spectrodensitometers are generally transportable, electronic, and cross-functional, and thus are a current alternative to high-proficiency print control.

Spectrodensitometer vs. Spectrophotometer

Both spectrodensitometers and spectrophotometers measure color, but they differ in application.

Spectrodensitometer

• Measures optical density and color spectral values.

• Ideal for printing and color quality control.

• Provides both density-related and colorimetric data.

• Portable, quick, and suited for pressroom environments.



Spectrophotometer

• Measures full spectral reflectance data across visible light.

• Used in research labs, paints, textiles, and plastics.

• Offers greater detail for scientific and industrial color management.

• Often larger and more complex than spectrodensitometers.

Spectrodensitometer or Spectrophotometer?

The decision is based on the requirements of the industry. When you are working with printing, publishing, or packaging, a spectrodensitometer is a better option as it will give you density and color information in a quick time.

But you would prefer a spectrophotometer if you deal with scientific studies, the development of materials, or high-end color science.

To printing companies, the spectrodensitometer is seen as a perfect balance of efficiency and accuracy.

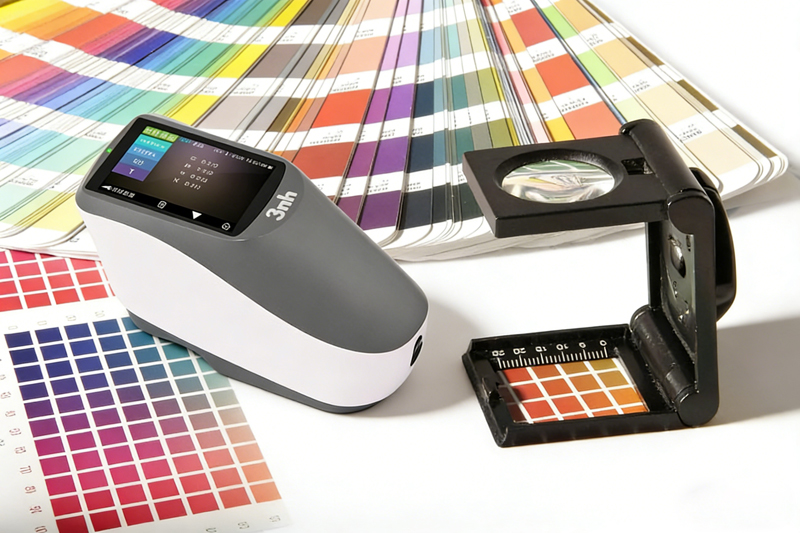

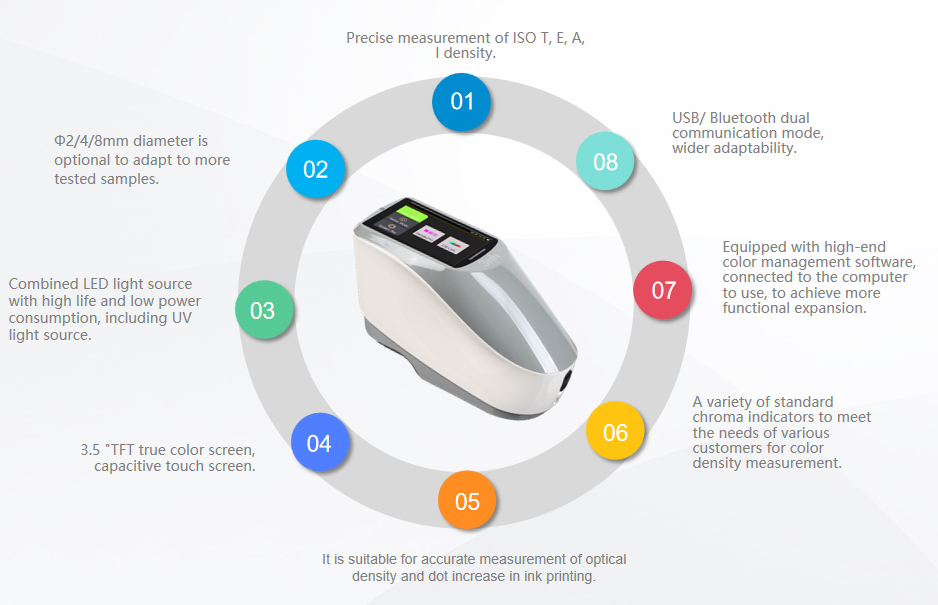

3NH Densitometer

3NH Color Densitometer is a new-fashioned, portable printing profession-oriented device. It has a high degree of accuracy and low cost, hence people find it very attractive. Our Spectrodensitometer Price is lower than that of others.

3NH has established a desired reputation in color management technology. Thus, printers can trust their devices to give them consistent results.

Key benefits include:

• Get accurate CMYK density measurement for offset printing.

• Provides a user-friendly interface for both beginners and professionals.

• Offers you a portable design for on-site pressroom evaluations.

• Providing affordable pricing compared to other brands.

Conclusion

Color accuracy is the spine of professional printing. The instruments, such as densitometers and spectrodensitometers, are helpful in being consistent, quality, and efficient. Spectrodensitometers give advanced color data, whereas optical density can be measured with densitometers. The type of instrument depends on what you need to print, the cost implications, and the accuracy needs.

There is no longer an option to invest in a reliable densitometer for professionals in offset printing and commercial pressrooms.

Invest in the 3NH Color Densitometer Today.

The 3NH Color Densitometer is the appropriate one in case you want precision, relatively low cost, and durability. Regardless of whether you run a printing press, a design studio, or a packaging firm, this tool keeps your colors precise all the time.

Enhance your printing office with the 3NH Color Densitometer and obtain good professional results with assurance.

FAQs

1. What is the primary purpose of a color densitometer in printing?

A color densitometer is used to measure ink density on the printed surfaces with the guarantee of uniformity. It assists printers with proper CMYK balance and avoids over-inking or under-inking at any of the various production runs.

2. How does a reflection densitometer differ from a transmission densitometer?

A reflection densitometer is used to measure the amount of light reflected by surfaces, e.g., paper prints. Alternatively, a transmission densitometer will be used to measure light density through films or transparencies, or photographic negatives.

3. Why is ink density measurement important in offset printing processes?

The correct ink density will not create dull or oversaturated prints and will be bright and constant. Even densities reduce waste, make the best use of available energy, and tend to increase efficiency, delivering high-quality, repeatable print run results.

4. What is the difference between a densitometer and a density meter?

Optical density. Printing quality is measured by a densitometer. A density meter is a sensor used in the manufacturing and scientific markets to measure the physical mass density of liquids, gases, and solids.

5. How does a spectrodensitometer improve over a standard densitometer?

Where both measured quantities, densitometer, and spectrophotometer, are required, a spectrodensitometer provides both. It records optical density and color spectral values with greater detail, giving premium insight into delivering professional and high-quality print accurately.

6. When should a printing company choose a spectrophotometer instead of a spectrodensitometer?

The best uses of a spectrophotometer include industry materials or research labs. Spectrodensitometers tend to be more beneficial to printing companies, because they give density and color results in a short period.

7. What common problems can densitometers detect during a print run?

Densitometers tell about such ink spread, dot gain, trapping faults, or imbalance. When the problem is detected early, corrective measures can be made quickly. Resulting in less waste and consistency, as well as professional performance.

8. Are portable densitometers reliable for pressroom evaluations?

Yes. There are portable densitometers to apply in the pressroom on-site. They are precise readings, and the operators can view the ink density and color consistency while being used in printing.

9. What factors should be considered before buying a spectrodensitometer?

The accuracy, ease of calibration, portability, measurement, and integration should be verified by buyers. Keeping features and price at par guarantees a sustainable investment in quality and efficiency of a consistent print.

10. Why should printing professionals consider the 3NH Color Densitometer?

The 3NH Color Densitometer is versatile (precise and cost-effective) and easy to handle. It is consistent with CMYK density measurement, thus an excellent option for a modern printing business.
