Guide to Metal Colorimeters: Principles, Applications, and Standards

During the production and coating of metal products, color is a vital part. Whether you are a manufacturer of consumer electronics, packages, car parts, or industrial machines, color consistency affects the quality of the products as well as brand perception.

Deviations in color, even the minor ones, still result in rejected batches, extra expenses, and dissatisfaction by customers. A metal colorimeter is now necessary at this point. A metal colorimeter is an instrument that guarantees objective and precise color measurement of various metal surfaces. So, you can avoid any subjective conclusions.

Let’s discuss the article in detail about the metal colorimeters, their principle, applications, and the key standards.

Common Color Issues with Metal Products

During the production and finishing of metal products, there are certain issues associated with color that can be realized. The following are the most typical problems.

1. Color Inconsistency Across Batches

The weaknesses are usually caused by variations in the quality of raw materials or coating thickness, or variations in temperature during the processing. Tiny deviations in the long run also add up, causing observable differences in the appearance, thus affecting consistency.

2. Surface Reflection Problems

The color will block out and be brighter or darker based on the viewing angles. This is because it is highly reflective. Mirrored metals, when polished, misguide the human vision. This causes poor quality inspections. With controlled lighting conditions and careful geometrical measures, it is possible to perform repeated assessments of reflective surfaces.

3. Oxidation and Corrosion Effects

Oxidation changes color, dulling it to unusual spots, without introducing rust or stains such as corrosion does. These alterations affect the existence of both durability and product aesthetics. Consistent observation of surface color can be monitored to catch it early, and protective treatments to be taken before it becomes too late.

4. Coating and Paint Variations

Uneven spray pattern, varying curing time, or uneven chemical makeup makes them appear mismatched. These inconsistencies have the potential to break the visual identity of a product line. The existing state-of-the-art coating systems, integrated with real-time color monitoring, promote a more flawless application and enhanced aesthetic uniformity on surfaces.

5. Environmental Lighting Differences

Colors change dramatically in the presence of fluorescent, LED, or incandescent light as opposed to the light of the afternoon. This is termed as metamerism, which can greatly lead to misinterpretation during inspections. Metal colorimeters reproduce various light conditions. Thus, keeping the color constant in each environment where the product is to be placed.

Principles of Metal Color Measurement

The color measurement of metals is based on scientific principles that guarantee both dignity and repeatability:

1. Objective Quantification of Color

A colorimeter provides unbiased, accurate results in contrast to human eyes. By making colors quantifiable numerical values, manufacturers get rid of subjective errors. So, the communication process and the quality control team across the various production locations can manage the process more efficiently.

2. Spectral Analysis

The spectral analysis separates refracted light into its wavelength components, creating useful information that cannot be seen with the human eye. This enables outlining of minute variations between metallic finishes or aluminous skins, or surface finishes. These insights can allow manufacturers to optimize processes and avoid unwanted matches at high prices.

3. Standard Color Spaces

Color space systems such as CIE Lab or XYZ are standard languages in the industry. Such systems enable it to share results all over the world without misinterpretation. Through matching values, firms will find it easy to maintain smooth work with suppliers, customers, and inspection teams.

4. Accounting for Surface Properties

The artificial surfaces of metals are a special problem because of their gloss and texture, and reflective qualities. These variables are controlled by special geometries such as d/8 and 45/0 degrees to provide accuracy. The glossy automotive finishes and the matte industrial finishes can be compared with the help of this approach.

5. Repeatability and Accuracy

Color consistency would only be worthwhile when reliable reproducibility can be realized. Intelligent calibration systems and advanced colorimeters use stabilized light sources. These characteristics ensure that measurements taken many months apart yield the same results. This reinforces long-term quality assurance plans in production.

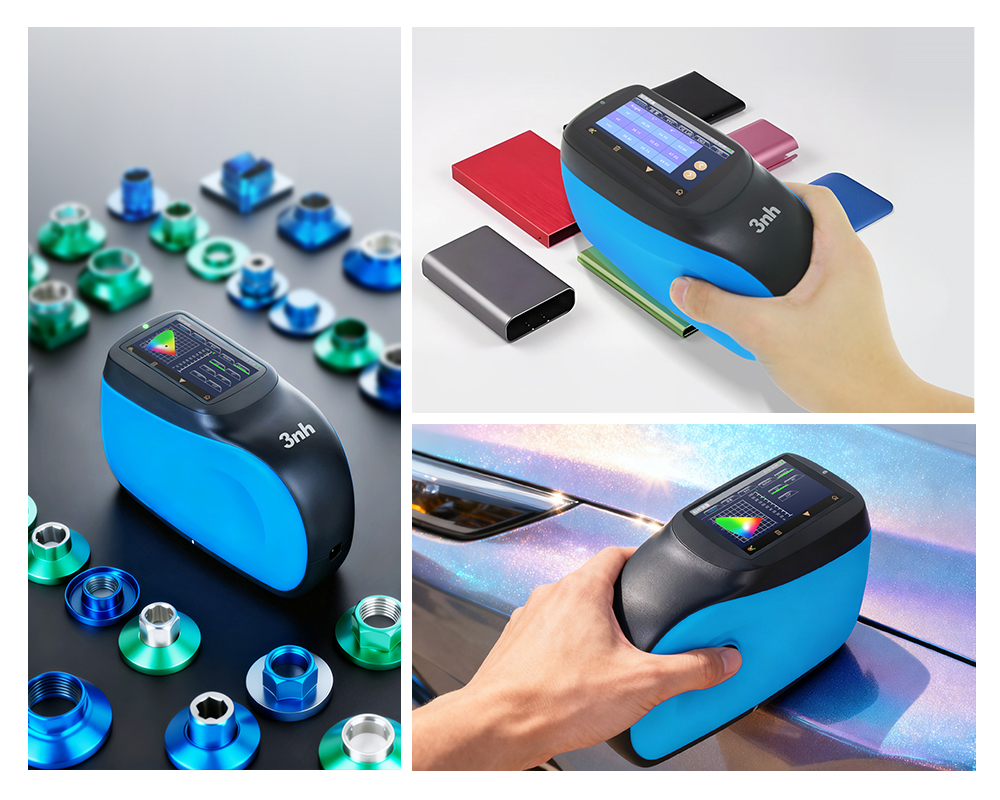

Metal Colorimeter Key Application Scenarios

Metal colorimeters find large applications in many industries and situations:

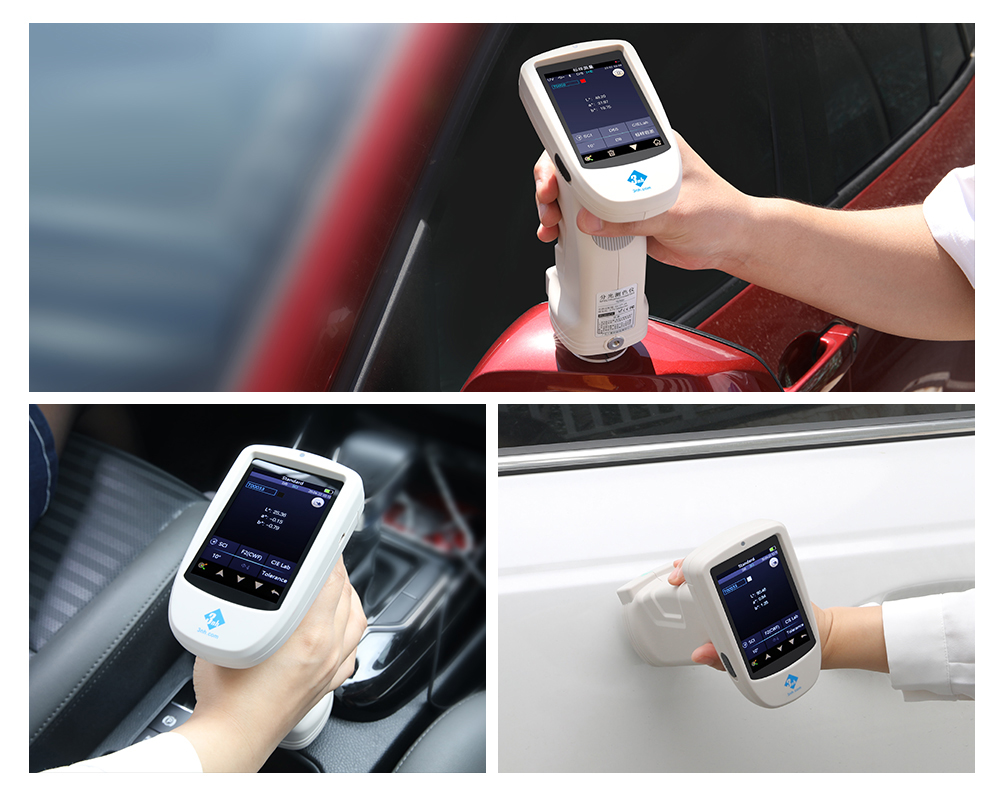

1. Automotive Manufacturing

Color consistency in cars is critical because mismatched panels or trims reduce customer trust. Even slight differences between a bumper and a door panel are unacceptable. Colorimeters ensure uniformity across mass production, repairs, and supplier parts. This is helping to maintain strict automotive quality standards worldwide.

2. Consumer Electronics

Metallic devices, such as smartphones or laptops, need their perfection in finishes to support high branding. Any difference of shade in models compromises product perception. Colorimeters enable accurate shade matching within production batches. So that the consumer does not suffer a difference in design appearance aligned with the reputation of the brand.

3. Metal Packaging

Color plays a major role in packaging in order to retain brand identity. Beverage tins, bottle tops, and tins are to reproduce precise hues on millions and millions of units. Colorimeters make certain global brand colors do not deteriorate even when a different plant is producing them.

4. Construction Materials

A building has a visible face made of aluminum panels, facades, and roofing sheets. Any irregularity produces design flaws that can be observed at a long distance. Colorimeters are used to ensure consistency in finished projects across batches, to facilitate architectural integrity, stability, and similarity to specified requirements in building and infrastructure projects.

5. Aerospace and Defense

Aerospace aircraft and defense items need accuracy in coating to ensure safety, compliance, and even camouflage. A small colour difference can ruin either visibility or even tactics. High-end colorimeters are used to guarantee coating standards to those of the military or aircraft. This is to strengthen operational efficiency and protect specialized coating integrity.

6. Industrial Equipment

Industrial and machinery are also painted with the same color to indicate brand and safety. Inequalities in shades kill trust and twisted tech requirements. Colorimeters preserve the proper reproduction of paints and coatings. They are used and sustain durability and consistency in the brand names in harsh industrial conditions.

Metal Color Measurement Technical Advantage

Several technical benefits are available to prevent a metal color measurement from a visual.

1. High Accuracy

Colorimeters record accurate readings by camera-quantified sensors rather than human eye visuals. The accuracy provides dependable color matching even in harsh conditions, as reflective metallic surfaces. Manufacturers enjoy standard outcomes that satisfy the rigid standards in the industry, and therefore, the quality of the products in all markets around the world.

2. Fast Results

A colorimeter presents data in seconds, thereby simplifying the efficiency of workflows compared to the process of holding lengthy manual inspections. This pace is critical in high-volume industries such as the automotive or packaging sectors, in which downtime costs are enormous. Instant analysis provides the capability of quick decision-making without having to shut down production lines.

3. Portable Solutions

The Pocket-sized colorimeters offer unparalleled flexibility, allowing checking on the production floors, warehouses, or the field location. Portability makes sure that manufacturers do not have to carry samples to laboratories. On-site testing also accelerates workflows, identifies problems in time, and gives feedback to the operators immediately, which will help in decreasing the risks in production.

4. Digital Data Recording

Digital storage of results makes it easy to compare results historically and trace them. Manufacturers are able to track trends over the long term, detect recurrent problems, and make the processes leaner. Incorporation with the cloud systems facilitates work with global teams, which can guarantee the same quality control and adherence to international standards.

5. Adaptability

Metal finishes come with their own problems, including smooth and rough, glossy or coarse finishes. There are sophisticated gadgets that adjust to such variations with the help of special measurement geometries and settings. This high flexibility allows them to various industries. They can be used to get the correct readings in various product types and materials.

6. Reduced Costs

Early color problem detection avoids the scrapping or rework of whole batches. This is not the only cost-saving aspect, but saves labor, energy, and logistical costs. In the long term, it assists in the development of a greater client base with reduced complaints, returns, and warranty claims.

Metal Standard Testing Methods and Procedures

To provide a reliable measurement, a standardized testing procedure would include the following.

1. Sample Preparation: You need to make sure that surfaces are clean, without dust, oil, or other fingerprints, before measurement.

2. Standard Light Sources: You can use D65 (daylight), and other standardized illuminated lamps are used to test in real-life conditions.

3. Measurement Geometries: The Surface characteristics are used to choose common geometries, such as d/8, 45°/0°, and 25°/75°.

4. Multiple Readings: Conducting multiple readings in various locations will provide uniformity throughout the product.

5. Data Comparison: The Comparison of results is taken out with master samples or color standards to make a pass/ fail decision.

Related Technical Standards and Specifications

Several international standards govern the color measurement practices that are given below.

● CIE Standards: These characterize the universal color spaces and measurements.

● ISO 7724: It's a guide to the measurement of colors of paints and coatings.

● ASTM E308: This is a standard practice in the calculation of the colorimetric properties of spectral data.

● DIN Standards: This is used extensively in the industries of Europe in terms of consistency and reproducibility.

● ISO 2813: It provides definitions of gloss measurement procedures that are applicable when considering metallic finishes.

Evaluation Criteria for Test Results

The results of the measurement of color are assessed according to some of these factors.

● ΔE Value: This highlights the difference in colour between the sample and standard. The lesser the Delta E value, the greater the similarity index.

● Gloss Levels: Different measurements are taken into consideration to check the consistency of gloss, particularly in the case of polished metals.

● Batch Uniformity: The batch uniformity is carried out with multiple batches to evaluate the consistency of color between multiple production batches.

● Tolerance Limits: Based on the application need, industries establish a certain level of tolerance of Delta E.

● Visual Verification: The instrumental results are commonly combined with trained visual checks to ensure accuracy.

Hardware Colorimeter

Hardware colorimeters are durable instruments used in repetitive industrial settings. They are extensively incorporated in manufacturing lines to be constantly monitored. Their reliability, easy user interface, and capacity to hold extensive data make them necessary in a high production volume environment.

These tools can also facilitate automated processes, and they minimize human input and yet ensuring the same accuracy. They can effortlessly communicate the results to quality control systems with network connectivity, and this provides real-time monitoring. This integration reduces downtime, increases efficiency, and ensures that all the batches of metal products satisfy high color and quality standards.

Portable Multispectral Colorimeter for Metal Color Measurement

Portable multispectral colorimeters are an extension that allows color data to be captured at a variety of different light wavelengths. This guarantees extremely accurate readings even of elaborate metallic surfaces. Their portability enables them to be used in factories, quality checking laboratories, or even when performing field checks.

They can also give you wireless connectivity, hence you can transfer data instantly to centralized databases. More advanced models will have an easy-to-use touchscreen interface, an extended battery, and cloud-supported synchronization.

The tools enable the engineers and inspectors to make informed decisions within a short period in the field. Their versatility in all industries provides continuity, minimizes inspection time, and enhances quality assurance procedures in the global market without necessarily depending on laboratory devices.

Metal Surface Quality Control

Measurement of color is directly associated with quality control of the surface. The surface may be scratched, unevenly coated, and oxidized. With the help of metal colorimeters, the detection of such defects can be performed at an early stage, and only perfect products will get to customers.

This preserves brand reputation, and that minimizes wastage. In addition to detection, predictive maintenance is aided by constant monitoring to define possible surface problems prior to their escalation.

The advantages to manufacturers include a reduction in product recalls, a better production cycle, and increased customer trust. With visual quality checks plus accurate data, companies build a robust quality assurance system. So, they are providing efficiency as well as long-term competitiveness in competitive markets.

Color Measurement of Metal Packaging Products

The metal packaging products, including cans and caps, require high color consistency. Packaging appearance is essential in brand recognition. A metal colorimeter will guarantee an accurate matching of colors to the brand. It further identifies tiny deviations that otherwise would be imperceptible.

Unified color in packaging is also a contributor to the global supply chain, whereby products should look the same across various regions. Colorimeters simplify quality assurance, minimize pricey reprints, and ensure high consumer confidence. Manufacturers protect the aesthetic and functional integrity of food, beverage, and other retail packaging by delivering consistent finishes.

Portable Spectrometer for Metal Coating Color Testing

The current method of calculating color cannot be measured without a large selection of optical devices. These include devices such as spectrometers, colorimeters, and gloss meters. All the instruments have their advantages.

● You can have quick results via colorimeters.

● A detailed analysis is offered by spectrometers.

● Moreover, the gloss meters assess surface reflections.

Collectively, they give you a comprehensive picture of the appearance of the surface of the metal. You can get even more advanced optical devices that are compatible with software environments. So, you have real-time control and automatic reporting.

Optical Instruments and Equipment

Some important optical tools for measuring metal color are:

● Colorimeters – Fast and consistent tools to perform expeditious color tests in the manufacturing facility.

● Spectrometers – Present spectral information to the probe to accurately analyze finishes and metallic finishes coating.

● Gloss Meters – Measure surface gloss levels, essential for reflective and polished metal products.

● Multispectral Colorimeters – These can measure the level of surface gloss required by reflective and polished metal products.

● Portable Devices – Measure information at many different wavelengths of non-homogeneous metallic surfaces.

3NH Solution Fully Meets All the Needs of Color Measurement for Metal Cans

3NH offers state-of-the-art metal color measuring solutions. Our machines allow precision, lightweight, and advanced data control. We offer smart solutions in packaging, specifically designed to suit metal cans. They are providing you with the ability to maintain consistent brand colors, whether the product is produced in Europe or in Asia. They meet international standards and are also suitable for industries that require a high level of precision and reliability.

Conclusion

The color of the metals is critical in assuring the good quality of products, consistency, and customer satisfaction. A metal colorimeter assists the manufacturer to overcome weaknesses such as surface reflections, shipping-toe variation, and batch inconsistency. The strict color control can be accomplished with standardized methods, technical standards, and advanced tools like portable spectrometers within industries. 3NH is offering solutions capable of satisfying the requirements in the industry in order to give dependable outcomes in applications within the automotive sector to the packaging sector.
