D65 vs. TL84 Light Sources: What’s the Difference?

In the world of colour science and quality control, "Light" is more than just for seeing. Well, it's a crucial tool of consistency and accuracy. Different sources of light can cause this against an object to make it appear different colours. This phenomenon is called metamerism that can cause significant problems. It may cause conflicts between a manufacturer and his/her customer. To overcome this problem, industries have standardised light sources.

These light sources are imitations of exact situations in the real world. Two of the most common are D65 and TL84. It's important to understand how they are different if you do colour-critical work. This article will give a detailed comparison between D65 and TL84. It will also dive into other important sources of light that are used in colour management.

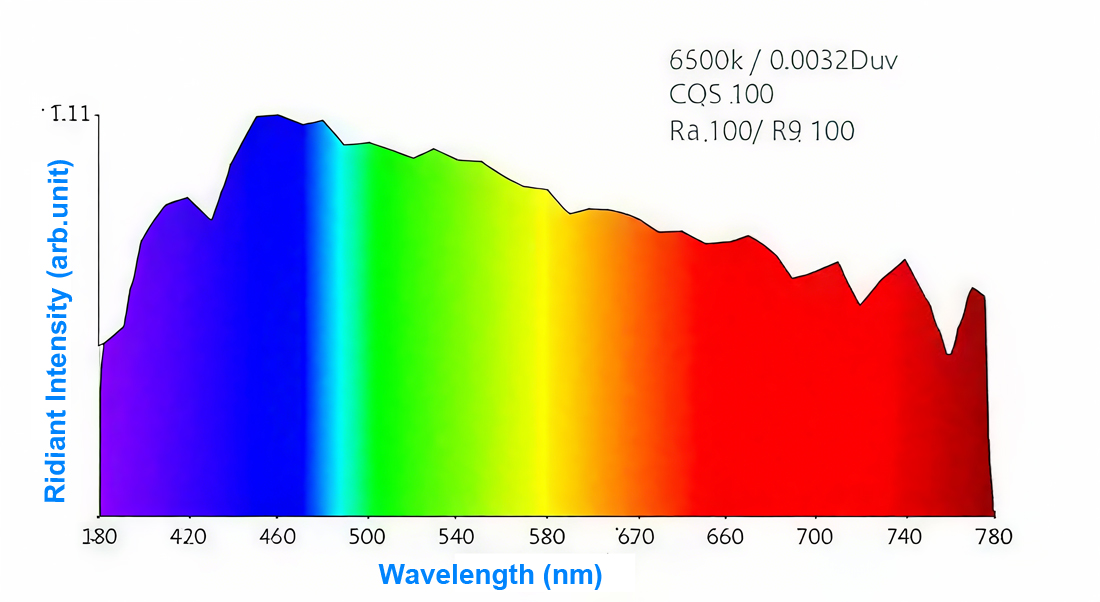

What is D65 Lighting Condition?

The D65 light source is a kind of standard illuminant, and it's defined by the International Commission IC Illumination, or CIE. D65 is carefully designed to capture average northern daylight. This includes the combination of direct and the light over the sky (overcast). Its name is based on the correlated colour temperature or CCT of about 6500 Kelvin or K. This temperature is a true approximation of even the colour of natural daylight. It is an international standard for colour matching and evaluations.

D65 isn't a real light source; it's just a theoretical one. In a scientifically defined way, it is a spectral power distribution. This distribution tells you how much energy is radiated at what wavelength. To simulate this inside a real situation, a physical lamp or light box is created. It has to reconstitute this particular spectral curve. A D65 light box is a viewing cabinet with lamps producing this light. These cabinets are utilised to ensure the products look consistent. The quality and accuracy of a D65 light box make it the gold standard and are used for critical colour assessments all around the world.

D65 vs. TL84

The decision between D65 and TL84 is important. It completely depends on what the colour assessment was intended for. D65 is a light of 'natural' daylight. TL84, in contrast, simulates typical commercial lighting. This one fundamental difference of purpose is the most important distinction. Let's look into each of the light sources and how they compare to each other.

D65 Light

The D65 light source is well known for having good colour rendering credentials. It has a high colour rendering index (CRI) (typically in excess of 90). This means that it accurately reveals a wide range of colours. The spectral curve of D65 is continuous and smooth and has energy assigned to all wavelengths.

This helps ensure that it renders blues, greens, and reds very well. The 6500K CCT has a cooler, slightly bluish appearance of D65, which is the visual quality of noonday daylight. It helps non-computerized voters with a bright, neutral space to judge colours.

D65 is a universal standard for industries requiring a replication of how a product would appear outdoors. It is essential in textiles, paint, plastics, and the automotive industries.

TL84 Light

The TL84 light source is a special fluorescent type of lamp and is often used to simulate a retail or commercial setting. TL84 has a CCT of about 4000K, which makes it much warmer, much more yellowish light than D65. The shape of the spectral power distribution is not smooth.

It has well-bounded peaks in energy with an emphasis on yellow-green and red-orange. This is a characteristic of tri-phosphor fluorescent lamps. The CRI of TL84 is generally between 80 and 90. While good, it is not as high as D65, and this light is specially used for checking metamerism. It indicates whether a product's colour will appear under typical store lighting.

Comparison from Several Aspects

The differences between D65 and TL84 are very important to colour professionals. These are compared along a number of key characteristics. These include their purpose, colour temperature, spectral distribution,n, and applications. These points are critical to understand well. A thorough understanding of these points is important for professionals.

1. Purpose and Application

D65 is the rising standard in daylight simulation. It gives a baseline for what colour an object would look like in natural light. This is an important reference point for nearly any product.

In contrast, TL84 is more of a specialised purpose. It's used to imitate a certain man-made lighting condition. This enables the manufacturers to trade this for how their product will appear under store lighting. It ends up covering the practical concern of consumer perception in a retail setting.

2. Correlated Color Temperature (CCT)

Colour temperature is the other easily visible distinction. D65's CCT is 6500K, which imparts a cool, blue-white cast. This simulates a clear sky at midday.

TL84's CCT is 4000K. This produces a warm, yellowish white light. It resembles a lot of indoor commercial spaces. This visual difference is easily seen and can make one product look significantly different from another. This is why a D65 light box often has a TL84 option.

3. Spectral Power Distribution

The spectral power distribution of each illuminant is also not the same. D65 has a nice, continuously curved spectrum over the visible range. This means it supplies energy at all wavelengths. This Thisfull-spectrumm quality helps give it a high CRI with excellent colour accuracy.

TL84, being a fluorescent source, has a spiky spectrum. It radiates a higher concentration of energy in specific (narrow) wavelengths. This can make some colours look brighter. However, it can also cause colors to look artificial or distorted.

4. Color Rendering Index (CRI)

The CRI is a measure of the light source's quality of rendering colours true and is generally one of the measures of colour quality. D65 has a high CRI, usually above 90. This makes it a great option for a neutral colour assessment. TL84's CRI is usually close to the 80 to 90 range. While that is still good, it is not quite as accurate as D65. D65 is a better choice for judging colour true to daylight.

D50 vs. D65

While D65 is a global standard, it's not the only one. Another important daylight illuminant is D50. It is a particular daylight simulator with its own unique qualities and uses. D50 is one of the keystones of the printing and graphic arts industries. The competition between D50 and D65 is not a secret in colour science.

Comparison from Several Aspects

The differences between D50 and D65 are voraciously subtle, but significant. They both are daylight illuminants, but their applications are often mutually exclusive.

1. Correlated Color Temperature (CCT)

The first and most notable is in their correlated colour temperature. D50 has a CCT of 5000K and has about the same colour as the daylight around sunrise or sunset. D65 is a cool, blue colour, 6500K CCT light. It imitates the colour of the midday sun. This temperature difference is a major factor and has a direct effect on how colours are perceived and matched.

2. UV Content

Another important distinction is in their spectral power accords. Both are daylight simulators. However, D65 has a lot more ultraviolet (UV) energy than D50. This UV content is another reason to be important for industries that use optical brighteners. These brighteners are very frequently used in such consumer products as textiles, plastics, and paper. They absorb UV light and give it back as light in the visible spectrum, which tells us it's blue light.

Under D65 light, products with brighteners will be more vibrant. D50's lower UV content makes it less sensitive to these brighteners. This is one of the biggest reasons why the printing industry has adopted D50.

3. Primary Application

The main use for each source of light is a big differentiator. D50 is an international standard in the Graphic, Arts, and Printing industries. For purposes of colour matching, it is the International Organisation for Standardisation (ISO) that specifies D50. This assures print consistency throughout the world.

D65, on the other hand, is used in nearly every other industry. It is the standard for visual arts, television, textiles, and painting. This is the reason why colour assessment light boxes tend to include both D50 and D65. Users can change between them to see what a sample will look like based on different standards in the industry.

4. Historical Context

Their historical context of adoption is worth mentioning. D50 was selected in the print industry because of its specific spectral properties. Its warmer illumination is more appropriate for the evaluation of printed ink on paper.

D65 was chosen as the standard daylight colour for use in general colourimetry. Its spectral curve is a better imitation of average daylight. This separation led to their separate roles in different areas. It ensures that colour matching is maintained within a particular sector as a whole.

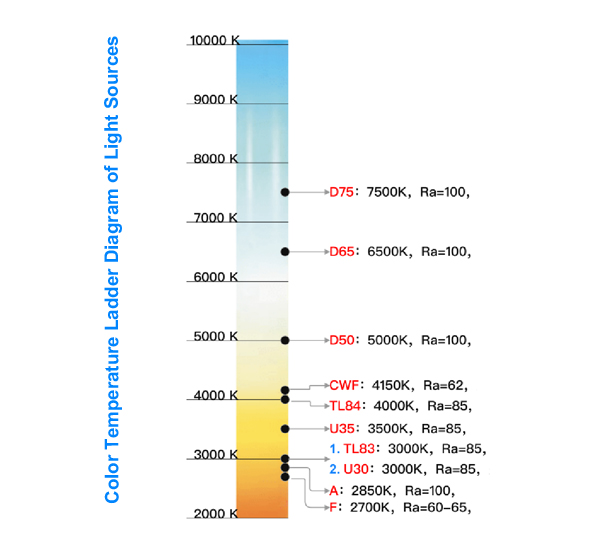

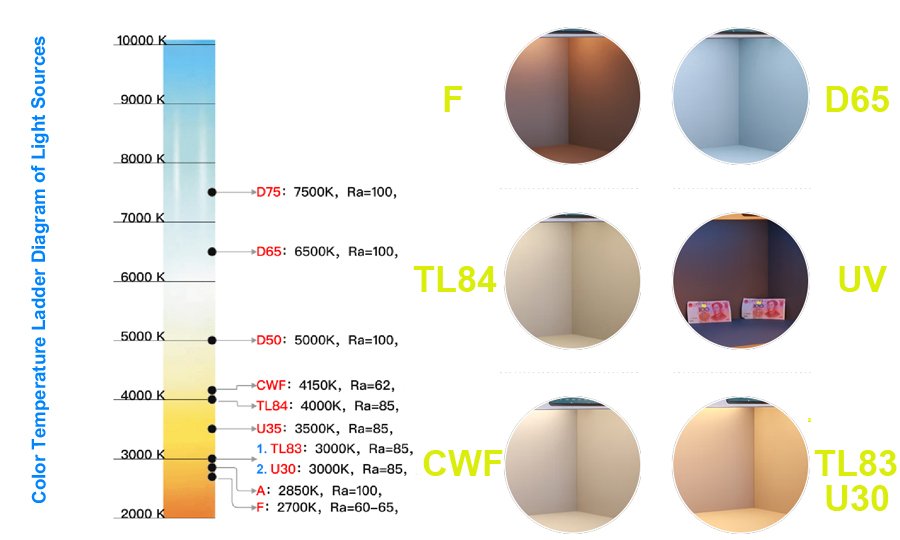

How Do D65, D50, A, C, TL84, CWF, UV, and Other Light Sources Differ?

The universe of colour science contains many different light sources. But they each serve a purpose for specific reasons. They are designed to emulate a number of different lighting conditions. This is vital in maintaining the colour consistency essential in a complex world. D65, D50, and TL84 are only a few examples. Let's see a few others commonly used.

What is a Light Source?

Illuminant A is a CIE-defined standard. It is a typical tungsten-filament lamp. It has a very low correlated colour temperature (2856K). This makes it very warm, with a yellowish-red. It is a black body radiator, which means that between points of peaks, its spectral power distribution is actually a curve that is continuous and doesn't contain any spikes. It's used to simulate indoor incandescent lighting. Industries use it to test how a product will appear under an ordinary household light bulb. It is especially helpful for products that are sold in the home.

What is C Light Source?

Illuminant C is another standard that has served history. It used to simulate average daylight. Its CCT is about 6774K, slightly more than the D65 spectrum. It is an obsolete term now and has been replaced with more accurate D series illuminants. The reason for its becoming obsolete is that there is less UV in comparison to D65. This meant that it was not an accurate reproduction of natural daylight. While no longer a standard, it can still be found on older light booths.

What is CWF Light Source?

The abbreviation of CWF is Cool White Fluorescent. It is a fluorescent source of light and is used in many North American offices and stores. It is the counterpart to CIE Illuminant F2. The CCT of CWF is around 4150K.

This makes it a cool-white light, although with a slightly greenish-yellow tint to it. Its spectral power distribution is spikey like TL84. This is because of its composition of phosphors. CWF is very important for the colour matching in industries serving the North American market. It is used to imitate normal office lighting conditions.

What is a UV Light Source?

Unlike the other light sources, UV is invisible. It is an electromagnetic radiation source. It is not within the visibility range of the human eye. It is a very crucial part when assessing the colour. Many materials, including paper and textiles, are treated with optical brightening agents, or OBAs. These agents absorb UV light and re-emit it as visible light, in the blue range. This results in the product being viewed as being brighter and whiter. A UV light source in a colour booth is used to examine for the presence of these agents. It is of use to identify metamerism due to OBAs.

FAQs

Q: What is the difference between D65 light and a D65 LED light bulb?

A D65 LED light bulb is a product that physically corresponds to the D65 illuminant. The D65 standard by itself is a hypothetical spectral power distribution. A light bulb is just one method of achieving this.

Q: Why do docolor-matching booths have so many different lights?

Color matching booths include a variety of light sources that simulate different real-world conditions. This makes it possible to thoroughly evaluate a product's color. It helps to spot metamerism, where 2 colors can be the same under one light but not another.

Q: Is D65 light the same as sunlight?

D65 light is a standard simulation of average daylight. While it closely corresponds to the colour and spectral features of sunlight, it is a stable and consistent artificial source. Natural sunlight varies greatly with time of day, weather, and location.

Conclusion

The world of color is more complicated than it seems. Achieving consistent, accurate color requires accurate tools and standards. The D65 and TL84 light sources are an ideal example of this. They all have somewhat different purposes in the colour assessment process. D65 is the standard for natural daylight. For example, TL84 simulates the conditions of a retail environment. Understanding these differences and the reasons for other illuminants is the key. This makes sure the products look right, no matter where they're seen.
