Multi-angle spectrophotometer MS3003

Multi-angle Handheld spectrophotometer MS3003

3nh Multi-angle Handheld Compact spectrophotometer MS3003 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It is mainly used to measure the color difference of surface paint affected by different viewing angles and conditions.

Key Highlights

3 measurement angles
256-image element double-array CMOS image sensor
3.5-inch LCD Capacitive Touch Screen
Full spectrum LED light source
Excellent agreement between instruments ΔE*<0.20
Φ23mm Measuring Aperture
Widely applicable to industries such as coatings, paints, automobiles, cosmetics, inks, etc

Multi-angle spectrophotometer MS3003 Instructions Operating Manual Multi-angle spectrophotometer MS3003 PDF

This MS3003 Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

3nh Multi-angle spectrophotometer MS3003 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products.

MS3003 multi-angle spectrophotometer adopts industrial-grade MCU and is equipped with 3 measuring angles, under the superior performance of the optical measurement system supported by MS3003 multi-angle spectrophotometer has excellent performance in multi-angle chromatic aberration measurement, even in the curved surface, but also has a high measurement accuracy and stability.

Technical characteristics

Multi-angle measurement

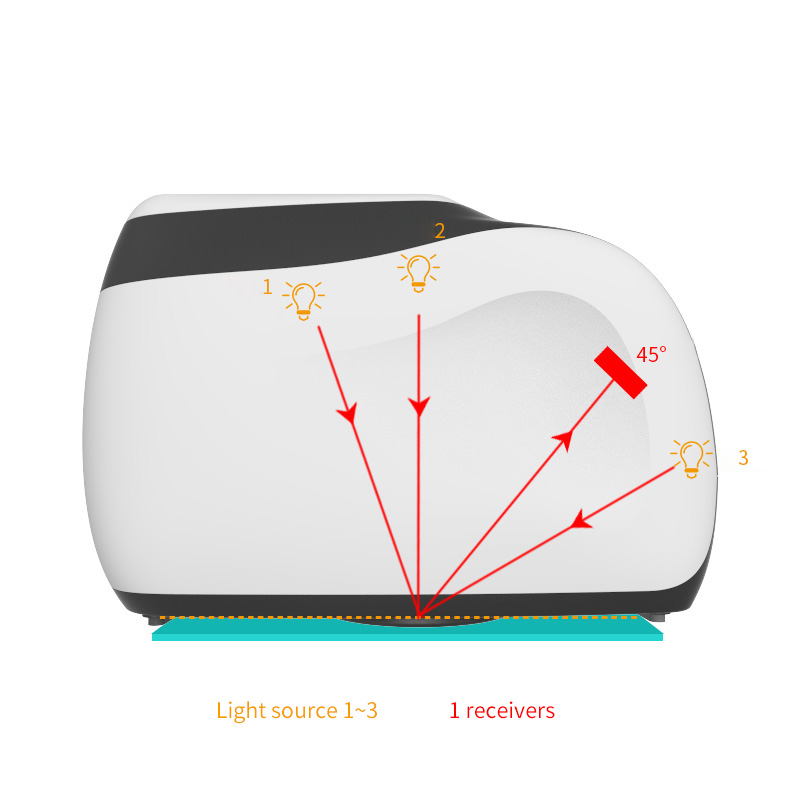

Adopt 3 illumination sources, 1 receivers to measure 3 measurement angles at the same time

Touch_screen_display_all_Angle_measurement results.jpg

More intuitive display

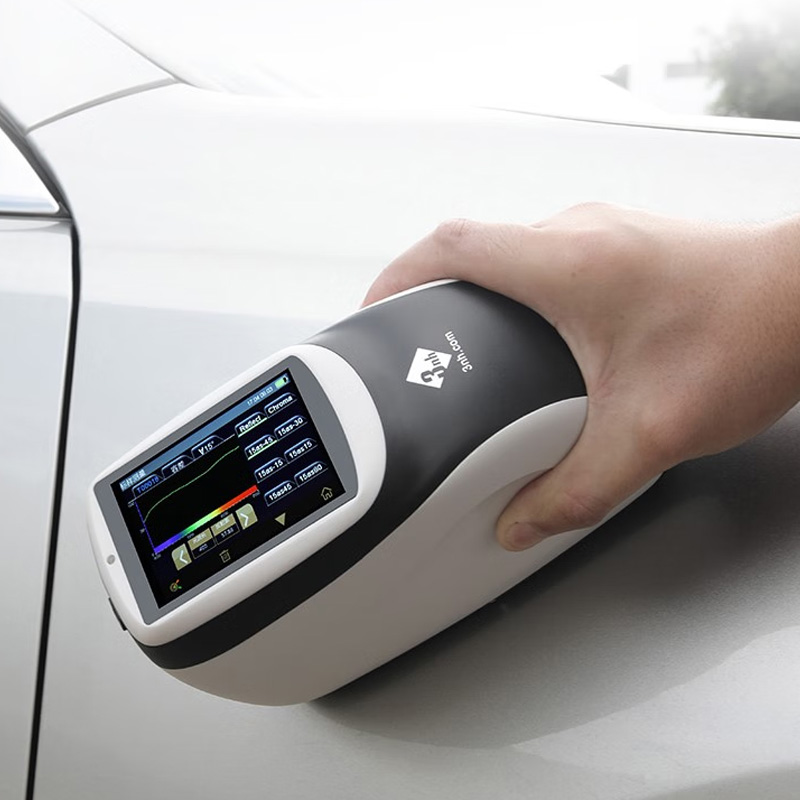

Touch screen can display all Angle measurement results, more intuitive view of the comprehensive data.

Effect measurement discrimination function

Quickly distinguish the sample Sparkle Grade(SG)，Diffuse coarseness(DC) and Color Variation(CV), simple and effective quality inspection.


256 Image Element Double Array CMOS Image Sensor

The higher optical resolution ensures the measuring speed, accuracy, stability and consistency of the instrument. The core technology makes it as the same platform with international standards and complete compatibility.

Adopt Full spectrum LED light source with blue enhancement

The Full spectrum LED light source with blue enhancement ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of LED in a specific band, and ensures the accuracy of instrument measurement results and low cost maintenance.

Concave grating spectrophotometric technology

Using concave grating spectrophotometric technology, with higher resolution, makes color measurement more accurate.

Professional-grade white board

Professional-grade white board, high hardness in the surface, stable optical performance

Higher quality

Industrial grade real-time processing MCU, Bluetooth 5.0 transferring more stable and reliable.

Ergonomics Novel and fashionable appearance design

The instrument appearance design is easy to operate, and the hand holding position and the measurement button are well-designed, which can meet different holding habits, smooth and fine surface, from the high-precision appearance treatment process.

Color camera preview, can clearly observe the measured area

Built-in color camera positioning, can accurately judge the object measured position, and improve the measurement efficiency and accuracy.

Multiple color measurement space, multiple observation light sources

Offer CIE LAB,XYZ,Yxy,LCh,β XY,DIN Lab99 color space, And D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83/U30) A variety of light source, which can meet the special measurement demand under different measurement conditions.

Easily analyze data

The screen can intuitively display spectrum/data, sample chromaticity value, color difference value/figure, pass/fail results, color simulation, sample effect value, effect difference value and other data, convenient to view while also greatly improve the user's work efficiency.

Technical parameters

Model	MS3003
Measurement Geometry	3 measurement angles (3 illumination sources, 1 receivers)
Measure Angle	45° Receiver： 45as25°,45as45°,45as110° Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545
Application	Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light Source	Full spectrum LED light source with blue enhancement
Lamp Life	5 years, 3 million times measurements
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400nm-700nm
Wavelength Interval	10nm
Measurement Range	0~600%
Semiband Width	10nm
Measuring Aperture	Illumination size Φ23mm / Measuring spot 9X12mm
Color Space	CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference Formula	ΔEab,ΔE94,ΔEcmc(2:1), ΔEcmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Other Colorimetric Index	Flop Index
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30)
Display	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time	Approx. 1 second for one angle Approx. 3 seconds for all angles
Repeatability	Spectral reflectance: Standard deviation within 0.08% Chromaticity value: ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility	ΔE<0.10,avg on the gray tile of BCRA tile set ΔE<0.25,avg on the color BCRA tile set
Inter-instrument Error	0.2ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters	/
Effect Measurement	/
Effect Repeatability	/
Effect Reproducibility	/
Trigger mode	Pressure sensing trigger, button trigger, software trigger
Measuring Mode	Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode	Color camera preview

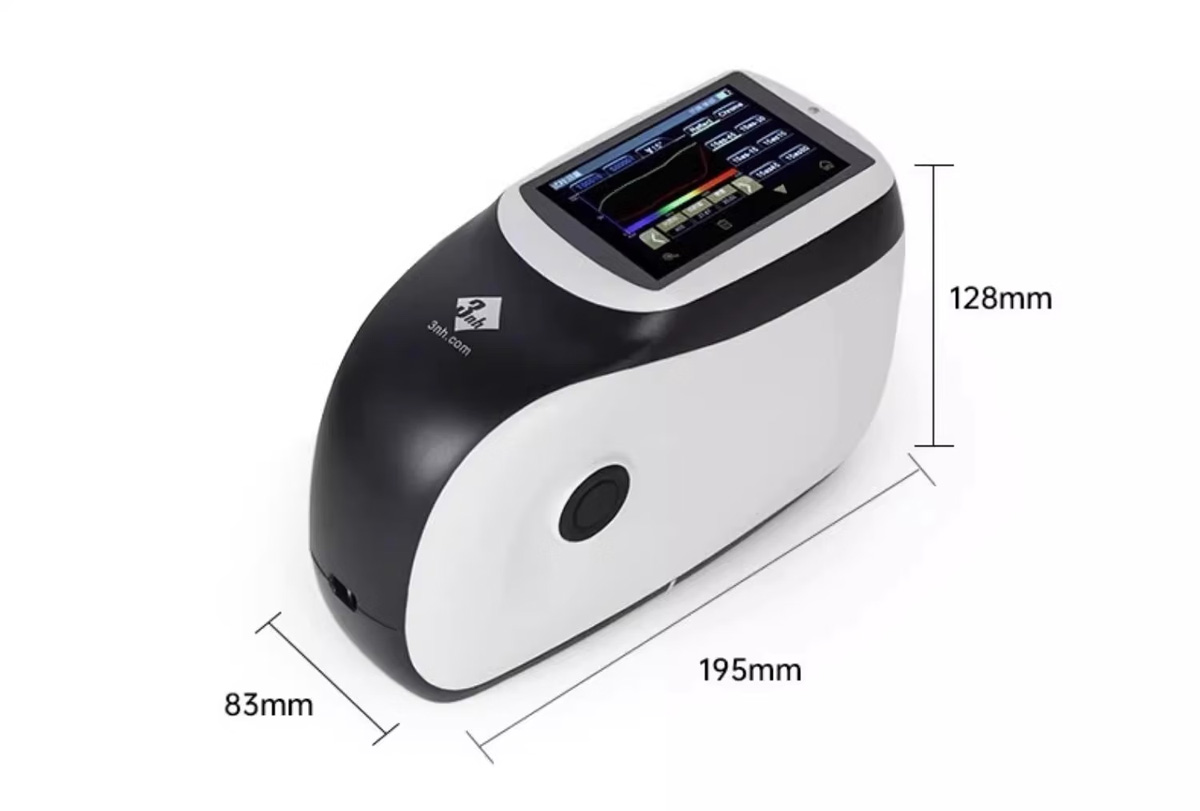

Dimension	LWH=195X83X128mm
Weight	About 1Kg
Power	lithium-ion battery, 3.7V,5000mAh, Continuous test 6000 times within 8 hours of full charge
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Interface	USB
Data Storage	1000 pcs Standards,4000 pcs Samples
Language	Simplified Chinese, Traditional Chinese, English
Operating Environment	10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment	-20℃ to 50℃, humidity does not exceed 85%, no condensation
Calibration	Built-in white board parameters, external white board, black light trap
Calibration Interval	4 hours,8 hours,24 hours,Startup calibration
Standard accessories	Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional Accessory	Micro-printer
Notes	Technical parameters are for reference only, subject to actual sales products.
