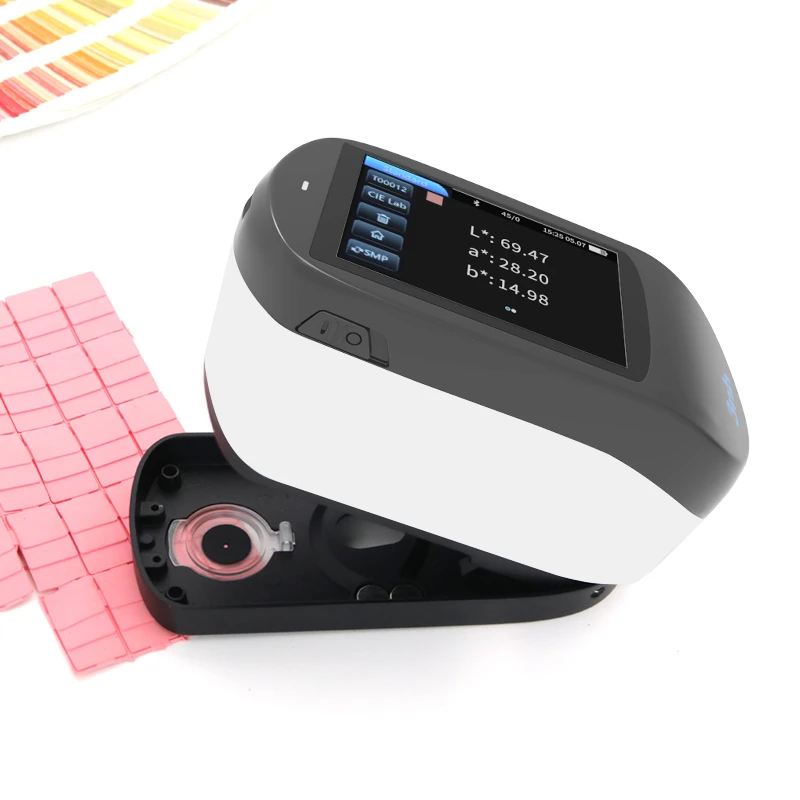

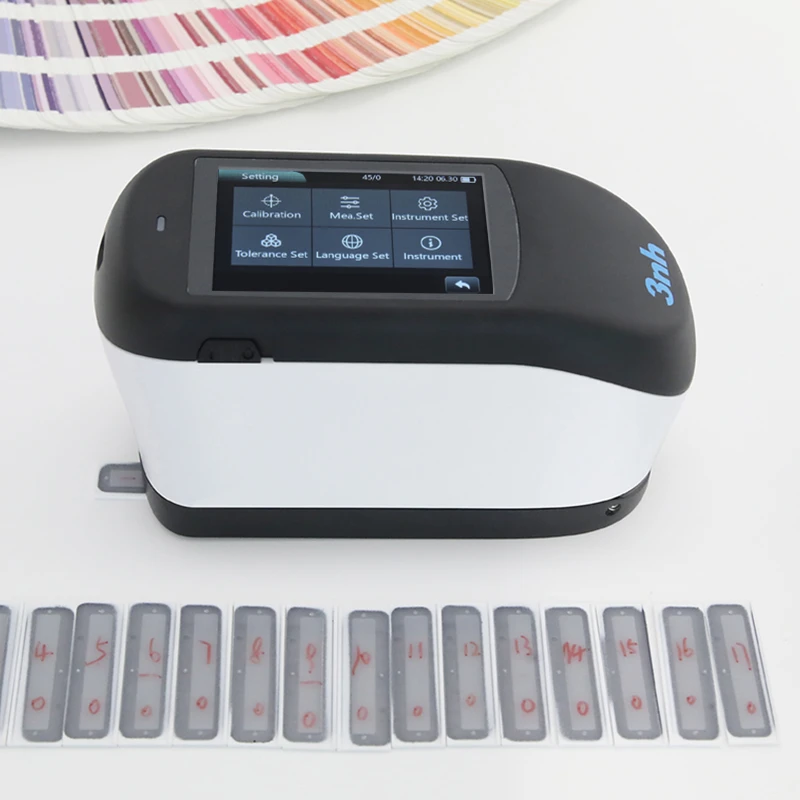

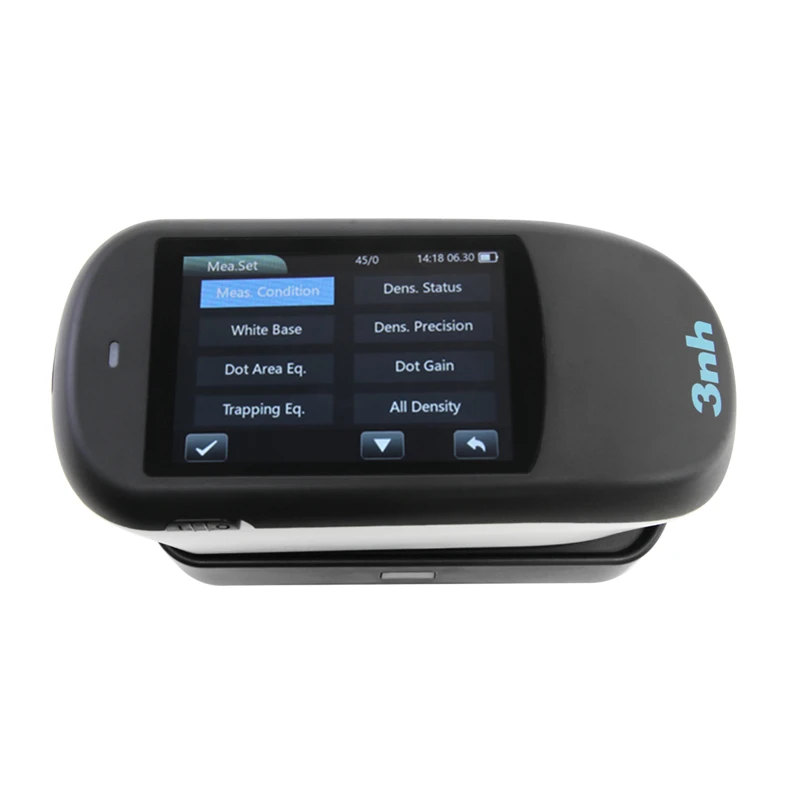

TS1050 Spectrodensitometer (Professional Edition)

TS1050 Spectrodensitometer (Professional Edition) Instructions Operating Manual TS1050 Spectrodensitometer (Professional Edition) PDF
This TS1050 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3nh TS1050 Spectrodensitometer (Professional Edition) is a high-precision quality control device designed for medium-to-large printing enterprises, professional quality inspection agencies, and packaging groups. Utilizing planar grating spectrophotometric technology and equipped with a dual-array 40-group silicon photodiode sensor, it achieves a density repeatability of 0.001D and supports a density scanning function to comprehensively analyze print quality distribution. With guaranteed first-grade metrology certification, the TS1050 ensures measurement data authority and traceability, catering to diverse, high-precision, and large-data volume testing needs. The core advantage of TS1050 lies in being ‘Professional, Comprehensive, Precise, and Efficient’: featuring 5 interchangeable measurement apertures to cover full-scenario requirements from large color blocks to fine graphics, an inter-instrument agreement of 0.20 to ensure data consistency across multiple machines, and a massive 20,000-record storage capacity for batch inspection data traceability. Whether for daily production quality control, multi-machine unified management, or large-batch finished product inspection, TS1050 delivers a professional, accurate, and efficient measurement solution.

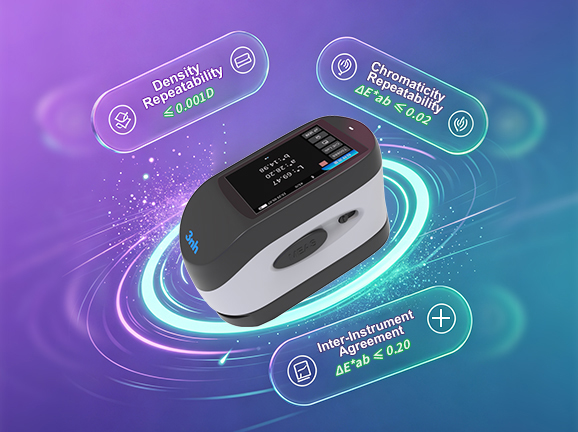

1. Exceptional Repeatability for Rock-Solid Data

Powered by planar grating spectrophotometry and a dual-array 40-group silicon photodiode sensor:

  • Density Repeatability: ≤ 0.001D

  • Colorimetric Repeatability: ΔE*ab ≤ 0.02 (Based on average of 30 white plate measurements, except M3)

  • Inter-Instrument Agreement: ΔE*ab ≤ 0.20 For enterprises operating multiple devices across various workshops, it ensures highly consistent measurement data across machines, unifying quality control standards while lowering cross-department communication costs and quality risks.


Exceptional Repeatability for Rock-Solid Data

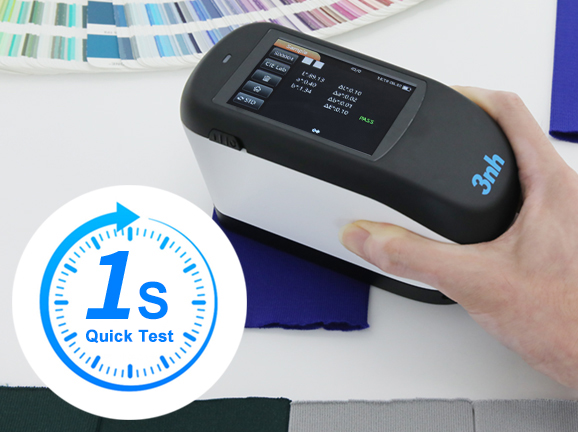

2. 1-Second Ultra-Fast Measurement for High Production Efficiency

A single measurement takes only about 1 second, substantially accelerating batch testing, minimizing worker waiting time, and enhancing production line inspection throughput.

1-Second Ultra-Fast Measurement for High Production Efficiency

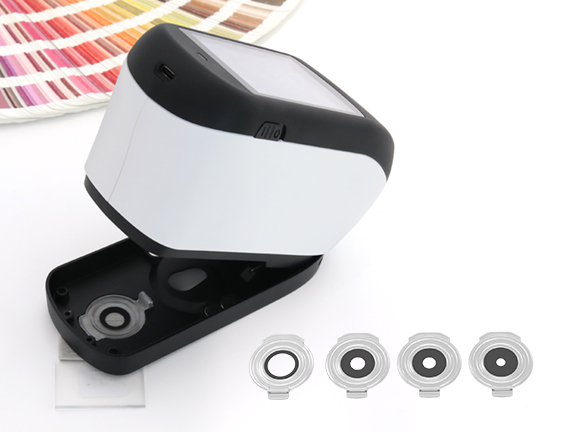

3. Five Interchangeable Apertures for All-Scenario Versatility

Equipped with 5 measurement apertures: Φ11mm, Φ10mm, Φ6mm, Φ5mm, and Φ3mm. Users can flexibly select according to sample size and measurement needs. From large solid color patches to medium fine patterns, one device covers full measurement scenarios without frequent device switching, drastically improving testing efficiency.

Five Interchangeable Apertures for All-Scenario Versatility

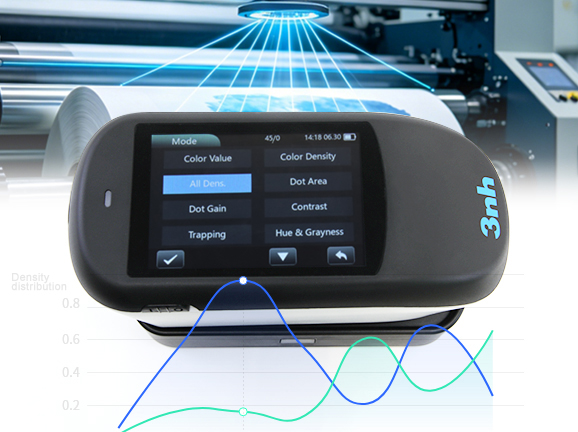

4. Density Scanning Function for Full-Format Quality Evaluation

Supports continuous multi-point density scanning on printed materials to generate density distribution curves, visually demonstrating full-page printing uniformity. Scanning data quickly pinpoints local density deviations and uneven ink layer thickness, assisting technicians in diagnosing press status, accelerating color matching/calibration, and elevating overall print quality.


Density Scanning Function

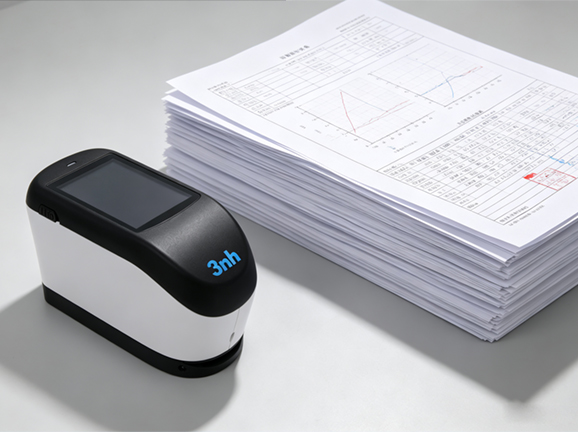

5. First-Grade Metrology Compliance with Authoritative Traceability

Guaranteed first-grade metrology compliance provides high authority and traceability, satisfying strict requirements for ISO quality system certification, customer audits, and third-party testing. It helps enterprises pass high-end client factory audits and gain competitive market advantages.

First-Grade Metrology Compliance with Authoritative Traceability

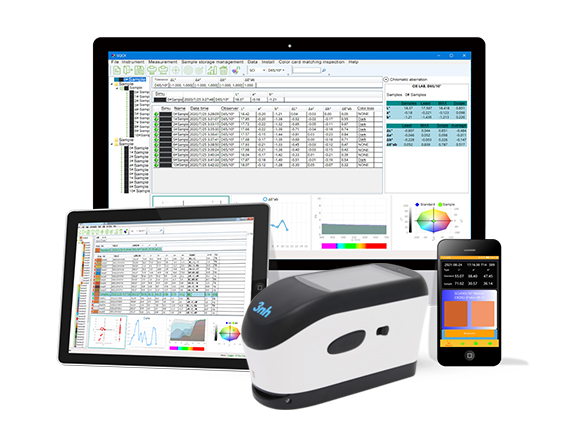

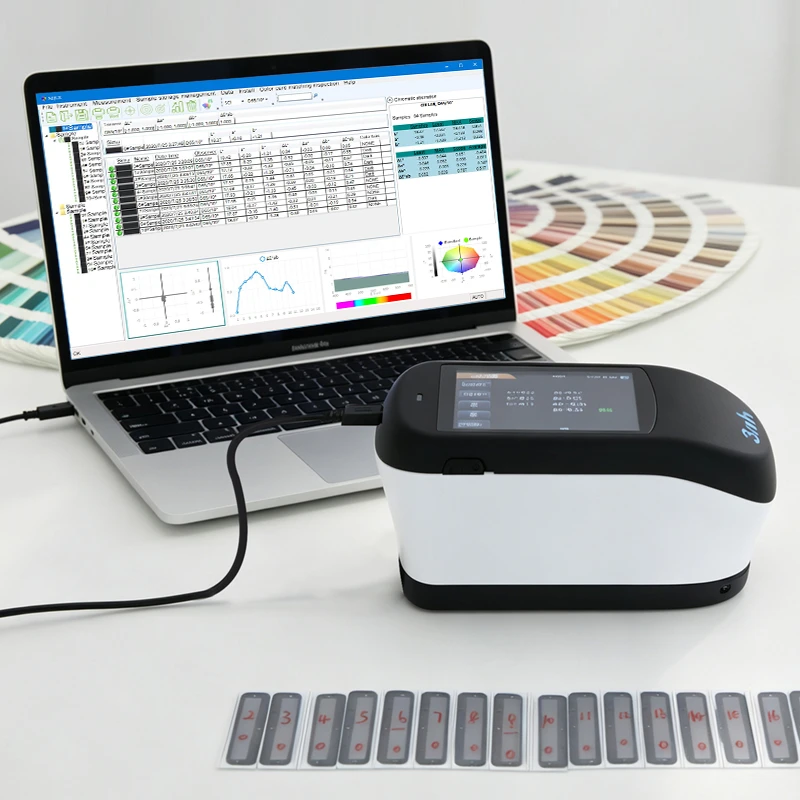

6. Multi-Platform Software Support for Professional Data Management

Supports real-time multi-platform synchronization across Android, iOS, Windows, WeChat Mini-Program, and HarmonyOS. Enables cloud color library searching, personal color database creation, enterprise-level color library sharing, auto-generation of professional analytical reports, and one-click export of quality inspection documentation.

Multi-Platform Software Support

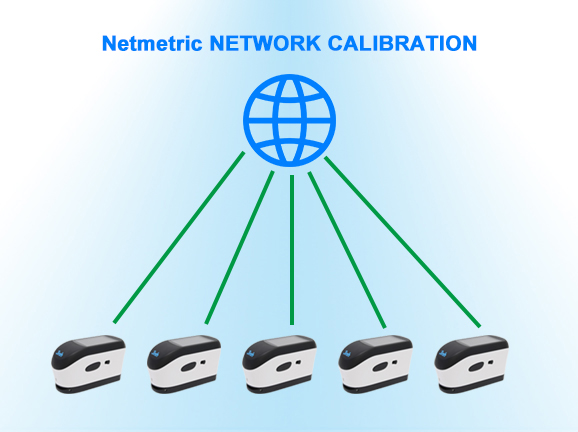

7. Netmetric Network Calibration Ensuring Fleet-Wide Data Consistency

Supports Netmetric network calibration, enabling accumulated measurement deviations caused by long-term instrument use to be corrected remotely over the network. It also allows systematic calibration and alignment of all instruments within an organization and across its supply chain, significantly reducing inter-instrument measurement variation. For group enterprises with multiple factories and production lines, Netmetric enables unified quality standards and centralized management across sites, substantially reducing communication costs and quality risks associated with cross-factory collaboration.

Netmetric Network Calibration Ensuring Fleet-Wide Data Consistency



Model

TS1050

Illumination Geometry

45/0 (45° circumferential uniform illumination, 0° reception); Complies with ISO 5-4, CIE No. 15

Features

High-precision spectrodensitometer widely used for precise color measurement and quality control in ink printing, film processing, textile dyeing, plastics, and electronics. Ideal for accurate optical density and dot gain measurement in ink printing.

Light Source

Combined LED light source, UV light source

Spectrophotometric Mode

Planar grating spectrophotometry

Sensor

Silicon photodiode array (dual-array, 40 groups)

Wavelength Range

400–700 nm

Wavelength Interval

10 nm

Half Bandwidth

10 nm

Reflectance Range

0–200%

Reflectance Resolution

0.01%

Measurement Conditions

Complies with ISO 13655 conditions: M0 (CIE Illuminant A), M1 (CIE Illuminant D50), M2 (UV Cut), M3 (M2 + Polarizing Filter)

Density Standards

ISO Status T, E, A, I, M

Density Range

0.0 D – 3.0 D

Density Indices

Density value, density difference, dot area, dot gain, trapping, printing characteristics, print contrast, tone error and grayness, printing plate, density scanning

Measuring Aperture

Φ11mm,Φ10mm,Φ6mm,Φ5mm,Φ3mm

Color Spaces

CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB, s-RGB, βxy, DIN Lab99, Munsell

Color Difference Formulas

ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(1:c), ΔE*00, DINΔE99, ΔE(Hunter)

Other Colorimetric Indices

Spectral reflectance, Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube, Berger, Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism Index (MI), Color Fastness to Staining, Color Change Fastness, Color Strength (Dye Strength, Tinting Power), Opacity, 555 Tone Classification, Blackness (My, dM)

Observer Angle

2° / 10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5

Measurement Time

Approx. 1s

Display Resolution

Density value: 0.001;

Repeatability

Density: Within 0.001D

Colorimetric: ΔE*ab within 0.02 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration - except M3)

Inter-Instrument Agreement

ΔE*ab within 0.20 (Average across 14 BCRA Series II color tiles - except M3)

Measurement Method

Single measurement, Average measurement (2–99 times)

Locating Method

Integrated physical positioning hole

Dimensions

170*75*91.7mm

Weight

Approx. 600 g

Battery Capacity

Rechargeable lithium battery; 5000 measurements within 8 hours

Light Source Lifespan

5 years or over 3 million measurements

Display Screen

3.5-inch TFT color capacitive touchscreen

Interfaces

USB, Bluetooth

Data Storage

20,000 records

Software Support

Android, iOS, Windows, WeChat Mini-Program, HarmonyOS

Languages

Simplified Chinese, English, Traditional Chinese, Russian

Operating Environment

0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m

Storage Environment

-20–50°C, 0–85% RH (non-condensing)

Network Correction

Supports Netmetric

Accuracy Guarantee

Guaranteed First-Grade Metrology Compliance

Standard Accessories

Power Adapter, Data Cable, Built-in Lithium Battery, User Manual, QC Software (downloadable), Black & White Calibration Box, Protective Cover, Polarizing Filter Box

Optional Accessories

Micro Printer, Netmetric

Remarks

Technical specifications are for reference only and subject to actual sales products.


Our Valued Clients

  • Gail Print Paper Bags Packaging
  • Toyo Ink Malaysia Coloring ink
  • Dynamic packaging company
  • fujifilm sericol inks
  • Siegwerk Druckfarben  ink company
  • hunbergroup chemicals ink company
  • Sun Chemical Inks, Pigments
  • Sakata INX company

FAQs About TS1050  Spectrodensitometer

To use a haze meter, the device must first be calibrated and then it will display the haziness and transmittance values.

 A gloss test gauges the reflective quality of a surface by casting light at a fixed angle and measuring the amount reflected. It defines the level of shine or dullness of a surface, and it is very crucial in coatings, automotive, and product finishing


The gloss scale is normally measured against the scale of 0 to 100 gloss units (GU). The scale is zero at matte and 100 at a mirror. Other very smooth surfaces can be over 100 GU at lower angles, such as 20°.


Take into account the measurement range, type of samples, needed precision, any relevant standards, and your industry.


The CCC is much like the CAC yet it frequently has advanced programmable lighting, sophisticated electronic control systems that allow for light source switching, and advanced visual testing.


When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.
