7 Tips for Accurate Color Matching with Colorimeters

Introduction

In the textiles, printing, automotive industries, plastics, coatings, and some others, color continuity is extremely important. This is due to the customer’s demand for accurate color matching across multiple products, different batches, and production runs. Color change, even a tiny bit, can lead to the rejection of a product or damage a brand’s reputation.

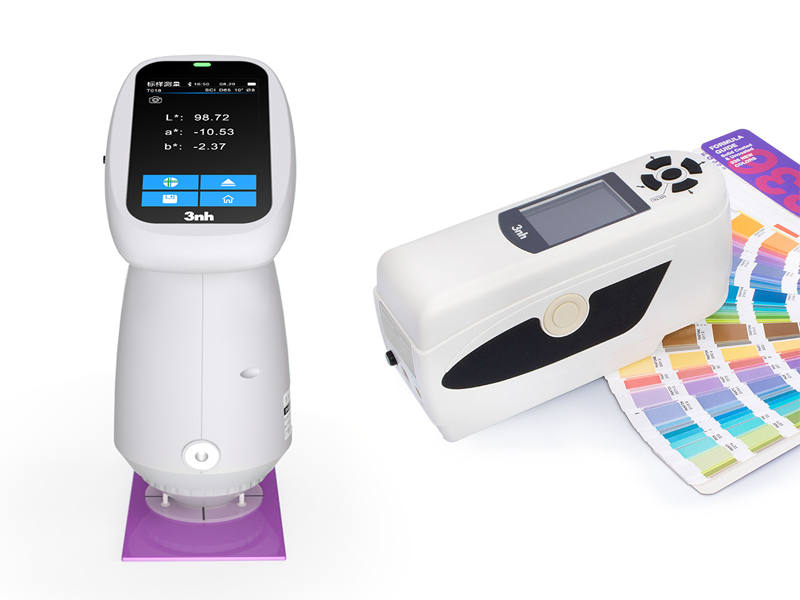

To maintain this continuity, colorimeter, an instrument that measures color with exact precision, is used by color professionals. However, the accuracy of any color matching is directly dependent on how the colorimeter is used, even owning a good one. Therefore, best practices and proper usage techniques should be followed.

We provide you with seven tips to increase the accuracy of the results when using a colorimeter.

Why Accurate Color Matching Matters

In many fields, color matching is directly linked to:

● Brand reputation

● Customer loyalty

● Compliance with regulations and laws

● Efficiency in production

Inaccuracies in color matching may lead to unwanted reworked products, delays, or even recalled products.

Role of Colorimeters in Precision Color

A colorimeter accurately measures the color of an object with the aid of color spaces like CIE LAB, LCH, and RGB. It enhances objectivity and transforms color measurement into a value that can be compared, recorded, or analyzed, especially over different production batches.

Regardless of the technology and colorimeter used, the accuracy still relies on the user.

1. Always Calibrate Before Use

How and Why to Calibrate Correctly

Calibration makes certain that everything is consistent and accurate to the users’ settings. Every professional colorimeter comes with a white calibration tile which is a surface with known reflectance properties. Before the measurement, adjust the device with this tile.

This readjusting helps eliminate any environmental influences like a drift or sensor that may have affected the device.

Frequency Tips for Accuracy

● Daily Calibration: Always perform the calibration at the start of the day or before any measurement session begins.

● Recalibration after Movement: If there is a change in location, temperature, or movement, perform a recalibration.

● Routine Maintenance: Regularly clean the sensor window and the calibration tile to avoid the accumulation of dust or oils.

2. Use the Correct Illuminant and Observer Angle

Understanding Standard Settings (D65, 10, etc.)

Different types of lighting can be simulated using different illuminants. One of the where the most standards are used is:

● D65 (Daylight) – A standard daylight source at 6500K, A daylight standard Illuminant.

Human vision is divided into several segments, called observer angles:

● 10° observer is widely used for general applications.

● 2° observer is used for very intricate details and scientifically rigorous work.

Matching Lighting Conditions

Lighting for the colorimeter should always be set to the working environment where the sample will be viewed. If the sample will be viewed within the retail shop, set the colorimeter to retail lighting for sample measurement.

3. Avoid Measuring Dirty or Glossy Surfaces

How Surface Texture Affects Readings

Dirt and oil, as well as fingerprints and glossy uneven surfaces, introduce measurement bias. On surfaces that are smooth and dark, small scratches and smudges produce disproportionate measurement errors.

Proper Sample Preparation

● Use a lint-free cloth to wipe the sample clean.

● Do not touch the sample region to be measured.

● For the glossy and curved surfaces use colorimeter with d/8° geometry (more on that in Tip #4).

The repetitive clean results that can be obtained are from using well preserved and flat samples.

4. Maintain Consistent Measurement Geometry

45°/0° vs. d/8° Explained

Measurement geometry is the angle of incidence and inclination of light onto a sample and also its corresponding reflection:

● 45°/0° Geometry: 45° illumination and 0° measurement. Best for eliminating gloss influence.

● d/8° Geometry: Diffused illumination with 8° measurement. It is more comprehensive and also includes gloss unless the specular component is excluded.

Why Geometry Matters in Color Matching

Having the same geometry for measurement every time helps with consistency. If other devices or methods are used, the color values could shift due to the change in geometric differences even if the color itself remains unchanged.

Make sure that for comparisons across devices or teams, participants stick to the same geometry.

5. Compare Samples Under Controlled Lighting

Avoiding Metamerism

Metamerism is the phenomenon where two surfaces that are different but appear the same under one light source, will look different under another. To prevent false matches, color samples should be assessed under designated standard light sources.

Tools for Light Booth Comparisons

A light booth with multiple sources of light (D65, TL84, A, UV) can serve the purpose of simulating different environments. This helps to ensure that color accuracy and consistency is achieved across all conditions of viewing, and helps reduce customer returns or complaints due to mismatch.

6. Store and Analyze Results Using Software

Visualizing Data Trends

Colorimeters now often come alongside mobile applications, computers, and other forms of technology, allowing users to digitally save, monitor, and analyze colors. Their applications include:

● Batch comparison

● Detecting shifts over long periods of time

● Improving quality control reports

Using Color Difference (ΔE) Metrics

ΔE (Delta E) is a unit of measuring the difference between two colors. The smaller the value, the better the pairing. In those terms:

● ΔE < 1.0: Difference is indistinguishable

● ΔE 1.0 – 2.0: Slightly visible

●  ΔE > 3.0: Significant

Giving ΔE limits to differences allowed ensures objectivity in quality control.

7. Train Your Team on Proper Handling

Preventing Human Error

The accuracy of Colorimeter rests strongly on the accuracy of the operator. Errors or inconsistent methods can result in erroneous readings.

Best Practices in Professional Settings

All employees must be trained in the basic calibration, handling, and measurement techniques.

● Develop SOPs (Standard Operating Procedures) to eliminate variation between different operators and shifts.

● Encourage documentation of the device's environmental conditions, its settings, and its sample details.

Following the proper methods and the proper training results in reduced errors and greater uniformity.

Conclusion

Involving yourself in severe competition of quality-conscious and brand-driven markets requires a precise color match. Though colorimeters provide a base of consistent color control, optimizing it requires proper skill and discipline along with industry standard practices.

Your color measurements can be accurate and repeatable by making the right decisions, data management, and sample preparation in addition to rigorous setting selection, and steady calibration.
