Printing Spectrocolorimeter PS2040

High-precision Portable Color Difference Meter

The PS2040 spectro chroma meter is a compact, handheld intelligent digital display spectrocolorimeter; PS2040 is designed for precision and portability, can accurately measure samples of various shapes and sizes, suitable for plastic electronics, paint ink, textile and garment printing, printing, ceramics industries, delivering high-accuracy color measurement results.

Key Highlights

D/8 optical structure and SCI/SCE mode
400~700nm full waveband balanced LED light source
CMOS dual beam splitting sensor
Automatic whiteboard calibration
Multiple color measurement spaces, equipped with ‘Pantone chart’ inbuilt
contains a UV light source and can measure fluorescent materials
Reliable repeatability (ΔEab ≤0.35) and inter-instrument agreement (ΔEab ≤0.35)
2.8 inch TFT Capacitive Touch Screen

Printing Spectrocolorimeter PS2040 Instructions Operating Manual Printing Spectrocolorimeter PS2040 PDF

This PS2040 Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

"Fat girl" is the nickname of PS20 series domestic color spectrometer. It is serious about color measurement and high user satisfaction.

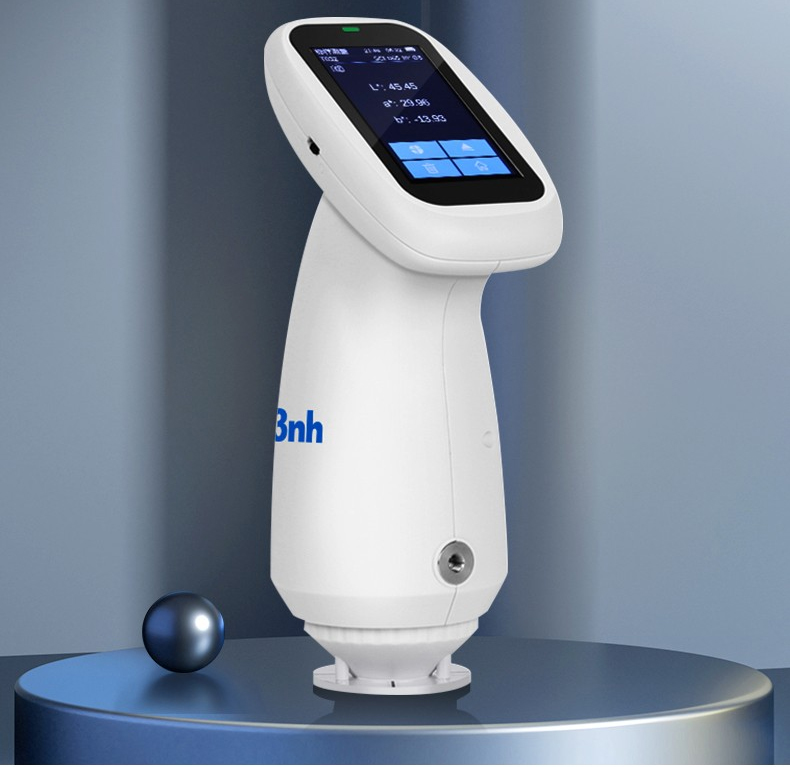

ps2040 products show

PS2040 "Fat girl" printing spectrocolorimeter is 3nh developed by CMOS dual-channel spectrocolorimeter sensor, which is not only a colorimeter, but also a spectrocolorimeter , with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management.

PS2040 color difference analyzer spectrocolorimeter is equipped with double aperture: Φ4mm /Φ5mm flat and tip, widely used for plastic electronics, paint ink, textile and garment printing, printing, ceramics and other industries color difference quality control. The PS2040, a 4-color printing color difference meter, is a high-performance color measurement instrument. It is widely used in fields such as printing, packaging, publishing, and textiles. It adopts advanced laser measurement technology, which can quickly and accurately measure color differences, providing strong support for high-quality printing.

PS2040 Technical Advantages

Adopt D/8 optical structure and SCI/SCE mode

PS2040 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology. It is suitable for color management and quality control in various industries such as color matching and coating, textile, plastic, food, building materials, cosmetics, etc.

Adopt full waveband balanced LED light source

The 400~700nm full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband, Fluorescent materials can also be easily measured and ensures the measurement speed and accuracy of the measurement results.

full waveband balanced LED spectrum distribution

CMOS dual beam splitting sensor

High speed and high sensitivity CMOS dual beam splitter sensor makes color data processing more efficient and accurate.

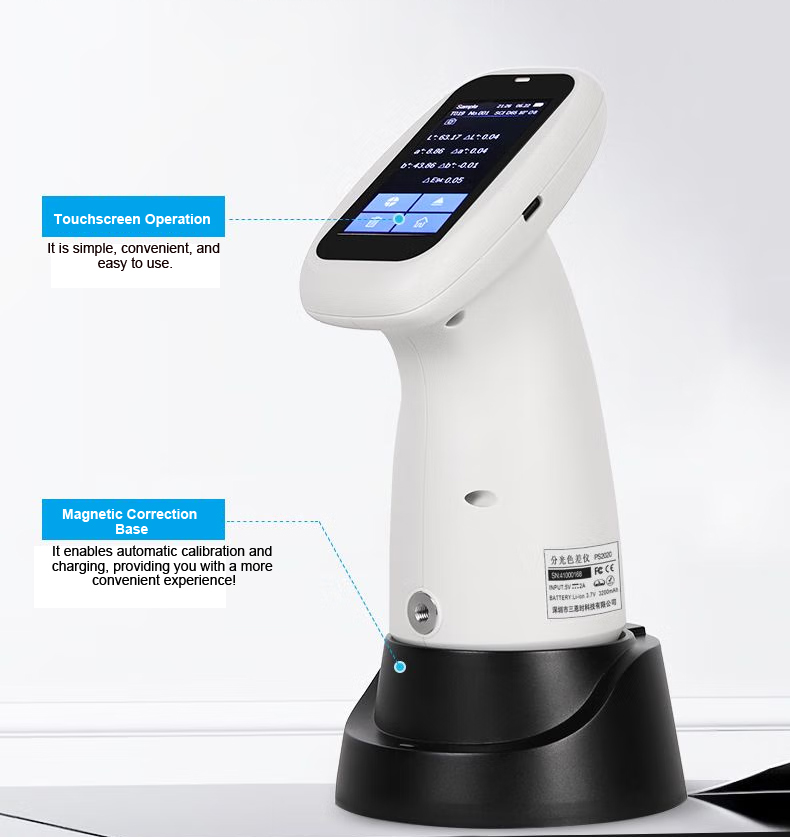

Contact automatic whiteboard calibration

The spectrocolorimeter PS2040 is equipped with an intelligent calibration base. Contact automatic whiteboard calibration is available, professional standard whiteboard reflectivity R%≥95%, good surface uniformity. It has high stability and can obtain repeated and accurate data.

Multiple color measurement spaces, multiple illumination source

The spectrocolorimeter PS2040 support CIE LAB,XYZ,Yxy, LCh, CIE LUV,S- RGB, βxy, DIN Lab99 Color space and D65, A, C, D50, D55, D75, F1, F2(CWF) ,F3, F4 F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), U35, NBF, ID50, ID65 multiple illumination source, Meet different measurement requirements.

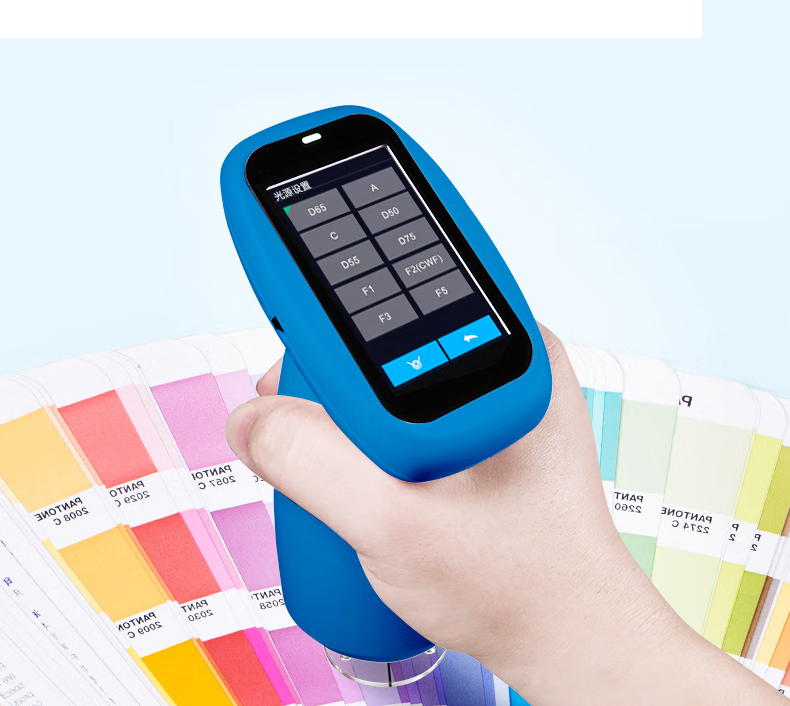

PS2040 MULTIPLE LIGHT SOURCES_AND_MEASUREMENT INDICATORS

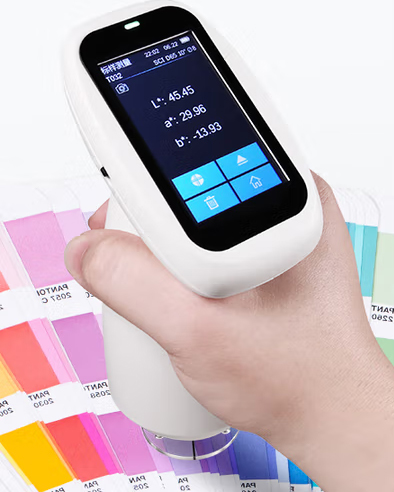

Ergonomic design and easy measurement

The fitted palm is suitable for continuous detection, which makes you fast and easy to use. An easy to measure device for automatic measurement is added. Which is portable, fast, easy to measure and use.

Calibration Certificate

Each PS2040 spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metro technical Institute to ensure the authority of the instrument test data.

PS2040 Calibration Certificate

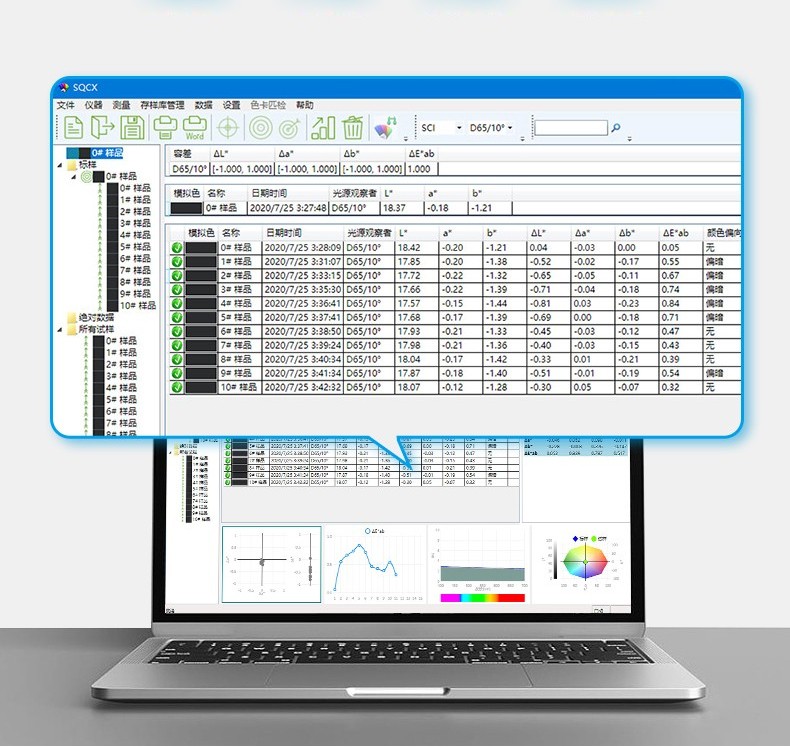

Color management software

SQCX quality management software with PS2040 spectrocolorimeter is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.

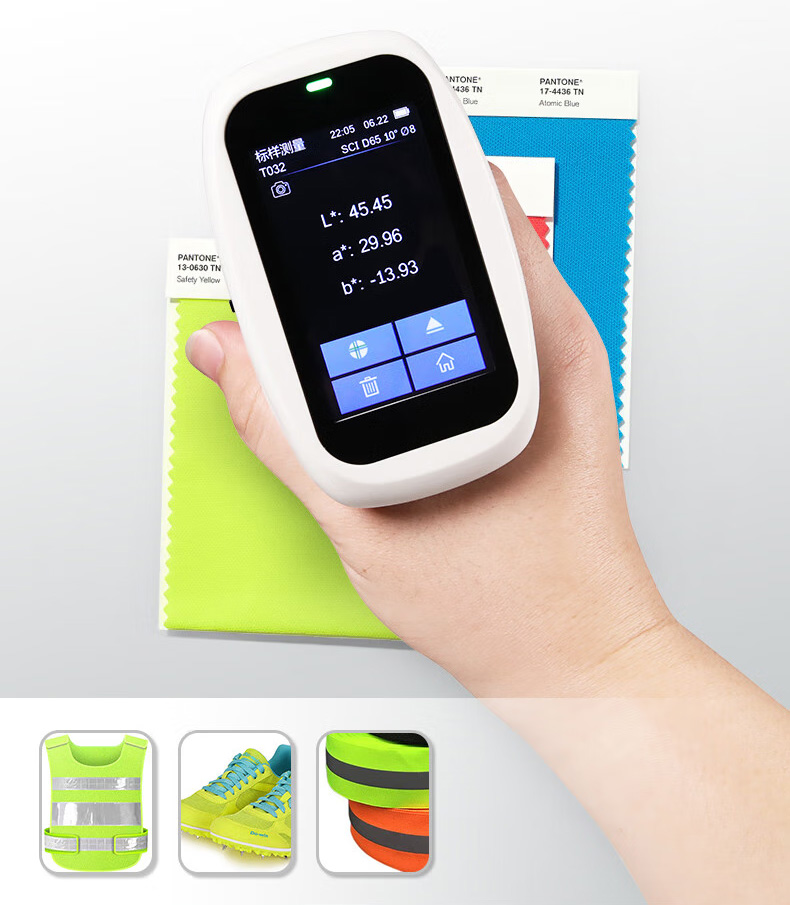

Measurable fluorescent materials

The PS2040 instrument contains a UV light source and measures wavelengths ranging from 400-700nm. It specializes in measuring the color and reflectivity of fluorescent materials

PS2040 Chroma Meter Optional accessories

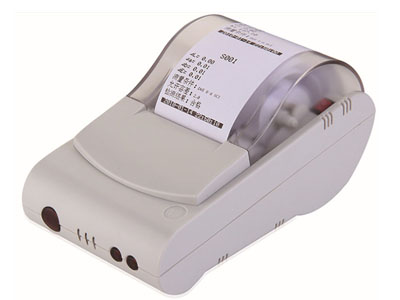

Micro Printer

Micro printer: easy to carry, without computer can continuously print out the measurement of various parameters, easy to save.

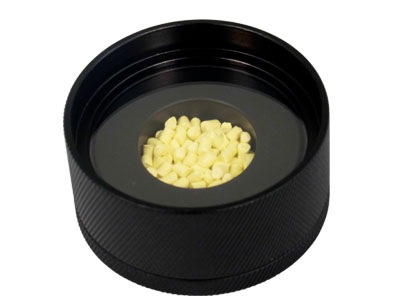

Powder Test Box.

Powder test box: Easy to use, focusing on powdered target measurement.

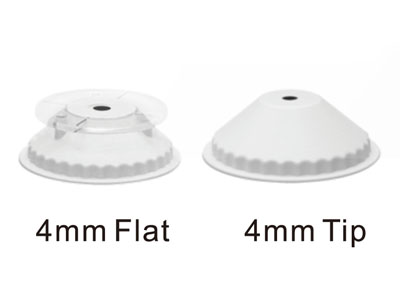

PS2040 Double aperture

SAV:Φ4mm/Φ5mm(Flat&Tip)

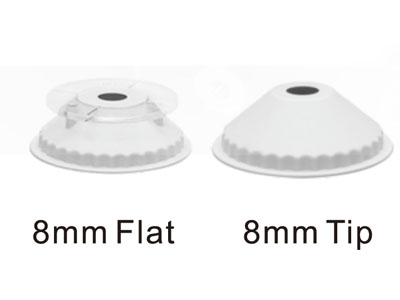

PS2030 Double aperture

MAV:Φ8mm/Φ8mm(Flat&Tip)

We Provide Color Measurement Solutions for Various Fields

PS2040 instrument has stable performance, accurate color measurement and powerful function. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, ceramics, cosmetics and food industries

ps2040 colorimeter widely application

Global Leader in Color Measurement Instruments in China -3nh

Threenh develops and manufactures color measurement instruments like Colorimeters, Spectrocolorimeters, ColorReader, Multi-angle Spectrophotometer and Spectrophotometers, and offers color management solutions.

PS2040 Chroma Meter Technical Specification

Model	PS2040 spectrocolorimeter
Optical Geometry	D/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic	Adopt CMOS dual beam splitting sensor; Used for color difference quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries.
Light Source	Combined full spectrum LED light source
Integrating Sphere Size	Φ40mm
Sensor	CMOS dual beam splitting sensor
Wavelength Range	400-700nm
Measuring Aperture	Two Apertures: SAV:Φ4mm/Φ5mm
Specular Component	SCI/SCE
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula	ΔEab,ΔEuv,ΔE94 ,ΔEcmc(2:1),ΔEcmc(1:1) ,ΔE00, DINΔE99, ΔE(Hunter)
Other Colorimetric Index	Spectral reflectance, WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313),Metamerism Index Mt,Staining Fastness, Color Fastness,Color Strength, Opacity,555 tone classification, Munsell(C/2)(Partially realize through the PC software /APP software)
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65(Partially realize through the PC software /APP software)
Display	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time	About 1s
Repeatability	Chromaticity value: MAV/SCI, within ΔE*ab 0.035 (After preheating and correction, the average value of the whiteboard was measured for 30 times at an interval of 5s);Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400nm to 700nm: within 0.2%)
Inter-instrument Error	MAV/SCI, Within ΔE*ab 0.35 (Average for 12 BCRA Series II color tiles)
Displayed Accuracy	0.01
Measured Reflectance Range	0-200%
Reflectance Resolution	0.01%
Measurement Mode	Single Measurement, Average Measurement(2-99times)
Locating Method	Stabilizer position
White Calibration mode	Contact type automatic calibration
Dimension	94X68X188mm
Weight	About 410g
Battery	Lithium battery,3.7V,5000mAh,8000 cycles in 8 hours
Illuminant Life Span	More than 1.2 million measurements over 10 years
Screen	2.8 inch TFT true color, Capacitive Touch Screen
Interface	USB
Data Storage	Standard 500Pcs, Sample 5000Pcs (One data is able to include SCI/SCE);PC mass storage
Software support	Windows
Language	Simplified Chinese, English, Traditional Chinese
Operating Environment	0~40℃, 0~85%RH (no condensing),Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)
Standard Accessory	Power Adapter, USB Cable, User Guide, SQCX PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, Aperture
Optional Accessory	USB Micro Printer, Powder Test Box
Notes	Technical parameters are only for reference, subject to the actual sale of the product

Instrument Software Installation

1. Mobile APP installation

The mobile APP support Android operating system version 7.0 or higher and iPhone supports iOS 7.0 or higher version. It can be installed in the following ways:

● Scan the QR code on the Spectrocolorimeter with a mobile browser or WeChat, follow the prompts to download and install.

● Click on the link 3NH APP to install the APP.

● Search for "3NH" (not case sensitive) in the APP Store/Google Play to install the application.

● If you need color matching software for color matching, you can download our Pecolor software blow

Color Matching Cloud For IPhone Download

Color Matching Cloud For Android Download

2. PC software installation

Connect to the computer via USB, you can use the PC software of the colorimeter. (PC software only supports Windows operating system)

● It can be installed in the following ways: Download "Product support | Colorimeter" to the local and run it directly after decompression.

SQCX English Version Download

(for TS Series,YL Series,ST Series,CR Series,YS Series,PS Series,NR+ Series,NH+ Series )

Packing List

No.	Description	Quantity	Unit
1	Spectrocolorimeter	1	Set
2	USB cable	1	pcs
3	White and Black Calibration Cavity	1	pcs
4	Aperture	1	pcs
5	Power Adapter	1	pcs
6	User manual	1	pcs
7	Certificate / Warranty card	1	pcs
8	Calibration Report	1	pcs
9	SQCX PC Software	Download from office website	/

Spectrocolorimeter PS2040 OPERATION INSTRUCTION

Document files about ps2040 instrument configuration and how-to-use such as Product Guide, Reference manual, System setup guide.

Terms and conditions

Returns of purchased equipment

Defective new equipment may be returned for warranty repair/exchange/credit within five (5) days of receipt of shipment.

Items that have malfunctioned due to mishandling, electrical overload, etc., will be subject to a repair charge.

New, non-defective equipment will be authorized for return within five (5) days of receipt of shipment if the equipment is still in new condition with the original manuals, accessories, packing material, and box.

We reserve the right to refuse returns in which the original packaging is missing, accessories are missing, damage or visible signs of use of the item. A restocking fee of up to 10% of the purchase price may apply.

Special orders cannot be returned. International customers must ship any returns to us with freight and taxes prepaid. Return shipping costs for international shipments will be the responsibility of the customer.

Our Valued Clients

FAQs About PS2040 Spectrocolorimeter

A colorimeter is used to measure the intensity of color of a solution by measuring its absorbance at selected wavelengths of light. It is widely applied in chemistry, food, pharmaceuticals, and quality control to determine concentration, track color changes, or product uniformity.

The principle of colorimetry is the law of Beer-Lambert, which says that the intensity of light absorbed by a colored solution is proportional to the concentration of the absorbing species and the path length. It measures the extent of light that is absorbed at certain wavelengths.

The LAB color space defines colors in a three-dimensional model: Lightness (L), red–green axis (a), and blue–yellow axis (b). It's a globally recognized standard supported by most modern color measuring devices. CIELAB is a standardized, device-independent system designed to map all visible colors that the human eye can perceive.

The LAB color space uses three values to define any color, each representing a specific dimension:

L (Lightness): Ranges from 0 to 100. It measures the brightness of the color, where 0 is pure black and 100 is pure white.
A (Red-Green Axis): Ranges from approximately -128 to +127. Positive values represent red tones, while negative values represent green tones.
B (Yellow-Blue Axis): Ranges from approximately -128 to +127. Positive values represent yellow tones, while negative values represent blue tones.

A colorimeter measures the amount of light and the wavelength that is absorbed by a solution. It is a sign that colored compounds are present and the level of their concentration. It is applied in the laboratory and industry to check the concentrations of chemicals, the color of products, and purity.

The various colors can be measured by the way a surface reflects, absorbs, or transmits light at different wavelengths. These responses may be measured using instruments such as colorimeters or spectrophotometers to give numeric values in a standardized color space such as L *a*b*.
