Home>Main Instruments>Colorimeter

NR110 Precision Colorimeter

Affordable Precision NR110 Colourimeter Device

The NR110 Colorimeter is a compact, handheld color measurement device designed for simplicity and portability; NR110 microcomputer colorimeter is suitable for color detection and control in various occasions. It is an ideal choice for color management in garment factories, chemical factories, printing factories, automobile factories, hardware processing factories, mold factories, paint factories, etc.


Key Highlights

  • 8°/ d optical geometry

  • Chromaticity Values, Color Difference Values, Pass/Fail Result, Color Offset/Deviation Direction

  • CIE LAB,LCh,XYZ, Color Space

  • Φ8mmflat aperture, Φ8mm sharp aperture

  • 2.8-inch TFT screen for easy operation

  • Reliable repeatability (ΔEab ≤0.08) and inter-instrument agreement (ΔEab ≤0.8)

  • Large storage capacity,  Apprx. 20,000 data;

  • On-site inspections, providing cost-effective color measurement solutions for entry-level applications

NR110 Precision Colorimeter Instructions Operating Manual NR110 Precision Colorimeter PDF
This NR110 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Easy-to-Use Colorimeter Instruments for Precise and Reliable Color Quality Control

In a world where color consistency directly impacts brand reputation and product quality, the NR110 Precision Colorimeter emerges as a game-changing tool for businesses seeking reliable, cost-effective color measurement. The NR110 handheld colorimeter is certified by SCM metrology certification, CE certification, and TUV certification. It is proudly produced by 3nh, a brand enterprise with ISO9001 international quality management certification. Featuring a portable structure, it is compact and convenient, making color measurement simpler than ever. With an exquisite appearance patent, it adopts a dual aesthetic design combining tradition and trend. Backed by heavy investment in high-end molds, the product consistency is close to 100%, delivering exceptional cost performance.

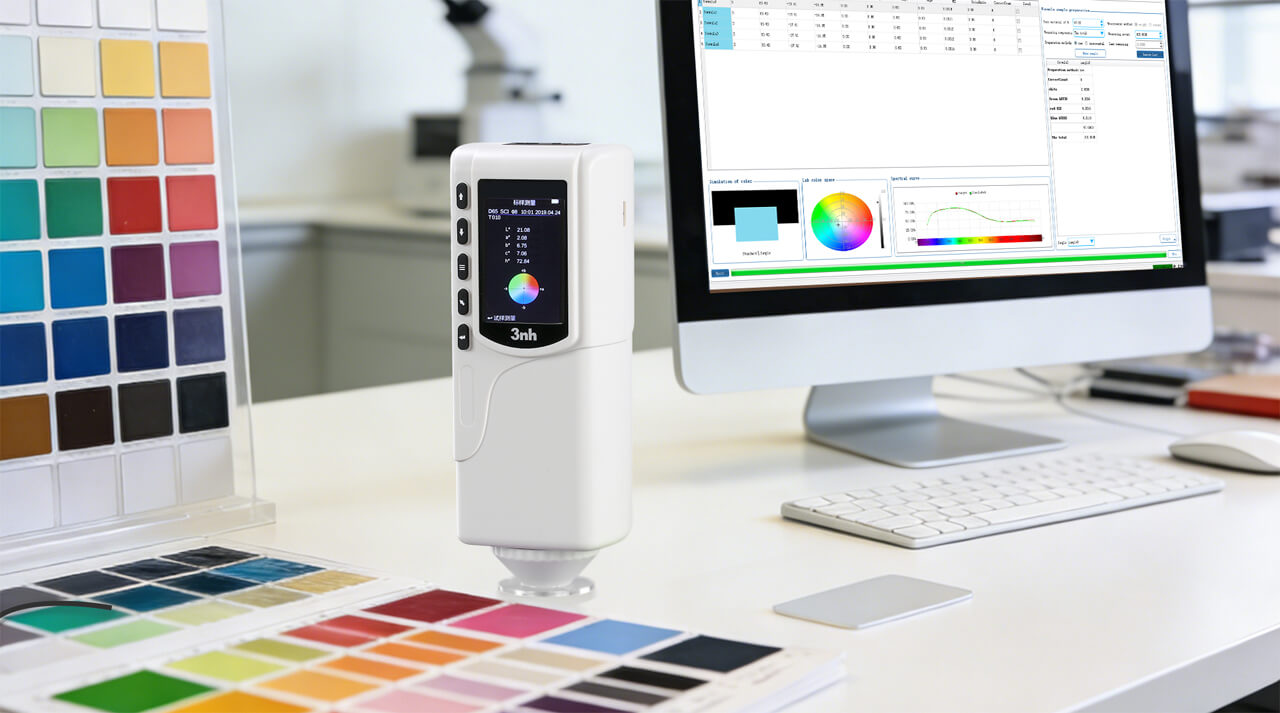

NR110 for color management solutions

Features of Portable Colorimeter 3nh NR110

Since 1998, from import to domestic, 3nh NR110 precision colorimeter is an iconic milestone in color test industry. The NR110 portable colorimeter is a high-precision, low-cost device quickly and easily evaluating the baking of all kinds of bakery products (breads, buns, biscuits and other food products) in order to check the baking process of the production line.

NR110 is a colorimeter that will give true and accurate Lab values when color matching, with the NR110 colorimeters, it is possible to monitor and control the color of cooked, fried, smoked, or processed foods or ingredients in different environments to ensure their consistent appearance. It is the ideal solution for multi-site businesses and restaurant chains seeking consistency and increased quality in the appearance of their products.

In addition to crust color, the NR110 analyzes color on all kinds of baked goods, such as yeast, flour, brown sugar, and the additive calcium propionate. According to CIE standard illuminant D65 and the 8° observer guarantee its repeatability and correct measurements.

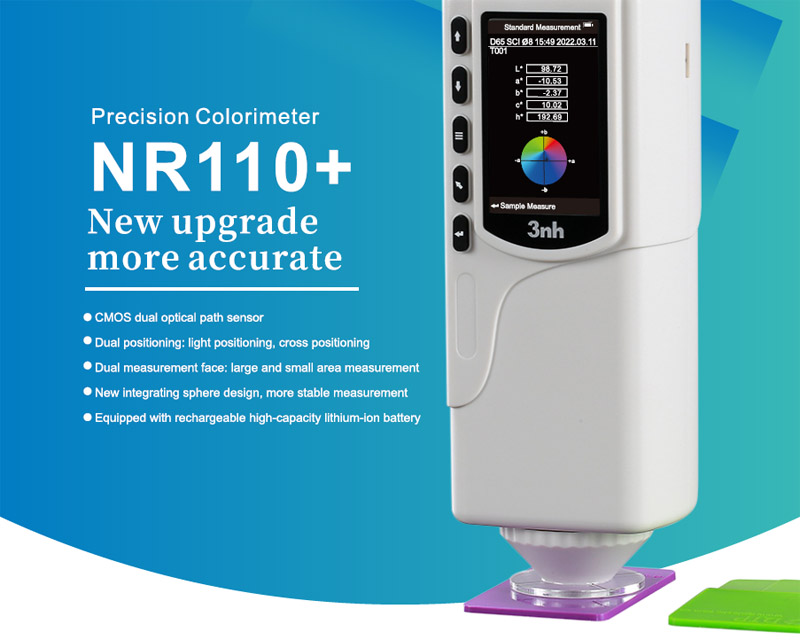

precision_colorimeter_nr110


Very easy to use and battery-operated, the NR110 displays results on its LCD screen in the form of a L*a*b* colorimetric coordinates.

New Functions

Double Locating: Illuminating locating and cross locating

Double Measurement End Face: Large area measurement and small area measurement

New Integrating Sphere Design: More stable measurement

Equipped with Rechargeable High-Capacity Li-ion Battery

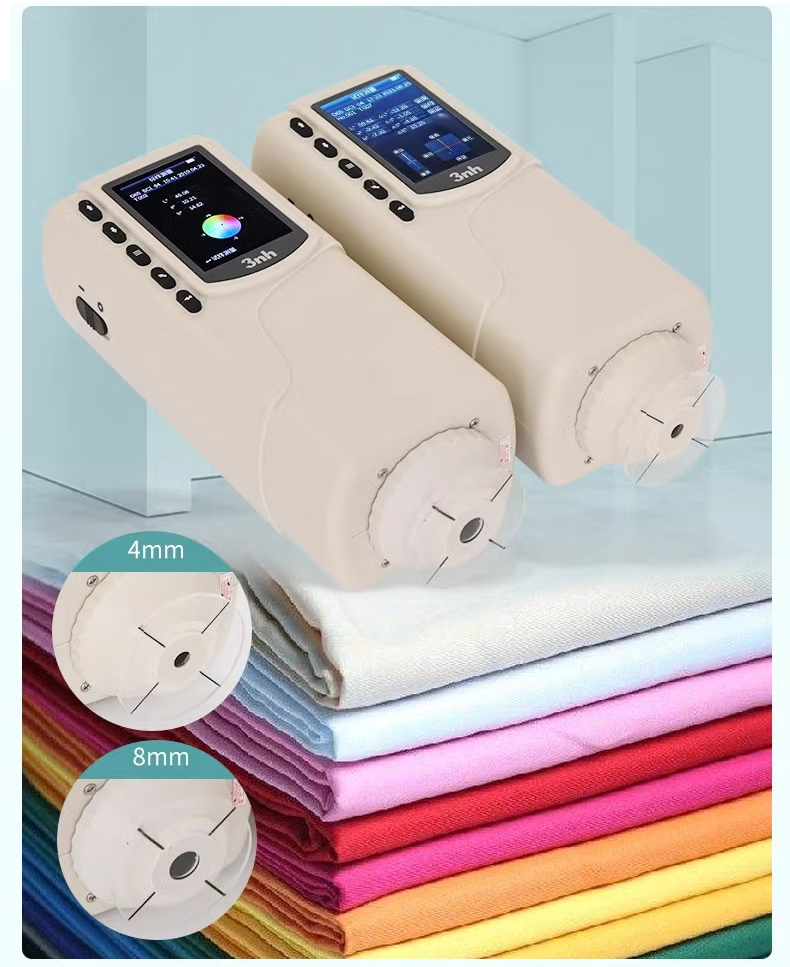

 high_perfomance_nr110_colorimeters

Product Advantages



a.  Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

b.  Double Locating: Illuminating locating and precise cross locating.

c.  Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.

d.  New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.

e.  4mm Measuring Aperture.

f.   Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.

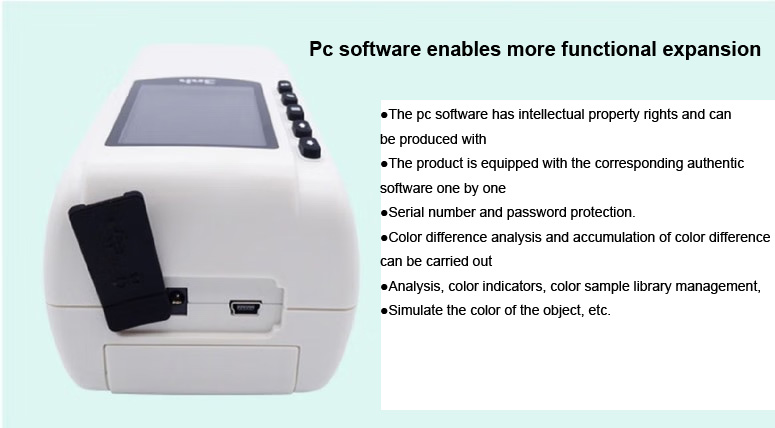

g.  Configure CQCS3 software. Connect PC computer to realize more functions.

NR110_equipped_with_corresponding_authentic_software

h.  Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

i.   Hand-head structure: small and convenient; make the measurement easier.

j.   Exquisite appearance: adopts traditional and fashionable aesthetic designs.

k.  Spending huge sums on high-end mold. Product consistency approaches 100%.

l.   High cost performance: large output, good quality, cheap products.



Illuminating Locating



Illuminating Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face. (for NR110)




NR110 colorimeter device was developed for precise, fast and reliable shade determination of product‘s surface color. Quickly measures LAB value of samples, universal values in the world of colorimetry, the measured shade is communicated in L*a*b* coordinates, very intuitive and easily interpretable by the user. It connects via Bluetooth® wireless technology or via USB to your device.

Accurate digital color meters for a wide range of applications:

nr110 widely application in plastics, printing,automobile,textile, medicine, paints

             Talk to Our Engineers Today


NR110- High-Quality Portable Computer-Connected Colorimeter

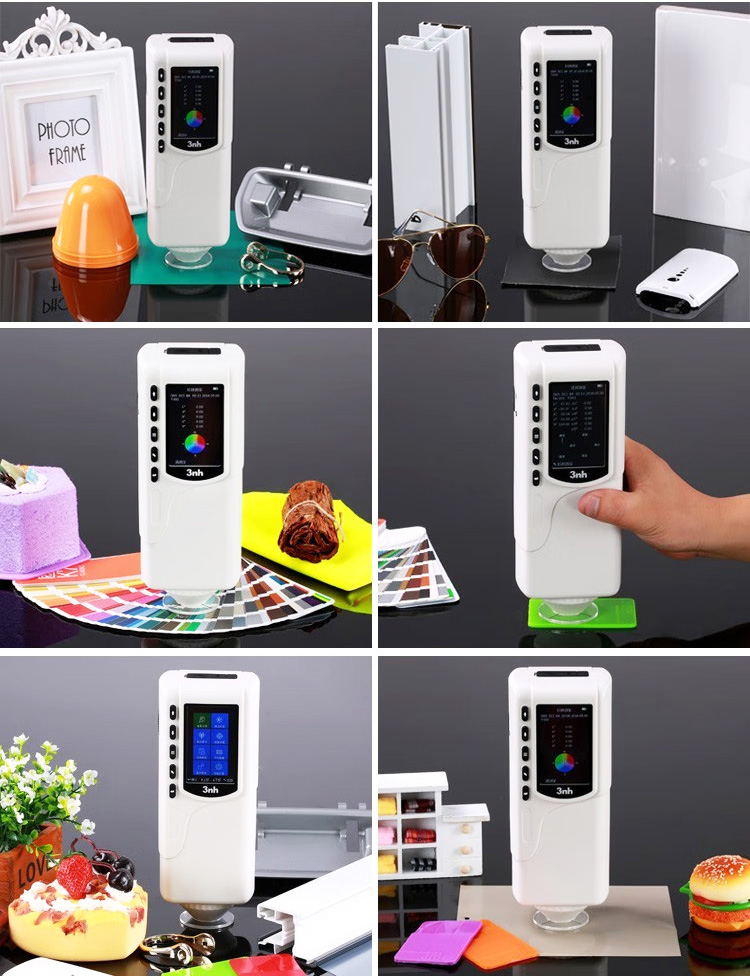

NR110_Application_Case


Why Choose the NR110 for Your Color Measurement Needs?

            ✅Reliable Data Storage & Export: Store up to 500 color data sets and transfer files via USB for easy reporting and analysis.

            ✅Durable & Long-Lasting: Built with rugged materials to withstand industrial environments, ensuring stable performance over time.

            ✅Wide Compatibility: Works seamlessly with common color management software, integrating into your existing quality control system.

Help enterprises improve product quality!

Equipped with outstanding measurement accuracy and stability, the NR110 helps enterprises strictly control the color quality of products, enhance product competitiveness, and win market recognition. Multifunctional and high-performance instruments are essential for every enterprise. The NR110 handheld colorimeter is your ideal choice for industrial color management.

Appearance structure and accessories

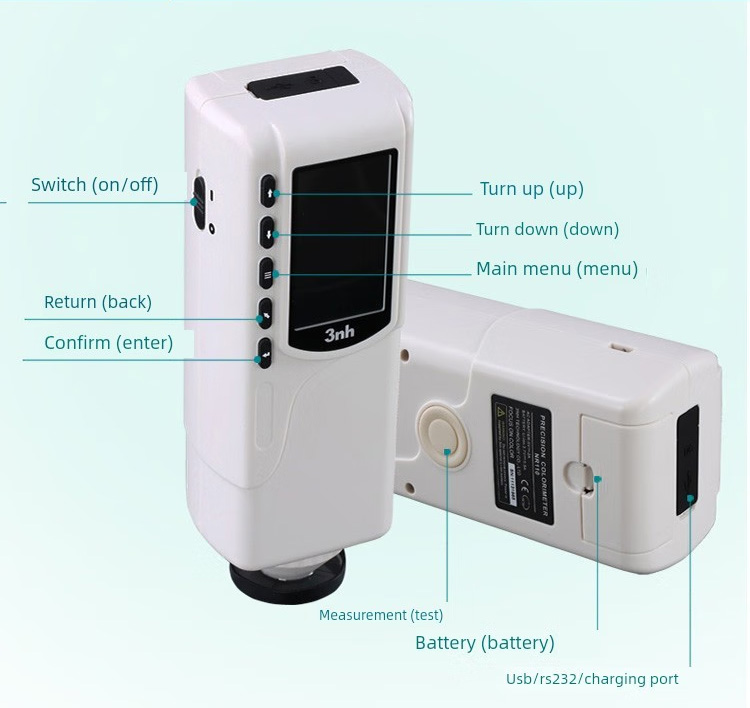

nr110 instrument Structure Diagram

Note

Before using this handheld colorimeter, first check that the power cable and sensor interface are properly connected, and verify that the function selector switch is set to portable measurement mode. Only after completing these checks can you turn on the instrument to perform measurements.

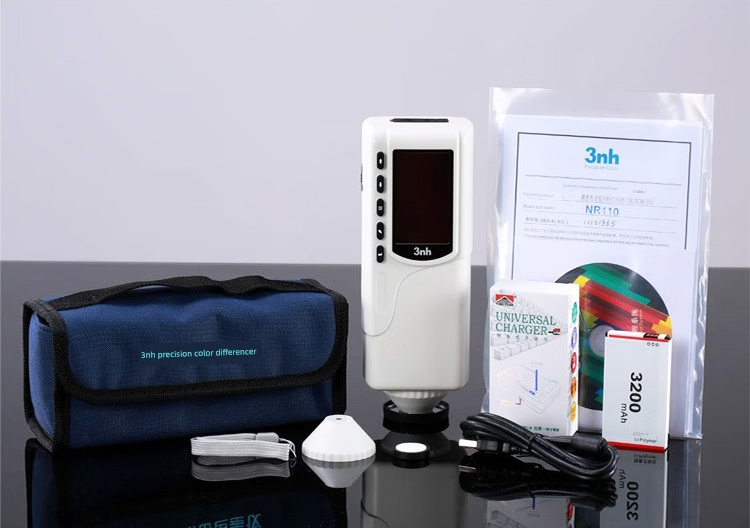

Nr110 product packagings



NR110 Colorimeter Demonstrating Videos


This video shows how to use the device for various applications such as measuring powders, liquids, textiles, and plastic parts.

Operation guides: how to start the instrument, calibration, measurement procedures for different sample types, how to switch between different color spaces and light sources, and how to use the double locating (camera and illumination) and aperture functions.

Contact Experts to Learn More About the NR110



Color Measurement Colorimeter Supplier &Manufacturer

As the global leader and innovator of colormeasurement instruments and technology, 3NH knows that our precision colorimeter machines have to be as accurate and reliable as they are easy touse. Our full-line of measurement instruments offer unprecedentedflexibility to measure. monitor, analyze, and report results-seamlessly.


NR110 Colourimeter Instrument Technical Specifications



Illuminating/Viewing Geometry  8/d
Measuring Aperture                      Φ4mm
DetectorSilicon photoelectric diode
LocatingIlluminating Locating/Cross Locating
Measurement End FaceLarge stable end-face and small concave-convex end-face
Color SpaceCIEL*a*b*C*h* CIEL*a*b* CIEXYZ
Color Difference Formula△E*ab △L*a*b* △E*C*h*
Light SourceD65
Light Source DeviceLED blue light excitation
Errors Between Each Equipment≤0.80ΔE*ab
Storage100pcs standards 20000pcs samples
RepeatabilityStandard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
LanguageEnglish/Chinese
Weight450g
Dimension205×67×80 mm
Power sourceRechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life5 years, more than 1.6 million measurements
Charging Time8 hours--100% electricity
PC SoftwareCQCS3 Software
Printer (optional)Miniature thermal printer



Instrument Software Installation

1. Mobile APP installation

The mobile colorimeter APP support Android operating system version 7.0 or higher and iPhone supports iOS 7.0 or higher version. It can be installed in the following ways:

● Scan the QR code on the  Spectrocolorimeter with a mobile browser or WeChat, follow the prompts to download and install.

● Click on the link 3NH APP to install the APP.

● Search for "3NH" (not case sensitive) in the APP Store/Google Play to install the application.

● If you need color matching software for color matching, you can download our Pecolor software blow


Color Matching Cloud For IPhone Download



Color Matching Cloud For Android Download




2. PC software installation

Connect to the computer via USB, you can use the PC software of the colorimeter. (PC software only supports Windows operating system)

● It can be installed in the following ways: Download "Product support | Colorimeter" to the local and run it directly after decompression.

SQCX English Version Download



(for TS Series,YL Series,ST Series,CR Series,YS Series,PS Series,NR+ Series,NH+ Series )



Portable Colorimeters NR Series Instruction manual




NR110 Colorimeter Calibration Certificate

Terms and conditions

Technical Support

Our China based Technical Support team is expertly trained on all our instruments along with all supported color software. This level of experience provides you an exceptional customer experience when assisting you with any technical issue you might be experiencing during setup or while operational.

  • Service is complimentary to all our existing clients.

  • The omnichannel communication format includes a customer portal, email, phone or chat.

Extended Warranty up to 5 years is available

In or out of warranty, it does not matter, 3nh customers receive support throughout the lifecycle of their instruments.

Shipping & Delivery

In stock – delivery within 1-2 Days

Backordered – delivery within 3-6 Days

Customized colorimeters (Color Difference Formula, Whiteness, Lightness， Light Source and etc) – delivery within 10-15 Days


Need Help? Contact Our Solutions Specialist



Our Valued Clients

  • customer bajaj
  • customer cello
  • customer tataglobal
  • CAMPUS
  • SRIVASAVI
  • CROMPTON
  • customer amway
  • customer pidilite

FAQs About NR110 Colorimeter

Always a pre-production sample before mass production; Always final Inspection before shipment;

Who are we? Threenh Technology: 22-Year Professional Color Measurement Solution Provider

Threenh Technology is a Chinese professional manufacturer with 22 years of industry experience, specializing in the field of color measurement and surface gloss detection. Integrating research and development, design, production, marketing, and sales, the company takes technological innovation as its core and is committed to providing global customers with high-precision and intelligent testing instruments as well as professional solutions.


D/8° and 45°/0° are two different illumination methods with distinct optical geometries. The D/8° illumination is suitable for general industries, and delivers better performance in color difference comparison and color measurement especially for high-gloss products. For the packaging and printing industry, the 45°/0° illumination is recommended.

D/8° (Diffuse / 8° viewing)

Recommended for:

  • Plastic, paint, ink, ceramic, textile, coating

  • Samples with metallic luster, pearlescent, glitter, or texture

  • Situations requiring consistent data with laboratory spectrophotometers

  • Applications needing SCI (including specular reflection) / SCE (excluding specular reflection) switching


45°/0° (45° annular illumination / 0° viewing)

Recommended for:

  • Printing, packaging, paper, ink, matte non-metallic materials

  • Products focusing on human eye direct visual matching

  • Standard color matching in printing & packaging industry


Simple Selection Guide

  • With metallic/pearlescent/glitter effect → choose D/8°

  • Printing, paper, packaging, matte products → choose 45°/0°

  • Want universal use for multiple materials → choose D/8°


Threenh colorimters are used across various industries to measure, analyze, and control color accuracy and consistency:

Food and Beverages: Monitor color quality in food products to meet industry standards.

Plastics and Polymers: Ensure color uniformity in plastic components (e.g., casings, buttons, panels) during manufacturing.

Chemicals and Pharmaceuticals,Cosmetics: Industry-specific accessories to attain the highest safety protocols, Ensure uniform color in pharmaceutical products for quality and brand recognition;Develop and match colors for cosmetics (e.g., lipsticks, creams, powders) and ensure batch consistency.

Textiles and Apparel: Monitor color consistency in fabrics during dyeing, printing, or finishing processes; ensure color consistency in fabrics and garments.

Building materials, Paints, and Coatings: Detect color deviations in coatings on metal, wood, or plastic surfaces (e.g., automotive paints, furniture finishes). Maintain color accuracy in building materials, paints, and coatings.

Printing and Packaging: Validate color accuracy in printed materials (e.g., brochures, labels, packaging) against design proofs, maintain consistency across different printing technologies.

By addressing color-related quality control challenges, 3NH colorimeters help industries maintain brand consistency, meet regulatory standards, and enhance customer satisfaction.


The "accuracy" of a colorimeter refers to how closely its measurement results align with the true values, primarily influenced by systematic errors and random errors, how closely its measured color data (e.g., Lab values, density) aligns with the true color properties of a sample or certified standard. Specifically, it includes key indicators such as color coordinate accuracy, luminance accuracy, and data repeatability.

It reflects the instrument’s ability to minimize deviations caused by component variations, environmental factors, or calibration drift—ensuring results reliably represent the actual color, which is critical for quality control and brand consistency in industries like printing, food, textiles, paint and coatings.
