The Ultimate Guide to Gloss Meters

Introduction

In product quality, surface attributes such as gloss influence aesthetics, value, and functions, and need consideration during product evaluation and marking. Gloss measurement is indispensable in various industries—from automotive paintings to wooden flooring gloss measurements for industry standard compliance and uniformity.

Gloss meters, as precision instrument,s ensure that surface glossiness meets set specifications. This guide explores and explains the workings and the various applications of gloss meters in different industries, paying special attention to the standards the instruments are based on.

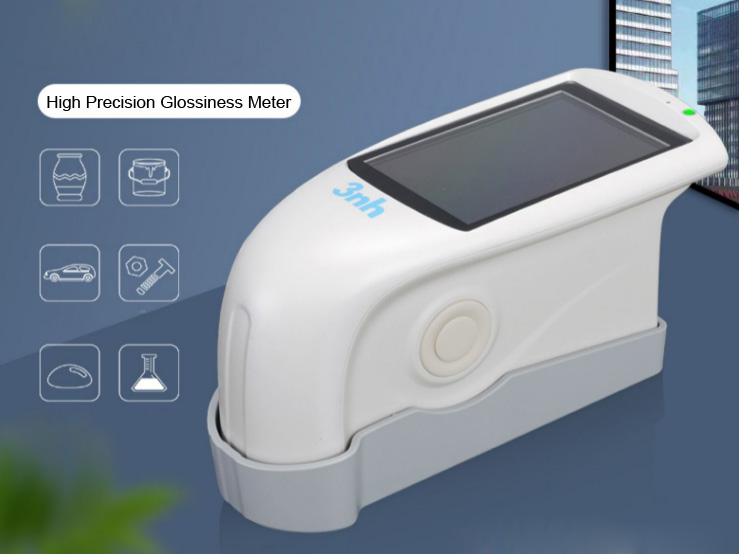

What Is a Gloss Meter?

A gloss meter is a device used to measure the specular reflection—or shine—of a surface. It shines a beam of light at a given angle and measures the light that is reflected. The surface reflection also needs to be analyzable, as light that is lost will only be gloss gained.

In QC, R&D and various inspection stages gloss meters are critical in evaluating surface finishes for an array of materials including paper, metals, plastics, paintings and many more.

Why Gloss Matters in Surface Quality

Gloss is critical to the appearance of a product and its consumer perception. Both the automotive and electronics industries view gloss as a critical aspect as it impacts the perception of cleanliness, quality, and even color. Gloss level impacts performance too, as some coatings and finishes that are applied for safety or to ensure durability require certain levels of gloss.

Throughout the product lifecycle, inconsistent gloss can be a sign of surface treatment neglect or manufacturing flaws. This makes gloss assessment essential in production as well as in laboratories.

How Gloss Is Measured

Gloss Units (GU) Explained

Gloss meters record results as units of measurement called gloss units. Each unit is a numerical measure of gloss, where 100 GU is a surface that is perfect and polished to a mirror like finish. Most measured surfaces are between 0 to 100 GU, although some high gloss materials can exceed this measurement.

Reflexion Michel also states that the GU scale is linear, therefore a surface that has 50 GU will reflect 50 percent of the light a surface with 100 GU will reflect at the same angle.

Measurement Angles: 20°, 60°, and 85°

Different surface gloss levels will be measured at different angles, including:

● 60° - the standard angle for general evaluation of gloss.

● 20° - This angle is reserved for high gloss surfaces where measurement is more sensitive.

● 85° - Most accurate measure of low gloss and matte surface.

Multi-angle gloss meters can measure at all three angles which gives different gloss profiles over the surface in question.

Types of Gloss Meters

Single-Angle vs. Multi-Angle Devices

● Single-Angle Gloss Meters measure gloss at a fixed angle, for instance, 60°. This is only effective for a limited range of applications that have known surface types that remain the same over a duration of time.

● Multi-Angle Gloss Meters have increased versatility because they measure at 20°, 60°, and 85°. This is particularly useful with a broader range of materials or when complete gloss characterization is required.

Portable vs. Benchtop Gloss Meters

● Portable Gloss Meters use a battery, and are therefore compact and easy to carry, which makes them useful in fieldwork. They are used in automobile detailing, construction, and maintenance.

● Benchtop Gloss Meters are larger and more precise, making them useful in laboratories and high-precision quality control environments. They are used in research and in manufacture.

Key Applications Across Industries

Automobile Finishes

Within the automobile industry, paint gloss meters are employed to check the finish of car paints and coatings. Uniform gloss ensures that all vehicle parts will have a consistent professional appearance.

Paints & Coatings

In ceramics and plastics, gloss contributes to a customer’s perception of cleanliness and durability. Gloss meters assist in providing uniform finishing to maximize customer satisfaction.

Wood, Paper, and Flooring

Gloss measurements assist in maintaining uniformity in wood, laminate and flooring. In the paper sector, gloss characteristics influence printability and finish quality.

How to Use a Gloss Meter Correctly

Sample Preparation

To ensure precise measurements, the following must be adhered to:

● The surface in question must be free of contamination or oil, be clean, and be dried.

● Avoid measurements on highly textured, curved, or contour surfaces unless designed for such measurements.

Step-by-Step Measuring Procedure

1. Use a certified calibration tile to gloss meter.

2. Position the meter on the sample level.

3. Press the measurement button and note the reading.

4. Gloss value can be documented, exported, or analyzed.

Calibration and Maintenance

Using Calibration Tiles

Most gloss meters come with a reference calibration tile. Calibration Tiles balance Measurement Gloss Standards gloss feature with a sample tile providing a known value. Calibration Tiles Balance Measurement Gloss Standards gloss feature with a sample tile providing a known value.

Keeping Your Gloss Meter Accurate Over Time

To maintain calibration gloss measurement, steps can be taken.

● Avoid scratches or contamination by storing gloss calibration tiles in a protective container.

● Use certified standards to reevaluate gloss meters.

● Clean the optical components carefully using the prescribed lens cleaners.

Common Measurement Challenges

Influence of Texture and Color

Surface roughness may scatter light and lower gloss readings, even when the surface is shiny. Also, darker colors may appear glossier than they are because of the light they reflect.

Gloss meters are created with the purpose of measuring the presence of specular reflection. While the characteristics of the material are essential to the outcome, they also play a role in the interpretation of the results.

Environmental and Lighting Factors

Ambient noise, vibrations, and temperature often affect the readings. Ambient, stable, and well-lit surroundings are best for gloss meter usage, with well-structured protective covering to reduce interference. Uniformity across the conditions helps in achieving replicable results.

Standards and Compliance

The common gloss measurement standards are:

● ASTM D523 - Standard test method for specular gloss.

● ISO 2813 - Specifies methods for measuring the specular gloss of non-metallic paint films.

● DIN 67530 - German standard for gloss measurement

Gloss meters designed according to these standards guarantee consistent, comparable and accepted readings across industries and countries.

ASTM D523, ISO 2813, and Other Key Standards

Smart Features, App Integration and Data Logging

Latest Innovations in Gloss Meter Technology

● Measurement and data logging with range of data including gloss and polish, and surface characteristics.

● Straight and angular version polish calculation methods.

Smart Features, App Integration, Data Logging

New touch screen displays allow for easier operation and navigating the menus.

● Capable Bluetooth and USB Access – Allows users to transfer data to a computer or mobile apps seamlessly.

● Internal Memory and Data Logging – Store thousands of measurements with timestamps as well as batch references.

● Integration with Mobile Applications – Users are able to control devices, review trends, and export reports through mobile devices or PCs.

These innovations increase the gloss measurement accuracy and expand their accessibility in production and field workplaces as well as production accelerators.

Conclusion

Gloss meters have become essential in a modern industry that prioritizes quality. These instruments enable surface appearance evaluation in a metric and objective manner essential for maintaining consistency and adhering to customer expectations.

Industries like automotive, coatings, plastics and wood finishing can benefit from optimally using a gloss meter in enhancing a product’s aesthetic and functional value.
