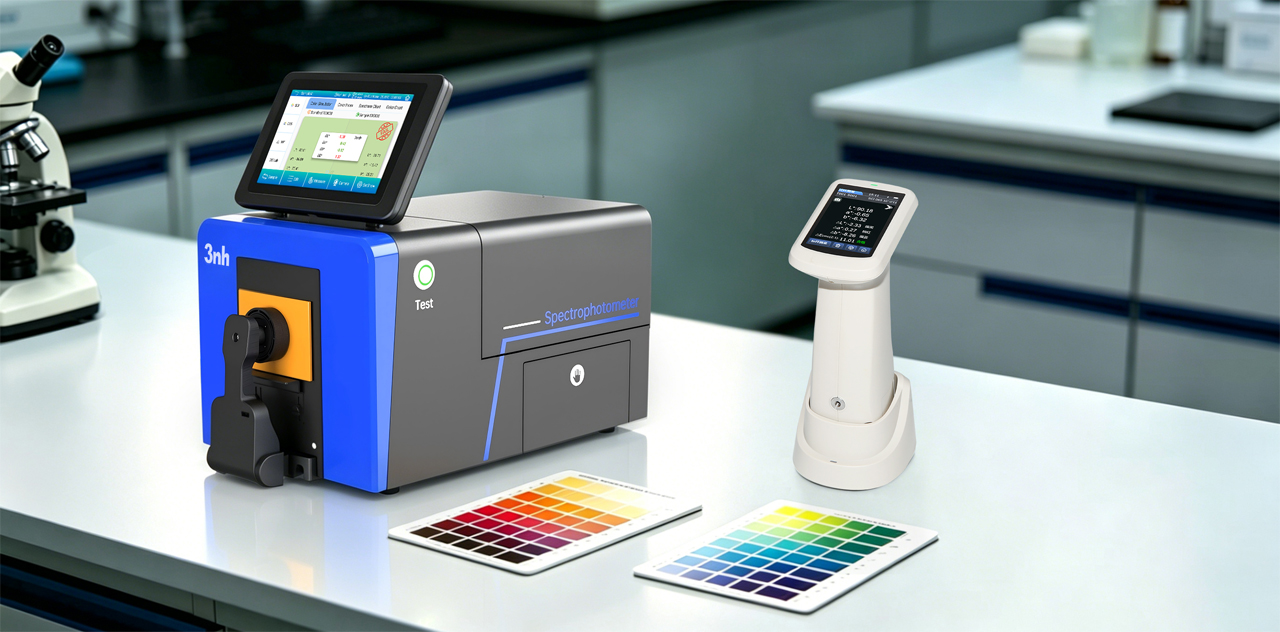

In today's manufacturing, there is a dangerous tendency to treat color measurement devices as if they were simple appliances. They are not. Many users simply plug the device in, power it on, and expect the spectral data to be perfect for eternity. We can achieve ultimate precision by fundamentally changing our thinking about the device. A spectrophotometer is not fixed, immovable hardware. It is a sensitive, optical ecosystem. In the same vein, calibration is not a tedious task we do over and over again. It is a daily commitment adjustment of the digital component of the device to the real physical world it is operating in.

The Invisible Manufacturing Drainer, Spectral Drift

So what happens when you ignore this essential calibration? The internal sensors shift from their spectral alignment and slowly drift, creating a phenomenon known as spectral drift. Drift is the pervasive profit killer of manufacturing. The digital output on the screen may seem normal, but in reality the products being created are no longer as expected and are worthless in the marketplace. A vibrant, clear blue starts to become a dull and dark navy color. In the long run, we can view our daily calibration task as a low cost and guaranteed way to protect the integrity of our entire supply chain.

Understanding the Zero and White Baselines

Every piece of calibration has two anchors: absolute zero and absolute white. This is true no matter the model or the design. Before your spectrophotometer starts learning your products' colors, it must first learn the most extreme edges of the light spectrum.

Every operator must consider three factors when grounding this foundational system:

● Mathematical Scaling: The anchors of the baseline are the zero bound and white bound. If everything breaks at the zero bound, then everything after is completely broken.

● Speed and Efficiency: The top-tier instruments, such as those from ThreeNH, set up the baseline in record time as compared to their competitors.

● Operator Intent: The person setting the baseline is showing the instrument the extreme limits of light, and thus the person must have intent, rather than randomly clicking.

Mastering the Black Trap

The first crucial step is taking the black baseline. This tells the instrument what complete darkness is. This is done by placing the instrument over a cavity that is black. From our perspective, this step is about eliminating all noise from the outside and calibrating the dark current of the photodetectors.

We believe extremely strongly against allowing the tiniest sliver of light to enter during this phase. If light enters, the device will be unable to read dark colors such as charcoal, deep brown, or dark night.

White Tile Calibration

When a machine learns complete darkness, the next step is to teach it the best light bounce using white calibration tile. This is critical in adjusting the hardware’s response to light and preserving the proportionate separation of darks, mid-tones, and highlights.

There are rules about the white tile that should not be ignored:

● Factory Fixation — These white tiles are calibrated to only work with that machine.

● Zero Swapping — Changing white tiles between machines will cause detrimental errors in the data collected.

● Unconditional Preservation — The white calibration tile must be kept in perfect condition for the collected data to be accurate.

Absolute Cleanness

Failure to keep machines and equipment clean will result in poor calibration, no matter how sophisticated the software is. Half the battle for precision is the upkeep of physical equipment. Operators are typically good at clicking the correct software buttons, but completely ignore a dirty optical lens. Dust on equipment will completely destroy the data. When machinery interprets dirt, there is zero standard. All lenses and tiles reference the standard and must be kept perfectly clean.

The Important Environment X-Factor

When looking at the place where calibration is performed, the most important is position. These delicate optical devices are guaranteed to be easily the most inconsistent if the ambient temperature of the room fluctuates. A spectrophotometer requires a good "nap time" of nearly 30 minutes of warm up, before you can think about performing a calibration step.

Allowing the machine the time to warm up to it's operating temperature brings the internal lamps to a stable heat and allows the optical sensors to operate as they were designed to. Cold machines produce a massive amount of error. Always reset the baseline to account for drastic changes in the internal ambient temperatures of the machine.

The Ultimate Sanity Check

Mandatory black and white calibration is commonplace in most industries. However, the best analytical laboratories (those operating at the highest tier) will often apply one additional step to their calibration processes. This extra step involves the use of a secondary diagnostic standard (which happens to be a tile of green color that is atomic or highly specific). We totally support this additional step.

Before you examine thousands of dollars worth of raw materials, this is the "sanity check" that you must do. If the secondary diagnostic tile is analyzed and the software indicates that the color is (or the associated color space) is drifting far from the normative value, your key baseline setup is fundamentally incorrect.

Calibrating Transmittance

Calibration methods must be flexible and be able to change depending on the geometry of the targets. While the standard tile method works for solid/opaque targets like automotive steel, checking the color of clear liquids would require a completely different method.

When calibrating with respect to liquid analysis, the methodology must change:

● Transmittance as opposed to Reflectance: Instead of teaching the machine to reflect light from a tile, here you would be teaching the machine how light passes through a clear medium.

● Glass Cuvettes: To form a pure baseline, you must use pristine empty cuvettes made of quartz or glass.

● ThreeNH Solutions: To simplify the highly complex setup and to help define the absolute zero before the introduction of the sample, the instrument is designed for that purpose.

Why Factory Service Set-up is a Must

Having your staff perform the same calibration routine for each shift is commendable, as it provides consistency for the team, day-to-day. However, the daily calibration performed by the user is far from adequate when we consider a specialized factory set-up. Internal movement, slow lamp dying, and dust settling in the device during the span of a year can lead to subtle, insidious errors such as undetected "stray light" that your daily tile does not pick up. We recommend skilled technicians perform an annual factory service for your apparatus to keep your compliance documents in order for strict ISO regulations. It offers the greatest level of precision.

Calibration in Industry 4.0

With the modern shift into Industry 4.0, calibration is becoming more digital. Modern software for color management keeps track of the health and calibration of your connected spectrophotometers.

The newer technological ecosystems have built-in safety:

● Active Monitoring: There’s software that watches the spectral drift.

● Digital Lockouts: The system by ThreeNH locks out the operator when the calibration timer expires.

● Foolproof Supply Chains: When careless employees take dangerous measurements, manual chores transform into automated safety systems.

ThreeNH Empowers Your Workflow

At the end of the day, learning to calibrate your spectrophotometer will ensure you have control of your manufacturing. If you take calibration seriously, you will gain the edge in your industry. The first data in your journey to building your brand is the most important. We at ThreeNH, aim to build spectrophotometers that make the calibration process as easy and fast as possible. Visit threenh.com to see our collection of advanced color tools and experience precision like never before.

Calibrate a Color Spectrophotometer for Ultimate Precision - FAQ

1. Why is color spectrophotometer calibration necessary?

Calibration eliminates errors caused by light source aging, optical component deviation, dust and ambient changes. It guarantees accurate, repeatable and comparable color measurement data, and meets industrial quality control and international standard requirements.

2. How frequently should calibration be performed?

l Daily: Blank calibration and quick performance check before formal testing

l Weekly: Basic verification of color difference and chromaticity

l Monthly: Full systematic calibration

l Extra calibration required after instrument movement, lamp replacement and long idle time

3. What core items need calibration?

l White plate calibration: Correct basic reflectance benchmark

l Black trap calibration: Eliminate stray light interference

l Wavelength calibration: Ensure spectral capture accuracy

l Standard color verification: Calibrate chromatic aberration and color space data

4. Standard calibration operation steps

1. Power on the device and preheat for 20-30 minutes to stabilize light source and circuit

2. Clean measuring port, white standard plate and black trap without stains or scratches

3. Conduct black calibration with black light trap to shield external light

4. Conduct white calibration with certified white standard plate to set reference baseline

5. Verify with certified color standard samples

6. Save calibration records and start formal sample measurement

5. Common measurement errors and solutions

l Color value drift: Re-calibrate white reference, check for dust on measuring window

l Large repeated test deviation: Stabilize placement, avoid vibration and ambient light exposure

l Inconsistent data with standard color: Recheck calibration validity, replace aging light source

l Obvious color distortion: Clean optical path and redo full calibration

6. Precautions for standard plates

Keep white and black standard plates clean and intact. Avoid fingerprint, scratch and chemical corrosion. Store in dry environment when not in use. Do not wipe randomly with rough cloth.

7. Ambient requirements for high-precision calibration

Keep stable temperature and humidity, avoid direct strong light, airflow and vibration. Conduct calibration and testing in clean indoor environment to prevent external factors from affecting optical detection.

8. Difference between calibration and daily blank reset

Blank reset only eliminates temporary background deviation for single test. Full calibration revises systematic errors of the whole instrument, which is the fundamental guarantee of long-term ultra-high precision.

9. When to replace standard accessories

Replace white standard plate when surface fades or wears. Replace light source when brightness declines obviously, to maintain stable color measurement performance.

10. How to judge qualified calibration

Test certified color reference samples. Measured chromaticity and color difference data fall within the tolerance range of standard values, and continuous repeated tests show stable data.
