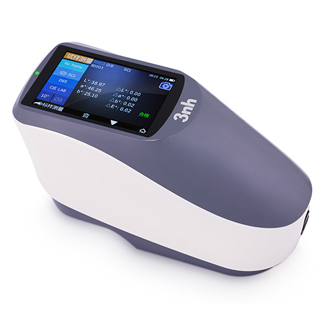

YS3060 Grating Spectrophotometer with UV SCI/SCE Bluetooth

Perfect Partner for Color Measurement YS3060

YS3060 Grating spectrophotometer developed by 3nh independently, features with stable performance, precise measurement and powerful functions in leading position of same industry. High-end instrument, complete configuration: full illuminant, double apertures, SCI/SCE, UV Included/UV Excluded, Bluetooth dual mode, high precision, large storage capacity for laboratory color analysis and delivery.


Key Highlights

  • D/8 geometrical optics, conforms to CIE No.15,GB/T3978,GB2893...

  • Accurate spectra &Lab data , for color matching & delivery;

  • Switchable 8/4mm aperture, SCI & SCE together

  • Positioning measurement, newly upgraded

  • Combined LED light source, including UV

  • High configuration:3.5-inch TFT color LCD,Capacitive Touch Screen

  • Large storage capacity , Apprx. 30,000 data;

  • Double observer angle, many illuminants & color variables, conforms to many colorimetric data, meet all measurement needs;

YS3060 Grating Spectrophotometer with UV SCI/SCE Bluetooth Instructions Operating Manual YS3060 Grating Spectrophotometer with UV SCI/SCE Bluetooth PDF
This YS3060 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

YS3060 Grating Spectrophotometer with UV SCI/SCE Bluetooth

YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management. The most cost-effective solution, perfectly replacing other similar color measurement instruments.

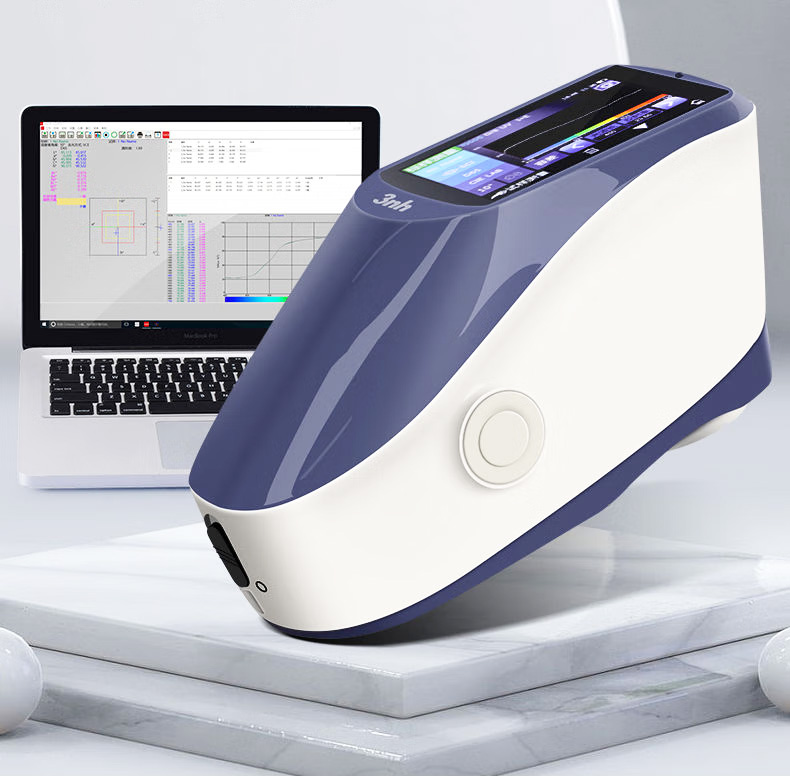

Plastic hardware high-precision portable spectro colorimeter ys3060



Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3010 color spectrophotometer features only 8mm single aperture. Both SCI and SCE mode makes it widely use in many applications. It has high accuracy 0.06 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.

Features of YS3060 Grating Spectrophotometer


A.Perfect combination of beautiful appearance and the human body mechanics structural design;

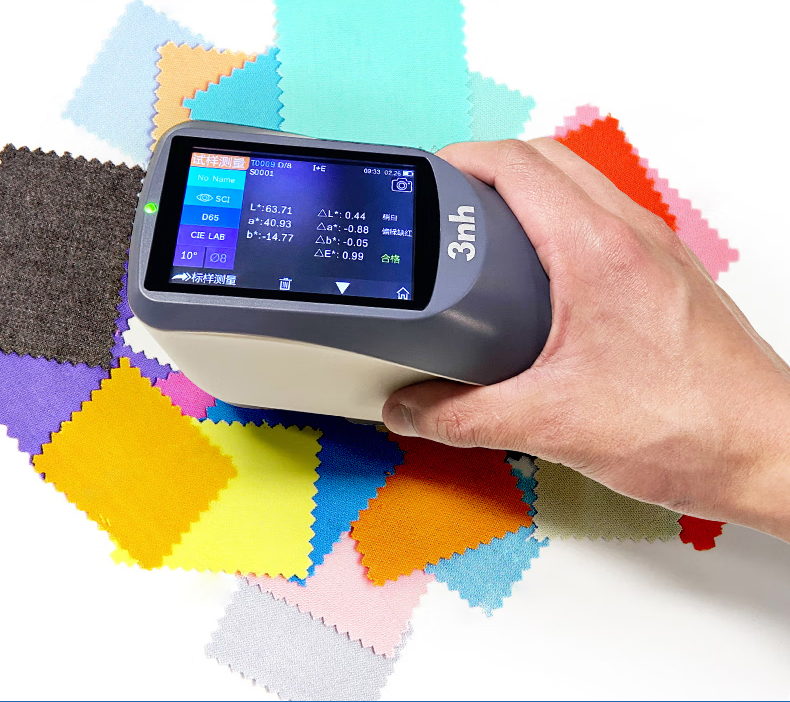

YS3060 testing textiles color

B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil

C.Use long life and low power consumption combined LED light source

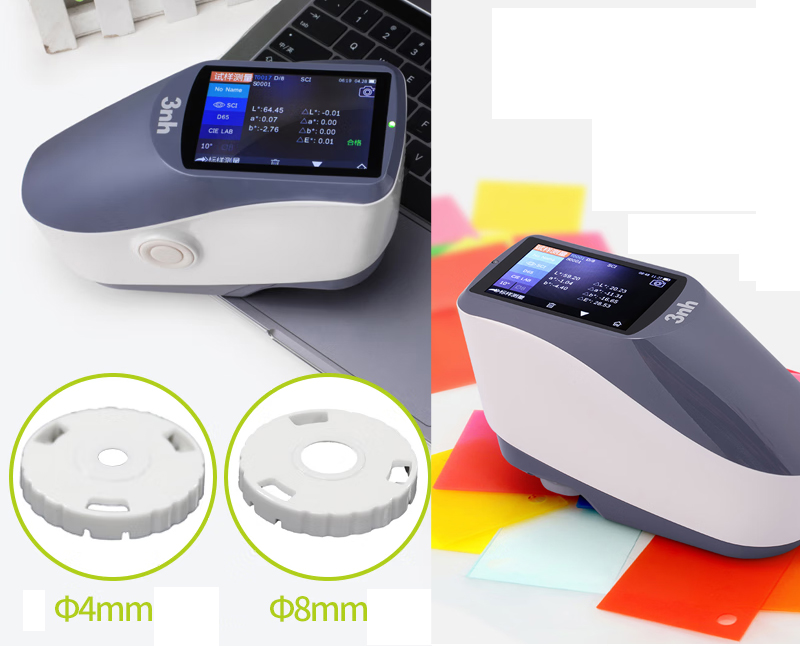

D. Switchable 8mm/4mm aperture, support both SCI and SCE at the same time;

YS3060_8mm_4mm_aperture

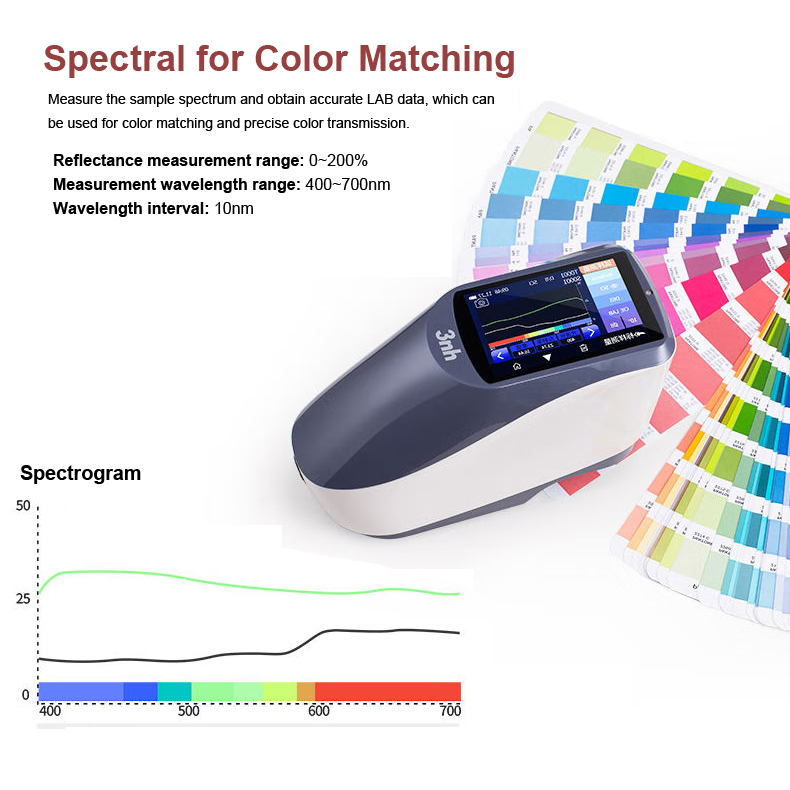

E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;

YS3060 measure the sample spectrum for color matching

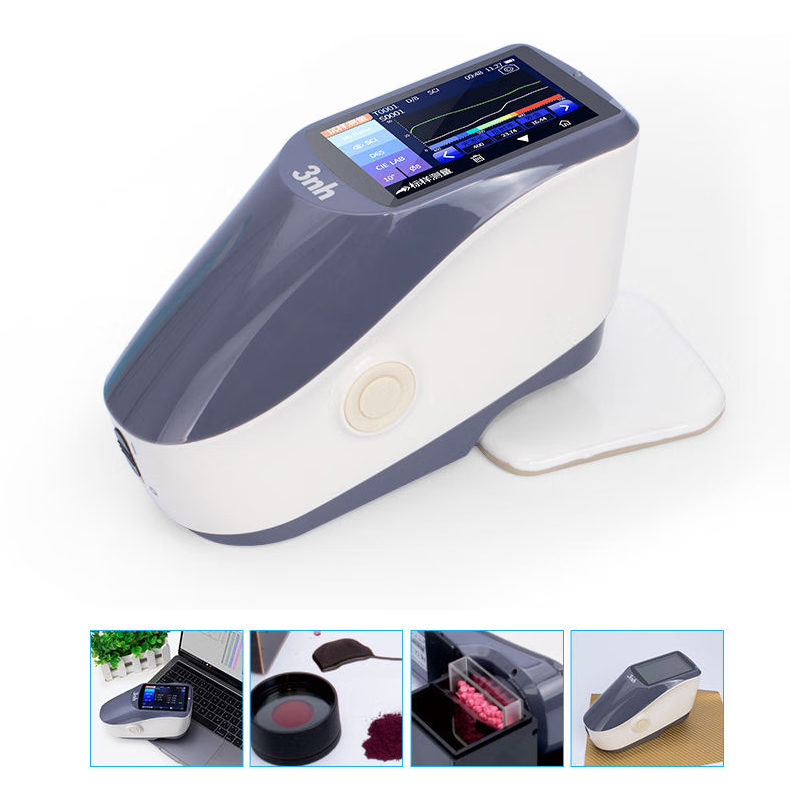

F.High electronic hardware configuration: 3.5-inch TFT color LCD, Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;

G.USB port, widely useful;

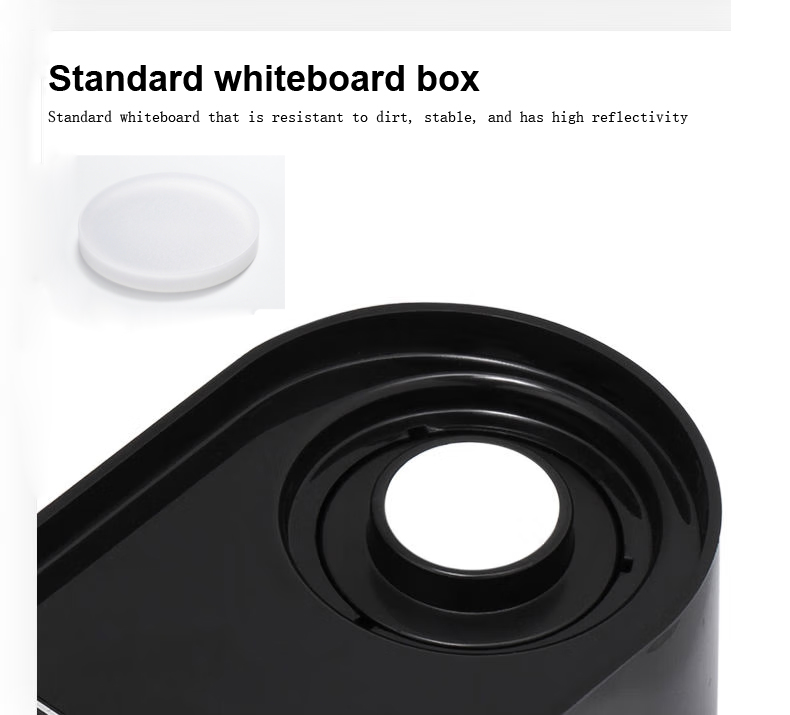

H.Super stain-resistant and stable standard white calibration plate;

ys3060 standard whiteboard box

I.Large capacity storage space, over 20,000 measurement data;

J.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;

K.Camera Locating Function, better position;

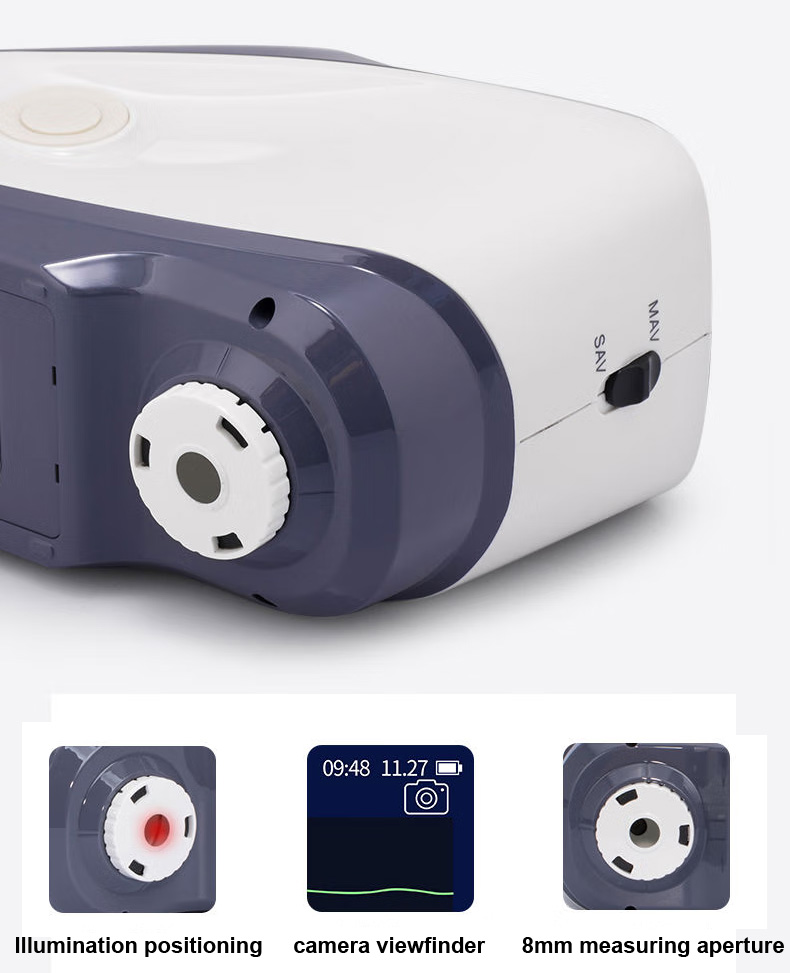

 ys3060 instrument main features

l.PC software has a powerful function extension.

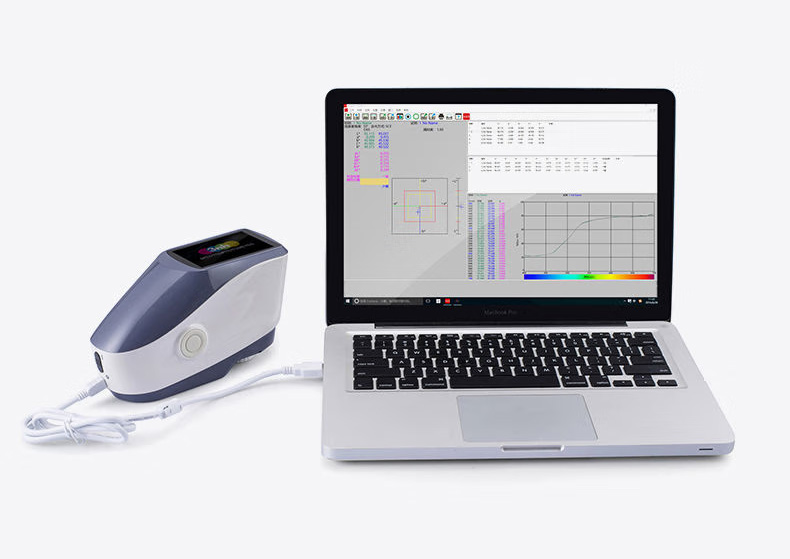

ys3060 8mm Single Aperture PC software

Perfectly Outperforms All Other Similar Measuring Instruments

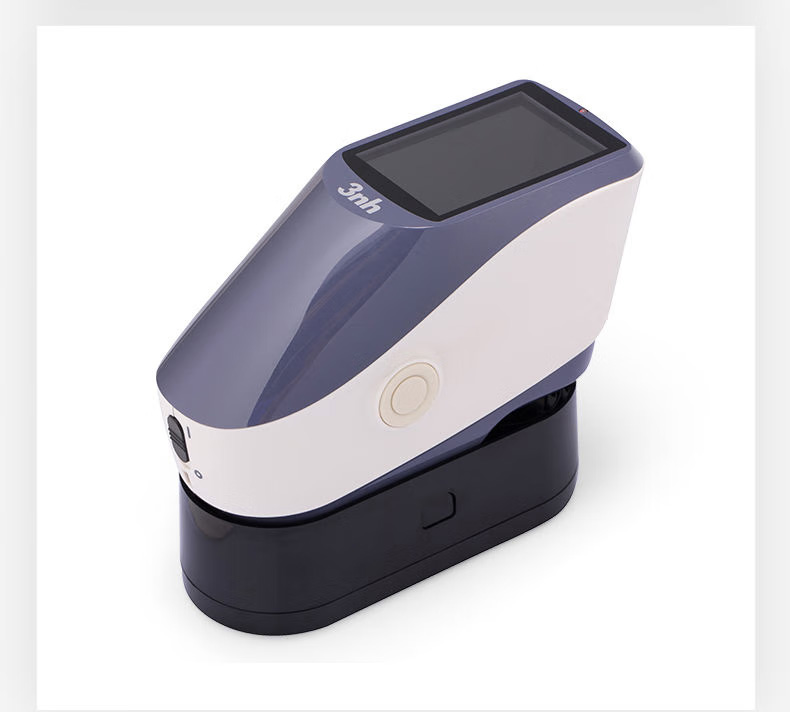

YS3060 UV Grating Spectrophotometer

Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.

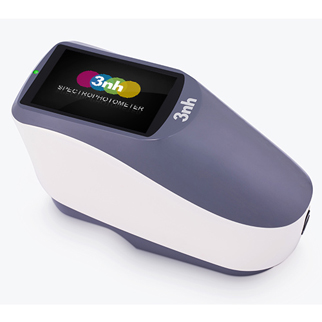

YS3020 Grating Spectrophotometer

YS3020 Grating Spectrophotometer

Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.

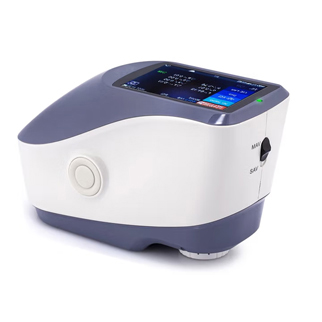

YS3010 Handheld_Spectrophotometer.jpg

YS3010 Grating Spectrophotometer

4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.

YS3060 Application Industry

3nh handheld spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

YS3060 Grating Spectrophotometer widly applications

Contact our Application Solution Experts

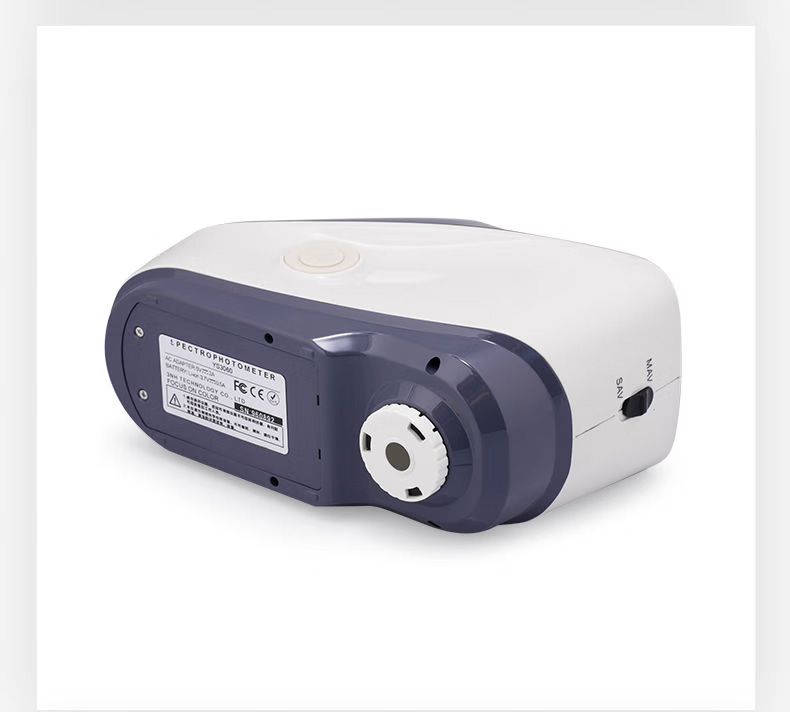

YS3060 Instrument Images

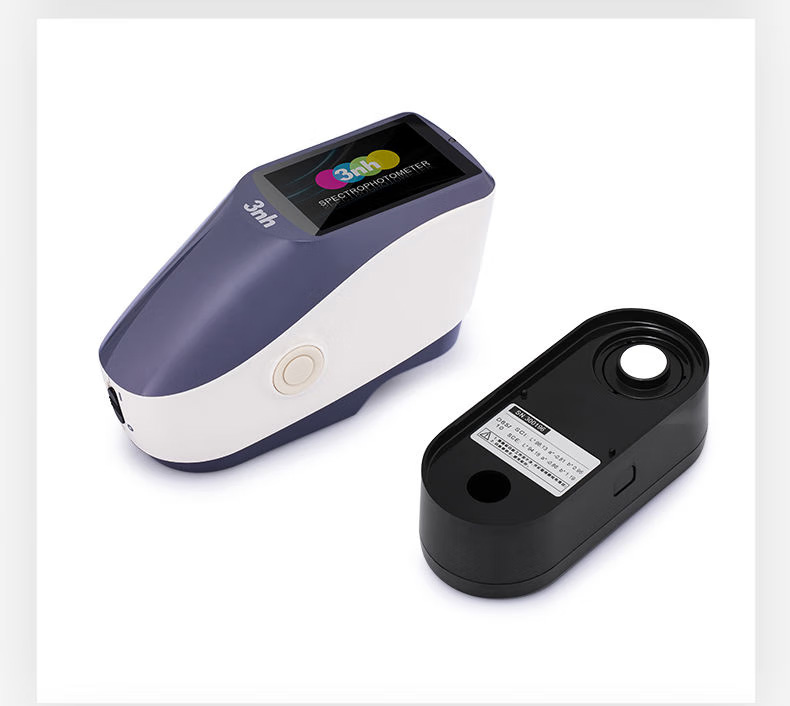

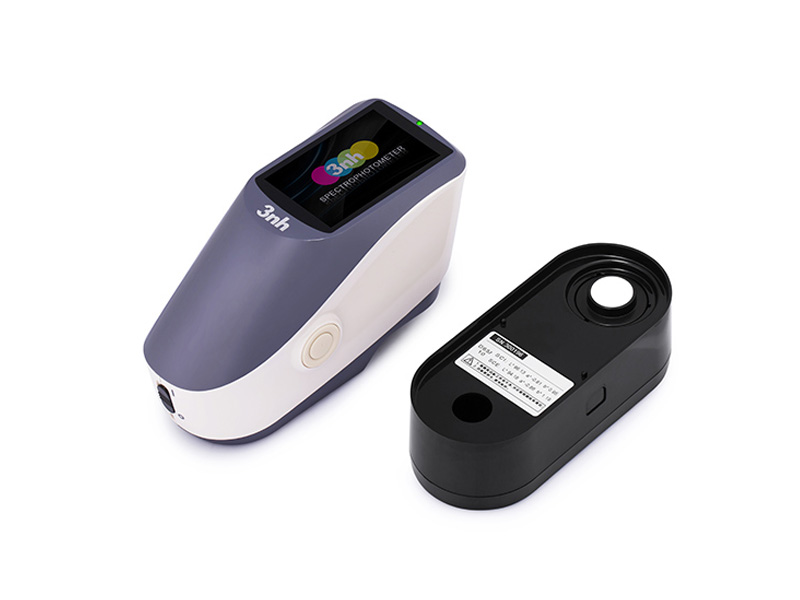

Ys3060 instrument calibration whiteboard

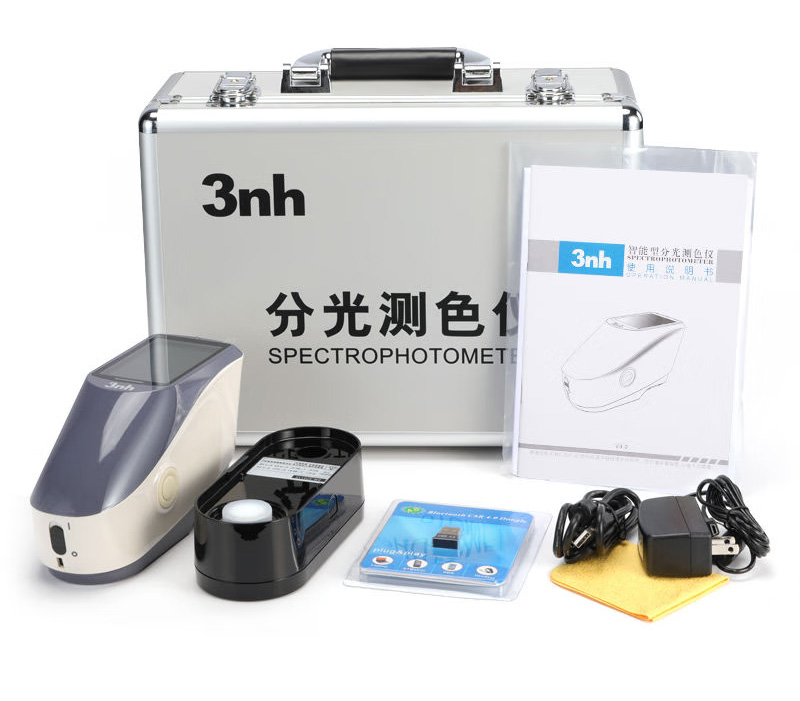

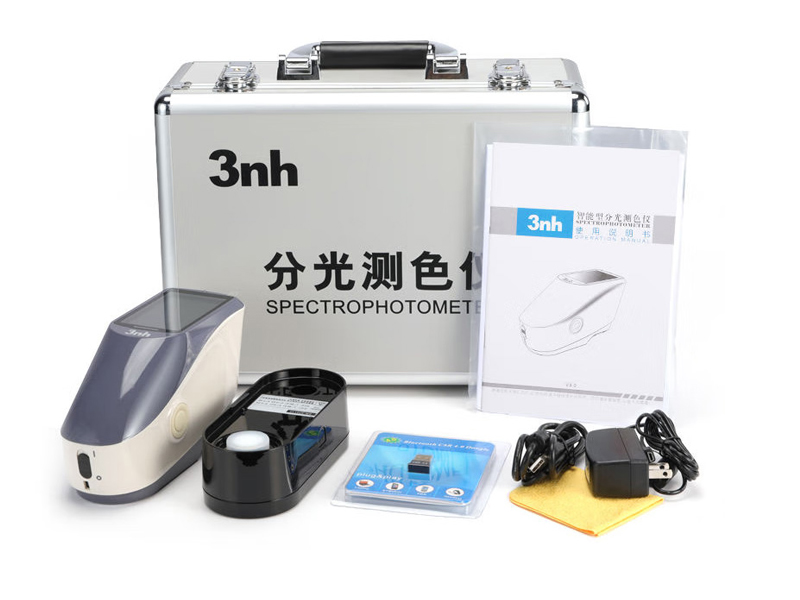

YS3060 colorimeter instrument packagings

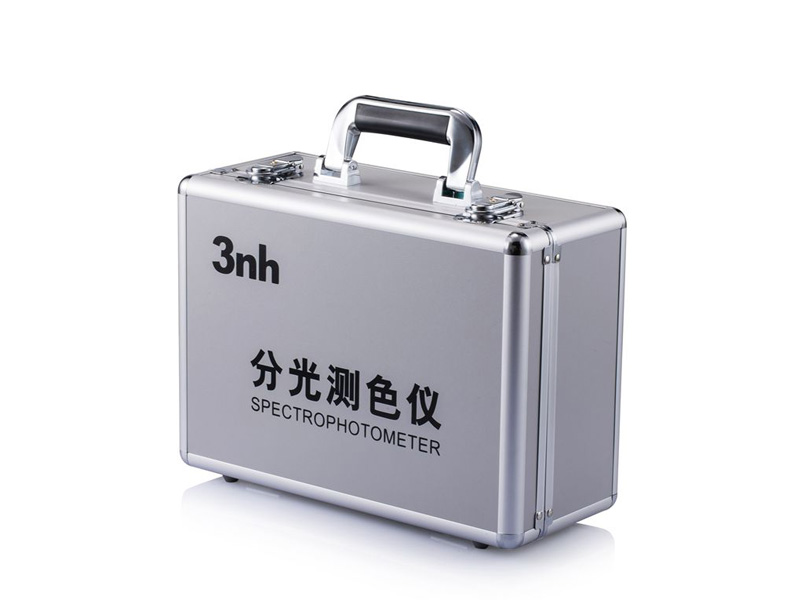

YS3060 package images

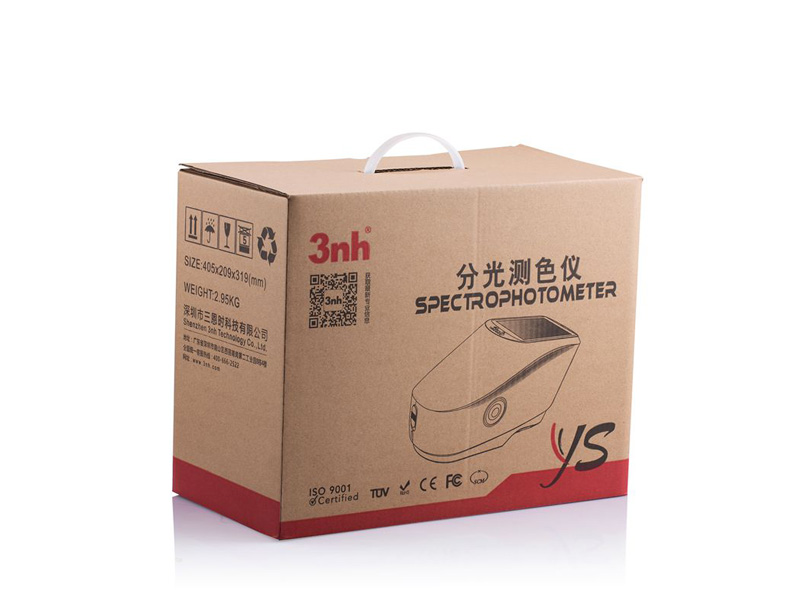

YS3060 instrument package images

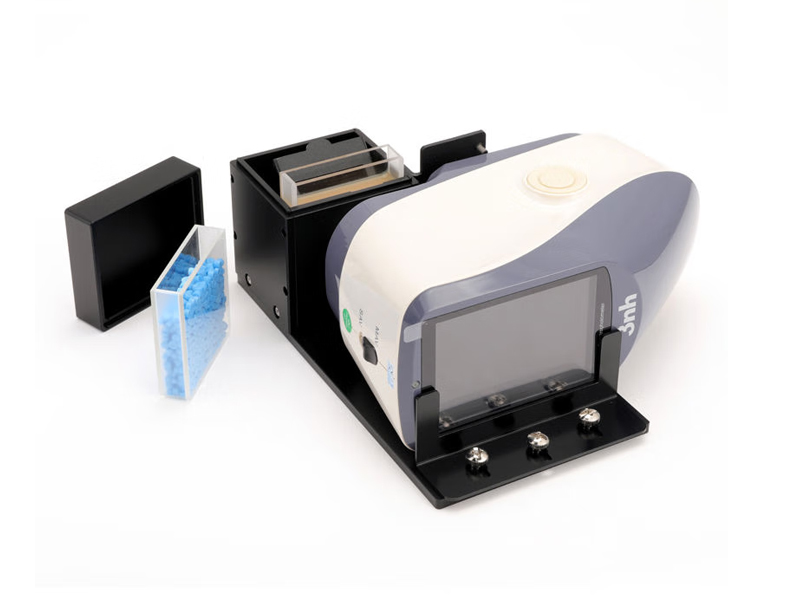

Ys3060 measuring solids and liquid color

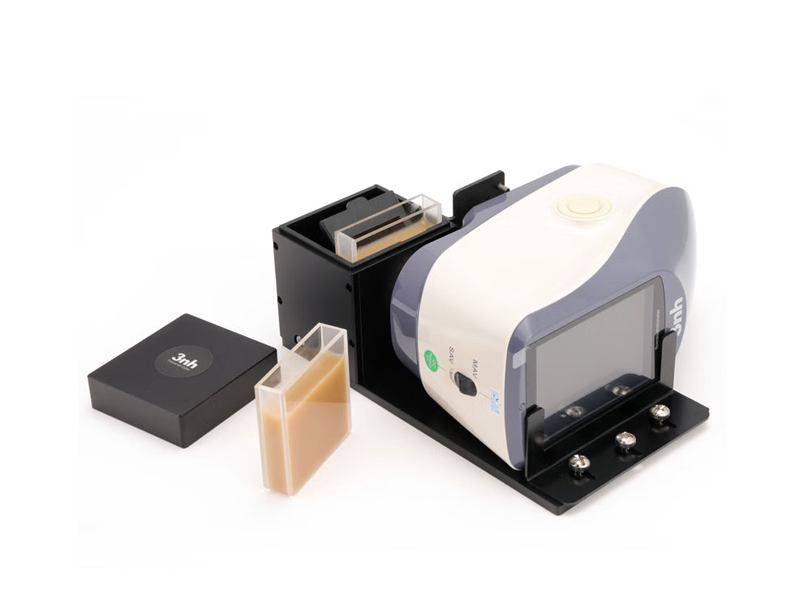

Ys3060 measuring liquid color

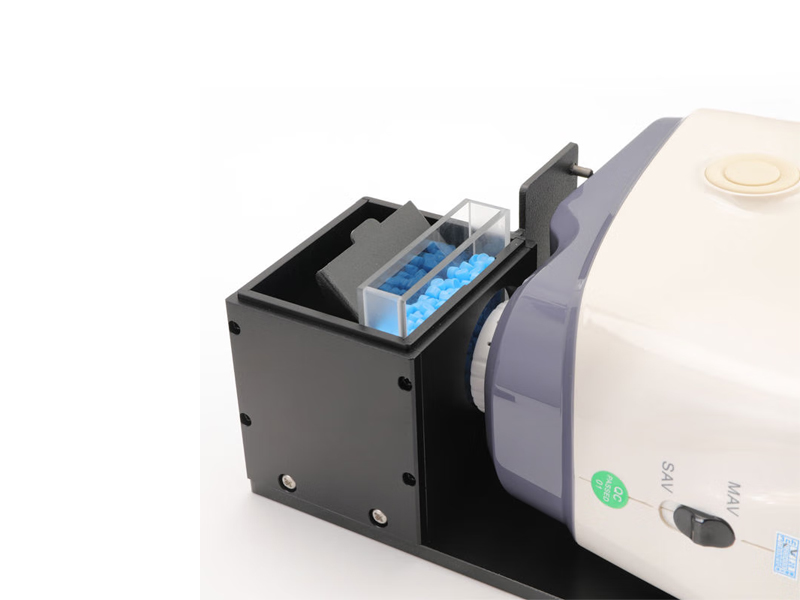

Ys3060 measur solid particles color

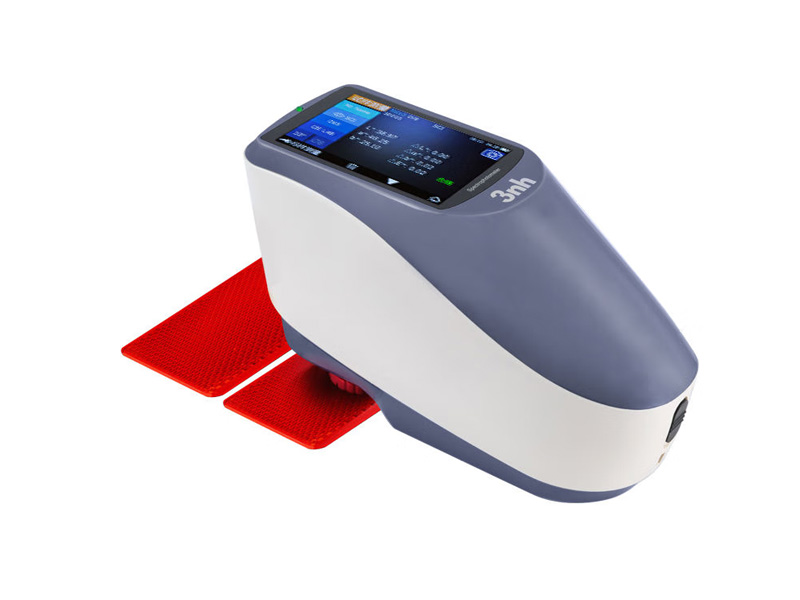

Ys3060 measures plastics color





Not finding exactly what you need?

Collaborate with our color experts team to design and build a custom color spectrophotometer solutions that perfectly matches your requirements.



Specification of Portable Color Spectrophotometer YS3060, YS3020, YS3010


 Model Items

YS3060

YS3020

YS3010

Optical Geometry

Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)

Integrating Sphere Size

48mm

Light Source

Combined LED Light, UV Light

Combined LED Light

Spectrophotometric Mode

Concave Grating

Sensor

256 Image Element Double Array CMOS Image Sensor

Wavelength Range

400-700nm

Wavelength Interval

10nm

Semiband Width

10nm

Measured Reflectance Range

0-200%

Measuring Aperture

Dual Aperture: 10mm/8mm & 5mm/4mm

Customized Aperture: 8mm/4mm/1×3mm

Single Aperture: 8mm/10mm

Specular Component

SCI&SCE

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)

Color Difference Formula

ΔE*ab,ΔE*uv,ΔE*94 ,ΔE*cmc(2:1),ΔE*cmc(1:1) ,ΔE*00, DINΔE99, ΔE(Hunter)

Other Colorimetric Index

Spectrum Reflectance Rate, WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73) Metamerism Index Mt， Staining Fastness, Color Fastness, Strength (dye strength, tinting strength), Opacity 8-degree Gloss, 555 Index，Blackness（My,dM）, Color Density CMYK(A,T,E,M), Tint(ASTM E313-00)，Munsell（Some functions are realized through the computer）

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, Light source can be customized(a total of 41 kinds of light sources, some of which are realized through the host computer/APP)

Displayed Data

Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset

Measuring Time

2.6s

Repeatability

MAV/SCI: ΔE*≤0.03

MAV/SCI: ΔE*≤0.05

MAV/SCI: ΔE*≤0.06

Inter-instrument Error

MAV/SCI: ΔE*≤0.15

MAV/SCI: ΔE*≤0.2

MAV/SCI: ΔE*≤0.4

Measurement Mode

Single Measurement, Average Measurement

Locating Method

Camera View Finder Locating

Battery

Li-ion battery. 5000 measurements within 8 hours

Dimension

L*W*H=184*77*105mm

Weight

600g

Illuminant Life Span

5 years, more than 3 million times measurements

Display

3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port

USB, Bluetooth 5.0

Data Storage

Standard 1000 Pcs, Sample 20000 Pcs

Standard 800 Pcs, Sample 20000 Pcs

Language

Chinese Simplified, Chinese Traditional, English, French, Portuguese, Russian, Spanish, Italian, German

Operating Environment

0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment

-20~50℃, 0~85%RH (no condensing)

Standard Accessory

Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover

Optional Accessory

Micro Printer, Powder Test Box

Notes: The specifications are subject to change without notice.


Instrument Software Installation

1. Mobile APP installation

The mobile APP support Android operating system version 7.0 or higher and iPhone supports iOS 7.0 or higher version. It can be installed in the following ways:

● Scan the QR code on the  Spectrocolorimeter with a mobile browser or WeChat, follow the prompts to download and install.

● Click on the link 3NH APP to install the APP.

● Search for "3NH" (not case sensitive) in the APP Store/Google Play to install the application.

● If you need color matching software for color matching, you can download our Pecolor software blow


Color Matching Cloud For IPhone Download



Color Matching Cloud For Android Download




2. PC software installation

Connect to the computer via USB, you can use the PC software of the colorimeter. (PC software only supports Windows operating system)

● It can be installed in the following ways: Download "Product support | Colorimeter" to the local and run it directly after decompression.

SQCX English Version Download



(for TS Series,YL Series,ST Series,CR Series,YS Series,PS Series,NR+ Series,NH+ Series )


Packing List

No.DescriptionQuantityUnit
1Spectrocolorimeter1Set
2USB cable1pcs
3Cleaning cloth1pcs
4Power cable1pcs
5User manual1pcs
6Certificate / Warranty card1pcs
7Calibration Report1pcs

Bench Top Spectrophotometers YS30 Series Instruction manual




Terms and conditions

Returns of purchased equipment

Defective new equipment may be returned for warranty repair/exchange/credit within five (5) days of receipt of shipment.

Items that have malfunctioned due to mishandling, electrical overload, etc., will be subject to a repair charge.

New, non-defective equipment will be authorized for return within five (5) days of receipt of shipment if the equipment is still in new condition with the original manuals, accessories, packing material, and box.

We reserve the right to refuse returns in which the original packaging is missing, accessories are missing, damage or visible signs of use of the item. A restocking fee of up to 10% of the purchase price may apply.

Special orders cannot be returned. International customers must ship any returns to us with freight and taxes prepaid. Return shipping costs for international shipments will be the responsibility of the customer.


Our Valued Clients

  • maruti suzuki logo
  • vtech logo vector
  • customer cubic logo
  • Client luminous
  • partner vishay logo
  • 3nh customer bridgestone
  • Clients honda logo
  • customer hms logo

FAQs About YS3060 Portable Spectrophotometers

SCI&SCE are two method in the color measurement. SCI means Specular Component Include,SCE means Specular Component Exclude.

Under the method of SCE, only test diffuse refection and exclude specular reflection. In that way, the test result is similar to object color was observed by human eyes.

Under the method SCI, both the diffuse refection and specular reflection will be included. In that way, the value about the color is more objective. It will not effect by the environment condition.

When we choose the instrument, those elements should be taking into consideration.


A spectrophotometer and colorimeter are certain instruments used by scientists to measure color by quantifying reflected or transmitted light. The results are presented in color spaces, such as L*a*b*, RGB, or XYZ. This enables the accuracy of comparison and tracking of the changes in color in chemical or material research.

The color of chemical products is measured by using a colorimeter or spectrophotometer. The instruments measure the amount of light that gets absorbed or reflected by a substance. It may be used to determine concentration, purity, or compliance with product standards.

Many people might answer "with the human eye", but this is actually not comprehensive. The human eye cannot accurately distinguish the colors of similar objects. Furthermore, everyone's perception of color varies. Therefore, people have developed color measurement tools based on the CIE color system.

Currently, there are two main types of commonly used colorimeters, as follows:

Colorimeter - It is an ideal choice for quality control (QC) on production lines, used to detect color differences.

Spectrophotometer - It is suitable for the development of color characteristics and color analysis in laboratories.

When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.
