YL4568 Spectrophotometer

Elevate Color Precision for Industry-Leading Quality Assurance

YL4568 Spectrophotometer is a high-precision device for accurate color measurement and analysis. It enables precise spectral data collection across visible wavelengths, supporting color formulation, quality control, and standard creation in industries, Non-contact measure for liquids, pastes, powders and gels. With advanced features for reliable color difference calculation and quick sample assessment, it ensures consistent color accuracy and meets rigorous industrial standards.

Key Highlights

45/0 Optical Geometry
Non-contact measure for liquids, pastes, powders and gels
256-pixel dual-array CMOS image sensor
Measurement speed of just 0.2 seconds.Idealfor inline measurement in mass production settings.
Good repeatability ΔEab ≤0.03
Ideal for cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint, ink, small and odd-shaped samples color measuring

YL4568 Spectrophotometer Instructions Operating Manual YL4568 Spectrophotometer PDF

This YL4568 Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

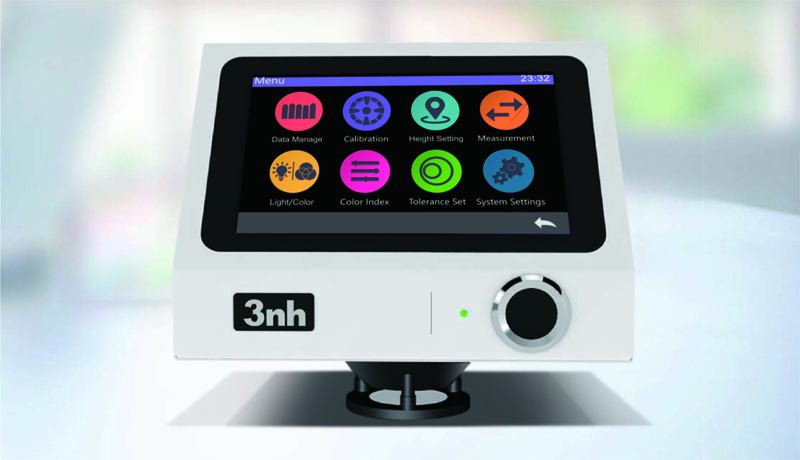

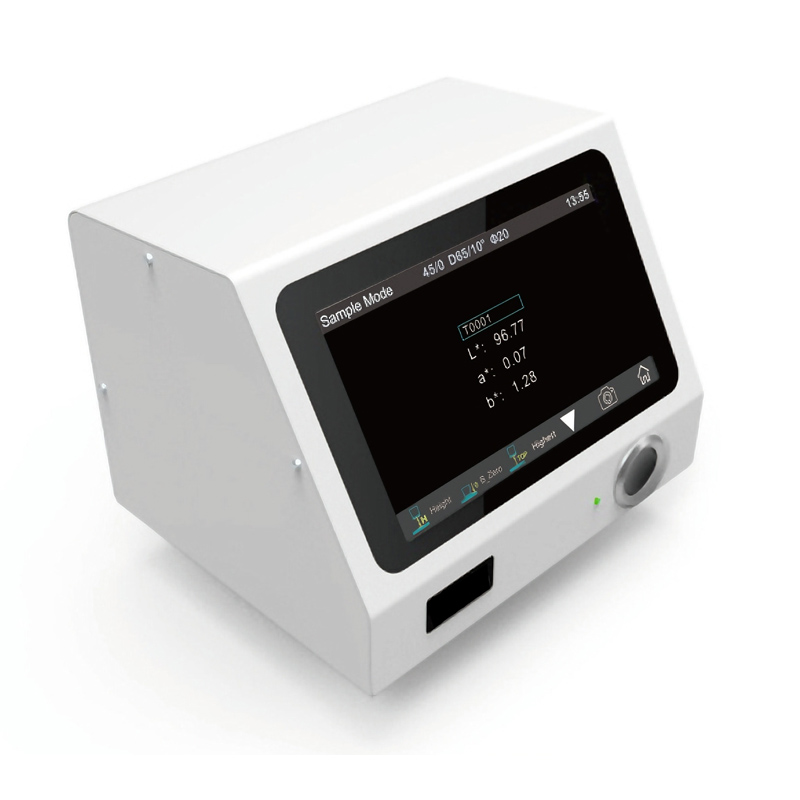

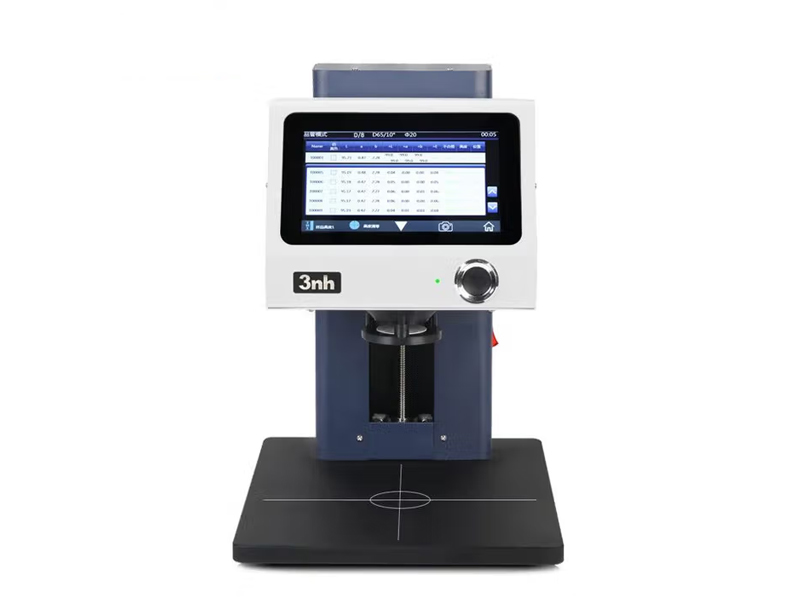

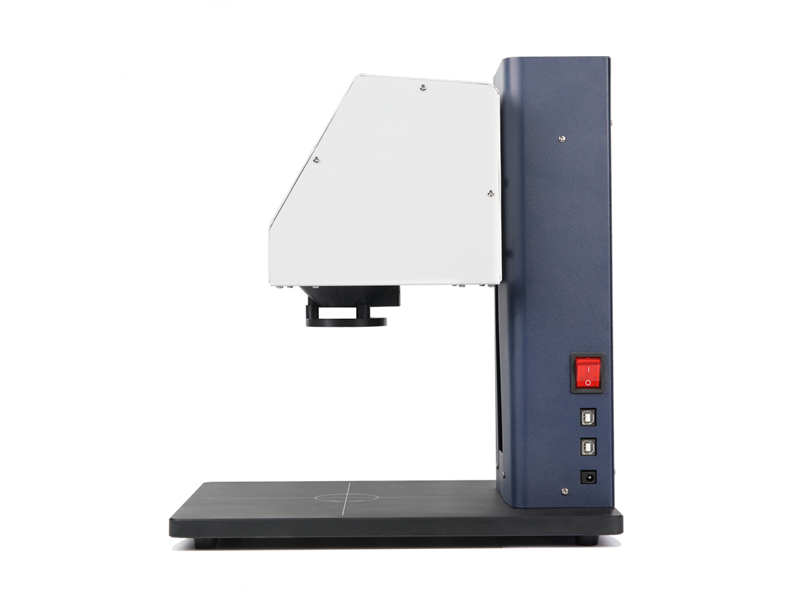

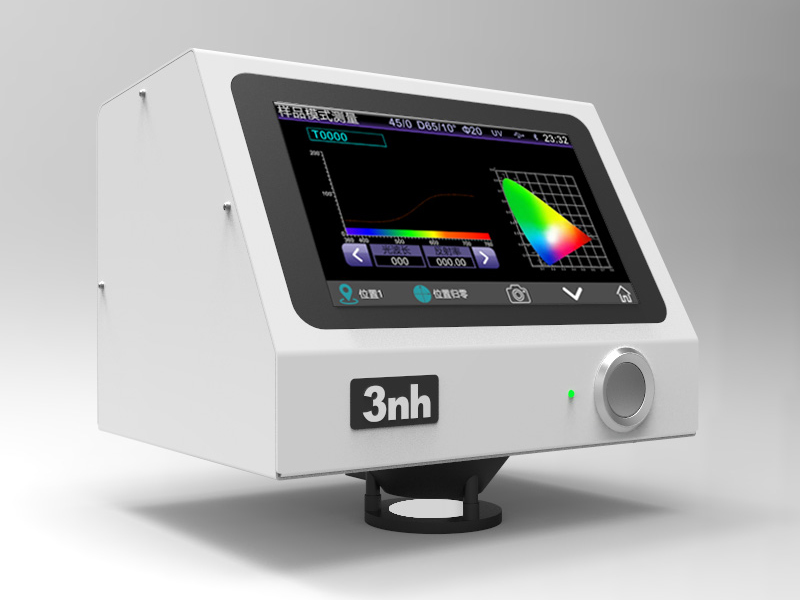

YL4568 Spectrophotometer is a color measuring instrument that adopts the standard of 45/0°(45°circular uniform illumination 0°reception). non-contact test between test probe and tested sample, to achieve liquid and sauce , powder and other non-contact precision color measurement. The simple probe design allows this product to be placed anywhere on the automated production line for precise color measurement and color quality control. It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries. It can be used for fluorescent sample measurement. Its unique innovative design can not only provide non-contact measurement solutions directly from the production line, but also ensure stable and high-precision measurement results.

Features of non-contact YL4568 spectrophotometer

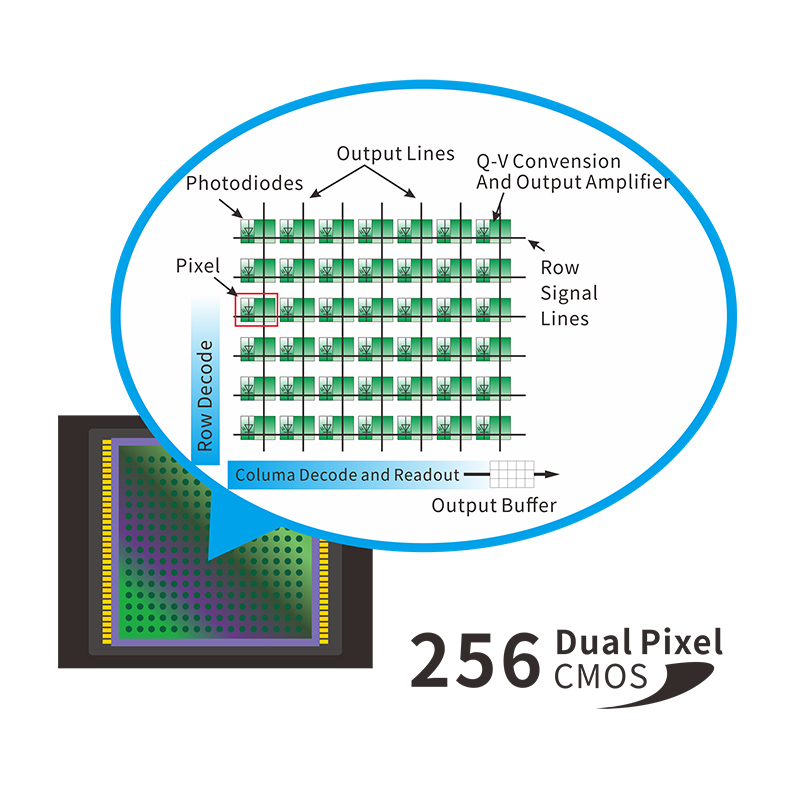

256-pixel dual-array CMOS image sensor

Higher optical resolution ensures the measurement speed, accuracy, stability and consistency of the instrument, mastering the core technology, and achieving complete compatibility on the same platform with international standards.

YL4568 Spectrophotometer 256 dual pixel CMOS sensor.jpg

Using full-spectrum LED light source

The full-spectrum LED light source ensures sufficient spectrum distribution in the visible light range, avoids the lack of LED spectra in specific bands, and ensures the accuracy of the instrument's measurement results and low-cost maintenance.

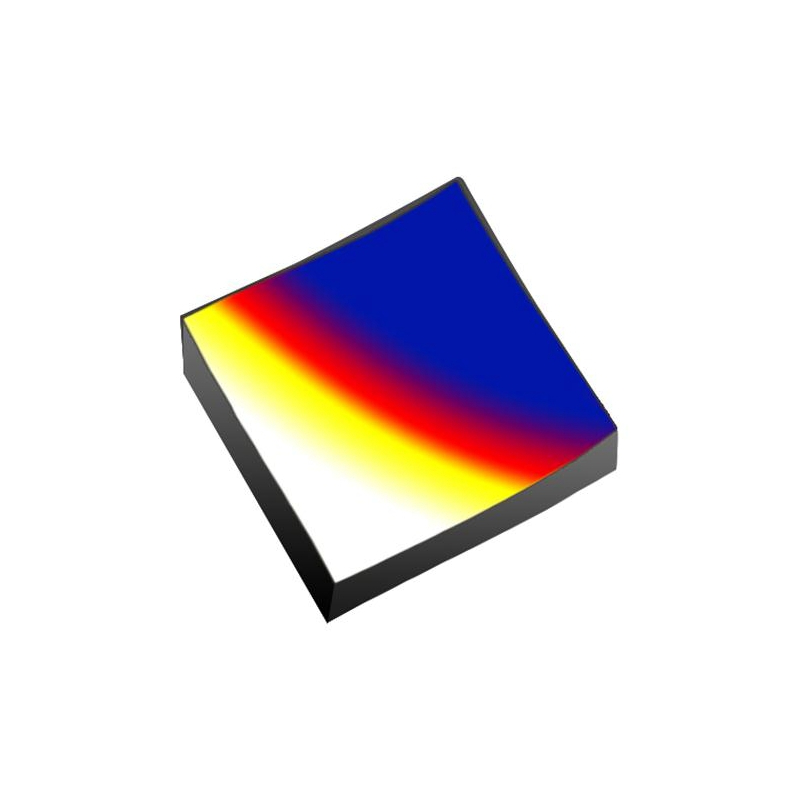

Concave grating spectroscopy technology

Using concave grating spectroscopy technology, it has higher resolution and makes color measurement more accurate.

Higher quality

Using industrial-grade real-time processing MCU, supporting Bluetooth 5.0 transmission is more stable and reliable.

Multi-color measurement space and observation light source

Provide CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 color space, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) multiple observation light sources can meet the special measurement requirements under different measurement conditions.

Efficient

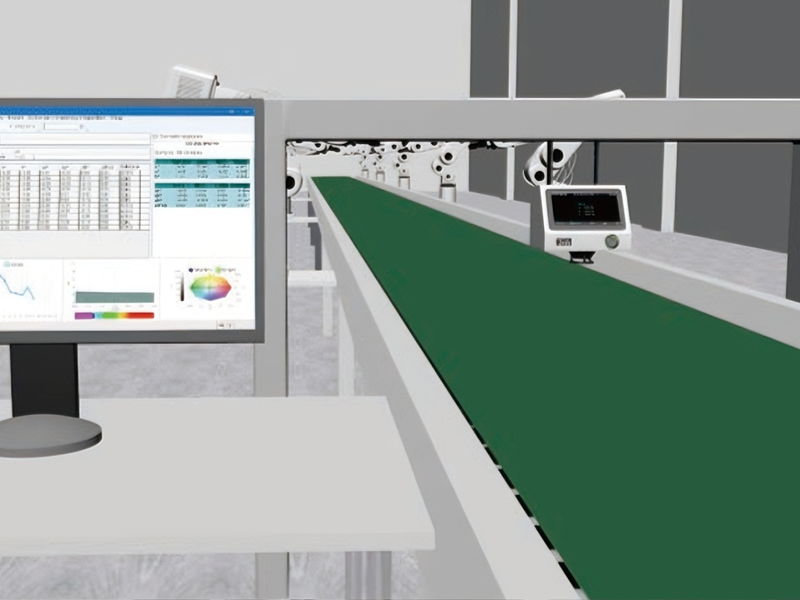

A complete measurement cycle only needs 200 milliseconds, and more than 400,000 samples can be measured per day. Setups are customizable to match your workflow. The non-contact benchtop spectrophotometer seamlessly connect to a wide range of modules, instruments, and sample changers to suit the level of automation required.

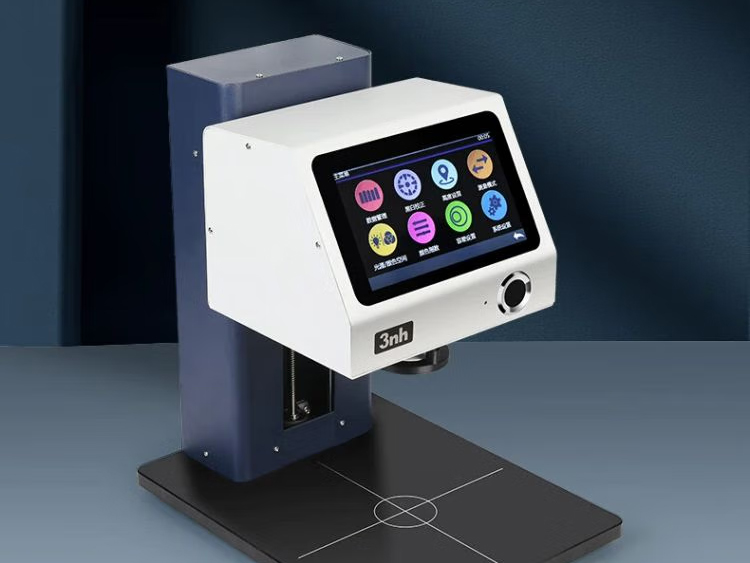

A fit for Every Application

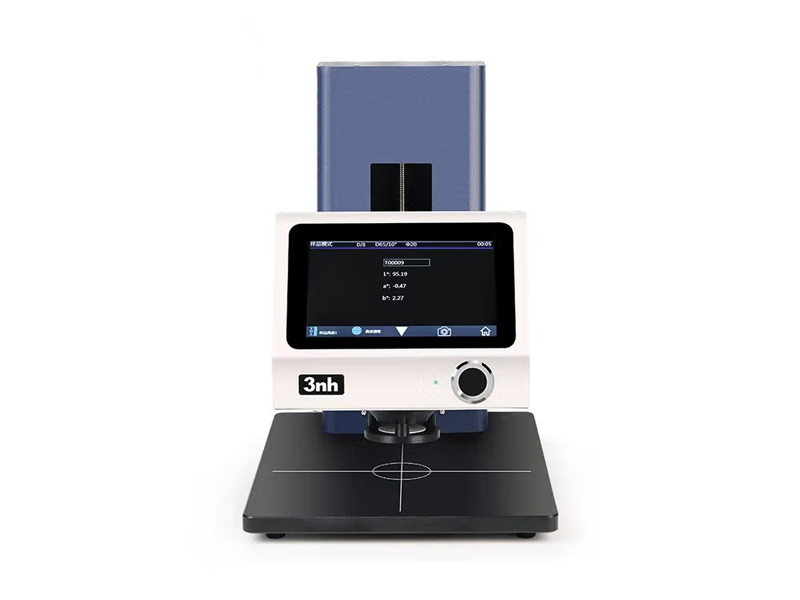

YL4568 non-contact online colorimeter, the test probe and the tested sample non-contact test, can achieve non-contact precision color measurement of liquid, paste, powder, etc., to prevent cross contamination of samples. It can be used for color analysis and transmission in laboratory and R&D industry; lt can also be used for accurate color measurement and quality control of automatic production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronic paint ink, printing,ceramics and other industries.

Fied of yl4568 application wide range of measurements

YL4568 Non-Contact Spectrophotometer Technical Parameters

Model	YL4568
Optical Geometry	45/0(45°circular uniform illumination 0°reception)
	Comply with standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833
Features	Non-contact test between test probe and tested sample, to achieve the non-contact precise color measurement of liquid, sauce, powder, etc. It is mainly used for accurate color measurement and quality control of automated production lines; the measurement time can be adjusted from 0.1 to 1.5 seconds, and the software functions can be customized (additional customization function needs to be evaluated).
Light Source	Full spectrum LED light source, UV light source
Spectrophotometric Mode	Concave Grating
Sensor	256-pixel dual-array CMOS image sensor
Wavelength Range	400~700nm, 10nm output
Measured Reflectance Range	0-200%
Measuring Aperture	Φ20mm (Φ10mm、Φ4mm can be customized)
Non-contact distance	7.5mm (±0.2mm)
Sample height	Unlimited thickness, only test probes are used
Distance adjustment method	Fixed height according to actual sample
Measurement mode	Software customization function (additional customization function needs to be evaluated)
Locating	Camera locating
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula	ΔEab,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE*00,ΔE（Hunter），DINΔE99
Other Colorimetric Index	WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
	YI(ASTM D1925，ASTM 313),
	Metamerism index MI,
	Staining Fastness, Color Fastness, Strength, Opacity
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Color simulation, pass/fail result, display tolerance can be set
Measuring Time	As fast as 0.2 seconds
Data Storage	Sample mode + quality control mode 18,000
	Continuous statistical mode 30,000, totaling no more than 48,000
Repeatability	In the optimal measurement mode (when a single measurement time is 1.5 seconds): Spectral reflectance: within 0.1% of standard deviation: Chromaticity value: ΔE*ab within 0.03(After the instrument is warmed up and calibrated, measure the average value of the whiteboard 30 times at an interval of 5s)
Inter-instrument Error	Within ΔE*ab 0.2(Measured average value of 12 tiles of BCRA series Ⅱ)
Measurement method	Single measurement, average measurement (2~99 times)

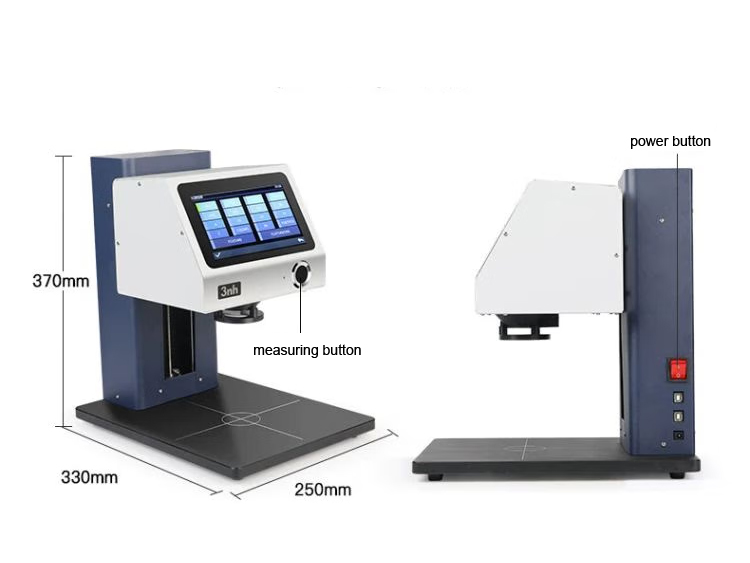

Dimension	200200160mm (test probe)
Weight	About 3Kg (only test probe)
Power	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	7-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB, Bluetooth®5.0
Language	Simplified Chinese, Traditional Chinese, English
Operating Environment	0~40℃, 0~85%RH (no condensation), altitude: less than 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensation)
Standard Accessory	Power adapter, manual, data cable, standard calibration board, black calibration box
Notes	This model is specially suitable for streamlined production lines, in-depth function customization will incur additional customization costs

Our Valued Clients

FAQs About Spectrophotometer

To answer this question, you first need to clarify your specific needs:

Is it for simple color quality control (QC)?
To coordinate with supply chain color management?
To monitor on-line color stability?
Do you require computer color matching or production color correction?
What is your budget?
Systematic supervision and evaluation of color performance in dyed products?

If you aren’t fully clear about your requirements at the initial stage, our color management engineers are ready to communicate with you. We will recommend solutions tailored to your needs. When conditions permit, we can provide prototype demonstrations and trial testing to ensure the instrument meets your practical application requirements.

Yes, we offer free samples for test, you are welcome to order samples to experience our excellent quality and service.

Who are we? Threnh Technology: 22-Year Professional Color Measurement Solution Provider

Threnh Technology is a Chinese professional Measurement Instrument manufacturer with 22 years of industry experience, specializing in the field of color measurement and surface gloss detection. Integrating research and development, design, production, marketing, and sales, the company takes technological innovation as its core and is committed to providing global customers with high-precision and intelligent testing instruments as well as professional solutions.

A colorimeter or spectrophotometer should be used to measure the color of a solution. The instrument directs light through the liquid and quantifies absorbance at certain wavelengths. The values obtained indicate the color intensity of the solution and, by default, the concentration of the solution.

When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.
