Spectrodensitometer YD5010 Plus

Print & Packaging Perfect Color Density for Brand Consistency

3nh YD5010 Plus Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control, No Complex Calibration – Just Fast, Reliable Density Readings


Key Highlights

  • 45/0 geometrical optics structure, comply with CIE

  • Reflectance spectrum, CMYK density and Lab

  • 3.5-inch TFT true-color screen, capacitive touch screen, concave grating

  • Ergonomic structure design

  • Φ2/4/8mm Optional apertures

  • Pinting plants process control and quality control

Spectrodensitometer YD5010 Plus Instructions Operating Manual Spectrodensitometer YD5010 Plus PDF
This YD5010 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3nh launched new model YD5010 Plus Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard  ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm，Φ4mm，Φ8mm.

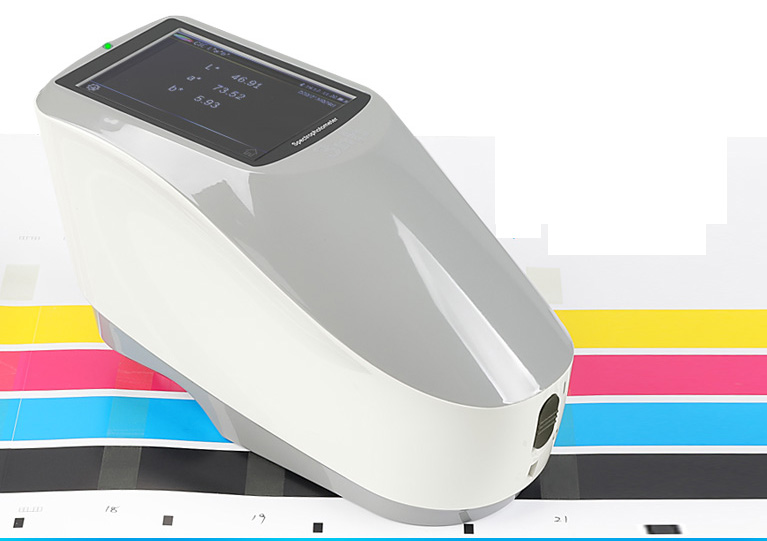

3NH Printing Color Densitometer
Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.


Product Features



1.Perfect combination of the beautiful appearance and the ergonomic structure design;

2.Combined LED light sources with long life and low power consumption, including UV light;

3.Optional apertures: Φ2/4/8mm, adapt to more samples;

4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；

6.Two standard observer angles: 2/10, multiple light source modes and color systems;

7.USB mode is widely useful;

8.Large-capacity storage space, over 10,000 test data;

9.Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.

Spectrophotometer (including color evaluation and management software)

Based on the spectrophotometric principle, the spectrodensitometer acquires spectral data of objects within the visible light range via hardware components including light sources, spectroscopic systems, and detectors.

Integrated with powerful color evaluation and management software, it can not only accurately calculate color parameters such as tristimulus values, chromaticity coordinates, and color difference, but also features functions like color formulation prediction, quality control chart generation, and color comparison and analysis of products from different batches.

With intuitive data, charts and a visualized operation interface, it fully meets the requirements for precise color management and analysis in industries such as printing, textiles, and coatings.

YD5010 Plus Spectrophotometer Application

It is mainly applied in industries such as printing, packaging, advertising, photography, textiles, coatings and plastics, as well as in relevant color management institutions and scientific research units. It can accurately measure color parameters including density, chromaticity and spectral reflectance. By conducting color measurements on samples like printed materials, textiles and coatings, it achieves precise color matching and quality control.

With the assistance of color evaluation and management software, it also enables the analysis, storage and comparison of color data, the establishment of color standards and databases, and the research on the variation rules of colors under different media and environments, thus providing comprehensive solutions for color management and process optimization.

Can't find what you want? Contact us!

Contact us today to discuss your printing color measurement needs, request a product demo, or customize a solution tailored to your industry. Let’s turn color consistency into your competitive advantage.

Talk to a solution specialist






ModelYD5010 Plus
Measurement Geometry45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
FeaturesCommon spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light SourceCombined LED Light, UV Light
Spectral separation deviceConcave Grating
Detector256 Image Element Double Array CMOS Image Sensor
Wavelength Range400~700nm
Wavelength Pitch10nm
Half Bandwidth10nm
Measurement ConditionsCompliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density StandardsISO Status A, E, I, T
Density indexDensity value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level
Measurement apertureCustomized one aperture：Φ2mm,Φ4mm,Φ8mm optional
Color SpacesCIE LAB,XYZ,Yxy,LCh
Color Difference FormulaΔE*ab,ΔE*94,ΔE*00
Other Colorimetric Index/
Observer Angle2°/10°
IlluminantsA,C,D50,D55,D65,D75,F2,F7,F11,F12
Measurement TimeAbout 1.5s
RepeatabilityDensity: Within 0.01 D

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3
Inter-instrument ErrorWithin ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Measurement modeSingle Measurement, Average Measurement(2-99)
Size(L*W*H)184*77*105mm
WeightAbout 600g
Power sourceLi-ion battery. 5000 measurements within 8 hours
Illuminant Life Span5 years, more than 3 million times measurements
Display3.5-inch TFT color LCD, Capacitive Touch Screen
InterfaceUSB,
Data memory10000 pcs
Language
Simplified Chinese, English, Traditional Chinese
Working EnvironmentTemperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage EnvironmentTemperature: -20~50℃; Humidity: 0~85% (No Condensation)）
Standard AccessoryPower Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
Optional AccessoryMicro Printer
Notes: The specifications are subject to change without notice.


The Spectroscopic Color-Densitometer combines advanced spectral sensing technology with density measurement capabilities, supporting multiple color spaces and density standards to meet rigorous industrial color management requirements.

Our Valued Clients

  • Sakata INX company
  • Toyo Ink Malaysia Coloring ink
  • Sun Chemical Inks, Pigments
  • Siegwerk Druckfarben  ink company
  • Marico
  • Flint Group  ink company
  • Gail Print Paper Bags Packaging
  • ​altana ink company

FAQs About YD5010 Spectrodensitometer

Look for dirty or fingerprinted glass along the optical path, recalibrate with standards, and check the set-up for outside light so that it is controlled. If the problems still exist, please reach out to the helpdesk or book a service with your professional service.

Take into account the measurement range, type of samples, needed precision, any relevant standards, and your industry.


In industrial production and quality control, color consistency is one of the core elements determining product quality. Whether it is the metallic paint for automobile coating, the dyeing effect of textile fabrics, or the ink matching in packaging and printing, subtle color deviations may lead to cost waste or damage to brand image.

The LAB color space defines colors with a three-dimensional model:

  1. Lightness (L): It indicates the lightness or darkness of a color, ranging from 0 (pure black) to 100 (pure white).

  2. Hue and Saturation (a and b):

    • The a-axis represents the red-green tendency, with positive values leaning towards red and negative values leaning towards green;

    • The b-axis represents the yellow-blue tendency, with positive values leaning towards yellow and negative values leaning towards blue.

It is a globally recognized standard and supported by most modern color measurement equipment. Color is quantitatively analyzed by measuring Lab values with instruments.


 A spectrophotometer illuminates a sample with light or passes light through it and records the reflected or transmitted light over the wavelength range. It transforms this data into color coordinates (such as L*a*b*), allowing accurate color assessment as well as color comparison to standards.


Yes. Ultrasonic coating thickness gauges can pinpoint layers within a multi-coat system. Users can examine the separate thicknesses of a primer, base coat, and clear coat. In contrast, magnetic and eddy current gauges usually measure the overall thickness of the coating.

They provide accurate and repeatable assessments of color in various settings for the purpose of avoiding inconsistencies in mismatched items and ensuring steady production or branding.
