The Ultimate Guide to Portable Densitometers

what is color density

Color density (also known as density in color measurement) refers to the quantitative measure of how much light a colored sample absorbs or reflects at specific wavelengths, which correlates to the intensity, saturation, or concentration of color in a material. It is a critical metric in color science and quality control, used to quantify the "depth" or "richness" of a color rather than just its hue or shade.

Color Density Measurement Principle

It is based on the Beer-Lambert Law, which states that the amount of light absorbed by a sample is proportional to the concentration of the colorant (e.g., dye, pigment) and the thickness of the sample. Colorimeters or densitometers measure density by calculating the ratio of incident light to transmitted/reflected light (optical density).

Color Density Measurement Tool - Densitometer

A densitometer is a type of device used in the printing field and specifically in the printing densimeters for measurement of the optical and photographic density of the ink printed onto paper and film. Unlike spectrophotometers which measure colors as one of the human senses, a spectrophotometer for printing measures the thickness of ink film and the dot gain thus giving useful information concerning control processes and consistency of prints throughout the runs.

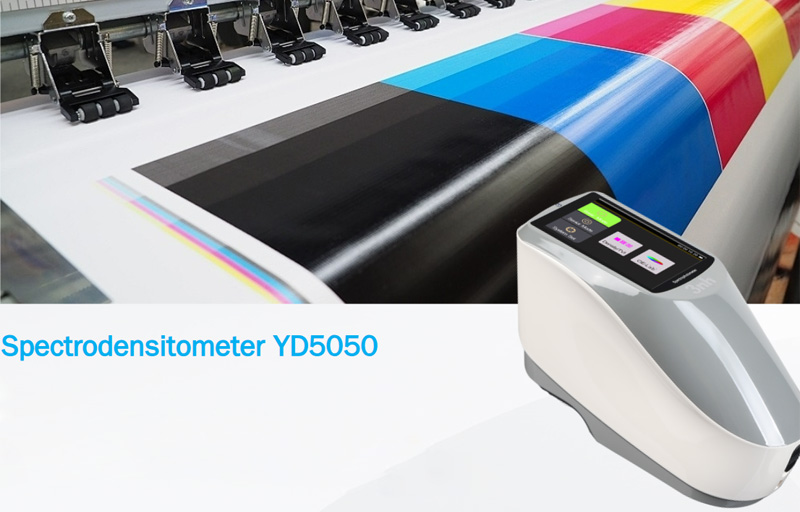

Small, portable and handheld spectro densitometer like the 3NH YD5050 and YD5010 Plus models, which used to be used as classical handheld densitometers, now they are equipped with spectrophotometry and so, can measure density and color with handheld convenience.

How a Densitometer Works

Reflection vs. Transmission

• Reflection densitometers: Reflection densitometers measure the light reflected from opaque surfaces such as paper and are used in the pressrooms for process ink check, dot gain check, and solid ink density SID check.

• Transmission densitometers: Measure the light flux through film negatives which are used as transparent substrates. These are used in the prepress and plate making work.

Optical Filters and Density Calculation

The reflection densitometer applies a 45°/0° optical geometry which uses a ring or angled illumination at 45° and detects at 0° per ISO 5-4/CIE No. 15. As with any other optical filter, light is separated into its respective CMYK components. Color channels, which is filtering, is done through red, green, and blue. The reflectance R is measured, and then converted to density using R(D) = logD.

With density and ink film thickness being directly proportional, greater density means greater volumes of ink. As per offset printing, the values are cyan/magenta 1.3–1.5, yellow 0.9–1.1, and black 1.6–1.8.

Why Use a Portable Spectro‑Densitometer like the 3NH YD5050

The 3NH portable spectro-densitometer combines traditional densitometry with spectrophotometry, offering comprehensive process control:

• Dual-function measurement: Color (CIE Lab, XYZ) and optical density (solid, dot gain, density difference).

• Standard compliance: Supports ISO status A, E, I, T density standards. Geometry 45°/0° per ISO No. 15.

• Switchable apertures: Multiple sizes (e.g., Φ2 mm, 4 mm, 8 mm) allow measurement on various sample types.

• High repeatability: Density repeatability within ±0.01 D; chromaticity repeatability ΔE*ab within 0.03–0.04 after calibration.

• Compact and mobile: Approx. 600 g and handheld; Li‑ion battery supports 5,000 measurements per charge (8 hours), LED light source lifespan of  5 years or  3 million scans.

This multi-modal capability is especially useful in actu­ally applying density-based QC while simultaneously monitoring color matching.

Primary Applications in Printing Quality Control

Print density refers to a quantitative measurement of how much light is absorbed by the ink layer applied to a printing substrate (e.g., paper, film, cardboard). It directly reflects the opacity and thickness of the ink film on the printed surface, and is a core quality control metric in all printing processes (offset, digital, flexographic, screen printing, etc.).

Portable densitometers especially reflection types play a critical role in:

• Press setup & ink control: Measure solid densities of CMYK inks from control bars to ensure target densities are met (±0.05 D typical tolerance).

• Dot gain monitoring: Estimate halftone dot growth using values from 40–60% tint patches via Murray–Davies or Yule–Nielsen methods (n-factor correction).

• Process consistency: Track density drift across runs, color shifts between inks, or substrate changes.

• Calibration between machines and operators: Ensures readings are consistent across devices and shifts.

Combined spectro support on models like the YD5050 also enables monitoring ΔE color differences alongside density, offering dual-layer QC.

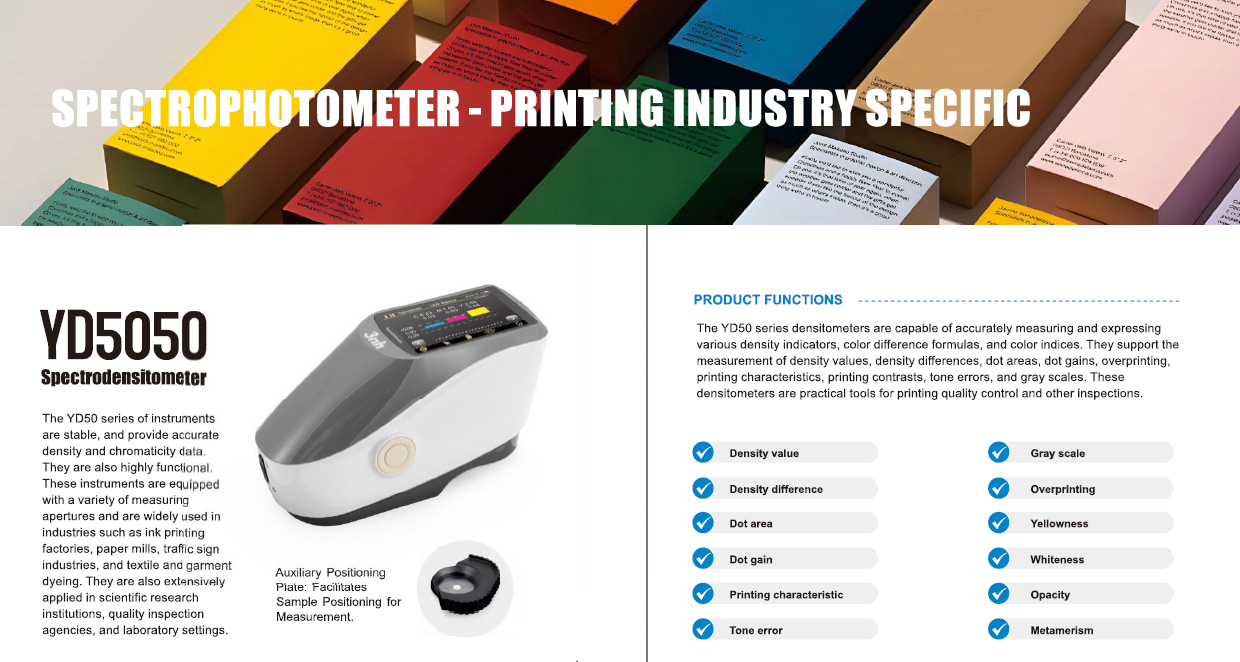

YS5050 Spectrodensitometer Main Industry Applications

In manufacturing, inconsistent color density leads to rejected products, wasted materials, and brand reputation damage. By measuring color density with tools like densitometers or advanced colorimeters, businesses can standardize production processes and ensure color accuracy from raw materials to finished goods.

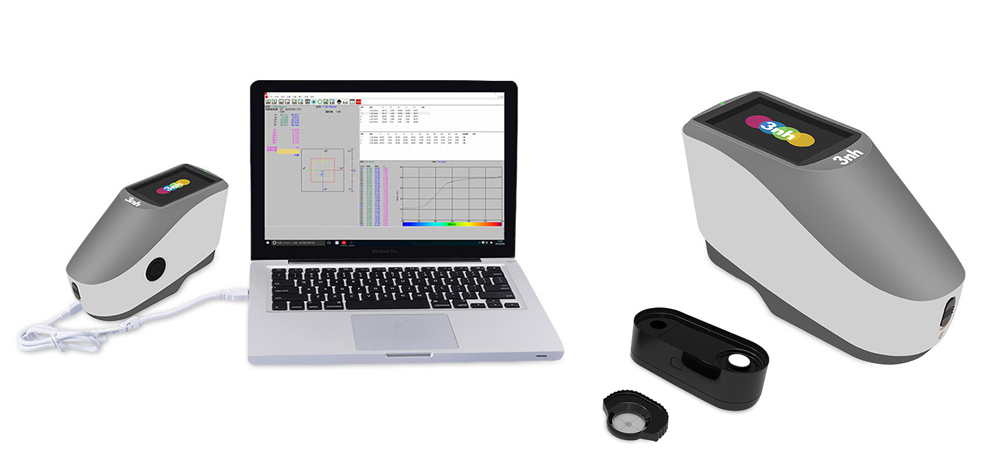

YD5050 Color density meter is essential for ensuring color consistency and quality across batches and production runs:

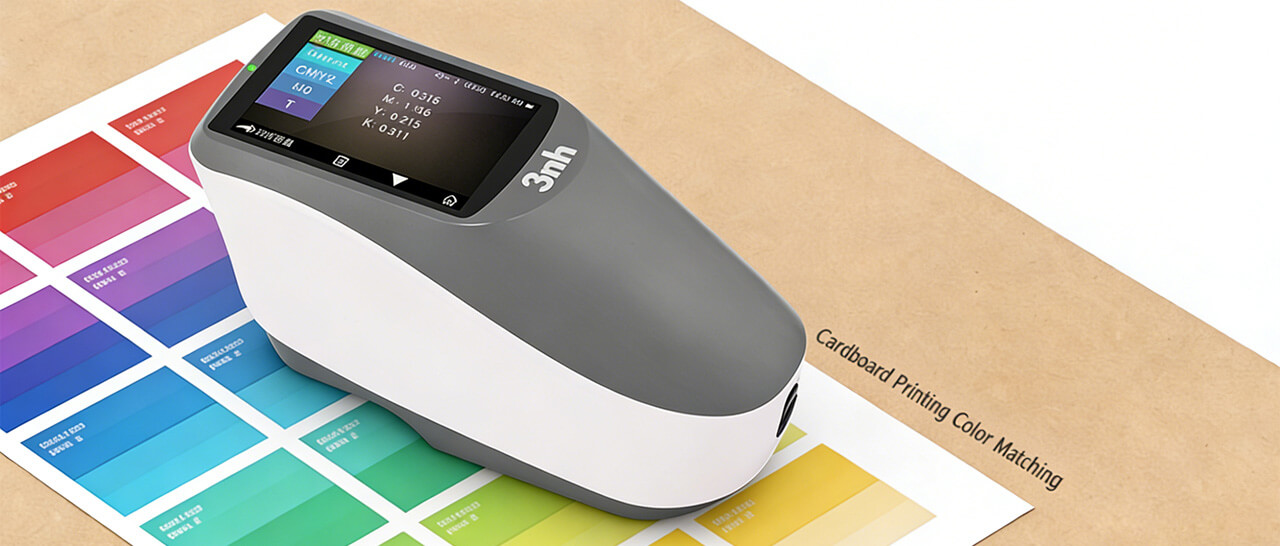

Printing: Measures the density of CMYK inks on paper to ensure uniform color reproduction in offset, digital, or screen printing.

Packaging & Plastics: Quantifies pigment concentration in plastic films, bottles, or labels to avoid color variation.

Textiles: Tests dye density in fabrics to ensure consistent color fastness and shade matching.

Food & Beverages: Measures the density of colorants in juices, sauces, or candies to comply with product quality standards.

Cosmetics: Verifies pigment concentration in lipsticks, foundations, or hair dyes for uniform color output.

Setup & Operating Workflow

1 Calibration & Zeroing

• Use provided white calibration tile and black zero (dark calibration) prior to measuring.

• Recalibrate after environmental changes (temperature/humidity shift), battery swap, or after extended idle periods.

2 Sample Preparation & Positioning

• Ensure target patches are clean, flat, opaque, and large enough for the aperture.

• Use consistent orientation and positioning align device base to substrate edge for repeatability.

3 Measurement Modes

• Available modes include single‑measurement or averaging across multiple readings (e.g. 2–99) for improved accuracy.

• Choose illuminant conditions and observer angle as needed (e.g. M0, M1, M2 per ISO 13655) for meaningful color metrics.

4 Data Analysis

• Evaluate SID, dot area/gain, and tone reproduction metrics.

• Track trends using onboard memory/export via USB/Bluetooth.

• Use companion software to compare measured values against pre-set tolerances for pass/fail judgment.

Record values across left, center, and right across the web to detect lateral variation.

6. Best Practices & Common Pitfalls

• Use control bars: Always measure printed color bars with defined patches for consistency.

• Log data diligently: Without records, variation is hard to detect over time.

• Maintain environmental consistency: Temperature and ambient light can affect readings.

• Avoid substrate contaminants: Dust or gloss can distort contact measurements.

• Regular device maintenance: Clean aperture glass, replace calibration tiles when worn, and adhere to routine calibration schedules.

7. Comparisons: Densitometers vs Spectrophotometers

The YD5050-style spectro-densitometers offer a hybrid solution: color-metric precision and traditional densitometry in one unit ideal for modern print quality control workflows.

Choosing the Right Device for Your Needs

Key factors to consider:

• Type: Reflection-only vs transmission vs combined.

• Measurement geometry: 45°/0° is standard for print densitometry.

• Aperture options: Smaller apertures for tighter patches; larger for control bars.

• Compliance: ISO 5‑4/CIE No. 15, ISO 13655 illuminant modes, density standards A/E/I/T.

• Repeatability & accuracy: Check device spec for density repeatability ±0.01 D or better; inter-instrument ΔE tolerance.

• Data and connectivity: Onboard storage, USB/Bluetooth export, software support.

• Portability & battery life: handheld models vs benchtop units; battery runtime and recharge specs.

• Software features: Dot gain calculation, target comparison, reporting and analysis capabilities.

Summary

A portable densitometer, such as the 3NH YD5050/YD5010 Plus is an essential tool for any printing operation focused on quantitative color and ink control. It measures ink film density, dot gain, and color accuracy (with spectro‑densitometry) under standardized conditions and geometries (45°/0°), providing precise data for process consistency.

By following proper calibration, measurement, and maintenance protocols, and using confirmed control targets press operators can maintain tighter tolerances, reduce waste, and deliver consistent, color-accurate results. Investing in operator training and routine data tracking is just as important as choosing the right instrument. You are welcome to contact our technical engineer at any time. In the past 2 years, We have developed multiple different instruments for different customers with good experience there.
