ST10 spectrocolorimeter

Precision Color Analysis with ST10 Spectrocolorimeter

The ST10 Spectrocolorimeter is a high-precision color measurement tool designed for professional applications. Equipped with advanced spectroscopy technology, it accurately analyzes and captures color data across various materials, ensuring consistency in industries like printing, textiles, and design.


Key Highlights

  • D/8 optical geometry (diffused illumination with an 8 - degree viewing angle)

  • Φ8MM/φ10mm platform measuring aperture

  • Repeatability ΔE*ab≤0.05

  • Inter-instrument Error ΔE*ab≤0.4

  • Silicon photodiode array sensor

  • CIE LAB, XYZ, Yxy, LCh, CIE LUV, s - RGB, βxy, and DIN Lab99.

  • Widely used in industries such as plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics, etc., for color difference quality control

  • 3.5-inch TFT color LCD, Capacitive Touch Screen

ST10 spectrocolorimeter Instructions Operating Manual ST10 spectrocolorimeter PDF
This ST10 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

ST10 Spectrocolorimeter: Where Advanced Technology Meets Effortless Color Calibration

 ST10 is a new portable spectrocolorimeter with 3nh own core research and development technology. The Ultimate Tool for Ultra-Accurate Color Measurement & Quality Control.

It is easy to use and can be measured with one click. It uses a built-in large area silicon photodiode array sensor. It has excellent repeatability and inter-station difference, the measured data are steady, accurate and reliable.

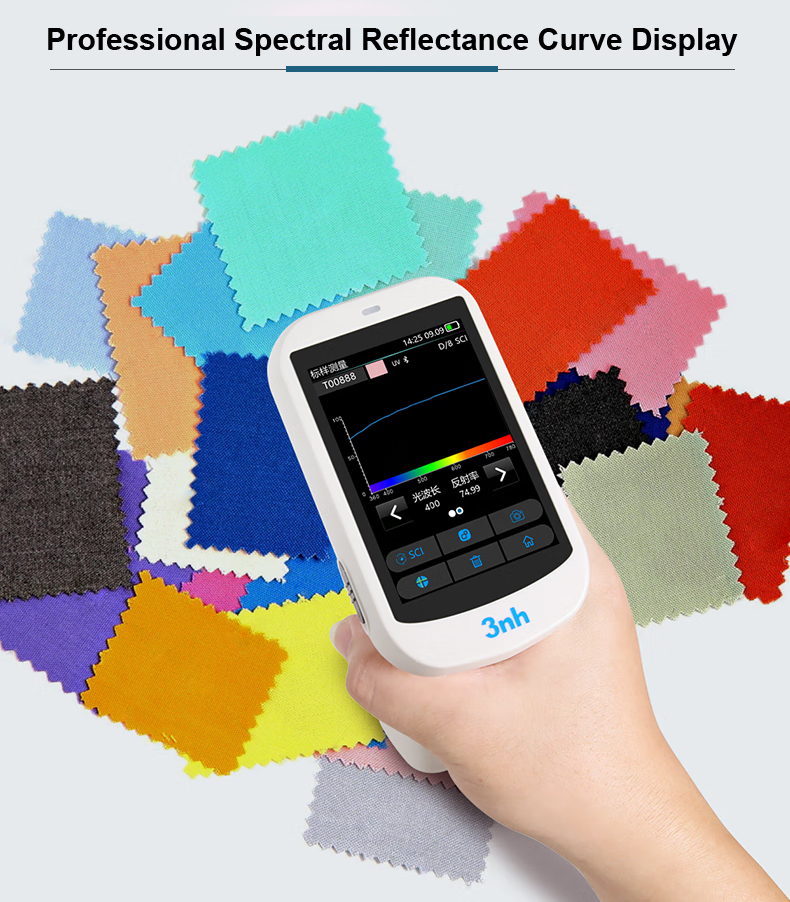

st10_professional_spectral_reflectacnce_curve_display

ST10 spectrocolorimeter with Φ8MM/φ10mm platform measuring aperture, in plastic electronics, paint coating, textile printing and dyeing, printing paper products, automotive, medical, cosmetics and food industries, scientific research institutions, laboratories are widely used.


Characteristics of the array spectrocolorimeter ST10



Silicon photodiode array sensor

The larger array sensor, the stronger light will not be saturated, the lower light sensitivity is higher and the wider spectrum response range, has guaranteed the instrument measurement speed, the accuracy, the stability and the consistency, grasps the core technology, with the same platform of international standards, achieve perfect compatibility.

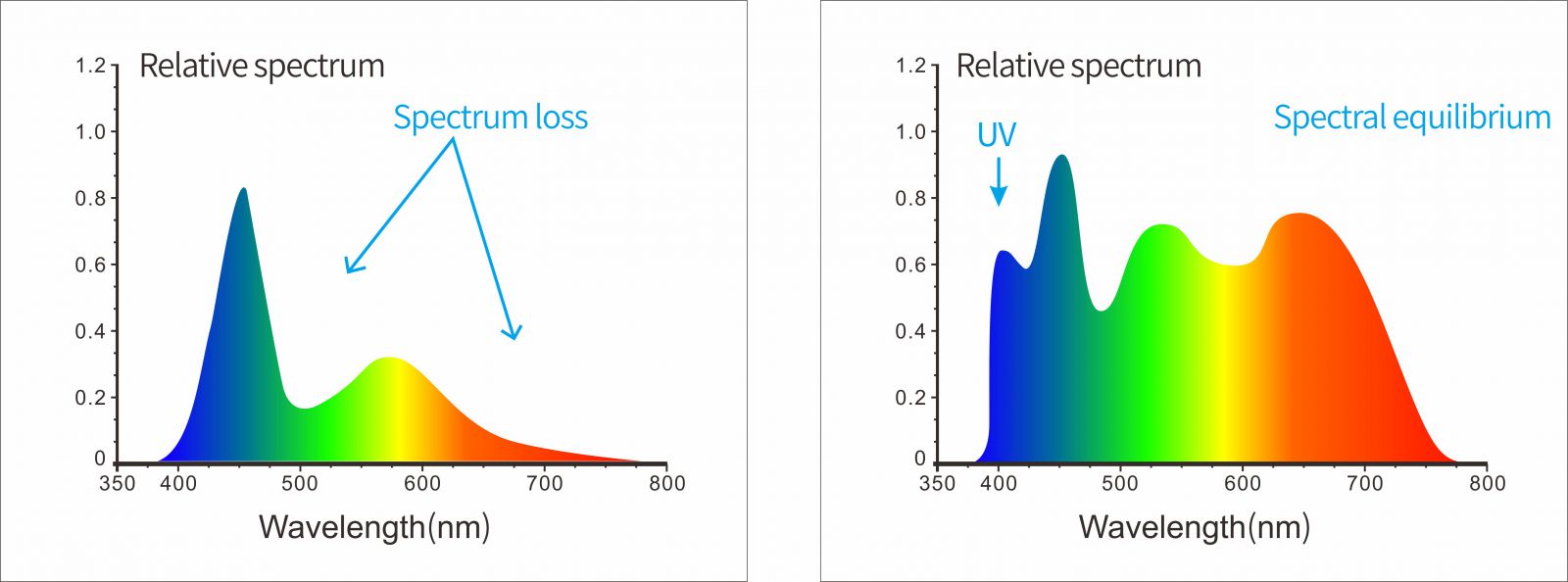

Adopt full waveband balanced LED light source

ST10 spectrocolorimeter adopts 400 ~ 700nm full waveband balanced LED light source as the illumination light source, which has enough spectrum distribution in the visible light range and avoids the loss of the spectrum of white LED in the specific wave band.




Grating splitting technology

The use of plane grating spectroscopy technology, with a higher resolution, so that more accurate color measurement.

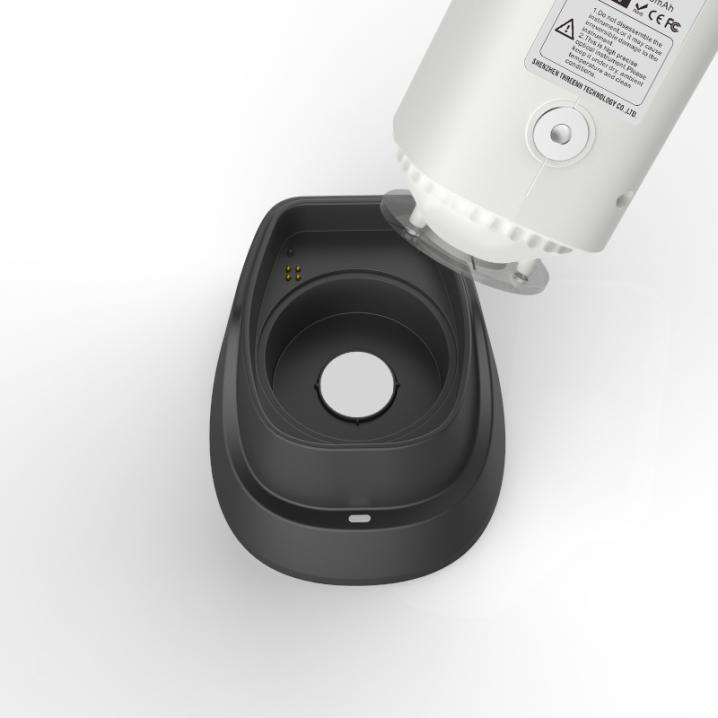

Intelligent base, automatic calibration

It is equipped with intelligent calibration base, can carry out automatic white board calibration, professional grade standard white board reflectivity R% ≥95% , good surface uniformity, high stability, can obtain repeated accurate data.

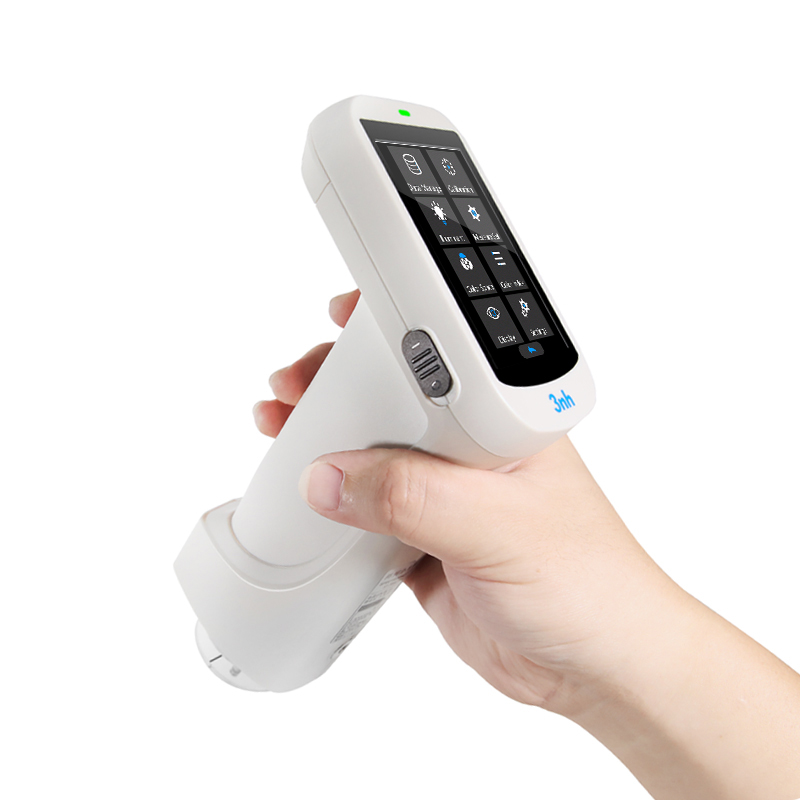

New fashion appearance design based on ergonomics

The hand-held position and the position of the measuring button are carefully designed to meet different holding habits, smooth and fine surface, derived from the professional appearance treatment technology.


Excellent interstation and repeatability

The repeatability ΔE * ab ≤0.05, the Inter-instrument Error ΔE * AB ≤0.4 data is stable and reliable, which ensures the consistency of the data measured by multiple devices, and can be used for color matching and accurate color transfer.

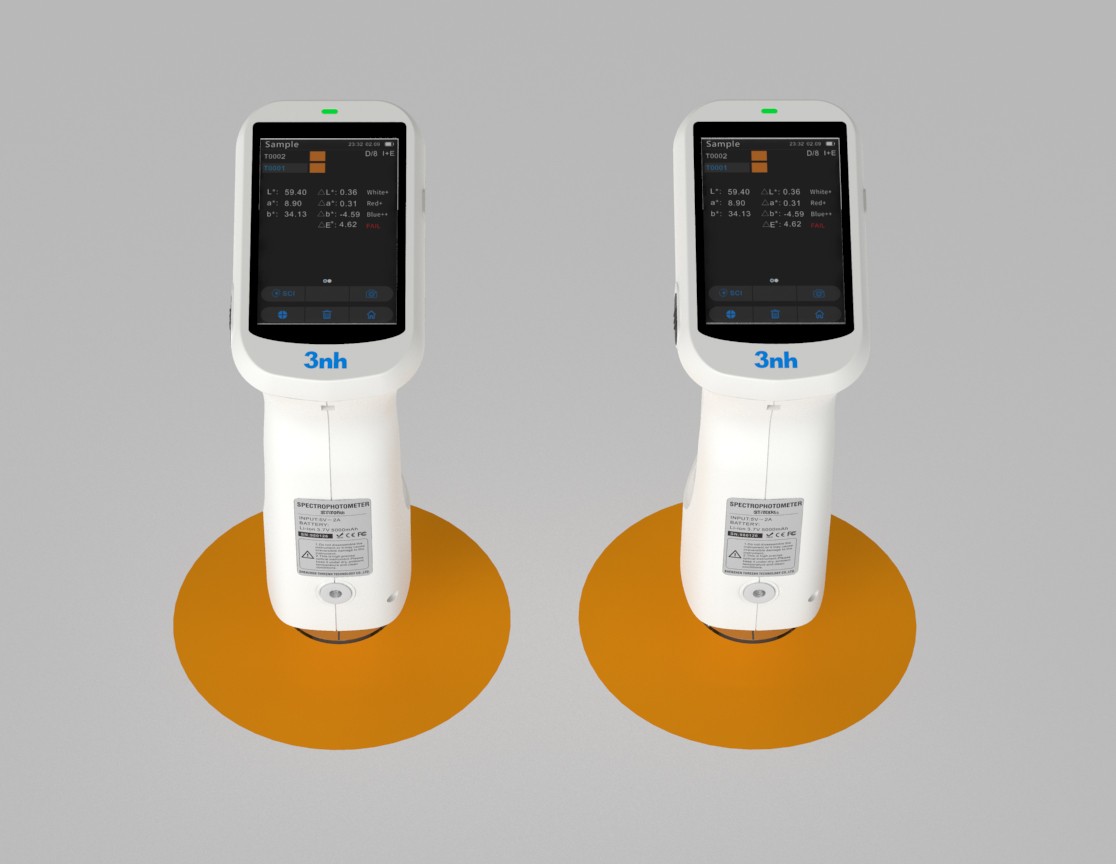

ST10 Inter-instrument Error COMPARE

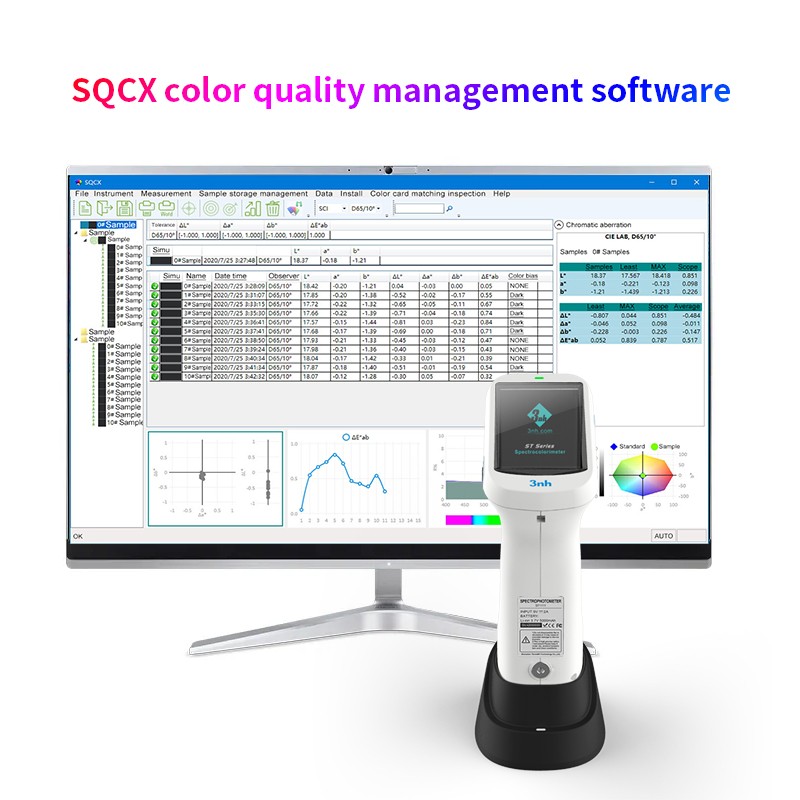

Color management software

The array spectrocolorimeter ST10 is equipped with SQCX software, which is suitable for quality monitoring and color data management in various industries. The user's color management data, compare color differences, generate test reports, provide a variety of color space measurement data, customized customer color management.



Need additional support?

Visit our FAQ section for more info or contact us to get help from our support team. Avoid costly shipment rejections and deliver brand integrity and design intent. 3nh Offers a full set of colour solutions and services to ensure a streamlined colour workflow.


Reach Out to an 3NH Color Expert

ST10 technical parameters of the  spectrocolorimeter



 Product nameST10 spectrocolorimeter
Optical GeometryD/8(diffused illumination, 8-degree viewing angle)
Specular ComponentSCI Including the specular reflection of light
Meet The CriteriaCIE NO.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Repeatability*ΔE*ab≤0.05
Inter-instrument Error**ΔE*ab≤0.4
Displayed Accuracy0.01
Measuring/Illuminating Aperture***Dual Apertures：Φ8MM/φ10mm platform + Φ8MM/φ10mm tip
Measurement IndicatorsSpectral reflectivity, CIE-Lab, CIE-LCh, HunteLab, CIE-Luv, XYZ, Yxy, RGB, chromatic aberration (ΔE * ab, ΔE * CMC, ΔE * 94, ΔE * 00) , whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby) , yellows (ASTM D1925, ASTM E313-00, ASTM E313-73) ,staining fastness, color-changing fastness, etc. (some of the indicators were achieved by PC)
IlluminantD65,A,C,D50,F2,F7,F11
Displayed DataSamples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Light SourceCombined full spectrum LED light source
Locating MethodStability film, visual
CalibrationIntelligent automatic calibration (Contact Type)
Observer Angle2°，10°
Integrating Sphere Size40mm
Spectrophotometric ModeFlat Grating
SensorsLarge-area silicon photodiode array ( double-row 20 group)
Wavelength Interval10nm
Wavelength Range400-700nm
Measured Reflectance Range0-200%
Reflectivity resolution0.01%
Measurement ModeSingle Measurement, Average Measurement(2-99times)
Measuring TimeAbout 1s
Size L * W * H=114 X 70 X 208mm
Weight About 435g（Calibration block not included）
BatteryLi-ion battery, 8500 measurements within 8 hours
Illuminant Life Span10 years, more than 1.5 million times measurements
Display3.5-inch TFT color LCD, Capacitive Touch Screen
Data PortUSB
Data ShorageStandard 500 Pcs, Sample 10000 Pcs, Mass storage on PC side
Software SupportWindows
LanguageSimplified Chinese, English, Traditional Chinese
Operating Environment0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard AccessoryPower Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture,  4mm tip aperture
Optional AccessoryUSB Micro Printer, Powder Test Box
Notes：
* 30 standard deviations of the whiteboard were measured at a 5-second interval after whiteboard calibration;
** BCRA Series II 12-panel measurement average;
*** The illumination aperture is the actual aperture size of the instrument;
If there are any changes to the above parameters, without prior notice.



Our Valued Clients

  • university mississippi
  • APPLIED MATERIALS
  • YONSEI UNIVERSITY
  • Vilnius University
  • Acros Pvt plastic
  • laboratoire de chimie bacterienne
  • flinders
  • UNIVERSITÀ DEGLI STUDI DI GENOVA

FAQs About ST10 Spectrocolorimeter

A colorimeter is used to measure absorbance at selected wavelengths with the help of filters, which is suitable for rapid comparison of colors. A more advanced spectrophotometer has a monochromator. It can measure a larger range of the spectrum of light and is more accurate. You can also get detailed color data at visible and non-visible wavelengths.


A calorimeter is used to measure heat that is gained or lost during a chemical or physical reaction. A sample is taken in an insulated container, and a temperature change is measured. This assists in computing the alterations in energy by the equation Q = mcΔT, where Q is heat.


A colorimeter sends light through a solution and measures the amount that is absorbed. It computes the absorbance by comparing the intensity of light before and after passing through. The greater the concentration of the color, the greater is the absorption of the light. It is also possible to quantify the color of the solution.


A Spectrophotometer color measuring device objectively determines the color of a surface. It is used wherever accurate color matching, reproducibility or deviation control is needed – for example in quality assurance, product development or incoming goods inspection.

Spectrophotometer color measuring devices primarily perform three key tasks:

Capture color information: They detect light reflected, transmitted, or emitted by a sample using optical sensors.
Quantify color data: They convert the captured optical signals into standardized numerical values, such as RGB, CMYK, or CIELAB coordinates.
Compare color consistency: They compare the measured color data of a sample against a target or standard to assess color accuracy and uniformity.


To quantify color change, take the original L*a*b* values of a sample, and reread after exposure or processing. Compute the difference as 1/2(Emut1 Emut2). The larger the value of ΔE, the more obvious the change of color is, which can be used in quality or stability testing.
