MS3012 Multi-angle spectrophotometer

Redefine Color Measurement with Multi-Angle Spectrophotometer

The MS3012 Multi-angle Spectrophotometer is a device for color measurement, adopts Industrial-grade MCU with 12 measuring angles, which can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. It is mainly used to measure the color difference of surface paint affected by different viewing angles and conditions.


Key Highlights

  • 7 illumination sources and 12 measurement angles measured by 2 receivers simultaneously

  • 256-image element double-array CMOS image sensor

  • Full spectrum LED light source with blue enhancement

  • Concave grating spectrophotometric

  • Professional-grade white board

  • intuitively display various data such as spectrograms, chromaticity values, and color difference values

  • Wavelength range is 400nm - 400nm

MS3012 Multi-angle spectrophotometer Instructions Operating Manual MS3012 Multi-angle spectrophotometer PDF
This MS3012 Multi-angle spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

The Most Advanced Spectrophotometer Device for Automotive Refinish

Capture and measure actual car colour from more 12 angles than ever before and get instant, accurate paint formula matches in your hands. This powerful instrument is full of technology and cutting edge colour science. It is the first unit in the market with a full definition colour camera, takes and analyses the readings with the highest number of angles.

MS3012 spectrophotometer paint matching machine adopts Industrial-grade MCU with 12 measuring angles, which can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. The smooth operating system and superior performance of the optical system allow the MS3012 multi-angle spectrometer to provide repeatability and reproducibility of Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) measurement.

3nh Multi-angle spectrophotometer MS3012 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can not only measure multi-angle color difference, but also measure and characterize special finishes through 12 measuring angles. Even in the curved surface, it also has high measuring accuracy and stability.

Technical characteristics


Multi-angle measurement

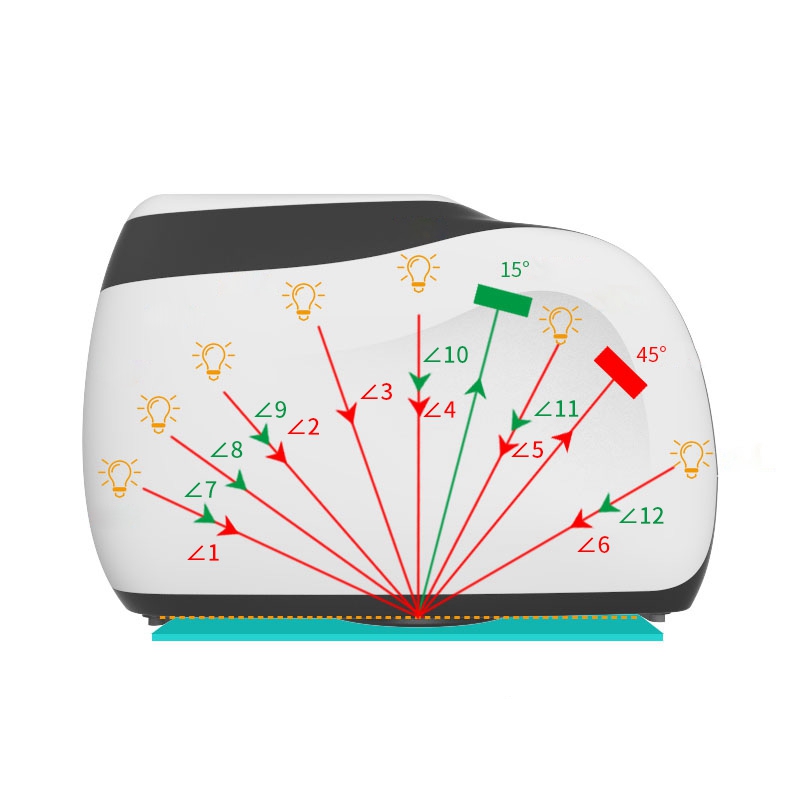

Adopt 7 illumination sources, 2 receivers to measure 12 measurement angles at the same time

Touch_screen_display_all_Angle_measurement results.jpg

More intuitive display

Touch screen can display all Angle measurement results, more intuitive view of the comprehensive data.

Effect measurement discrimination function

Quickly distinguish the sample Sparkle Grade(SG)，Diffuse coarseness(DC) and Color Variation(CV), simple and effective quality inspection.




256 Image Element Double Array CMOS Image Sensor

The higher optical resolution ensures the measuring speed, accuracy, stability and consistency of the instrument. The core technology makes it as the same platform with international standards and complete compatibility.



Adopt Full spectrum LED light source with blue enhancement

The Full spectrum LED light source with blue enhancement ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of LED in a specific band, and ensures the accuracy of instrument measurement results and low cost maintenance.



Concave grating spectrophotometric technology

Using concave grating spectrophotometric technology, with higher resolution, makes color measurement more accurate.




Professional-grade white board

Professional-grade white board, high hardness in the surface, stable optical performance






Higher quality

Industrial grade real-time processing MCU, Bluetooth 5.0 transferring more stable and reliable.


Ergonomics Novel and fashionable appearance design

The instrument appearance design is easy to operate, and the hand holding position and the measurement button are well-designed, which can meet different holding habits, smooth and fine surface, from the high-precision appearance treatment process.


Color camera preview, can clearly observe the measured area


Built-in color camera positioning, can accurately judge the object measured position, and improve the measurement efficiency and accuracy.

 Contact us today to request a free demoof our Multi-Angle 12 Spectrophotometer, or speak to our color experts to customize a solution for your industry.

Speak to Our Color Experts



Multiple color measurement space, multiple observation light sources

Offer CIE LAB,XYZ,Yxy,LCh,β XY,DIN Lab99 color space, And D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83/U30) A variety of light source, which can meet the special measurement demand under different measurement conditions.




Easily analyze data

The screen can intuitively display spectrum/data, sample chromaticity value, color difference value/figure, pass/fail results, color simulation, sample effect value, effect difference value and other data, convenient to view while also greatly improve the user's work efficiency.


Multi-angle spectrophotometers measure the color of automotive paint from multiple angles and obtain corresponding color data, including the tristimulus values of the color (such as L*, a*, b* values), reflectance curves, etc. Recording and analyzing data: After the measurement is completed, the instrument will display the measurement results.

MS3012 Spectrophotometer Demonstrating Videos


This video demonstrates how to use the device for color measurement of various pearl surfaces. Tailored for complex finishes and effect pigments, it’s ideal for automotive coatings, cosmetics, plastics, and special finishes.

How to Use Spectrophotometer MS3012: how to start the instrument, calibration, measure the pearl surfaces, view color measurement results from different angles. By evaluating samples at multiple positions to simulate real-world conditions, paired with advanced angle-specific data software, it ensures reliable, accurate appearance control. For flawless design consistency from any perspective, the MS3012 delivers uncompromising performance.

Contact Experts to Learn More About the MS3012





MS3012 12 Angle Spectrophotometer Technical Parameters


ModelMS3012
Measurement Geometry12 measurement angles (7 illumination sources, 2 receivers)
Measure Angle45° Receiver：
45as-15°,45as15°,45as25°, 45as45°,45as75°,45as110°
15°Receiver：
15as-45°,15as-15°,15as15°,15as-30°,15as45°,15as80°
Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4
SAE J 1545
ApplicationProvide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light SourceFull spectrum LED light source with blue enhancement
Lamp Life5 years, 3 million times measurements
Spectrophotometric ModeConcave Grating
Sensor256 Image Element Double Array CMOS Image Sensor
Wavelength Range400nm-700nm
Wavelength Interval10nm
Measurement Range0~600%
Semiband Width10nm
Measuring ApertureIllumination size Φ23mm / Measuring spot 9X12mm (Customized: Illumination size Φ10mm / Measuring spot 6X8mm)
Color SpaceCIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference FormulaΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1), ΔE*00, DINΔE99,ΔE DIN6175,color difference formulas of multiple car brands
Other Colorimetric IndexFlop Index
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55, D75,F1,F2(CWF),F3,F4,F5, F6,F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30)
DisplaySpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time(not including the effective color measuring time)
RepeatabilitySpectral reflectance: Standard deviation within 0.08%
Chromaticity value: ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
ReproducibilityΔE*<0.10,avg on the gray tile of BCRA tile set
ΔE*<0.25,avg on the color BCRA tile set
Inter-instrument Error0.18ΔE*00(avg on reference Series II BCRA tile set)
Effect ParametersSparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°
15d Diffuse coarseness(DC)
Effect RepeatabilitySparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect ReproducibilitySparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)
(avg on reference Series II BCRA tile set)
Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger modePressure sensing trigger, button trigger, software trigger
Measuring ModeSingle measurement, average measurement (1-99), continuous measurement (1-99)
Locating ModeColor camera preview
DimensionL*W*H=195X83X128mm
WeightAbout 1Kg
Powerlithium-ion battery, 3.7V,5000mAh, Continuous test 6000 times within 8 hours of full charge
Display3.5-inch TFT color LCD, Capacitive Touch Screen
InterfaceUSB, Bluetooth 5.0
Data Storage1000 pcs Standards,4000 pcs Samples
LanguageSimplified Chinese, Traditional Chinese, English
Operating Environment10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment-20℃ to 50℃, humidity does not exceed 85%, no condensation
CalibrationBuilt-in white board parameters, external white board, black light trap, color board
Calibration Interval4 hours,8 hours,24 hours,Startup calibration
Standard accessoriesPower Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional AccessoryMicro-printer
NotesTechnical parameters are for reference only, subject to actual sales products.
