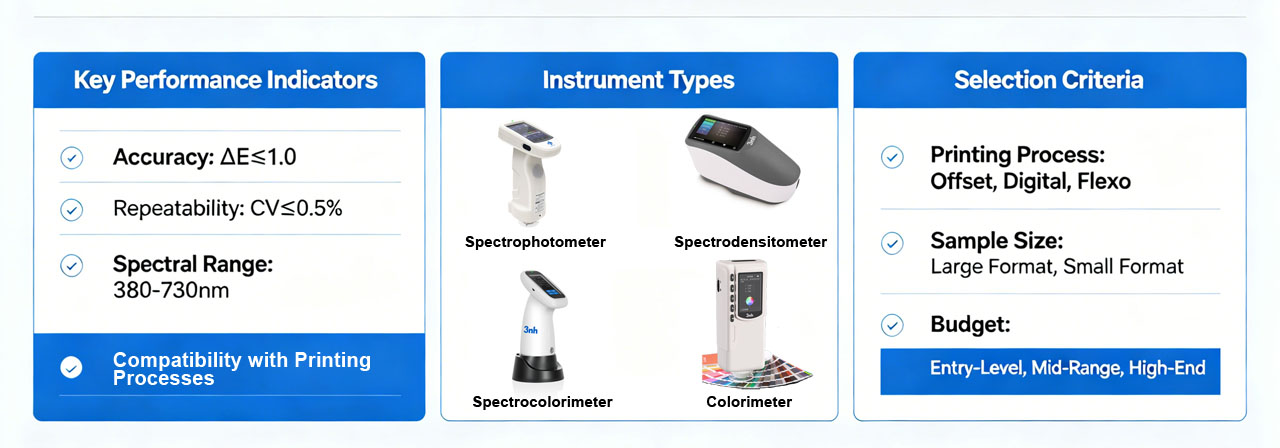

Printing Color Consistency Detection Instruments Selection Guide

In the printing and packaging sector, the bar for business standards begins at color consistency. Whether you operate a commercial print facility, a flexible packaging line, a label manufacturing facility, or a carton production plant, each output must be aligned with the approved color standard. Even the smallest color variations between production batches will trigger rejections from large brands and retailers.

This explains the importance of color measurement along with color management for contemporary printing processes. Instead of visual color checks, professional printers complete color measurements and compare them to the color standard using specialized tools. Effective color management systems track everything from the inspection of incoming substrates and approval of inks to press-side measurement and the final inspection. Once all steps have been integrated to manage measurement data, controlling consistency becomes possible.

The Importance of Selecting the Right Colorimeter for the Printing Industry

Printing can be incredibly complex when it comes to measuring color. Multiple variables can affect the final color including ink, substrate, print speed, humidity, and temperature. Substrates can create different outputs from the same professed ink file, as slight shifts and changes in ink density can yield different results.

This is why general colorimeters just won't cut it. Printing also requires measuring things like ink density, dot gain, print contrast, and trapping. Having the best colorimeter helps operators make more confident decisions.

What to Keep in Mind in Order to Get the Best Colorimeter for the Printing Industry?

Know the Industry's Specific Color Needs

Identifying the demands of your workflow is essential for choosing the right colorimeter. Different commercial offset printers have different needs. Some may be checking finished sheets, while others may have a flexographic packaging press that monitors ink density. Some digital print shops require different capabilities for matching proofs than others.

Printing color standards

The printing industry measures and defines color in the CIE Lab color space and uses ΔE as the main indicator. For ΔE measurements, the printing industry defines

● ΔE ≤ 2.0 means the color is acceptable to the average person and is acceptable for everyday printing (commercial printing)

● ΔE ≤ 1.0 means the color is acceptable to the average person and is required for packaging and labels and is color-brand sensitive

● ΔE ≤ 0.5 means the color is acceptable to the average person and is required for high-end proofing and printing

Beyond ΔE, printing has several other unique measurements. Spectrodensitometers can measure and report the printing industry’s unique measurements, including optical density, dot area, print contrast, and trapping. ISO 12647 and G7 provide standards for how to define and measure print processes to provide accepted tolerances.

Determine Accuracy and Repeatability

For use in a printing press, ΔE repeatability ≤ 0.05 is better. For most printing applications, 45/0° optical geometry is a better tool for measuring color as the human eye sees. For substrates or gloss-sensitive materials, a D/8 integrating sphere is better.

Portability and User Friendliness

When looking for a good measuring tool for the printing press, portable and handheld color measuring tools are usually preferred over more advanced options. In rooms with proofing tools, however, or where the measuring tasks are more complex, portable options are less viable than complex options, which include benchtop devices systems measuring the complete spectral output.

Range and measurement flexibility

● Sheet-fed and packaging print checks — 8mm aperture

● Label printing and tight color patches — small aperture (4mm or <)

● Offset and flexo press monitoring — density measurement mode

● For transparent films and flexible packaging substrates — transmission mode

Checking the software and data management capabilities

Top-notch software allows you to store accepted standards, create job-related pass/fail tolerances, record readings during a press run, and create QC reports. For packaging printers, the ability to import spectral data and  ΔE reports in a specific format has become a direct requirement from the customer.

The need for calibration, maintenance, and checking

Most spectrodensitometer devices take almost a minute or less to calibrate to a white tile. Look for workshop robust tiles and automatic calibration reminders. The floor of the press is often dirty - ink, dust and paper fibres - and the instrument must tolerate daily use and still maintain precision.

The cost, warranty, and customer service policies for after-sale purchases.

Portable colorimeters cost $800 to $2000. Spectrodensitometers midrange models cost $3000 to $8000, and in the case of proofing instruments, high-end models cost $3000 and above. Be sure to check the warranty, and for them, firmware updates, and if there is local tech support.

Color Standards & Measurement for Printing Industry

Color measurement in printing ensures consistent, accurate color reproduction across presses, materials, and regions—based on CIE colorimetry, ISO standards, and process control metrics. Below is a complete framework of core standards, measurement methods, key metrics, and industry practices.

Core Color Standards (Global & Regional)

These define target colors, measurement conditions, and tolerances for print production:

1. CIE (International Commission on Illumination) Foundation

• *CIE Lab (Lab)**: The universal device-independent color space for print.

• L*: Lightness (0=black, 100=white)

• a*: Red-green axis (+a=red, -a=green)

• b*: Blue-yellow axis (+b=yellow, -b=blue)

• ΔE (Delta E): Total color difference between measured and target color: ΔE = √(ΔL²+Δa²+Δb²). Lower = better match.

• ΔE ≤1.5: Visually imperceptible (high-end packaging/brand)

• ΔE ≤2.0: Acceptable for commercial print

• ΔE ≤3.0: General commercial tolerance

• Standard Observer & Light Source: CIE 2° standard observer; D50 (5000K, neutral white)is mandatory for print measurement (ISO 13655).

2. ISO Standards (Global Print Process Control)

• ISO 13655:2017: Defines spectral measurement, colorimetric computation, instrument setup, and data reporting for graphic arts—the foundational measurement standard.

• ISO 12647 Series: Process control for halftone separations, proofs, and production prints:

• Part 2: Sheet-fed offset (CMYK target densities, gray balance, ΔE tolerances)

• Part 3: Web offset

• Part 4: Gravure

• Part 5: Screen printing

• Part 6: Digital printing

• ISO 2846: Standard for process ink color (C/M/Y/K) and transparency, defining target Lab values for inks.

• ISO 15311: Print quality metrics and measurement reporting schemaISO.

3. Regional/Industry Standards

• Fogra (Europe): Fogra Media Wedge, Fogra 39/47/51—offset/digital print standards, widely used in EU.

• GRACoL (US): General Requirements for Applications in Commercial Offset Lithography (GRACoL 2013), SWOP (Specifications for Web Offset Publications) for US web offset.

• Japan Color: Japanese standard for sheet-fed offset, aligned with ISO 12647.

• Pantone Matching System (PMS): Global spot-color standard for brand/designer colors, with Lab/CMYK references.

3nh Color Measurement Devices for the Printing Industry.

3nh manufactures and distributes economical and efficient devices for different stages of the refining process. The YD5050 Plus spectrodensitometer is multifunctional and includes performance monitoring, measurement of direct density, dot area, print contrast, trapping, and color measurement.

The YD5050 Plus measurement devices for printing and The YD5010 Plus is a good option for functionality that is both fixed and movable, since it can be used for removable press checks and measuring color variances of flat and printed paper. The PS2040 printing spectrocolorimeter is a good choice for printing, because it can be used to measure color and print density to assist in color matching during printing, and to help match the color of digitally printed papers during the process of digital printing.

The TS7700 grating spectrophotometer is awesome for proofing because it has a very impressive repeatability (ΔEab ≤ 0.02). This is a great tool for the proofing section of the print shop. For colorimeter testing, the NH310 portable colorimeter is a good option. This is a great colorimeter for colorimeter testing in the print shop.

Conclusion

The right choice of printing tool comes down to the device to the process. In the high-end proofing and brand-critical segment, a precise spectrophotometer with a tight repeatability range yields the accuracy to meet the prevailing international print standards.

You can be confident about the color quality for the entire job if you have the right tools for the job.

FAQs

What are the best tools to measure color for printing?

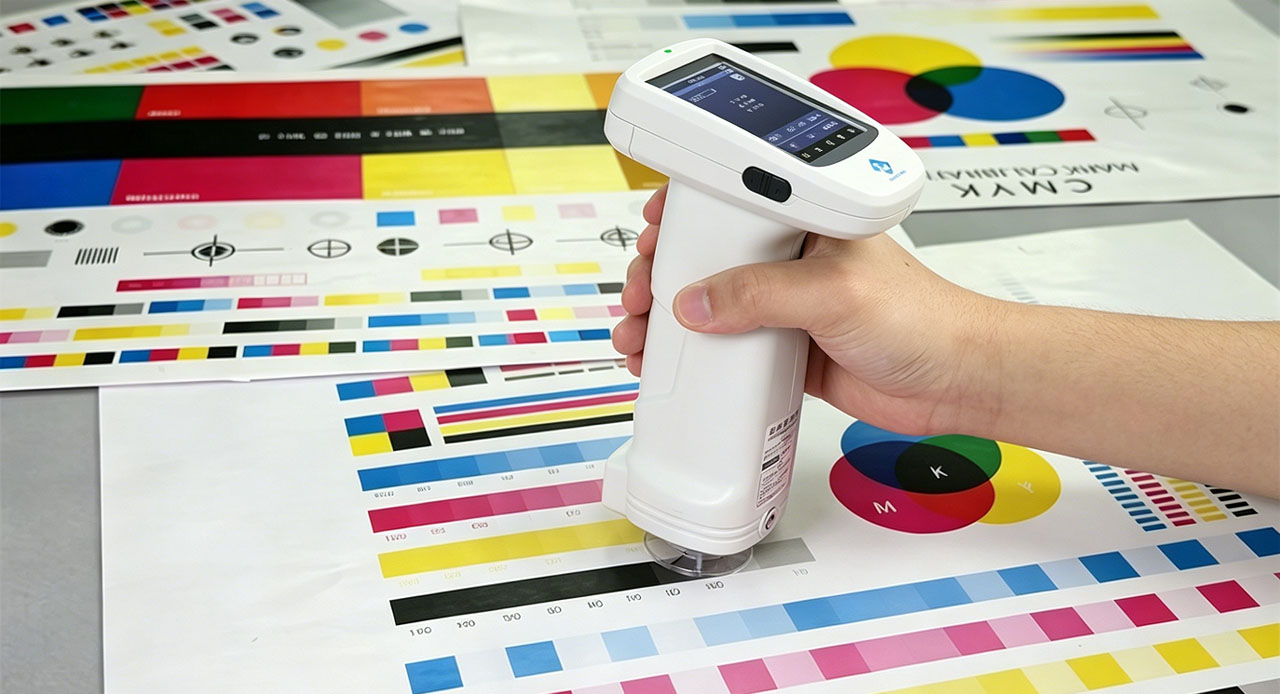

The best option for use at the press is a spectrodensitometer since it combines measurement of both the color of the ink, and the measurement of the ink density.

What ΔE value is acceptable in printing?

For commercial printing, it is acceptable if ΔE is less than 2.0. For packaging and branding jobs, it is acceptable at less than 1.0. For high-end proofing jobs, it is acceptable at less than 0.5.

What is the difference for printing between a colorimeter and a spectrodensitometer?

The colorimeter only measures color. The spectrodensitometer measures the density of the ink, the area of the dots, and print contrast. Therefore, it is more suitable for process control at the press.

Which 3nh instrument is recommended for use at the press?

The YD5050 Plus and YD5010 Plus spectrodensitometers are recommended for use at the press since they integrate density and color measurement in a single portable instrument.

How often should a printing colorimeter be calibrated?

For each job to be printed or once a day at the start of each shift is the best practice to ensure the measurements are accurate for the entire run of printing.
