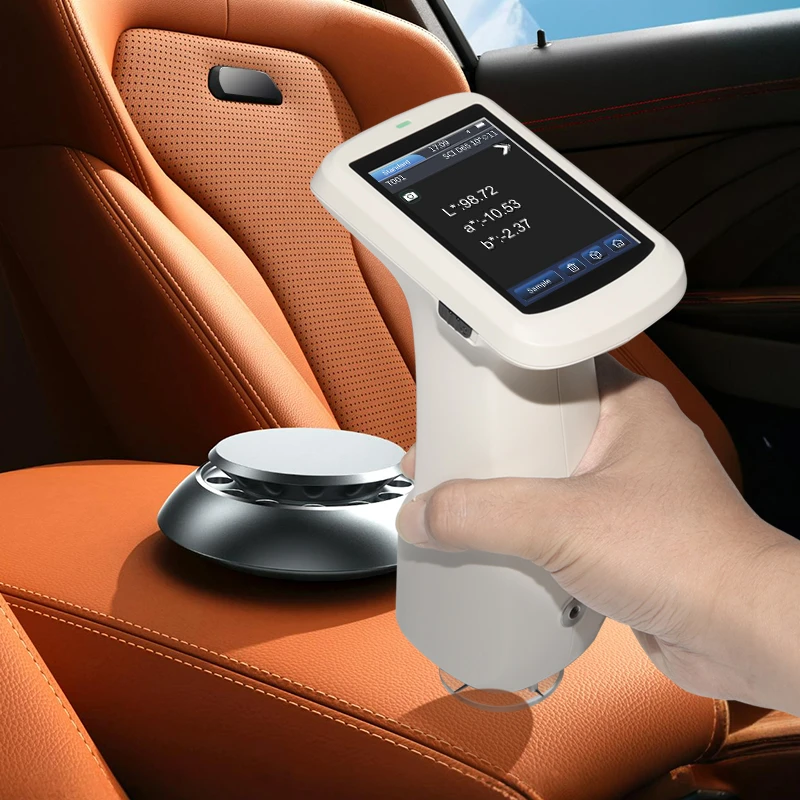

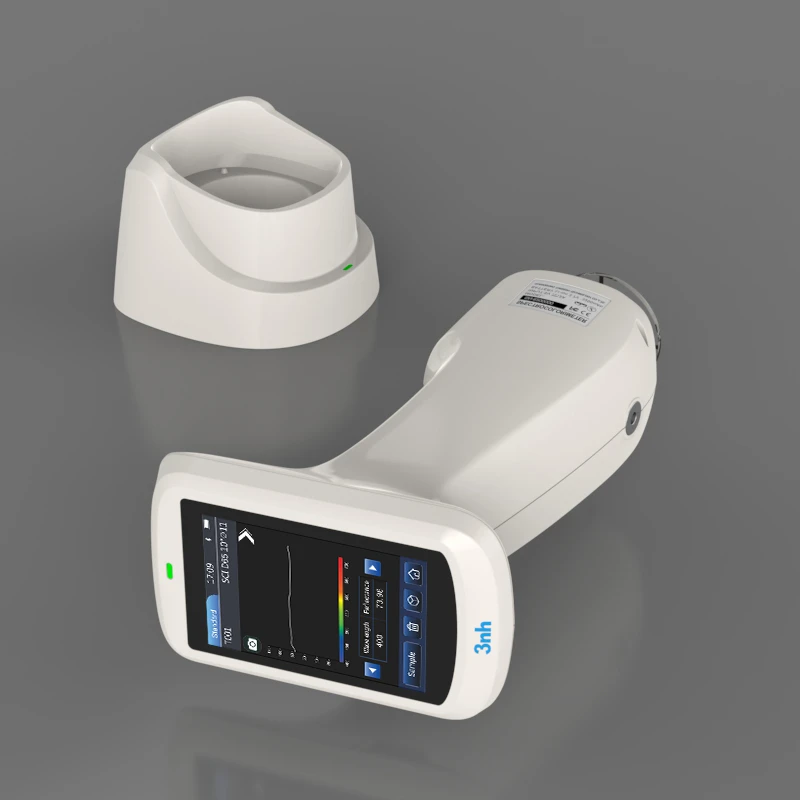

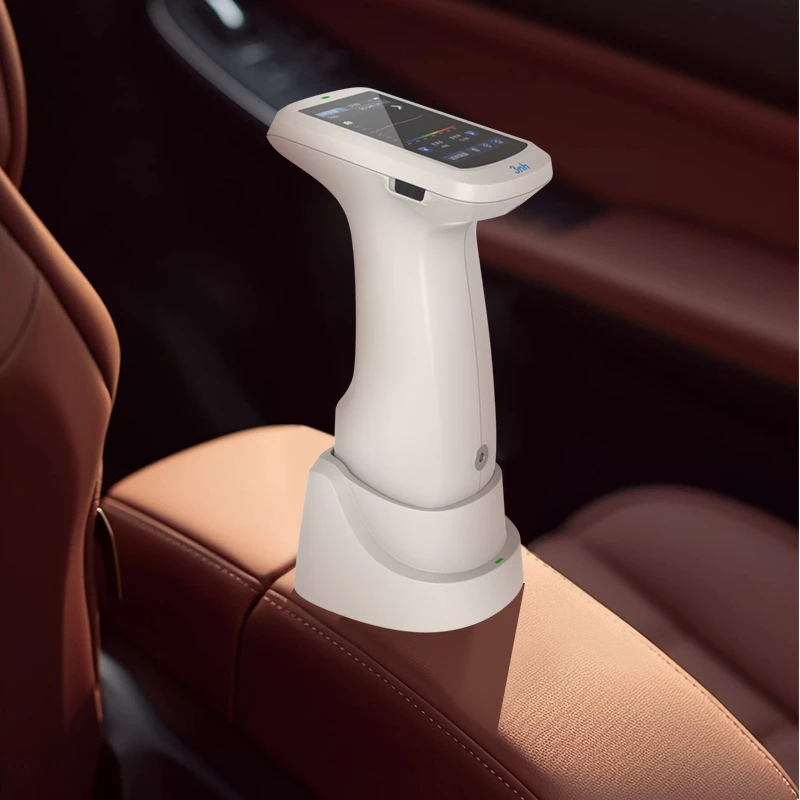

KS-510 Spectrophotometer

KS-510 Spectrophotometer Instructions Operating Manual KS-510 Spectrophotometer PDF
This KS-510 Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Designed to meet the dual demands of high precision and full aperture coverage. It delivers repeatability of ΔEab ≤ 0.025 and inter-instrument agreement of ΔEab ≤ 0.3, powered by dual silicon photodiode arrays and a full-spectrum LED light source for efficient and accurate optical performance. Equipped with 8 measurement apertures (3 mm/5 mm/10 mm/11 mm flat tip + pointed tip), it covers full-scene samples of conventional sizes. With Class-I metrological certification and non-contact automatic calibration, it supports multi-system collaboration and storage of up to 15,000 sample records, making it ideal for industrial applications requiring both high precision and broad adaptability.

High Precision & Full-Scene Adaptability

1.High-Precision Performance with Accurate and Stable Data

Repeatability ΔEab ≤ 0.025 and inter-instrument agreement ΔEab ≤ 0.3 ensure consistent color across production batches.

The dual-beam optical system monitors light source energy fluctuations to effectively reduce measurement interference, further enhancing stability and repeatability.

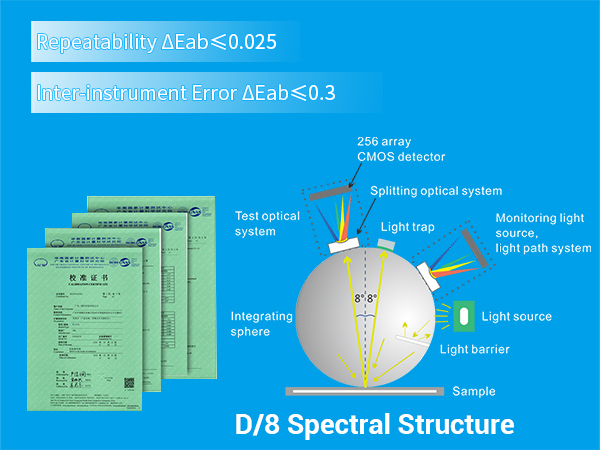

2.Industry-Standard D/8 Geometry with SCI/SCE Technology

Adopts D/8 illumination and viewing geometry with SCI/SCE technology, meeting color management requirements in industries such as coatings, textiles, and plastics, and complying with international standards including CIE, ISO, and ASTM.

3.Accredited Metrological Certification

Certified as Class-I metrological grade. Each instrument undergoes rigorous verification before shipment, with measurement data traceable to the national metrology institute, ensuring the authority of test results.

一、High Precision & Full-Scene Adaptability.jpg

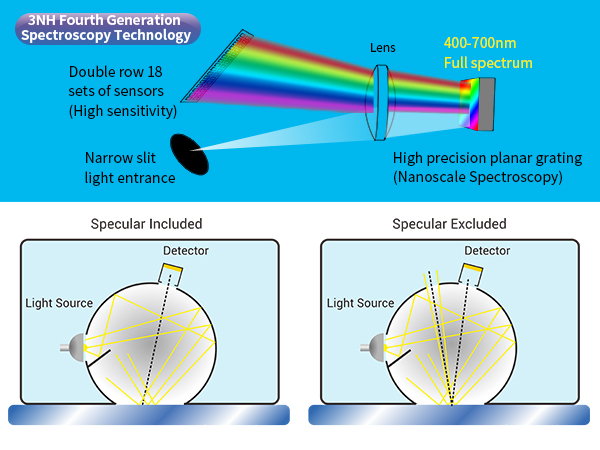

Robust Hardware

1.Core Optical Components

Silicon photodiode array

Features a dual-row 18-group silicon photodiode array. The large-area design ensures no saturation under strong light while maintaining high sensitivity under weak light. The spectral response covers 400-700 nm at 10 nm intervals, with a reflectance measurement range of 0-200%, accurately capturing visible light information.

Nanoscale Integrated Spectroscopic Device

Delivers nanoscale spectroscopic resolution, precisely separating light at different wavelengths to ensure high data accuracy across all spectral bands.

Full-Band Balanced LED Light Source

The illumination source covers the full 400-700 nm spectrum, providing sufficient spectral distribution across the visible range to avoid gaps common in standard white LED sources, ensuring measurement accuracy.

2.Advanced Hardware Architecture

Optical resolution of less than 10 nm in the visible range. Supports simultaneous measurement of SCI (specular component included) and SCE (specular component excluded) spectra, balancing speed, accuracy, and stability.

二、Robust Hardware.jpg

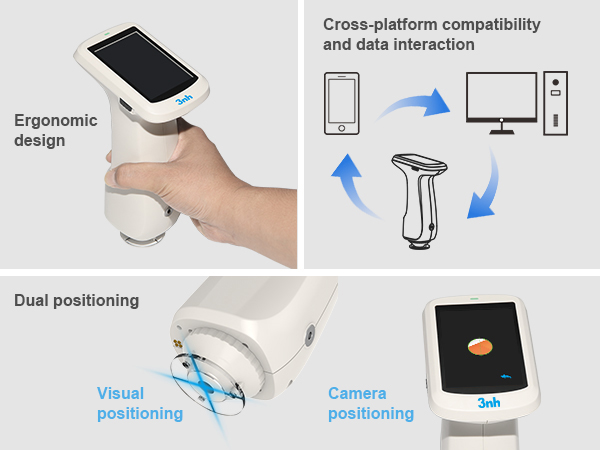

Portable Operation

1.Ergonomic Design and Easy Measurement

Ergonomically designed housing with a large touchscreen, optimized grip, and well-placed measurement button to accommodate different user preferences.

2.Stabilizer Plate + Camera Framing Positioning for Clear View of Measurement Area

The dual positioning system uses a stabilizer plate along with real-time camera framing to accurately determine whether the target area is centered, ensuring precise positioning and reducing measurement errors.

3.Non-Contact Automatic White Calibration

Supports non-contact automatic white calibration. The professional-grade white calibration plate features reflectance R% ≥ 95%, excellent surface uniformity, and high stability, delivering repeatable and accurate data.

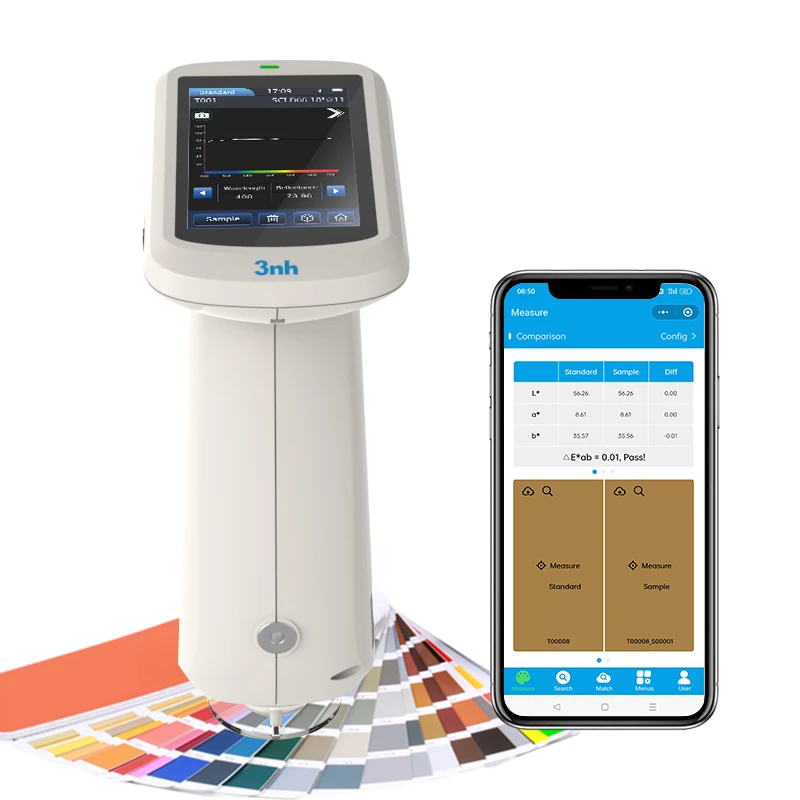

4.Multi-Platform Compatibility and Data Connectivity

Compatible with multiple operating systems including Android, iOS, Windows, and HarmonyOS. Users can operate the instrument via mobile app, WeChat mini-program, or computer, enabling cross-device data synchronization.

5.Simple Operation

The instrument features a clean and intuitive user interface, requiring no complex training. Even beginners can quickly get started, improving on-site work efficiency.

三、Portable Operation.jpg


Wide Measurement Range

1.Adaptability to Various Sample Forms

Equipped with 8 measurement apertures: 3 mm flat tip, 3 mm pointed tip, 5 mm flat tip, 5 mm pointed tip, 10 mm flat tip, 10 mm pointed tip, 11 mm flat tip, and 11 mm pointed tip, supporting measurement of flat surfaces, curved surfaces, textured surfaces, and different sample geometries.

2.Multiple Color Spaces & Observation Light Sources

Supports a wide range of color spaces including CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, and DIN Lab99, as well as numerous observation light sources such as D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30), U35, NBF, ID50, and ID65. This enables specialized measurement requirements under various conditions.

3.Industry Applications

Switchable measurement modes flexibly meet the diverse needs of industries such as plastics and electronics, paints and inks, textiles and garment dyeing, printing, and ceramics.

四、Wide Measurement Range.jpg

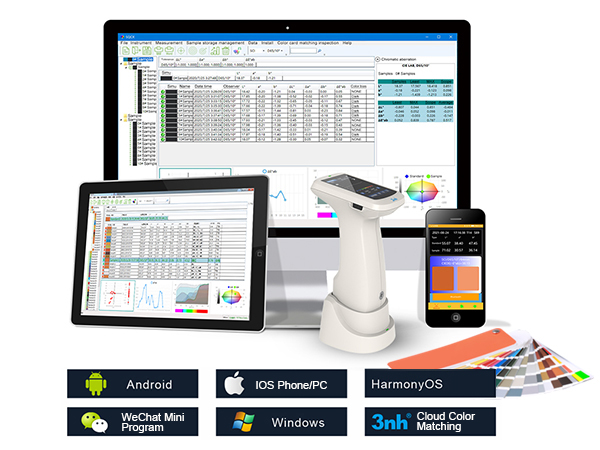

Strong Expansion Capabilities

1.Cloud Storage and Collaborative Management

Supports synchronized storage of massive color data via the mobile app and WeChat mini-program (up to 500 standard samples and 15,000 test samples), enabling a private cloud database. Eliminates the need to carry physical color cards, allowing seamless sharing with partners anytime, anywhere.

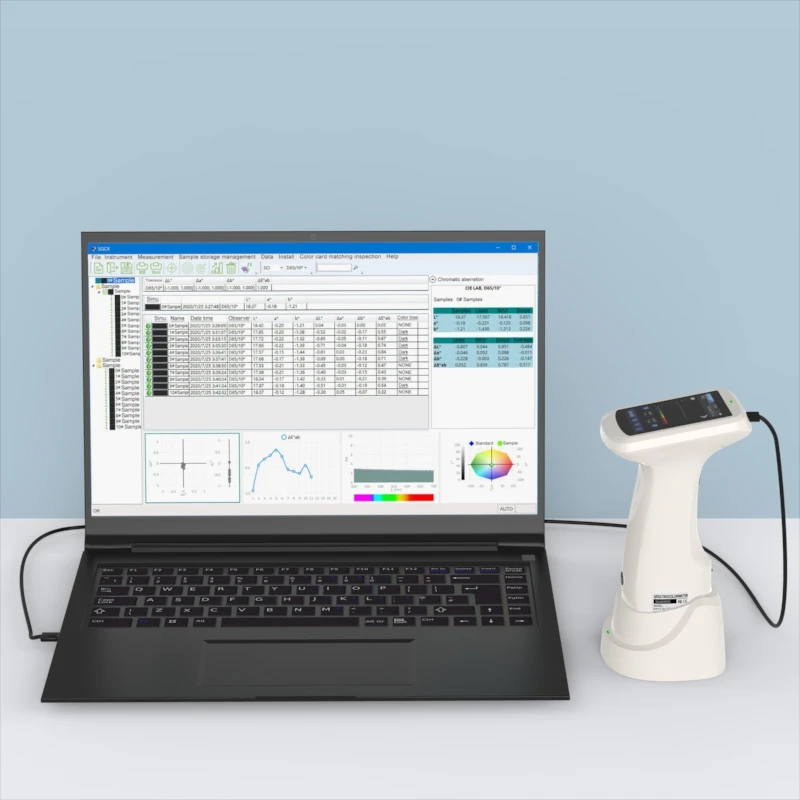

2.Color Management Software

Comes with quality management software compatible with multiple platforms including Android, iOS, Windows, WeChat mini-program, and HarmonyOS, as well as a color matching cloud platform. The software enables test report generation, color difference comparison, and customizable color management workflows, meeting industrial-level quality control requirements.

五、Strong Expansion Capabilities.jpg


Model KS-510 Spectrophotometer
Illumination/Viewing Geometry D/8 (Diffuse illumination, 8° viewing), SCI/SCE (Specular Component Included/Excluded). Compliant with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7.
Features Utilizes a dual-path silicon photodiode array. Ideal for color difference quality control in industries such as plastics, electronics, paints and inks, textile dyeing and printing, printing, and ceramics.
Light Source Combined Full-Spectrum LED Light Source, UV Light Source
Integrating Sphere Size Φ40mm
Spectral Device Nano-integrated spectral device
Sensor Silicon photodiode array (dual-row, 18 groups)
Wavelength Range 400-700nm
Wavelength Interval 10nm
Measurement Aperture 8 Apertures::3mm platform+3mm pointed tip+5mm platform +5mm pointed tip+10mm platform+10mm pointed tip+11mm platform+11mm pointed tip
Specular Mode Simultaneous measurement
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,DINΔE99,ΔE(Hunter)
Other Color Indices Spectral Reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), Metamerism Index MI, Staining Fastness, Shade Change Fastness, Strength, Opacity, 555 Shade Classification, Munsell (C/2), Blackness (My, dM), Color Density CMYK, Tint (Some functions realized via PC software)
Observer Angle 2°/10°
Calibrated Illuminants D65,A,B,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50,ID65 ,LED-B1,LED-B2,LED-B3, LED-B4,LED-B5,LED-BH1,LED-RGB1, LED-V1,LED-V2 (Partially realized via PC software)
Display Data Spectral graph/data, sample color values, color difference values/graph, pass/fail results, color simulation, color bias
Measurement Time Approx. 1 second
Repeatability Chromaticity Value: Within ΔE*ab 0.025 (Standard deviation) for MAV/SCI (after warm-up and calibration, average of 30 readings of white board at 5s intervals).
Spectral Reflectance: Within 0.1% standard deviation for MAV/SCI (within 0.2% for 400-700nm).
Inter-Instrument Error Within ΔE*ab 0.3 for MAV/SCI (average of 12 BCRA Series II color tiles).
Displayed Accuracy 0.01
Reflectance Range 0-200%
Reflectance Resolution 0.01%
Measurement Mode Single measurement, average measurement (2-99 times).
Targeting Stabilizer plate positioning + Camera framing.
White Calibration Contact-type white calibration.
Dimensions 120*75*207mm
Weight 367g(without calibration base)
Battery Lithium-ion battery, 3.7V, 3200mAh, supports 8000 measurements within 8 hours.
Light Source Life Over 1.2 million measurements for 10 years.
Display TFT true color 3.5-inch capacitive touch screen.
Interface USB,Bluetooth
Data Storage 500 standards, 15,000 samples (SCI/SCE data included in one record). Mass storage via APP/PC.
Software Support Android, iOS, Windows, WeChat Mini-Program, HarmonyOS.
Languages Simplified Chinese, English, Traditional Chinese
Operating Environment Temperature: 0~40℃, Humidity: 0~85% RH (non-condensing), Altitude: below 2000m.
Storage Environment Temperature: -20~50℃, Humidity: 0~85% RH (non-condensing).
Accuracy Guarantee Ensured first-grade metrology certification
Standard Accessories Power adapter, data cable, user manual, quality management software (download from official website), white calibration box, protective cover, wrist strap, measurement apertures.
Optional Accessories Micro-printer, powder test box.
Note Specifications are subject to change without prior notice.


Our Valued Clients

  • toronto
  • Lubrizol
  • UPORTO
  • UNIVERSITÀ DEGLI STUDI DI GENOVA
  • YONSEI UNIVERSITY
  • laboratoire de chimie bacterienne
  • infieon
  • university mississippi

FAQs About  Spectrocolorimeter

The LAB color space defines colors in a three-dimensional model: Lightness (L), red–green axis (a), and blue–yellow axis (b). It's a globally recognized standard supported by most modern color measuring devices. CIELAB is a standardized, device-independent system designed to map all visible colors that the human eye can perceive.

The LAB color space uses three values to define any color, each representing a specific dimension:


L (Lightness): Ranges from 0 to 100. It measures the brightness of the color, where 0 is pure black and 100 is pure white.
A (Red-Green Axis): Ranges from approximately -128 to +127. Positive values represent red tones, while negative values represent green tones.
B (Yellow-Blue Axis): Ranges from approximately -128 to +127. Positive values represent yellow tones, while negative values represent blue tones.


The various colors can be measured by the way a surface reflects, absorbs, or transmits light at different wavelengths. These responses may be measured using instruments such as colorimeters or spectrophotometers to give numeric values in a standardized color space such as L *a*b*.


Colorimeters have fixed wavelength filters and LEDs; it is less precise and simpler. Monochromators are applied to spectrophotometers, which scan a spectrum of wavelengths. Giving more detailed spectral information. Spectrophotometers are more sensitive and flexible in complicated analyses.


A colorimeter is a quick and inexpensive method to measure color and to control color in a material or solution. It is used to maintain color consistency during production and to check the chemical concentration. It also assists with the quality control of labs, food, textiles, and pharmaceuticals.


Record the L*a*b values of the sample and the reference with a calibrated spectrophotometer or colorimeter. Compute the difference in the color by use of ΔE. The lower the Delta E, the more accurate the result. The difference in energy, ΔE < 1, is generally assumed to be invisible to the eye.
