MS3006 Multi-angle spectrophotometer

Compact, Fast and Easy to Handle

The MS3006 Multi-angle Spectrophotometer is a high-precision device used for color measurement and analysis device for color measurement, adopts Industrial-grade MCU with  6 measuring angles, which can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. It is mainly used to measure the color difference of surface paint affected by different viewing angles and conditions.


Key Highlights

  • 6 measurement angles

  • 256-image element double-array CMOS image sensor

  • 3.5-inch LCD Capacitive Touch Screen, easy operate and overview of the functionalities

  • Full spectrum LED light source

  • Excellent agreement between instruments ΔE*<0.10

  • Φ12mm Measuring Aperture

  • Accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished surface

MS3006 Multi-angle spectrophotometer Instructions Operating Manual MS3006 Multi-angle spectrophotometer PDF
This MS3006 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Delivers Faster, More Accurate Results than Any Color-matching System on The Market

MS3006 has a compact design, is easy to handle and quick to get to the right colour. MS3006 Multi-angle spectrophotometer adopts Industrial-grade MCU with 6 measuring angles, which can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. The smooth operating system and superior performance of the optical system allow the MS3006 multi-angle spectrometer to provide repeatability and reproducibility of Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) measurement.

3nh Multi-angle spectrophotometer MS3006 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can not only measure multi-angle color difference, but also measure and characterize special finishes through 6 measuring angles. Even in the curved surface, it also has high measuring accuracy and stability.

MS3006 Technical characteristics


Multi-angle measurement

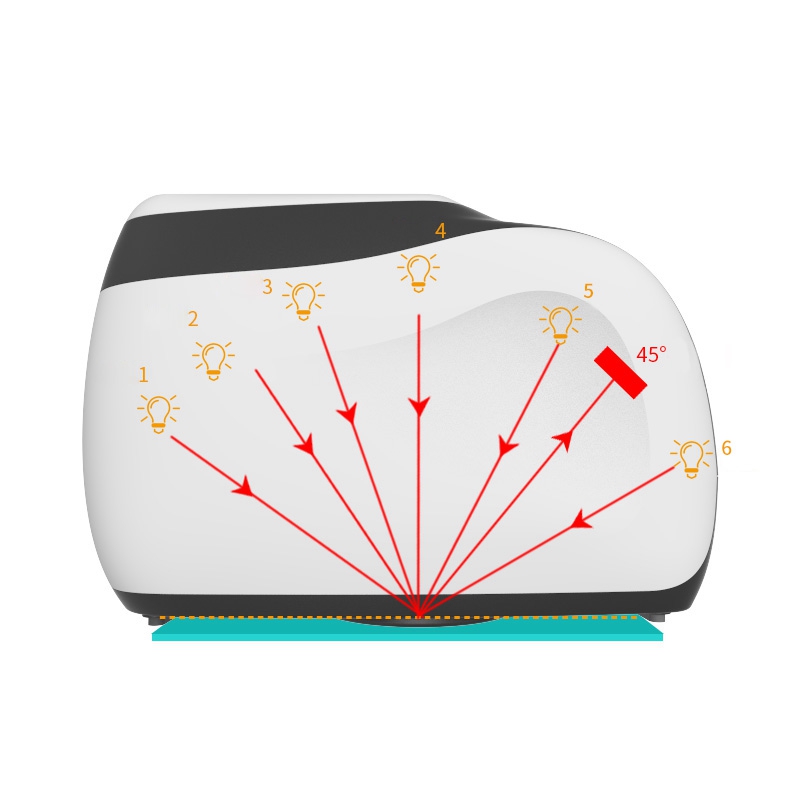

Adopt 6 illumination sources, 1 receivers to measure 6 measurement angles at the same time

MS3006_large_display1.jpgMore intuitive display

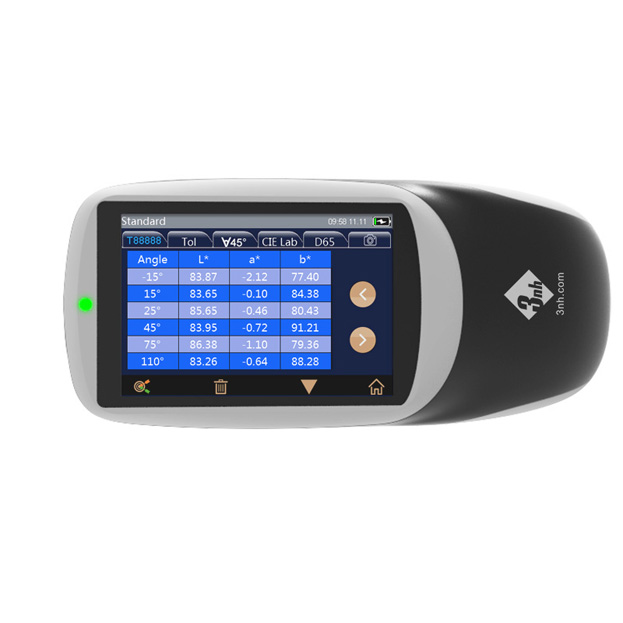

Touch screen can display all Angle measurement results, more intuitive view of the comprehensive data.

Effect measurement discrimination function

Quickly distinguish the sample Sparkle Grade(SG)，Diffuse coarseness(DC) and Color Variation(CV), simple and effective quality inspection.




256 Image Element Double Array CMOS Image Sensor

The higher optical resolution ensures the measuring speed, accuracy, stability and consistency of the instrument. The core technology makes it as the same platform with international standards and complete compatibility.



Adopt Full spectrum LED light source with blue enhancement

The Full spectrum LED light source with blue enhancement ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of LED in a specific band, and ensures the accuracy of instrument measurement results and low cost maintenance.



Concave grating spectrophotometric technology

Using concave grating spectrophotometric technology, with higher resolution, makes color measurement more accurate.




Professional-grade white board

Professional-grade white board, high hardness in the surface, stable optical performance






Higher quality

Industrial grade real-time processing MCU, Bluetooth 5.0 transferring more stable and reliable.


Ergonomics Novel and fashionable appearance design

Compact, rugged and reliable color measurement instrument, MS3006 appearance design is easy to operate, and the hand holding position and the measurement button are well-designed, which can meet different holding habits, smooth and fine surface, from the high-precision appearance treatment process.


Color camera preview, can clearly observe the measured area

Built-in color camera positioning, can accurately judge the object measured position, and improve the measurement efficiency and accuracy.




Multiple color measurement space, multiple observation light sources

Offer CIE LAB,XYZ,Yxy,LCh,β XY,DIN Lab99 color space, And D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83/U30) A variety of light source, which can meet the special measurement demand under different measurement conditions.




Easily analyze data

The screen can intuitively display spectrum/data, sample chromaticity value, color difference value/figure, pass/fail results, color simulation, sample effect value, effect difference value and other data, convenient to view while also greatly improve the user's work efficiency.

Its proven 6-angled measurement technique and smaller aperture, allows for faster more accurate readings of metallic, sparkle, pearl and effect colours, even on curved and hard-to-reach places!

MS3006 Spectrophotometer Demonstrating Videos


This video shows how to use the MS3006 device for measure the color of pearl colored samples.

Operation guides: how to start the instrument, Check black and white correction before use，calibration, measurement procedures for different sample types, Press the measurement button to start the test，the measurement is complete, compare the data of color values at 6 angles，how to switch between different color spaces and light sources.

Contact Experts to Learn More About the MS3006


MS3006 6 Angle Spectrophotometer Technical parameters



Model

MS3006
Measurement Geometry6 measurement angles (6 illumination sources, 1 receivers)
Measure Angle45° Receiver：
45as-15°,45as15°,45as25°, 45as45°,45as75°,45as110°
Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545
ApplicationProvide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light SourceFull spectrum LED light source with blue enhancement
Lamp Life5 years, 3 million times measurements
Spectrophotometric ModeConcave Grating
Sensor256 Image Element Double Array CMOS Image Sensor
Wavelength Range400nm-700nm
Wavelength IntervalIllumination size Φ23mm / Measuring spot 9X12mm (Customized: Illumination size Φ10mm / Measuring spot 6X8mm)
Measurement Range0~600%
Semiband Width10nm
Measuring ApertureΦ12mm
Color SpaceCIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference FormulaΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1), ΔE*00, DINΔE99,ΔE DIN6175,color difference formulas of multiple car brands
Other Colorimetric IndexFlop Index
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30)
DisplaySpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time(not including the effective color measuring time)
RepeatabilitySpectral reflectance: Standard deviation within 0.08%
Chromaticity value: ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
ReproducibilityΔE*<0.10,avg on the gray tile of BCRA tile set
ΔE*<0.25,avg on the color BCRA tile set
Inter-instrument Error0.2ΔE*00(avg on reference Series II BCRA tile set)
Effect ParametersSparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°
15d Diffuse coarseness(DC)
Effect RepeatabilitySparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect ReproducibilitySparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)
(avg on reference Series II BCRA tile set)
Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger modePressure sensing trigger, button trigger, software trigger
Measuring ModeSingle measurement, average measurement (1-99), continuous measurement (1-99)
Locating ModeColor camera preview
DimensionL*W*H=195X83X128mm
WeightAbout 1Kg
Powerlithium-ion battery, 3.7V,5000mAh, Continuous test 6000 times within 8 hours of full charge
Display3.5-inch TFT color LCD, Capacitive Touch Screen
InterfaceUSB, Bluetooth 5.0
Data Storage1000 pcs Standards,4000 pcs Samples
LanguageSimplified Chinese, Traditional Chinese, English
Operating Environment10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment-20℃ to 50℃, humidity does not exceed 85%, no condensation
CalibrationBuilt-in white board parameters, external white board, black light trap, color board
Calibration Interval4 hours,8 hours,24 hours,Startup calibration
Standard accessoriesPower Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional AccessoryMicro-printer
NotesTechnical parameters are for reference only, subject to actual sales products.
