Benchtop Spectrophotometer YS6060-3NH

Home>Main Instruments>Spectrophotometer>Benchtop Spectrophotometers

Benchtop Spectrophotometer YS6060

Advanced Benchtop Grating Colorimeter Photometer

YS6060 is a benchtop grating spectrocolorimeter which is developed by 3nh independently with independent intellectual property, used in many industries for the accurate and traceable measurement of colour. With very stable and precise color measurement, large storage and powerful PC software all makes YS6060 ideal for color analysis within R&D and laboratory environments.

Key Highlights

Double Array CMOS Image Sensor
7 inches TFT Color Capacitive Touch-screen Display
With reflective and transmissive spectrum, accurate Lab value
Automatic caliber recognition, Φ25.4/15/8/4mm caliber switch freely
Automatic temperature and humidity compensation function, make the measurement data more accurate
Excellent inter-station consistency dE*ab<0.12, Ultra-high repeatability accuracy: dE*ab < 0.01
Multiple measurement modes, A variety of optional accessories
Color management software

Benchtop Spectrophotometer YS6060 Instructions Operating Manual Benchtop Spectrophotometer YS6060 PDF

This YS6060 Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

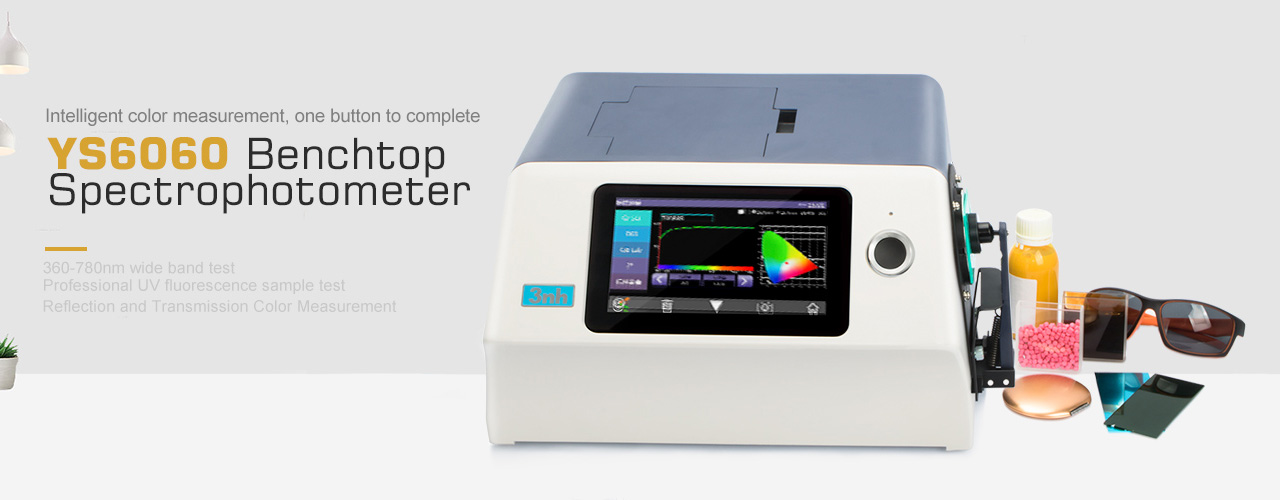

Advanced Benchtop Grating Colorimeter Photometer YS6060 for Perfect Color measurement

YS6060 Sphere Benchtop Introduction

YS6060 color spectrometer is a high-tech device analyzing light’s spectral composition to measure color accurately, uses the latest technology for precise, reliable color measurements. Using diffraction gratings or prisms, it splits light into wavelengths, enabling precise quantification of color parameters like hue, saturation, and brightness. Ideal for ensuring color consistency across materials—from plastic molding to cosmetic pigments—by translating visual color into measurable data.

YS6060 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent intellectual property. YS6060 has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry(including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes YS6060 ideal for color analysis within R&D and laboratory environments.

YS6060 Benchtop Grating Spectrophotometer

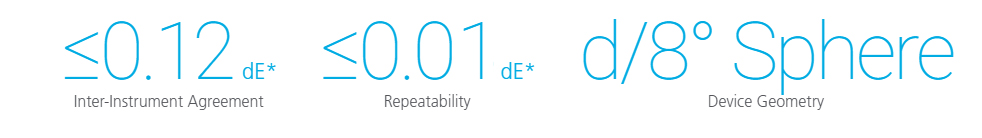

YS6060 Color accuracy and Imaging Device Geometry

YS6060 Typical Specifications

High configuration of hardware

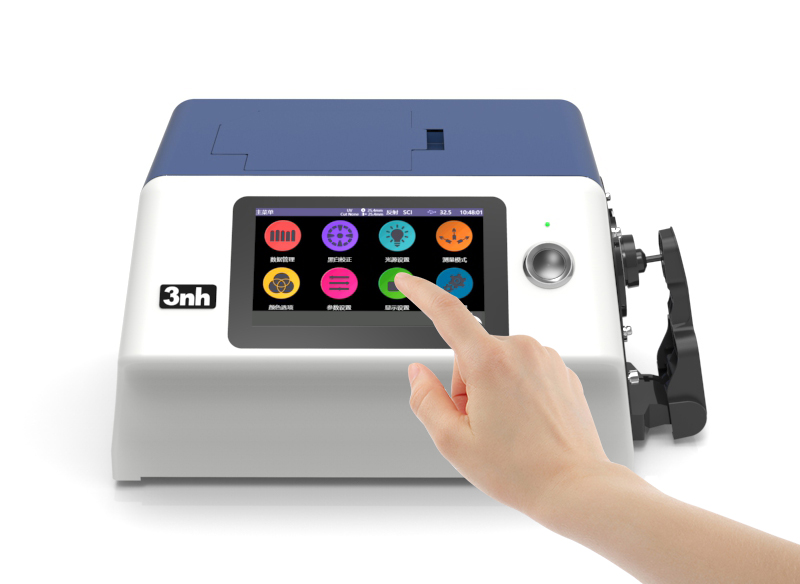

7 inches TFT Color Capacitive Touch-screen Display; Bluetooth 2.1; Concave Grating.

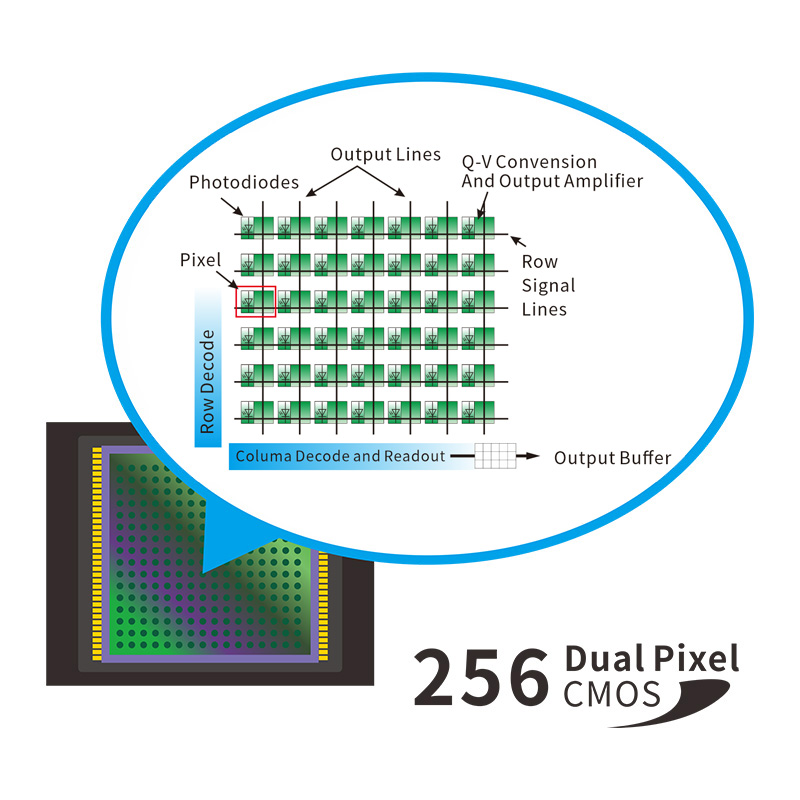

CMOS Image Sensor

Double Array 256 Image Element CMOS Sensor; Long life-span stable LED, UV LED.

Versatile Control for Opaque, Transparent and Translucent Samples

With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission.

Explore Custom Engineering

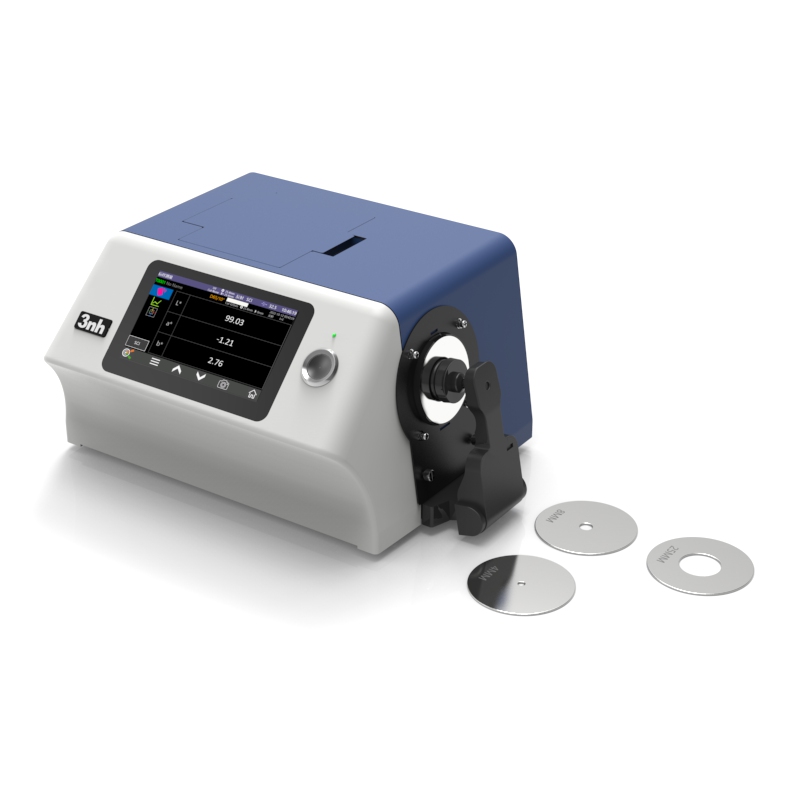

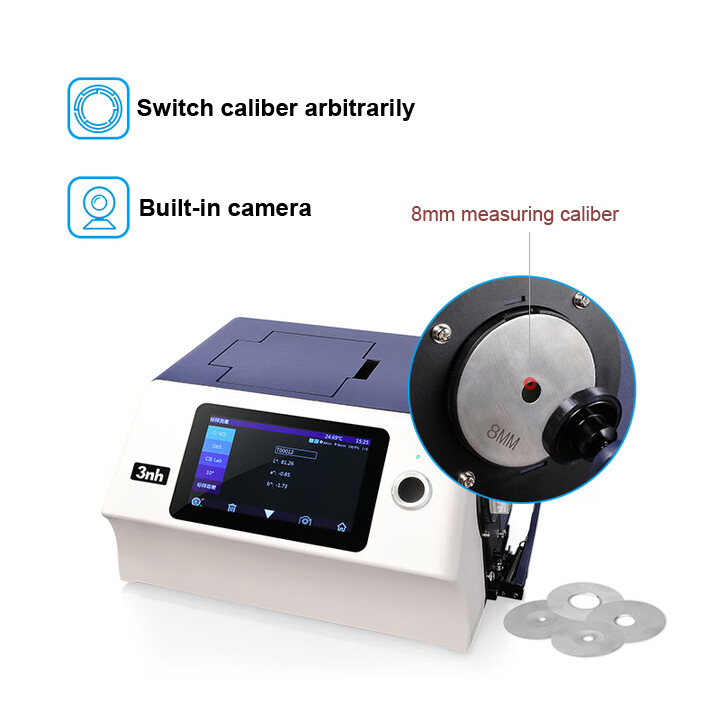

Auto identify measuring aperture

Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures.

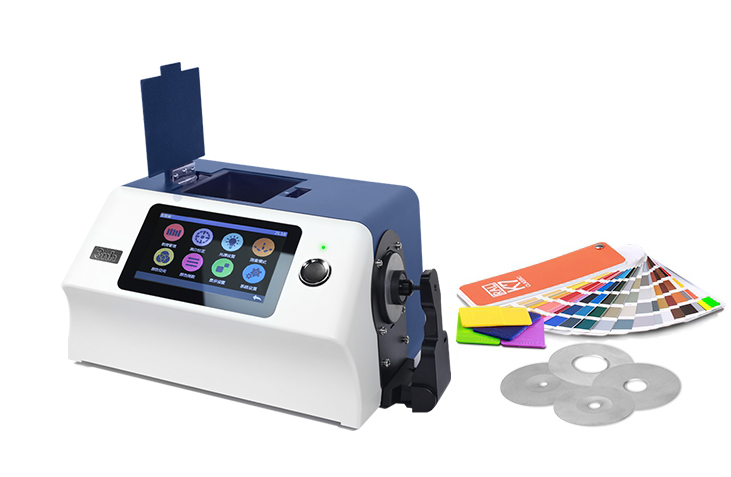

Freely switchable between 4 measuring apertures precise color measurement

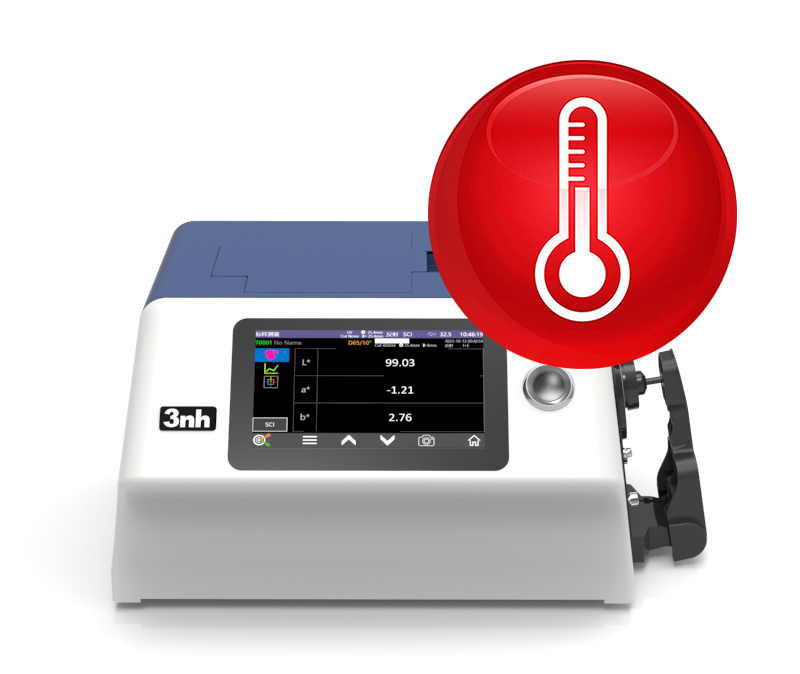

Accurate temperature control

Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision.

Adopt combination full spectrum LED light source and UV light source

Wavelength range 360nm – 780nm. Built-in 400nm cut off/420nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement. Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable.

full waveband balanced LED spectrum distribution

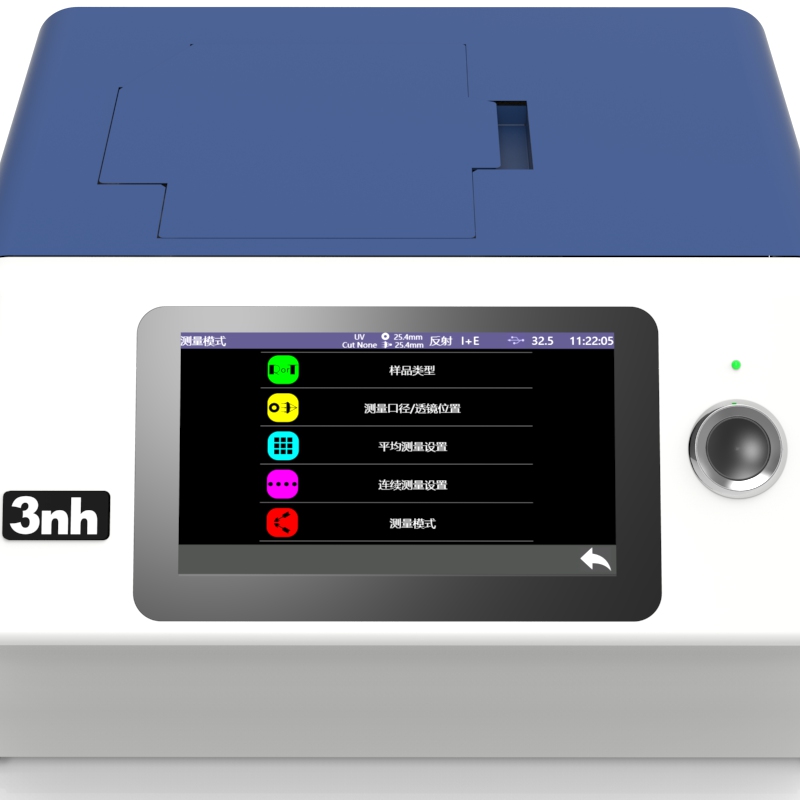

Multiple measurement modes

Quality Management Mode, Sample Mode; Meet more users’ requirement. YS6060 captures color and appearance simultaneously with specular-included (SPIN/SCI) and specular excluded (SPEX/SCE) conditions.

Contact A Color Specialist Now

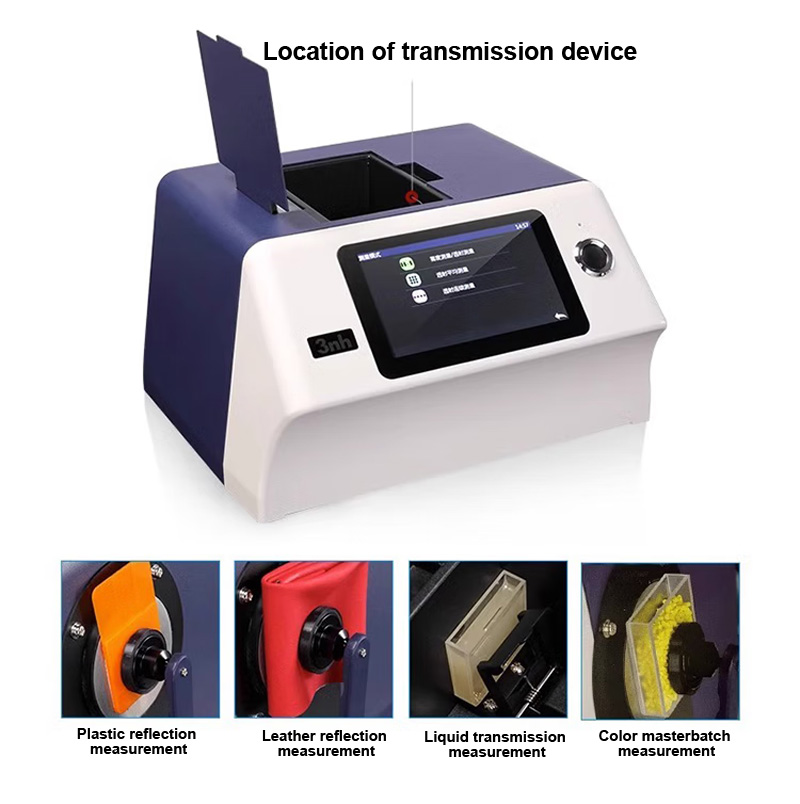

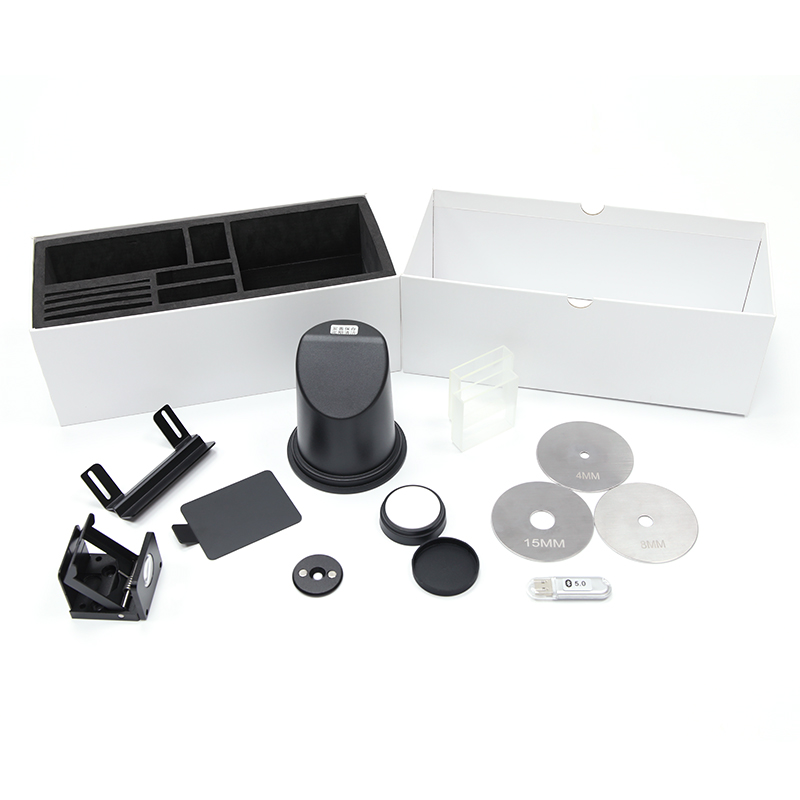

A variety of optional accessories

Reflection sample holding tool, transmission fixture, micro 4mm aperture transmission test components, instrument inversion test components, applicable to more working conditions;

Get Your Color Measuring Device Now!

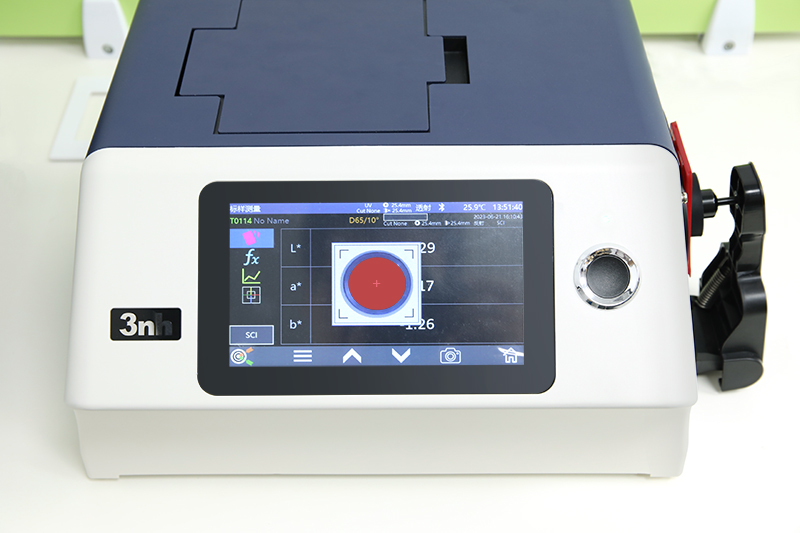

Built-in camera locating.

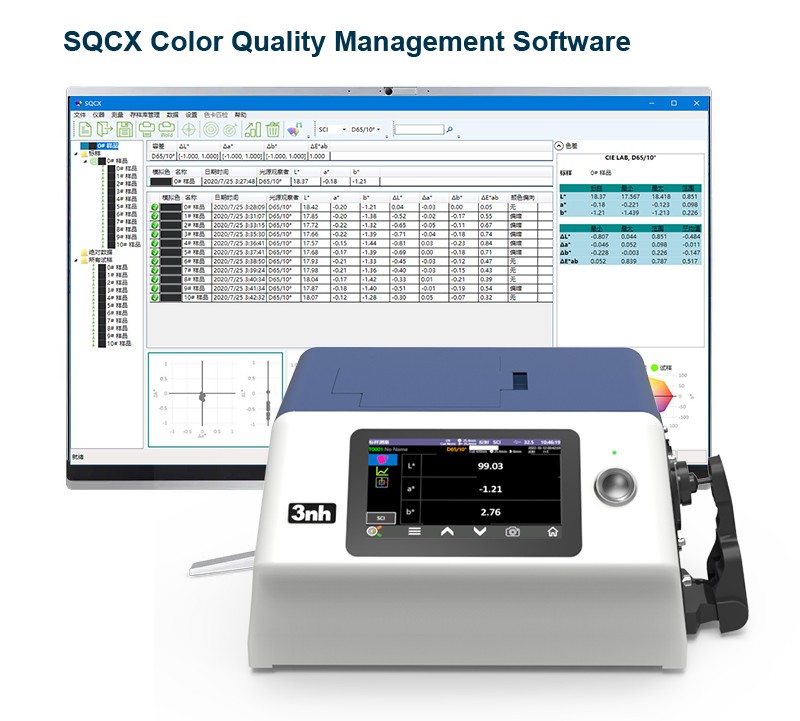

More powerful extended functions at the PC software

Next Generation Benchtop Spectrophotometer with Advanced Functionality and Enhanced Usability

The working principle of a spectrophotometer is to measure the amount of light reflected by an object within the visible spectrum range, with a wavelength interval of 1 to 25 nanometers. A spectrophotometer consists of: a light radiation source, a light scattering medium, an optical measurement system, a detector, and a device that converts the generated light into analyzable signals.

YS6060 Application Industry

YS6060 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories, allows the user to color measurement most applications including powders, liquids, gels, pastes, granules and solid materials. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.

ys6060 application in many industries like plastic, hardware, printing, paint, textile and etc.

Your Best Strategic Partner for Color Management

Customers from various industries can benefit from the innovative features of this new generation colour spectrometer when conducting color quality control or accurately communicating color, color tolerances, and color differences with supply chain partners. All our benchtop spectro instruments are built in enduring and robust materials, ensuring the instrument’s longevity in even the harshest conditions.

Contact Experts to Learn More About the YS6060

Color measurement of liquids in chemical enterprises

YS6060 benchtop spectrophotometer operation video

YS6060 Typical Performance Specifications:

Model	YS6060 Benchtop Spectrophotometer
Optical Geometry	Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) ; SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing) ; SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source; Haze(ASTM D1003), Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Application	It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size	Φ154mm
Light Source	360 nm to 780 nm, Combined LED Light, 400nm cut-off light source,420nmCut-off light source
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	360-780nm
Wavelength Interval	10nm
Semiband Width	5nm
Measured Reflectance Range	0-200%
Measuring Aperture	Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm; Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position
Specular Component	Reflectance: SCI&SCE / Transmittance: SCI&SCE

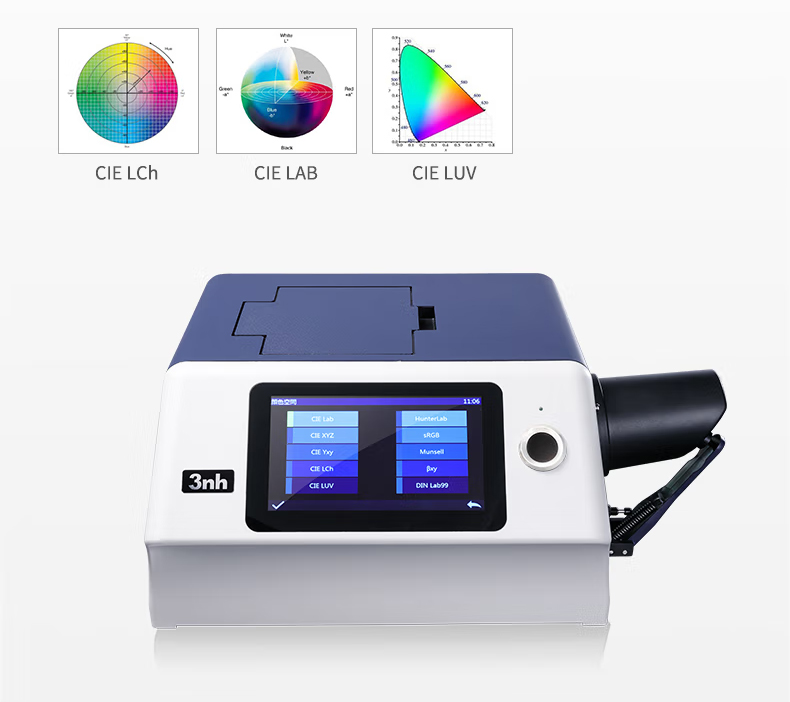

Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula	ΔE * ab ,ΔE * uv ,ΔE * 94 ,ΔE * cmc(2:1) ,ΔE * cmc(1:1) ,ΔE * 00 , DINΔE 99 ,ΔE (Hunter),
Other Colorimetric Index	WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), APHA/Hazen/Pt-Co, Saybolt MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness,Gardner Index, 555 Index, Haze(ASTM D1003)
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75, F1,F2,F3,F4,F5,F6, F7,F8,F9,F10,F11,F12, CWF,DLF,TL83,TL84,TPL5,U30
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time	About 2.4s (Measure SCI & SCE about 5s)
Repeatability	Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔEab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔEab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	Φ25.4mm/SCI, Within ΔE*ab 0.12
	(Average for 12 BCRA Series II color tiles)
Dimension	LWH=370x300x200mm
Weight	Approx. 9.6kg
Power	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	7-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB & Bluetooth & Print serial port
Data Storage	Standard 5000 Pcs, Sample 40000 Pcs
Language	Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish)
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)
Standard Accessory	Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component
Optional Accessory	Micro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components, culture dish
Notes:	The specifications are subject to change without notice.

Instrument Software Installation

1. Mobile APP installation

The mobile APP support Android operating system version 7.0 or higher and iPhone supports iOS 7.0 or higher version. It can be installed in the following ways:

● Scan the QR code on the Spectrocolorimeter with a mobile browser or WeChat, follow the prompts to download and install.

● Click on the link 3NH APP to install the APP.

● Search for "3NH" (not case sensitive) in the APP Store/Google Play to install the application.

● If you need color matching software for color matching, you can download our Pecolor software blow

Color Matching Cloud For IPhone Download

Color Matching Cloud For Android Download

2. PC software installation

Connect to the computer via USB, you can use the PC software of the colorimeter. (PC software only supports Windows operating system)

● It can be installed in the following ways: Download "Product support | Colorimeter" to the local and run it directly after decompression.

SQCX English Version Download

(for TS Series,YL Series,ST Series,CR Series,YS Series,PS Series,NR+ Series,NH+ Series )

Packing List

No.	Description	Quantity	Unit
1	Spectrocolorimeter	1	Set
2	USB cable	1	pcs
3	Cleaning cloth	1	pcs
4	Power cable	1	pcs
5	User manual	1	pcs
6	Certificate / Warranty card	1	pcs
7	Calibration Report	1	pcs

Bench Top Spectrophotometers YS60 Series Instruction manual

Terms and conditions

Technical Support

Our China based Technical Support team is expertly trained on all our instruments along with all supported color software. This level of experience provides you an exceptional customer experience when assisting you with any technical issue you might be experiencing during setup or while operational.

Service is complimentary to all our existing clients.
The omnichannel communication format includes a customer portal, email, phone or chat.

Returns of purchased equipment

Defective new equipment may be returned for warranty repair/exchange/credit within five (5) days of receipt of shipment.

Items that have malfunctioned due to mishandling, electrical overload, etc., will be subject to a repair charge.

New, non-defective equipment will be authorized for return within five (5) days of receipt of shipment if the equipment is still in new condition with the original manuals, accessories, packing material, and box.

We reserve the right to refuse returns in which the original packaging is missing, accessories are missing, damage or visible signs of use of the item. A restocking fee of up to 10% of the purchase price may apply.

Special orders cannot be returned. International customers must ship any returns to us with freight and taxes prepaid. Return shipping costs for international shipments will be the responsibility of the customer.

Extended Warranty up to 5 years is available

In or out of warranty, it does not matter, 3nh customers receive support throughout the lifecycle of their instruments.

12 Quality Inspection Processes

With 12 rigorous quality inspection processes in place, we ensure a high yield rate of up to 98% for batch processed precision parts.

DFM Analysis

Dimensional Tolerance

Material Testing

CNC Machining

FQC Detection

SPC / CPK

Problem Found

Problem Solving

OQC Detection

Surface Treatment

Full Inspection

Package

Our Valued Clients

FAQs About YS6060 Benchtop Spectrophotometers

A calorimeter is used to measure heat that is gained or lost during a chemical or physical reaction. A sample is taken in an insulated container, and a temperature change is measured. This assists in computing the alterations in energy by the equation Q = mcΔT, where Q is heat.

The gloss meter is used to measure the gloss level: it is a device that directs the light at a fixed angle and reads the intensity of the reflected light. The angles, such as 60°, 20°, or 85°, are applied depending on the type of surface and the range of gloss.

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on. We sell to the global market.

a. Check whether the USB cable is connected. If not, please connect it. Check whether the connection is effective. You can re-plug the USB cable to test.

b. If the USB cable is connected well but the interface still displays "USB Disconnect", please re-start the colorimeter and enter "Menu" -"Comm"to start the communication.

c. Change the USB cable or change the USB port in you PC.

To keep a neutral background, helping to reduce color distortion and bias.

An inappropriate viewing angle may lead to reflections or color shifts in the light. The correct angle of 45 or 0 will provide the real color of the assessment without the distraction of glare.
