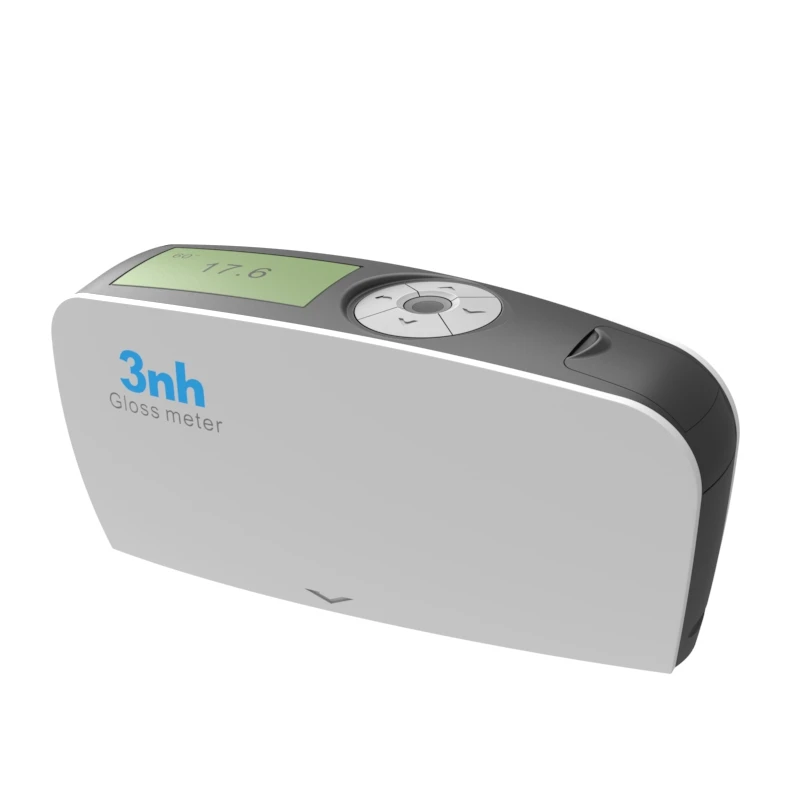

KS60 Glossmeter

This KS60 Glossmeter Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3NH KS60 Glossmeter Designed for precise measurement across multiple industries. It features a 60° measurement angle with a 9×15 mm measurement spot, a wide range of 0-1000 GU, and a resolution of 0.1 GU to ensure accurate data. Widely applicable for gloss measurement and data transmission in industries such as paints and inks, coatings, paper and printing, plastics and electronics, furniture, ceramics, electroplating, hardware, and marble.

The instrument delivers results in just 0.5 seconds and supports four modes that can be switched with one touch: standard measurement, statistics, continuous monitoring, and quality control, enabling a single device to handle diverse application scenarios. It comes standard with GQC6 quality management software, supporting one-click data export for easy quality traceability, meeting the needs of both laboratory and on-site testing.

1. Precision & Efficiency - Save Time and Effort

Fast Measurement: 0.5 seconds per reading, reducing wait time during batch inspections.

High Repeatability: ±0.2 GU (0-100 GU); ±0.2% GU (100-1000 GU), minimizing re-measurement frequency and improving quality inspection efficiency.

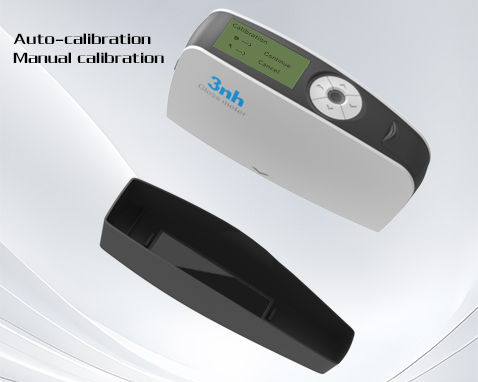

Dual Calibration & Compliance: Features automatic calibration check with a standard plate plus manual calibration, ensuring accurate measurement data and compliance with JJG 696-2015.

1. 精准高效,省时省力.jpg

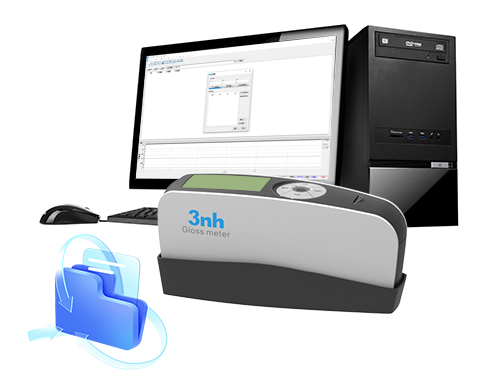

2. Data Management - Convenient & Hassle-Free

35,000-Record Storage: Massive data capacity with mode-specific storage, eliminating frequent backup needs and solving data storage limitations.

Software + USB Connectivity: GQC6 software supports data export and report printing, eliminating manual data organization and enabling easy quality traceability and data sharing.

2. 数据管理,省心便捷.jpg

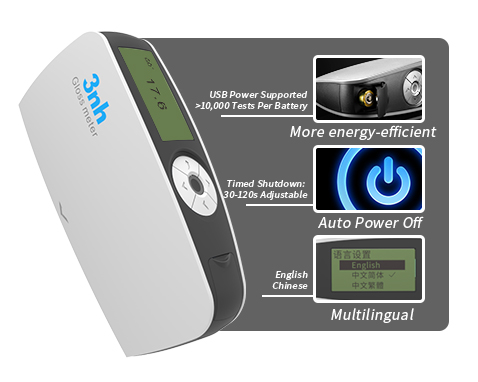

3. Battery Life & Operation - Low-Cost Adaptability

Dual Power Supply Long Battery Life: Powered by one AA battery for up to 10,000 measurements, plus USB power supply, reducing battery replacement frequency and costs while preventing power interruptions during measurement.

Adjustable Auto Shutdown: Selectable auto shutdown from 30 to 120 seconds, extending battery life and further reducing operating costs.

Multi-Language Support: Simplified Chinese, English, and Traditional Chinese, requiring no additional training and accommodating different team preferences.

3. 续航操作,低成本适配.jpg

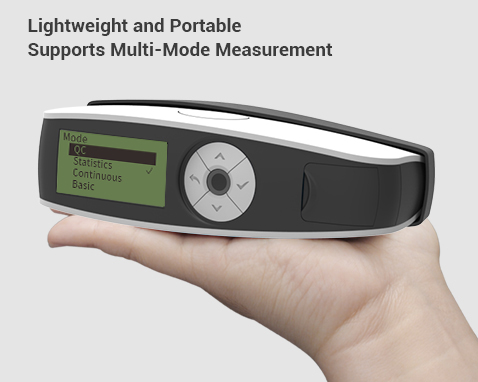

4. Portable & Practical - Adaptable to Multiple Scenarios

Lightweight Design: Compact dimensions of 160×52×84 mm and weight of 300 g, easy to carry and reducing transport effort.

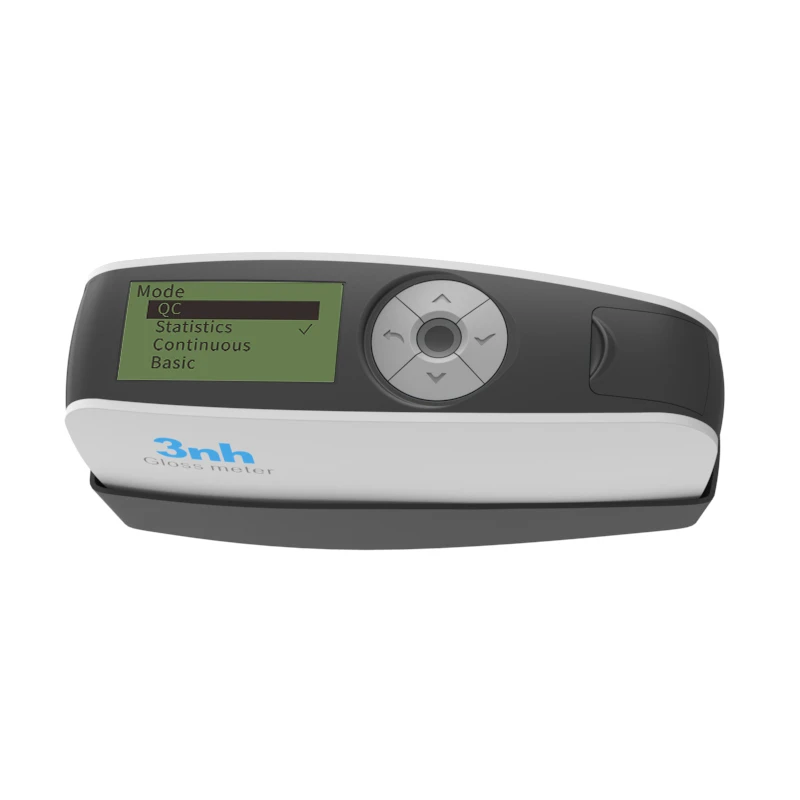

One-Key Mode Switching: Four measurement modes—Basic Mode, Statistics Mode, Continuous Mode, and Quality Management Mode—to suit different quality inspection scenarios.

4. 便携实用,适配多场景.jpg

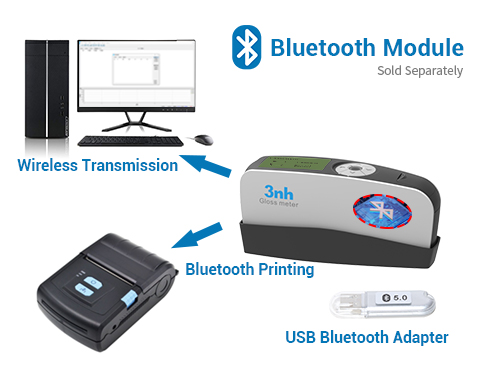

5. Optional Accessories - Flexible Expansion

Expansion Support: Optional micro-printer and Bluetooth 5.0 adapter enable on-site instant report printing and wireless data transmission.

5. 可选附件,灵活拓展.jpg



KS Glossmeter Technical Specifications
Product Model KS60 Glossmeter
Measurement Angle 60°
Measurement Spot (mm) 60°:9X15
Measurement Range 60°:0~1000GU
Resolution 0.1GU
Features Suitable for gloss measurement and gloss data transfer in industries such as paints, inks, coatings, paper printing, plastics and electronics, furniture, ceramics, electroplating, hardware, marble, etc.
Measurement Modes Basic mode, statistical mode, continuous mode, quality control mode
Measurement Time 0.5 seconds
Repeatability 0~100GU:±0.2GU ;
100~1000GU:±0.2%GU
Accuracy Meets the requirements of JJG 696 for working glossmeters
Auto Shutdown Time 30~120 seconds, adjustable

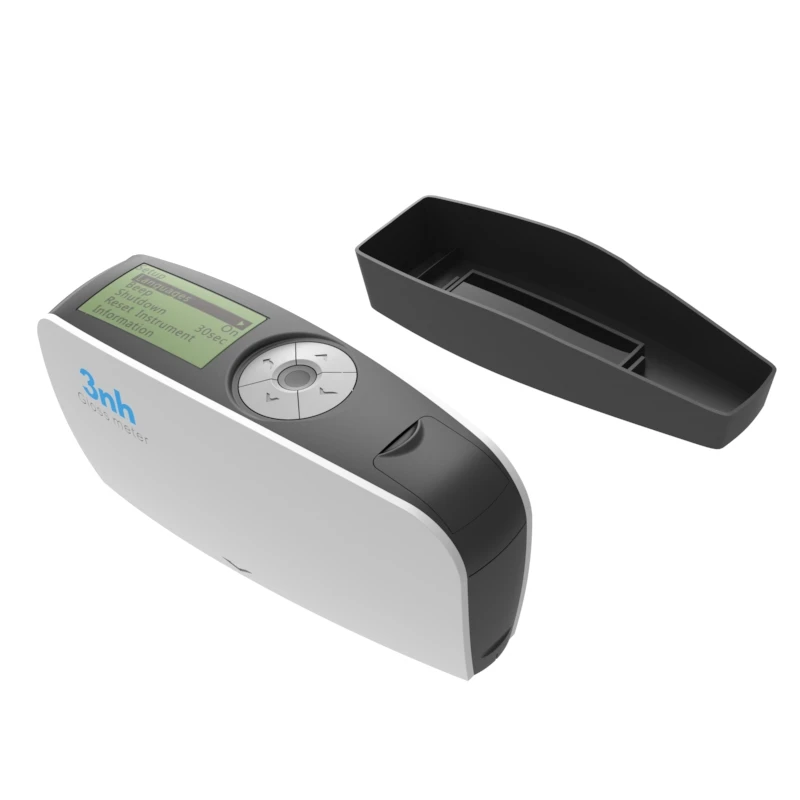

Long-Term Calibration Features automatic verification of calibration standard plate function / manual calibration
Language Simplified Chinese, English, Traditional Chinese
Data Storage 35,000 records (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode)
Display 2.3-inch monochrome display
Dimensions 160 X 52 X 84mm
Weight Approx. 300 g (including calibration case and battery)
Power Supply Powered by 1 AA battery (alkaline or Ni-MH rechargeable), capable of over 10,000 measurements; or via USB port
Interface USB
PC Software GQC6 quality management software, inspection report printing, extended functionality
Operating Temperature Range 0~40℃(32~104°F)
Storage Temperature Range -20~50℃(-4~122°F)
Humidity Less than 85% RH, non-condensing
Standard Accessories USB cable, instruction manual, GQC6 quality management software (available for download from official website or provided upon request), calibration plate
Optional Accessories Micro printer, Bluetooth 5.0 adapter
Note Technical parameters are for reference only, subject to the actual product sold.



Our Valued Clients

FAQs About  Gloss meter

 The five common gloss levels are:

1. Flat/Matte (0–10 GU)

2. Eggshell (10–25 GU)

3. Satin (26–40 GU)

4. Semi-gloss (41–70 GU)

High Gloss (71–100+ GU)
These levels vary slightly depending on industry and standards used.


There is no generic mathematical formula for gloss value. Rather, it is measured directly with a gloss meter, which compares how strongly reflected light from a sample matches a standard (typically black glass with a known reflectance).


Gloss paint can be identified by visual inspection and using a gloss meter. The high gloss paints are shiny and reflective like a mirror, satin or eggshell has a soft sheen, whereas the matte paint is non-reflective with very little or no reflection.


The most common standard measuring gloss is ASTM D523, which covers the procedures of using a gloss meter at 20°, 60°, and 85° angles. The other international standard that is widely used in industrial and laboratory applications is the ISO 2813.


The gloss of the paint is defined by the measurement of light reflection at the surface of the paint with the help of a gloss meter. The angle and quantity of light reflected determine the level of gloss, with smoother and reflective surfaces having a higher level of gloss.
