Spectrocolorimeter PS2010

A Spectrocolorimeter from Testing Experts

Versatile color spectrometer for professional use, the PS2010 is a compact, handheld intelligent digital display spectrocolorimeter; PS2010 is designed for precision and portability, can accurately measure samples of various shapes and sizes, suitable for plastic electronics, paint ink, textile and garment printing, printing, ceramics industries, delivering high-accuracy color measurement results.


Key Highlights

  • Geometric optical structure D/8

  • Multiple color spaces

  • Multiple light source modes

  • Integrated white board ensures measurement accuracy

  • With LED light source to support fluorescence measurements

  • Reliable repeatability (ΔEab ≤0.04) and inter-instrument agreement (ΔEab ≤0.4)

  • 2.8 inch TFT Capacitive Touch Screen

Spectrocolorimeter PS2010 Instructions Operating Manual Spectrocolorimeter PS2010 PDF
This PS2010 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

"Fat girl" is the nickname of PS20 series color spectrometer. It is serious about color measurement and high user satisfaction. PS20 series colorimeter is engineered to deliver consistent color comparisons for materials and products in all scenarios where color control holds significance. It serves as a reliable tool, ensuring that the color of various substances and goods can be compared with stability, especially in fields where maintaining precise color standards is crucial for quality assurance, product consistency, and meeting specific industry requirements.

PS2010 "Fat girl" spectrocolorimeter is 3nh developed by CMOS dual-channel spectrocolorimeter sensor, which is not only a colorimeter, but also a spectrocolorimeter, with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management.

PS2010 spectrocolorimeter is equipped with single aperture:Φ8mm flat, widely used for plastic electronics, paint ink, textile and garment printing, printing, ceramics and other industries color difference quality control. The user pre-selects the measurement standards for their objects to be measured (such as textiles, metal products, plastic products, cosmetics, etc.). Whether in manufacturing, textiles, printing, or cosmetics, this device plays a key role by offering steady and accurate color assessments, making it an indispensable instrument for upholding color-related standards across diverse applications. After the measurement is completed, the device outputs several characteristic values. These characteristic values can not only clearly detect and record color differences, but also enable precise and objective comparative measurements, though they do not represent specific color codes.



Technical Advantages

Adopt D/8 optical structure and SCI/SCE mode

PS2010 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology. It is suitable for color management and quality control in various industries such as color matching and coating, textile, plastic, food, building materials, cosmetics, etc.



Adopt full waveband balanced LED light source

The 400~700nm full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband, Fluorescent materials can also be easily measured and ensures the measurement speed and accuracy of the measurement results.



CMOS dual beam splitting sensor


High speed and high sensitivity CMOS dual beam splitter sensor makes color data processing more efficient and accurate.

ps2010 CMOS dual beam splitting sensor



Contact automatic whiteboard calibration

The spectrocolorimeter PS2010 is equipped with an intelligent calibration base. Contact automatic whiteboard calibration is available, professional standard whiteboard reflectivity R%≥95%, good surface uniformity. It has high stability and can obtain repeated and accurate data.

PS2010 intelligent calibration base


Multiple color measurement spaces, multiple illumination source

The spectrocolorimeter PS2010 support CIE LAB,XYZ,Yxy, LCh, CIE LUV,S- RGB, βxy, DIN Lab99 Color space and D65, A, C, D50, D55, D75, F1, F2(CWF) ,F3, F4  F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), U35, NBF, ID50, ID65 multiple illumination source, Meet different measurement requirements.

ps2010 color measurement spaces illumination source




Ergonomic design and easy measurement

The fitted palm is suitable for continuous detection, which makes you fast and easy to use. An easy to measure device for automatic measurement is added. Which is portable, fast, easy to measure and use.




Calibration Certificate

Each PS2010 spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metro technical Institute to ensure the authority of the instrument test data.

South_China_National_Metrology_Test_Center

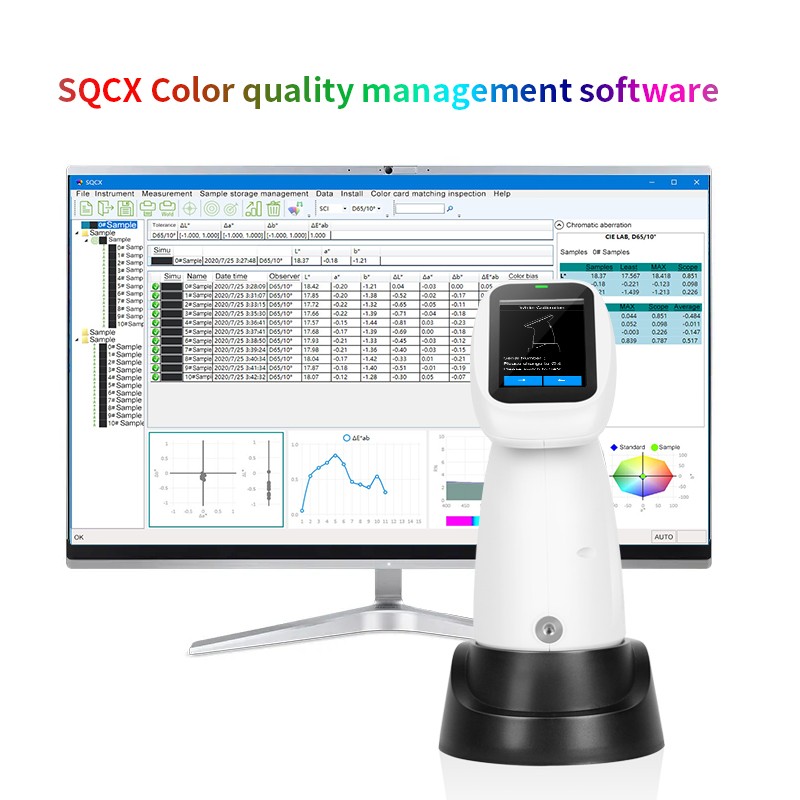

Color management software

SQCX quality management software with PS2010 spectrocolorimeter is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.




Our Valued Clients


伙伴钟合作伙伴axa合作伙伴立方伙伴内斯林合作伙伴合作伙伴vogel; s合作伙伴伙伴hms合作伙伴vishay



Technical Specification



Model PS2010 spectrocolorimeter
Optical Geometry D/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Adopt CMOS dual beam splitting sensor; Used for color difference quality      control in plastic electronics, paint and ink, textile and garment printing and  dyeing, printing, ceramics and other industries.
Light Source Combined full spectrum LED light source
Integrating Sphere Size Φ40mm
Sensor CMOS dual beam splitting sensor
Wavelength Range 400-700nm
Measuring Aperture Single aperture：Φ8mm/Φ10mm (flat)
Specular Component SCI/SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94 ,ΔE*cmc(2:1),ΔE*cmc(1:1) ,ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric   Index Spectral reflectance, WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313),Metamerism Index Mt,Staining Fastness, Color Fastness,Color Strength, Opacity,555 tone classification, Munsell(C/2)(Partially realize through the PC software /APP software)
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65(Partially realize through the PC software /APP software)
Display Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time Abou1s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.04 (After preheating and correction,the average value of the whiteboard was measured for 30 times at an interval of 5s);Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400nm to 700nm: within 0.2%)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles)
Displayed Accuracy 0.01
Measured Reflectance Range 0-200%
Reflectance Resolution 0.01%
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Stabilizer position
White Calibration    mode Contact type automatic calibration
Dimension  94X68X188mm
Weight About 410g
Battery Lithium battery,3.7V,5000mAh,8000 cycles in 8 hours
Illuminant Life Span More than 1.2 million measurements over 10 years
Screen 2.8 inch TFT true color, Capacitive Touch Screen
Interface USB
Data Storage Standard 500Pcs, Sample 5000Pcs(One data is able to include SCI/SCE); PC mass storage
Software support Windows
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing),Altitude < 2000m
Storage Environment   -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, SQCX PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist  strap, Aperture
Optional Accessory USB Micro Printer, Powder Test Box
Notes Technical parameters are only for reference, subject to the actual sale of   the product


Our Valued Clients

  • University of Connecticut
  • DTU Technical Denmark University
  • laboratoire de chimie bacterienne
  • UNIVERSITÀ DEGLI STUDI DI GENOVA
  • YONSEI UNIVERSITY
  • THE UNIVERSITY OF sydney
  • LUND UNIVERSITY
  • UPORTO

FAQs About PS2010 Spectrocolorimeter

A colorimeter is sufficient when measuring similar materials or batches with stable conditions. Suitable for fast, low-cost color checks where high precision is not required. Quick quality control in plastics, paint batch consistency, food color grading (e.g., fruit ripeness), and basic printing checks.

A spectrophotometer is recommended when you need professional, maximum color accuracy or when testing materials with variable surfaces – such as glossy or textured samples. Like textile dye formulation, cosmetic shade matching, medical device color calibration, high-end printing (e.g., packaging for luxury goods), and material spectral research. learn more Understanding Spectrophotometric Parameter Measurement


The principle of colorimetry is the law of Beer-Lambert, which says that the intensity of light absorbed by a colored solution is proportional to the concentration of the absorbing species and the path length. It measures the extent of light that is absorbed at certain wavelengths.


The LAB color space defines colors in a three-dimensional model: Lightness (L), red–green axis (a), and blue–yellow axis (b). It's a globally recognized standard supported by most modern color measuring devices. CIELAB is a standardized, device-independent system designed to map all visible colors that the human eye can perceive.

The LAB color space uses three values to define any color, each representing a specific dimension:


L (Lightness): Ranges from 0 to 100. It measures the brightness of the color, where 0 is pure black and 100 is pure white.
A (Red-Green Axis): Ranges from approximately -128 to +127. Positive values represent red tones, while negative values represent green tones.
B (Yellow-Blue Axis): Ranges from approximately -128 to +127. Positive values represent yellow tones, while negative values represent blue tones.


Record the L*a*b values of the sample and the reference with a calibrated spectrophotometer or colorimeter. Compute the difference in the color by use of ΔE. The lower the Delta E, the more accurate the result. The difference in energy, ΔE < 1, is generally assumed to be invisible to the eye.


Colorimeters have fixed wavelength filters and LEDs; it is less precise and simpler. Monochromators are applied to spectrophotometers, which scan a spectrum of wavelengths. Giving more detailed spectral information. Spectrophotometers are more sensitive and flexible in complicated analyses.
