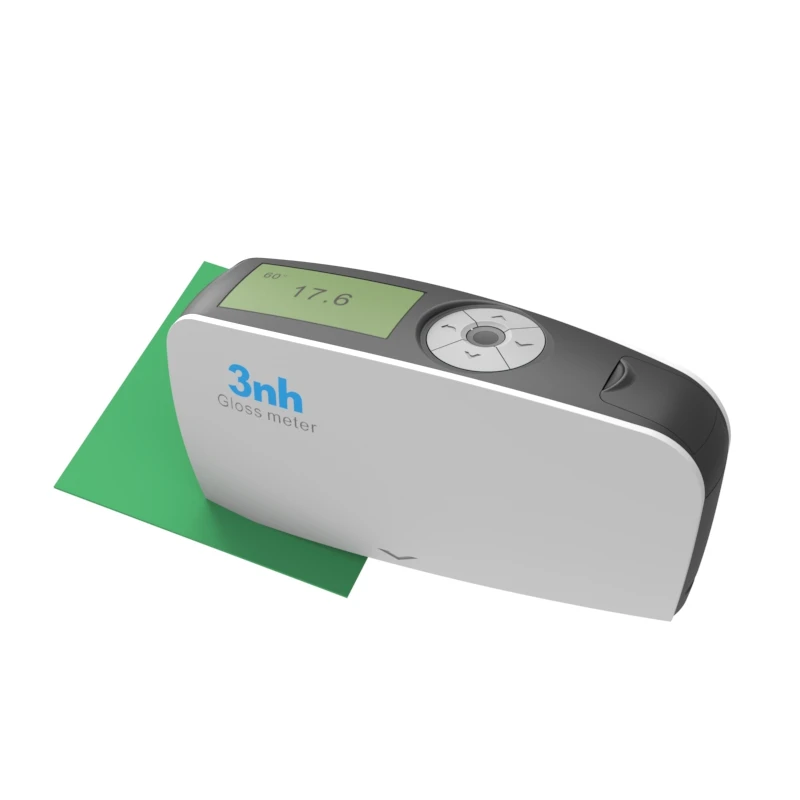

KS60S Glossmeter

KS60S Glossmeter Instructions Operating Manual KS60S Glossmeter PDF
This KS60S Glossmeter Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3NH KS60S Glossmeter A portable gloss quality inspection tool designed for paints, inks, coatings, paper printing, and more. It effectively solves the core pain points in gloss measurement: low efficiency, poor accuracy, and limited adaptability. It is battery powered, offering up to 100,000 measurements on a single charge. Equipped with a 60° measurement angle (spot size: 9×15 mm), it features a wide range of 0-200 GU and a fine resolution of 0.1 GU. A measurement is completed in just 0.5 seconds, making it suitable for batch production quality control, capturing subtle gloss differences, and ensuring stable appearance quality. It complies with the JJG 696-2015 standard.

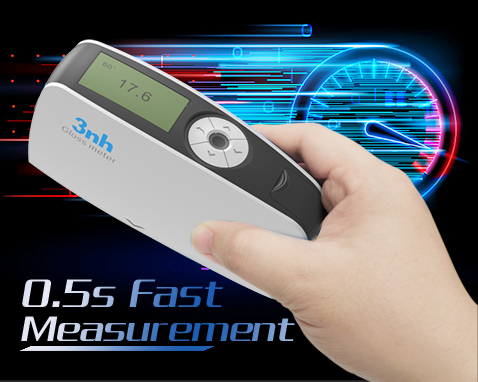

1、Efficient Testing - Save Time and Boost Efficiency

Fast measurement:completes a test in just 0.5 seconds, reducing inspection time for batch testing and significantly improving quality inspection efficiency.

Clear display: 2.3-inch monochrome screen provides intuitive data at a glance, eliminating the need for repeated checks.

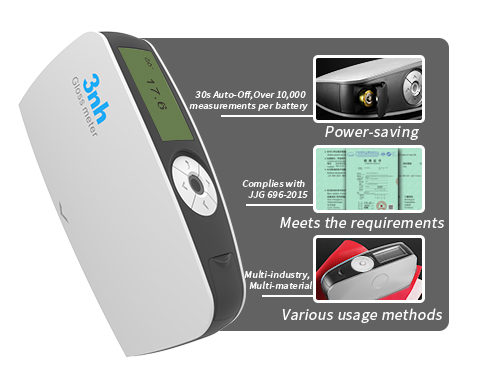

2、Cost-Effective - Strictly Control Costs

Ultra-long battery life: powered by one AA battery, offering up to 100,000 measurements on a single charge, reducing battery procurement and replacement costs.

Smart power saving: automatic shutdown after 30 seconds to prevent battery waste and extend battery life.

Universal power supply: USB interface design eliminates the need for a dedicated adapter, lowering accessory costs.

Authoritative compliance: meets JJG 696-2015 glossmeter requirements for more accurate data.

Multi-purpose use: compatible with inspections across multiple industries and materials, saving the cost of purchasing and storing multiple dedicated instruments.

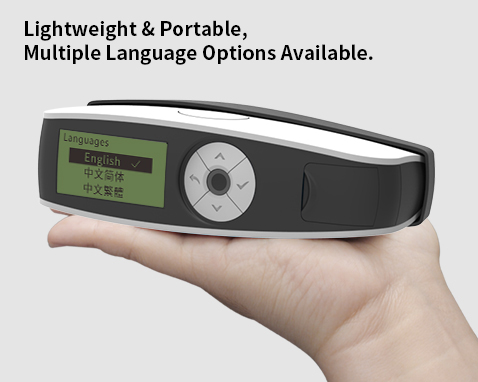

3、Convenient and Easy to Use - Flexible Adaptability

Lightweight and portable:300g body with compact dimensions of 160×52×84mm, easy to carry for on-site quality inspections anytime, anywhere.

Multi-language support: switch between Simplified Chinese, English, and Traditional Chinese to accommodate different operators and enable quick team onboarding.

Self-calibration:comes with a standard calibration plate and manual calibration design, making operation simple and easy. Quickly calibrate the instrument before each test to ensure accurate instrument status.

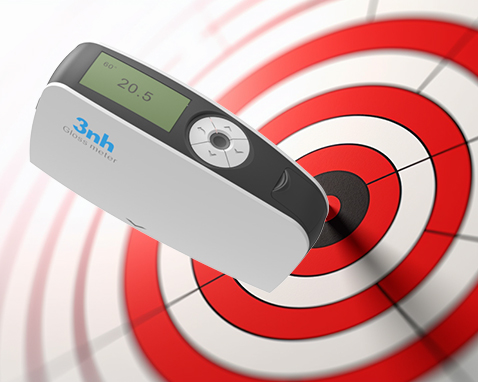

4、Accurate and Reliable - Ensuring Quality

High repeatability:precision of ±0.5 GU in the 0-100 GU range and ±0.5% GU in the 100-200 GU range, reducing measurement errors and avoiding losses from rework and returns.

Wide range and high resolution: 0-200 GU measuring range with a fine resolution of 0.1 GU, meeting high-precision inspection requirements across various applications.




KS Glossmeter Technical Specifications
Product ModelKS60S Glossmeter
Measurement Angle60°
Measurement Spot(mm)60°:9X15
Measurement Range60°:0~200GU
Resolution0.1GU
FeaturesSuitable for gloss measurement and gloss data transfer in industries such as paints, inks, coatings, paper printing, plastics and electronics, furniture, ceramics, electroplating, hardware, marble, etc.
Measurement ModesBasic mode
Measurement Time0.5 seconds
Repeatability0~100GU:±0.5GU ;
100~200GU:±0.5%GU
AccuracyMeets the requirements of JJG 696 for working glossmeters
Auto Shutdown Time30s
Long-Term CalibrationLong-Term Calibration Manual calibration
LanguageSimplified Chinese, English, Traditional Chinese
Data Storage/
Display2.3-inch monochrome display
Dimensions160 X 52 X 84mm
WeightApprox. 300 g (including calibration case and battery)
Power SupplyPowered by 1 AA battery (alkaline or Ni-MH rechargeable), capable of over 10,000 measurements; or via USB port
InterfaceUSB
PC Software/
Operating Temperature Range0~40℃（32~104°F）
Storage Temperature Range-20~50℃（-4~122°F）
HumidityLess than 85% RH, non-condensing
Standard Accessoriesinstruction manual, calibration plate
Optional AccessoriesMicro printer, Bluetooth 5.0 adapter
NoteTechnical parameters are for reference only, subject to the actual product sold.



Our Valued Clients

  • Grupo Lamosa company
  • paint apollo company
  • paint company amay
  • floor tile sosuco company
  • customer Mohawk Industries
  • paint company cipla
  • Ceramica Carmelo Fior Tile Company
  • Grupo Fragnani Tile Company

FAQs About  Gloss meter

The gloss scale is normally measured against the scale of 0 to 100 gloss units (GU). The scale is zero at matte and 100 at a mirror. Other very smooth surfaces can be over 100 GU at lower angles, such as 20°.


 A gloss meter measures the amount of light reflected from a surface at a specific angle. It's commonly used to assess surface finishes such as paint, coatings, plastics, and paper for consistency, quality control, and visual appearance evaluation.


Gloss is a broad term to describe the reflectivity of a surface. Whereas high gloss is a specific term that has the highest reflectance (usually more than 70 GU). High gloss finishes are shiny, mirror-like, and exhibit more surface blemishes than lower gloss finishes.


Depending on the scale of the manufacturer, its matte, low-sheen finish can be called gloss level 3. Overall, gloss levels in certain standards go between 1 (flat) to 7 (high gloss). Level 3 is considered low-gloss or satin-like.


The most common standard measuring gloss is ASTM D523, which covers the procedures of using a gloss meter at 20°, 60°, and 85° angles. The other international standard that is widely used in industrial and laboratory applications is the ISO 2813.
