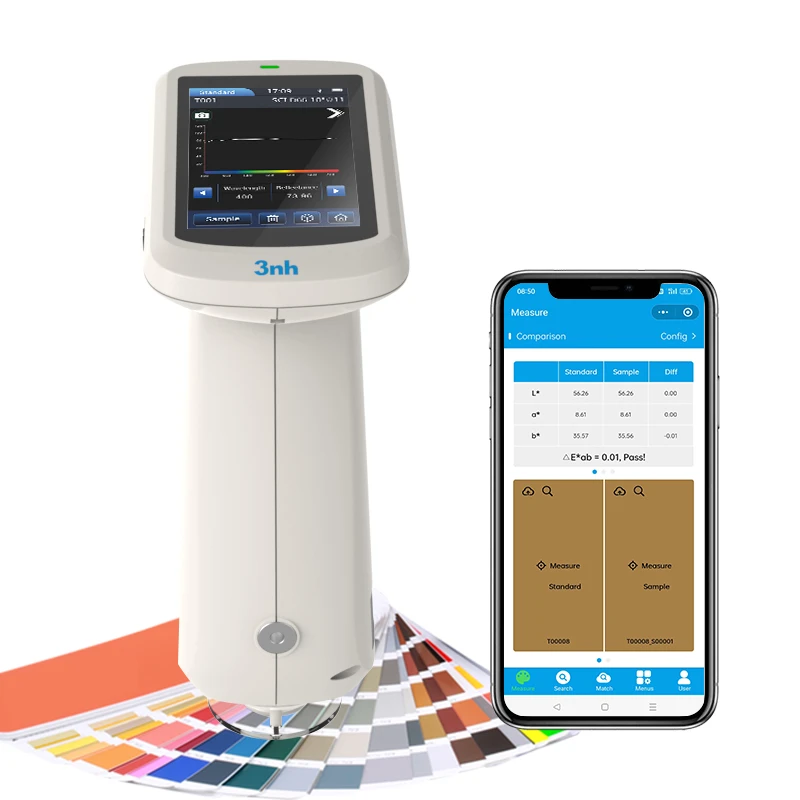

PS420 Spectrophotometer

PS420 Spectrophotometer Instructions Operating Manual PS420 Spectrophotometer PDF
This PS420 Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

The 3nh PS420 is a specialized colorimeter for fluorescent samples, equipped with an additional UV light source to enable full-spectrum measurement. It features a 10-aperture system and non-contact automatic calibration, balancing flexibility and high precision. With large data storage capacity, it is ideal for quality control in high-end manufacturing industries requiring fluorescent material testing.

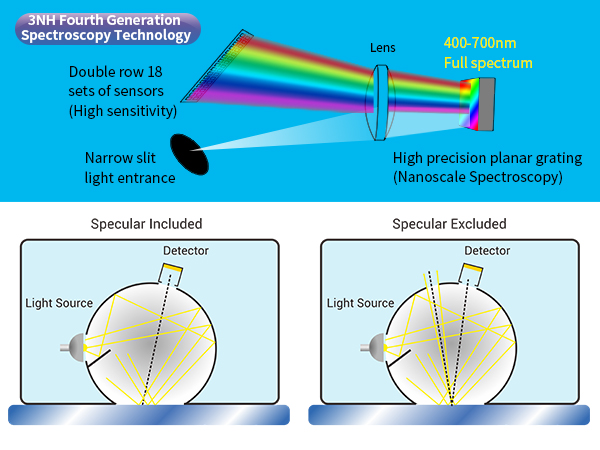

Core Technology: Precise Color Difference Measurement

International standard D/8 SCI+SCE technology: Supports simultaneous SCI/SCE measurement in approximately 1 second, reducing interference from surface texture and objectively presenting true color.

Full-spectrum LED + UV combined light source: Covers full wavelength from visible to ultraviolet light with uniform spectral distribution, ideal for measuring fluorescent samples.

High-performance dual-array silicon photodiodes: Dual 18-group silicon photodiode array + 40mm large integrating sphere for efficient and accurate color data processing.

Nano-integrated optical splitter: Provides nano-level light splitting, greatly improving color signal accuracy and instrument stability.

Dual optical path system with self-developed algorithm: Stronger anti-interference than single optical path, delivering higher accuracy and reliable data.

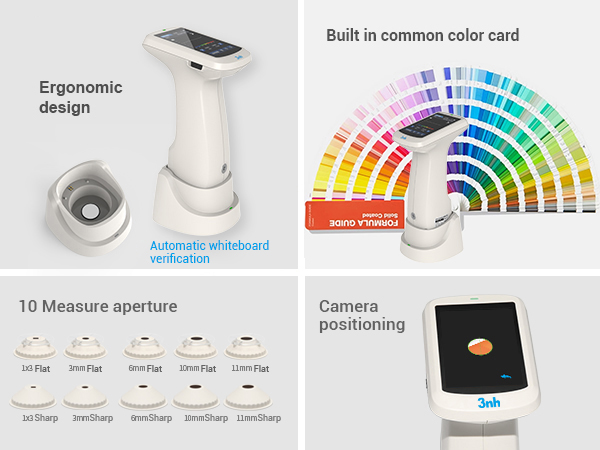

Practical & User Friendly Design

10 interchangeable measuring apertures: Includes 3mm/ 6mm/ 10mm/ 11mm/ 1×3mm (flat and nozzles), covering special application needs for complex samples across industries.

Built-in HD camera for real-time viewing and positioning: Ensures measurement at the target center for valid and accurate results.

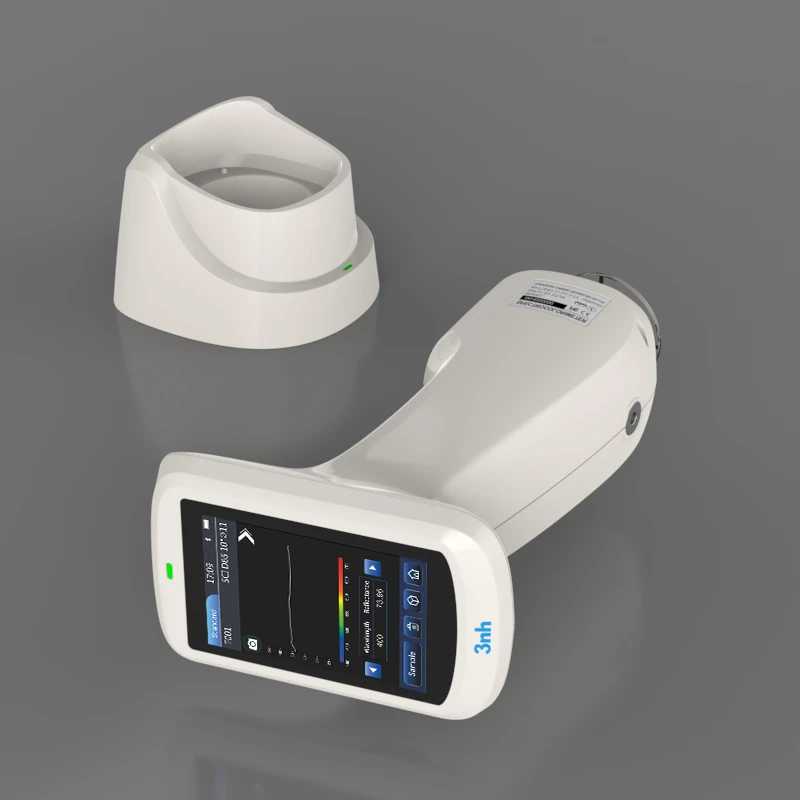

Non contact automatic calibration: With intelligent calibration base, no manual operation required; achieves laboratory level measurement accuracy.

Quick color card number matching: Eliminates manual color searching and improves production color matching efficiency.

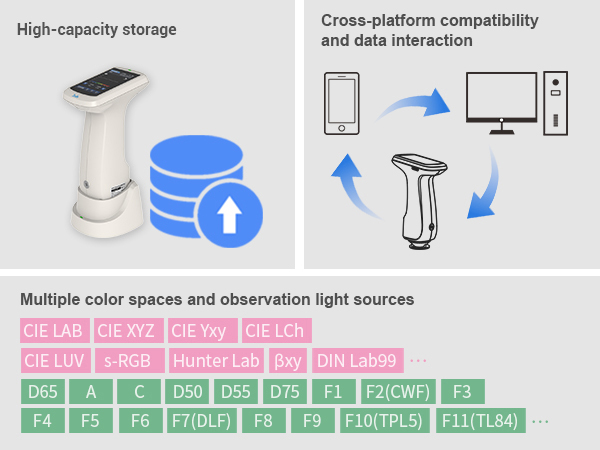

Data Management, efficient interconnection

Stable data, multi-station consistency: repeatability ΔEab ≤0.02, inter-station difference ΔEab ≤0.3, stable and reliable data, ensure multi-equipment measurement consistency, match color and accurate color transfer.

Rich Light Source, multi-dimensional measurement: support more than 30 kinds of light sources and 40 kinds of measurement indicators, covering the mainstream types of the industry, can display multi-dimensional results such as spectrogram/data, chromaticity value, color difference value/graph.

Large-capacity storage, cloud traceability: sample storage capacity of up to 15000, support cloud data management, large-scale quality traceability to meet the needs of enterprises.

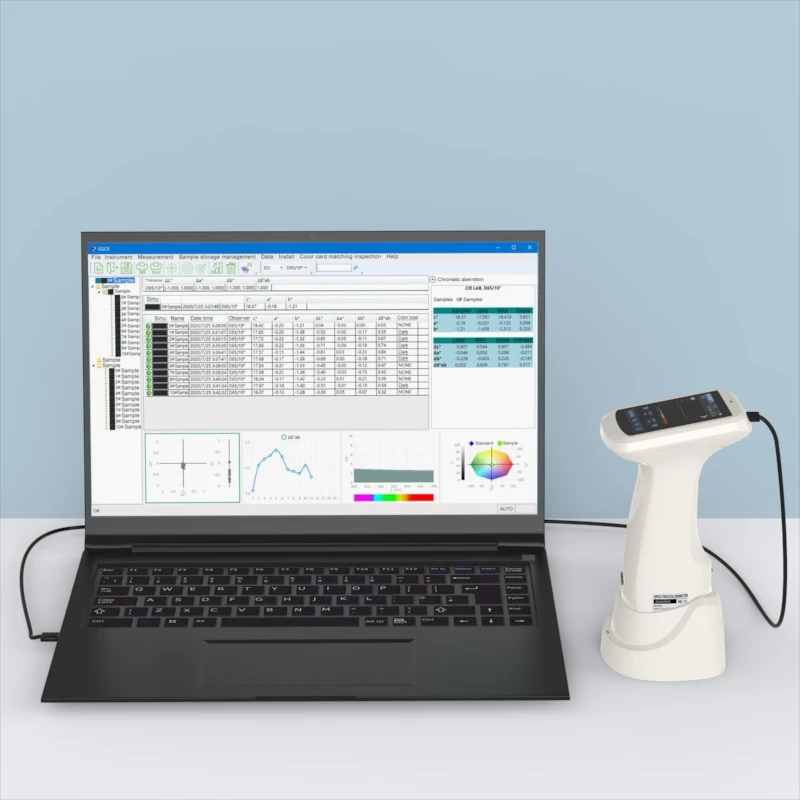

Multi-port interconnection compatibility, portable data management: equipped with USB, Bluetooth interface, support Android, IOS, Windows, wechat applet, Hongmeng and other platforms, to achieve rapid data transmission, sharing and remote management.




Model PS420 Spectrophotometer
Illumination D/8 (Diffuse / 8°), SCI/SCE, complying with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Features Dual silicon photodiode array; built-in digital color card; for plastics, electronics, coatings, textiles, printing, ceramics, etc.; with UV for fluorescent samples
Light Source Full-spectrum LED, UV
Integrating Sphere Φ40mm
Spectroscopy Nano-integrated spectral device
Sensor Dual 18-group silicon photodiode array
Wavelength Range 400-700nm
Measurement Apertures 10 apertures: 3mm, 6mm, 10mm, 11mm, 1×3mm (flat & nozzle)
Measurement Mode SCI & SCE simultaneous measurement
Color Spaces CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formulas ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,DINΔE99,ΔE(Hunter)
Other Indices Spectral reflectance, WI, YI, Metamerism Index MI, staining fastness, color change fastness, strength, hiding power, Munsell, blackness, CMYK density, tint
Observer 2°/10°
Light Sources D65,A,B,C,D50,D55, D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50,ID65 ,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5, LED-BH1,LED-RGB1,LED-V1,LED-V2
Display 3.5-inch TFT color capacitive touch screen; spectrum, color data, ΔE chart, pass/fail
Measurement Time Approx. 1 s
Repeatability Chromaticity value: MAV/SCI, standard deviation value ΔE*ab within 0.02 (after preheating and correction, measure the white board 30 times at intervals of 5 seconds and take the average value). Spectral reflectance: MAV/SCI, standard deviation within 0.08% (400~700nm: within 0.18%)
Inter-Instrument Agreement MAV/SCI,ΔE*ab within 0.3 (average values measured by 12 color plates of BCRA Series Ⅱ)
Display Precision 0.01
Reflectance Range 0-200%
Reflectance Resolution 0.01%
Measuring Mode Single, Average (2-99 times)
Positioning Stabilizer positioning + Camera viewing positioning
Calibration Contact white calibration
Dimensions 120*75*207mm
Weight 367 g (excl. calibration base)
Battery 3.7 V 3200 mAh Li-ion, up to 8000 measurements in 8 hours
Light Source Life >1.2 million measurements in 10 years
Screen 3.5-inch TFT capacitive touch
Interface USB,Bluetooth
Storage 500 standards, 10,000 samples; APP/PC cloud storage
Software Android, iOS, Windows, WeChat Mini Program, HarmonyOS
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0-40°C, 0-85%RH (non-condensing), altitude<2000 m
Storage Environment -20-50°C, 0-85%RH (non-condensing)
Accuracy Class 1 metrology certified
Standard Accessories Power adapter, USB cable, manual, QC software, white calibration box, protective cover, wrist strap, apertures
Optional Accessories Mini printer, powder test kit
Note Specifications subject to change without prior notice



Our Valued Clients

  • flinders
  • BASF Plastic Company
  • Acros Pvt plastic
  • UCDAVIS UNIVERSITY
  • YONSEI UNIVERSITY
  • DTU Technical Denmark University
  • LUND UNIVERSITY
  • Lubrizol

FAQs About  Spectrocolorimeter

A calorimeter is used to measure heat that is gained or lost during a chemical or physical reaction. A sample is taken in an insulated container, and a temperature change is measured. This assists in computing the alterations in energy by the equation Q = mcΔT, where Q is heat.


To quantify color change, take the original L*a*b* values of a sample, and reread after exposure or processing. Compute the difference as 1/2(Emut1 Emut2). The larger the value of ΔE, the more obvious the change of color is, which can be used in quality or stability testing.


The most important equation is A = 2εcl, where A is the absorbance, 2 is a constant, ε is the molar absorptivity (L/mol cm), c is the concentration (molL-11), and l is the path length (cm). This can be used to relate the absorbance to the concentration, allowing quantification through colorimetric assays.


L*a*b* is an L*a*b* color space. The L* is a measure of lightness (as 0 = black, 100 = white), a* indicates the green to red axis, and b* indicates the blue to yellow axis. It is also common in color measurement in terms of precision and reliability.


The various colors can be measured by the way a surface reflects, absorbs, or transmits light at different wavelengths. These responses may be measured using instruments such as colorimeters or spectrophotometers to give numeric values in a standardized color space such as L *a*b*.
