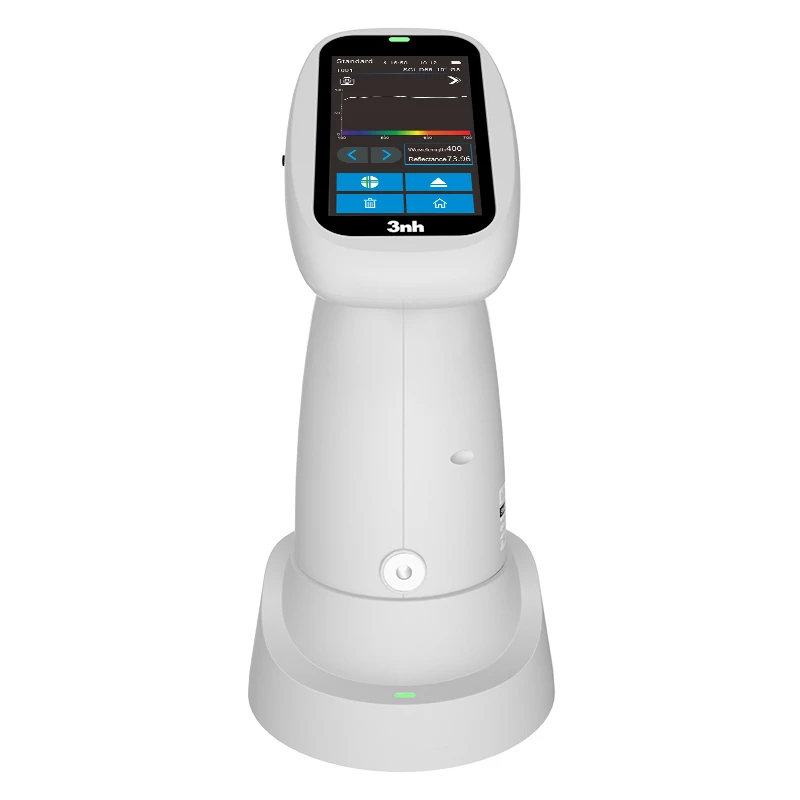

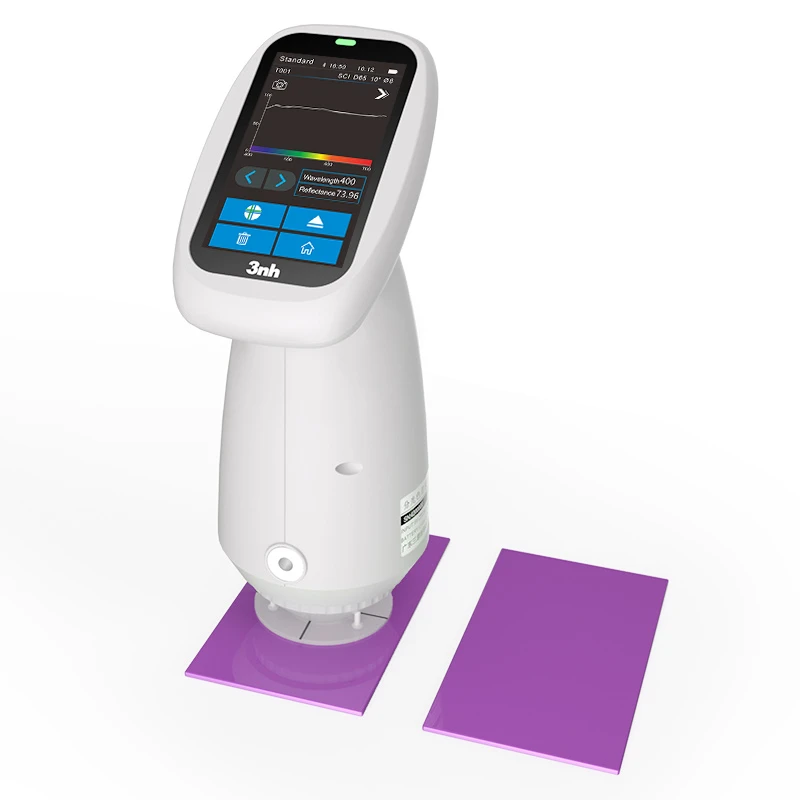

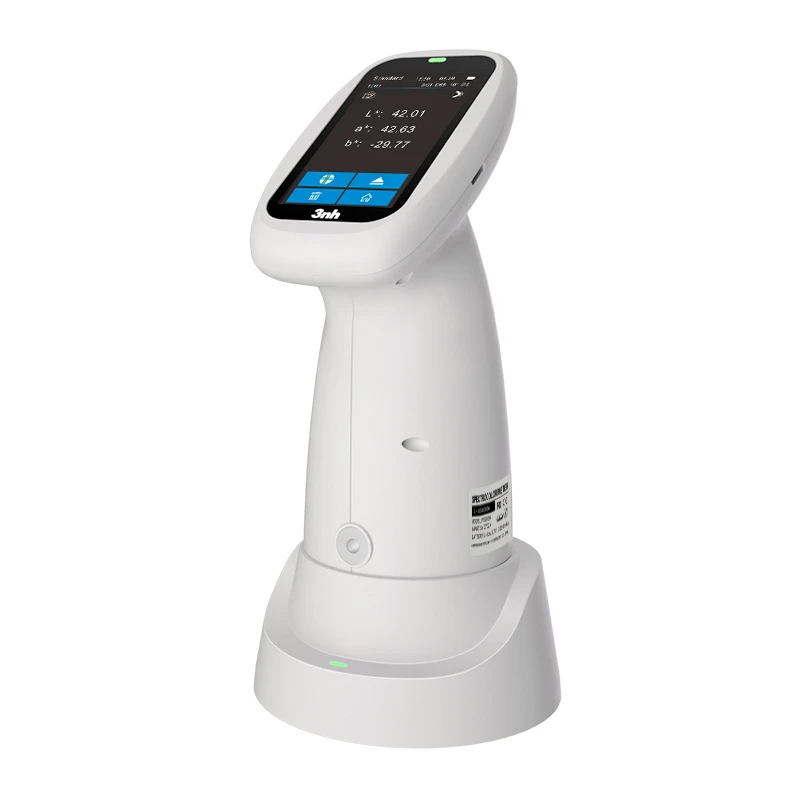

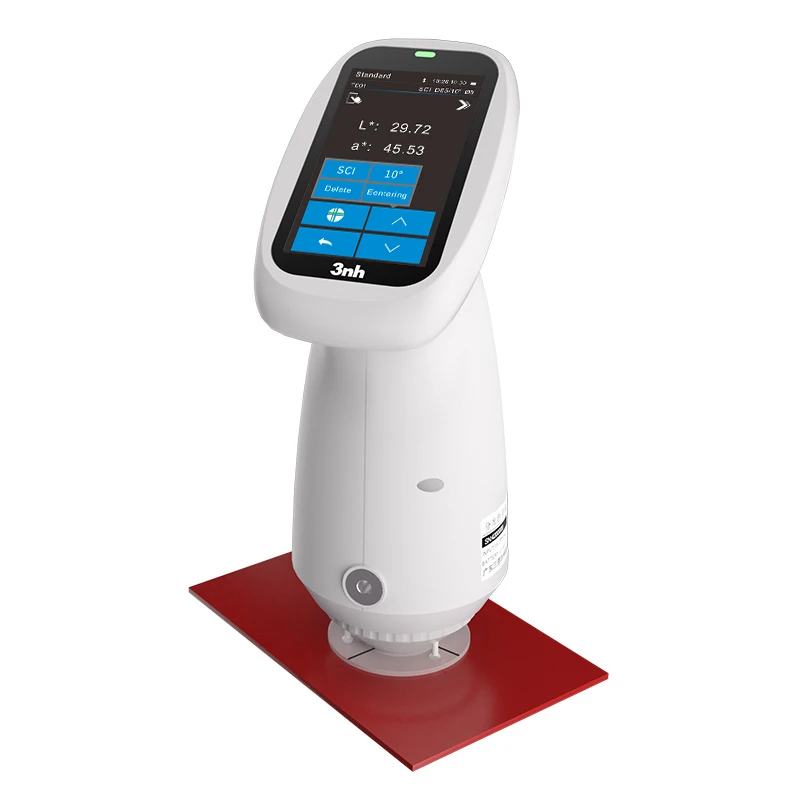

PS210 Spectrophotometer

PS210 Spectrophotometer Instructions Operating Manual PS210 Spectrophotometer PDF
This PS210 Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

PS210 is a professional-grade model in the domestic PS series spectrophotometers. Adopting D/8 illumination viewing geometry and a dual-row 16-group silicon photodiode array sensor, it perfectly integrates the functions of a spectrophotometer and spectral colorimeter. The instrument features excellent repeatability and inter-instrument agreement, delivering stable and reliable measurement data. With a compact, streamlined, and ergonomic design, it offers a comfortable grip, combining aesthetics and practicality.

And it equipped with Φ4mm (flat + conical) measuring apertures, widely used for color quality control in plastics & electronics, paints & inks, textiles & garments, printing, ceramics, and other industries.

Product Features


Core Performance

1. Optical Design & Measurement Capability

D/8 Illumination Viewing Geometry: Adopts the internationally accepted D/8 structure with SCI (Specular Component Included) mode, complying with CIE No.15, GB/T 3978 and other international and domestic standards, ensuring authoritative and universal measurement results.
Dual Optical Path Design: Equipped with a dual row 16 group silicon photodiode array sensor and Φ40mm integrating sphere for more efficient and accurate color data processing.
Full Spectrum Balanced LED Light Source: Captures spectra from 400-700 nm with sufficient spectral distribution in the visible range, avoiding spectral gaps typical of ordinary white LEDs and ensuring high measurement accuracy.

1.Optical Design & Measurement Capability.jpg


2. Data Accuracy & Stability

Repeatability: Chromaticity value standard deviation ΔE*ab ≤ 0.02, ensuring high consistency of measurement results.
Inter Instrument Agreement: ΔE*ab ≤ 0.35, providing excellent consistency among multiple instruments for multi device color management.

2.Data Accuracy & Stability.jpg


3. Operation Experience & Functional Adaptability

User Friendly Interface: 2.8 inch TFT true color capacitive touch screen, supporting one button measurement. The interface clearly displays spectral graphs, chromaticity values, color differences, pass/fail judgments, color simulation, and color tendency.

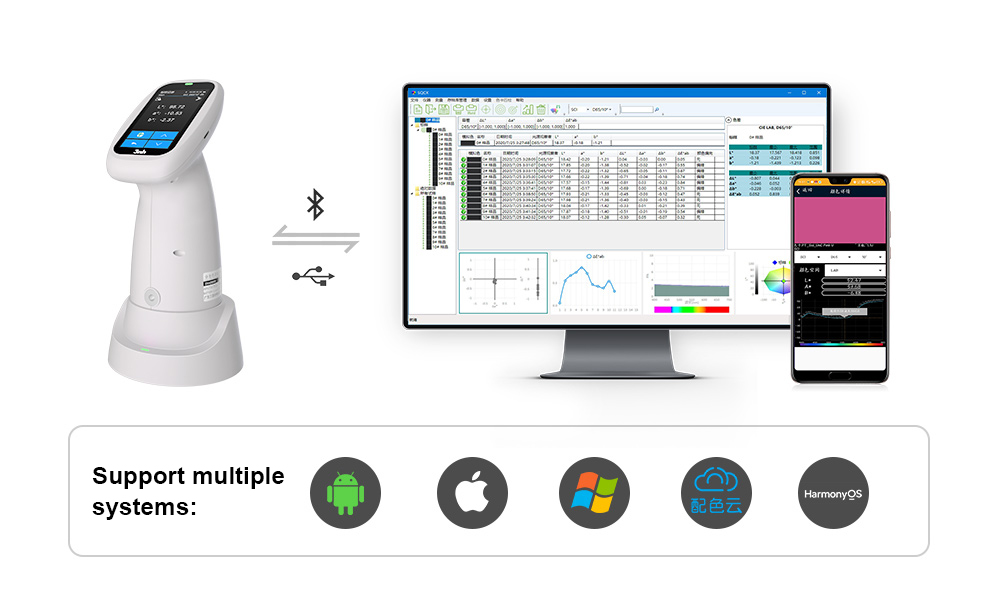

Multi Device Connectivity: USB and Bluetooth® 5.0 for connection with PCs and mobile phones (Android, iOS, HarmonyOS) and WeChat Mini Program (Color Matching Cloud). Professional quality control software enables real time data synchronization, report generation, and cloud storage (200 standards + 10,000 samples on APP/PC), supporting remote collaboration and mobile office.

3.Operation Experience & Functional Adaptability.jpg


Functional Highlights

1. Multiple Color Spaces & Illuminants

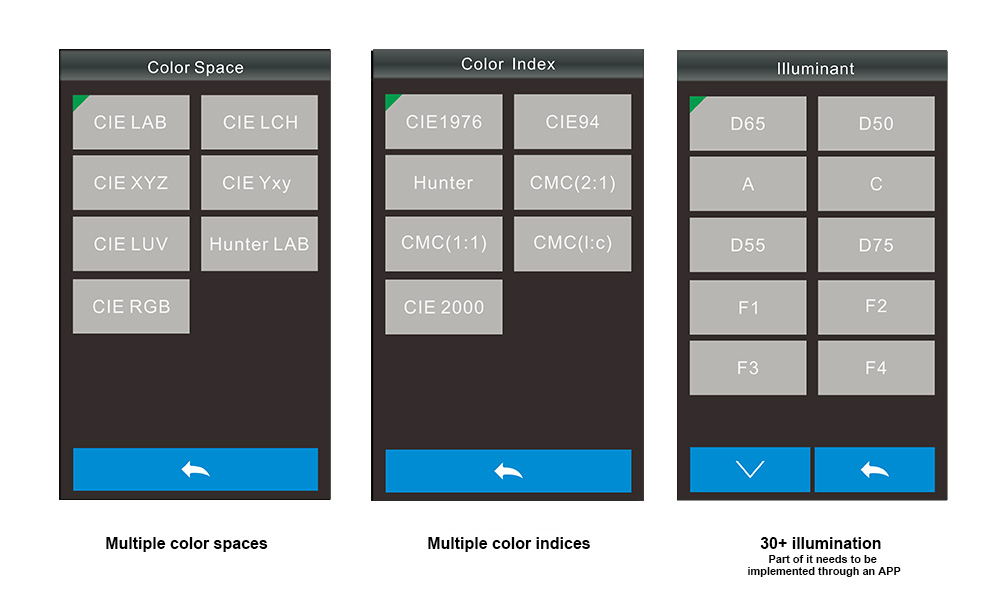

Color Spaces & Formulas: Supports CIE LAB, XYZ, HunterLab and other color spaces; ΔEab, ΔEcmc, ΔE*00 and other mainstream color difference formulas. Measures spectral reflectance, whiteness index (WI), yellowness index (YI), metamerism index Mt, staining/color fastness, and other chromatic indexes. Advanced functions (Munsell, CMYK) are available via mobile APP.
Wide Illuminant Coverage: Built in 30+ standard illuminants including D65, A, C, D50 (some extended via mobile APP) to meet color evaluation under various lighting conditions.

1.Multiple Color Spaces & Illuminants.jpg


2. Hardware Design & Professional Application

Ergonomic Design: Smooth, stylish housing with comfortable grip, suitable for continuous inspection. Auto measurement sensing device ensures portability and ease of use.

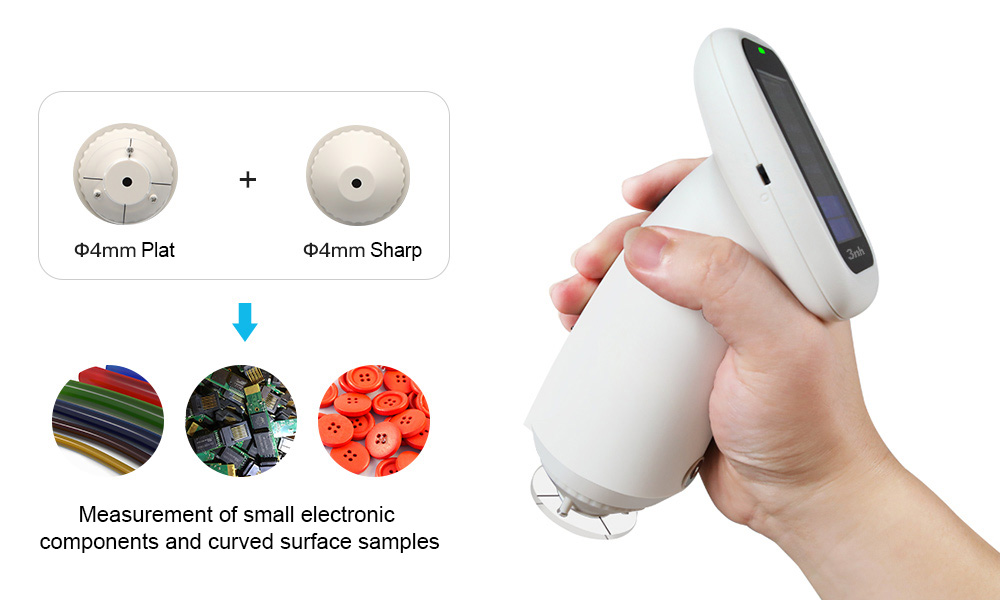

Flexible Apertures: Φ4mm/Φ5mm (flat + conical) apertures adapt to small or curved samples (e.g., electronic components, coated surfaces). Stable sheet positioning ensures accurate measurement placement.

2.Hardware Design & Professional Application.jpg


Applications

PS210 is widely applied in color difference testing for plastics and electronics, color matching for paints and inks, fastness evaluation for textiles and dyeing, color consistency control for printing, and surface color analysis for ceramics.



Product Model

PS210 Spectrophotometer

Illumination/Viewing

D/8 (Diffuse illumination, 8° viewing), SCI (Specular Component Included)Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724 1, ASTM E1164, DIN 5033 Teil7

Application

Color quality control for plastics & electronics, paints & inks, textiles & garments, printing, ceramics, etc.

Light Source

Combined full spectrum LED

Integrating Sphere

Φ40mm

Spectral Module

Nano integrated spectral device

Sensor

Dual row 16 group silicon photodiode array

Wavelength Range

400-700nm

Measuring Apertures

Φ4mm / Φ5mm (flat + conical)

Light Component

SCI

Color Spaces

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99

Color Difference Formulas

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Additional Chromatic Indexes

Spectral reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM E313), Metamerism Index Mt, Color Fastness (Staining & Changing), Strength, Hiding Power, 555 Tone Classification, Munsell (C/2), CMYK (via APP)

Observer

2°/10°

Illuminants

D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30), U35,NBF,ID50,ID65, LED-1,LED-2,LED-3,LED-4,LED-5 ,LED-6,LED-7,LED-8,LED-9,LED-10(partially via APP)

Display

Spectrum graph/data, chromaticity value, color difference graph, Pass/Fail, color simulation, color tendency

Measurement Time

About 1s

Repeatability

Chromaticity: MAV/SCI, ΔE*ab ≤ 0.02 (after warm up & calibration, average of 30 measurements on white tile at 5s intervals)Spectral Reflectance: MAV/SCI, ≤ 0.08% (≤ 0.18% within 400-700 nm)

Inter Instrument Agreement

MAV/SCI, ΔE*ab ≤ 0.35 (average on 12 BCRA Series II tiles)

Display Resolution

0.01

Reflectance Range

0-200%

Reflectance Resolution

0.01%

Measurement Mode

Single measurement, average measurement (2-99 times)

Positioning

Stable sheet positioning

Calibration

Contact white calibration

Dimensions

94(L)×68(W)×188(H) mm (excluding calibration base)

Weight

410 g (excluding calibration base)

Battery

Li ion 3.7V 3200mAh, up to 8000 measurements in 8 hours

Light Source Life

10 years or > 1,200,000 measurements

Screen

2.8 inch TFT true color capacitive touch screen

Interface

USB, Bluetooth® 5.0

Data Storage

200 standards, 10,000 samples (SCI/SCE supported); unlimited via APP/PC

Software Support

Android, iOS, Windows, WeChat Mini Program, HarmonyOS

Language

Simplified Chinese, English, Traditional Chinese

Operating Environment

Operating Environment

Storage Environment

-20-50°C, 0-85%RH (non condensing)

Standard Accessories

Power adapter, data cable, user manual, QC software (downloadable), white calibration box, protective cover, wrist strap, measuring apertures

Optional Accessories

Mini printer, powder test kit

Note

Specifications are for reference only; subject to the actual product



Our Valued Clients

  • Griffith UNIVERSITY
  • APPLIED MATERIALS
  • UPORTO
  • LUND UNIVERSITY
  • university mississippi
  • infieon
  • Vilnius University
  • university mississippi

FAQs About  Spectrocolorimeter

The most important equation is A = 2εcl, where A is the absorbance, 2 is a constant, ε is the molar absorptivity (L/mol cm), c is the concentration (molL-11), and l is the path length (cm). This can be used to relate the absorbance to the concentration, allowing quantification through colorimetric assays.


The LAB color space defines colors in a three-dimensional model: Lightness (L), red–green axis (a), and blue–yellow axis (b). It's a globally recognized standard supported by most modern color measuring devices. CIELAB is a standardized, device-independent system designed to map all visible colors that the human eye can perceive.

The LAB color space uses three values to define any color, each representing a specific dimension:


L (Lightness): Ranges from 0 to 100. It measures the brightness of the color, where 0 is pure black and 100 is pure white.
A (Red-Green Axis): Ranges from approximately -128 to +127. Positive values represent red tones, while negative values represent green tones.
B (Yellow-Blue Axis): Ranges from approximately -128 to +127. Positive values represent yellow tones, while negative values represent blue tones.


Record the L*a*b values of the sample and the reference with a calibrated spectrophotometer or colorimeter. Compute the difference in the color by use of ΔE. The lower the Delta E, the more accurate the result. The difference in energy, ΔE < 1, is generally assumed to be invisible to the eye.


A colorimeter is used to measure the intensity of color of a solution by measuring its absorbance at selected wavelengths of light. It is widely applied in chemistry, food, pharmaceuticals, and quality control to determine concentration, track color changes, or product uniformity.


To quantify color change, take the original L*a*b* values of a sample, and reread after exposure or processing. Compute the difference as 1/2(Emut1 Emut2). The larger the value of ΔE, the more obvious the change of color is, which can be used in quality or stability testing.
