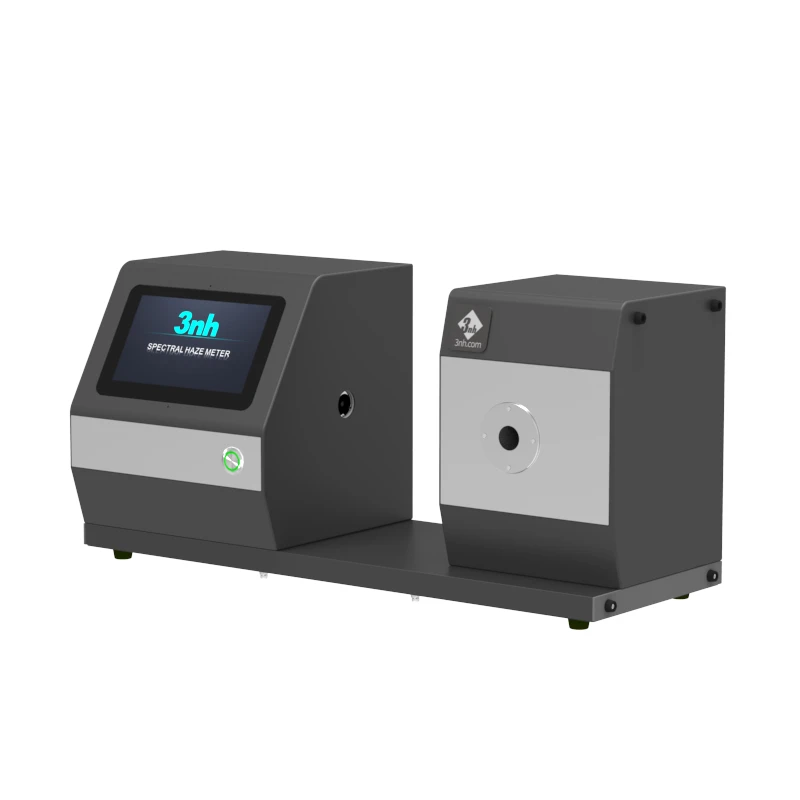

KS1210 Haze Meter

KS1210 Haze Meter Instructions Operating Manual KS1210 Haze Meter PDF
This KS1210 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3nh KS1210 haze meter is professionally designed to measure haze, total transmittance, and clarity of materials such as glass, plastics, films, and screen. It supports both ASTM D1003 uncompensated method and ISO 13468 compensated method measurement modes, meeting the testing needs of different standard systems in one device.

Key performance indicators such as total transmittance, haze, and clarity are output simultaneously.

A single measurement can simultaneously obtain three indicators: full transmittance, haze, and clarity, with both transmittance and haze resolution reaching 0.01 units.

Key performance indicators such as total transmittance

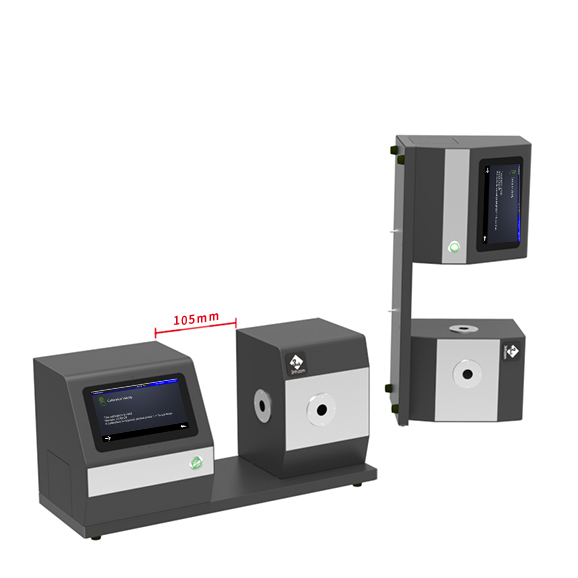

Large sample space, flexible for handling irregularly shaped materials

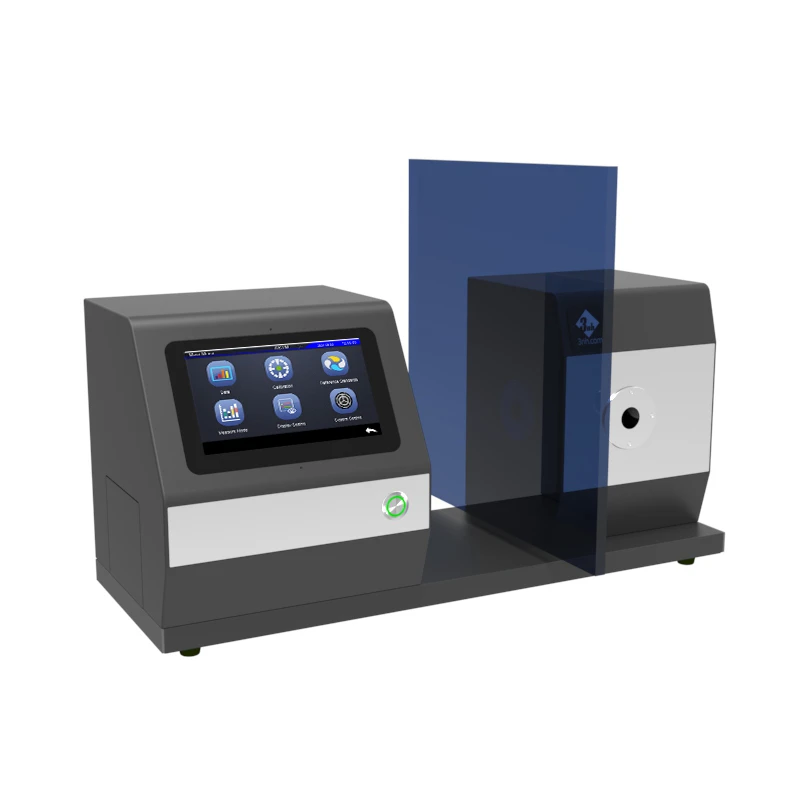

The open measurement structure supports both vertical and horizontal placement, and the maximum sample thickness can reach 105mm. It can directly measure large-size plates, film rolls and liquid cuvettes without destructive cutting.

Large sample space

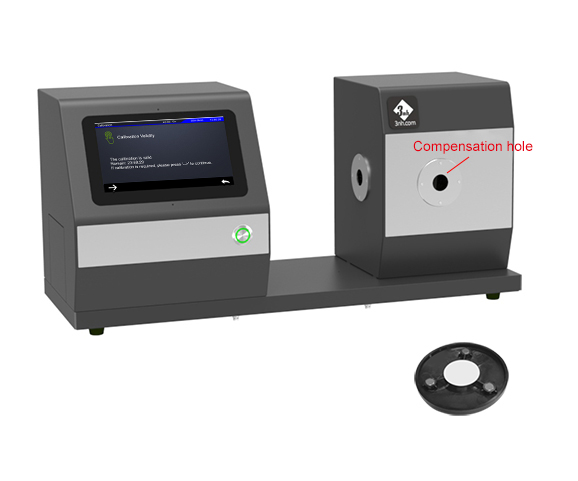

Dual standard compatibility, one-click flexible switching

It has built-in ASTM D1003 uncompensated method and ISO 13468 compensated method, which users can switch as needed to meet the testing requirements of different industry standards.

Dual standard compatibility


Professional optical hardware architecture ensures accurate and interference-resistant measurements.

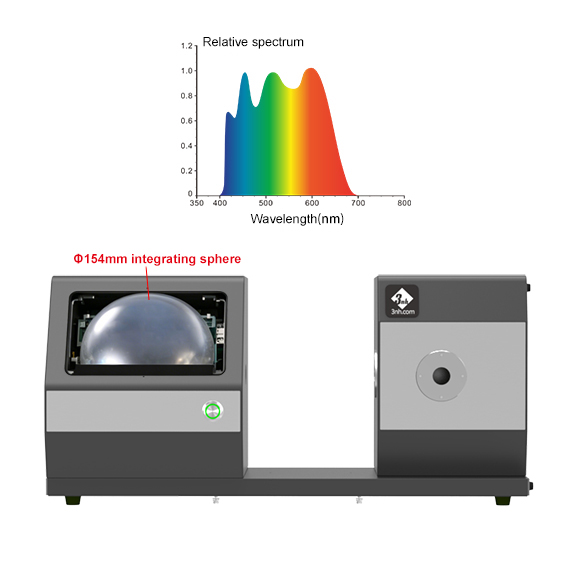

Employing a 400~700nm combined LED light source, a 154mm high-precision integrating sphere, and nano-integrated spectroscopic devices, coupled with a dual-row 18-group silicon photodiode array sensor, it achieves more balanced optical sampling and more sensitive signal acquisition, ensuring detection accuracy and long-term stability.


Professional optical hardware architecture ensures accurate


Authoritative standards are fully covered, and testing results are compliant and reliable.

Fully compliant with international and domestic standards such as ASTM D1003/1044, ISO 13468/14782, GB/T 2410, and JIS K7105/K7361/K7136.


Authoritative standards are fully covered


Massive storage and intelligent interaction ensure worry-free data management

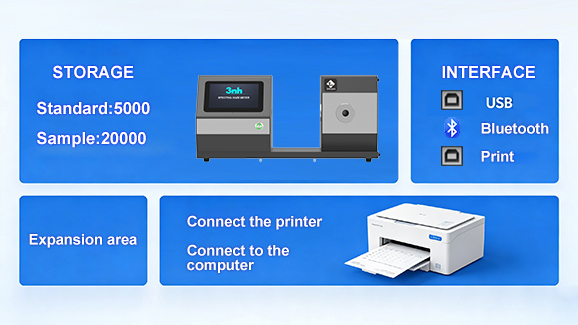

Supports storage of 5,000 standard samples and 20,000 test samples. Equipped with USB, Bluetooth, and a serial printer port, it can connect to an external printer or PC-based quality control software for easier traceability and analysis.

Intelligent interaction ensure worry-free data management


Application Fields

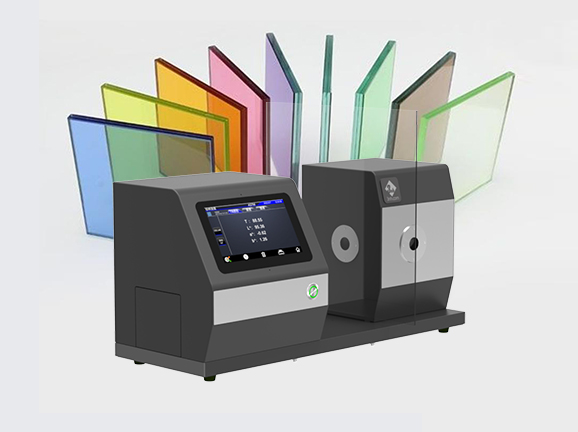

Glass Processing: KS1210 is widely used for testing the haze and transmittance of transparent glass products such as architectural glass, automotive glass, and photovoltaic glass. Its high-precision measurement capabilities ensure that the optical properties of the glass meet industry standards, helping companies control product quality and enhance product competitiveness.

Glass Processing

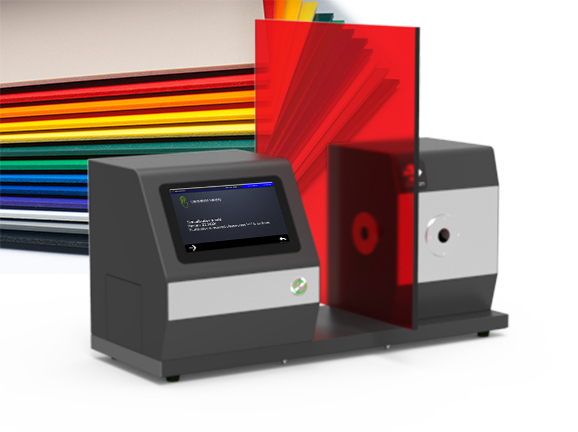

Plastic Processing: Suitable for optical performance testing of various transparent plastic sheets, plates, and products. Whether it is PC, PMMA, PET, or other transparent plastic materials, the KS1210 can provide accurate haze and transmittance data, supporting both R&D and quality control needs.

Plastic Processing

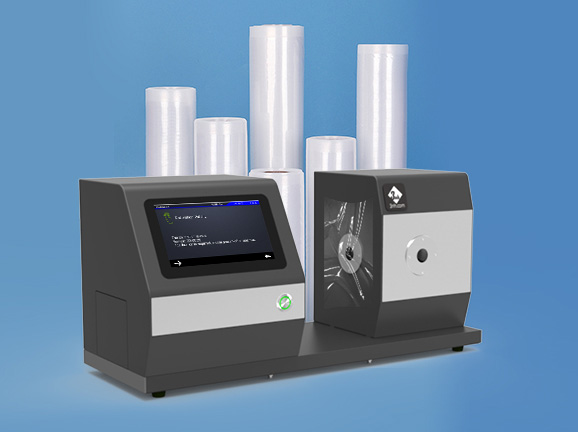

Film Manufacturing: For products such as optoelectronic films, packaging films, and functional films, the KS1210 provides a fast and accurate haze measurement solution. Its 1.5-second rapid measurement, combined with large-capacity storage, meets the high-frequency quality inspection needs of film production lines.

Film Manufacturing

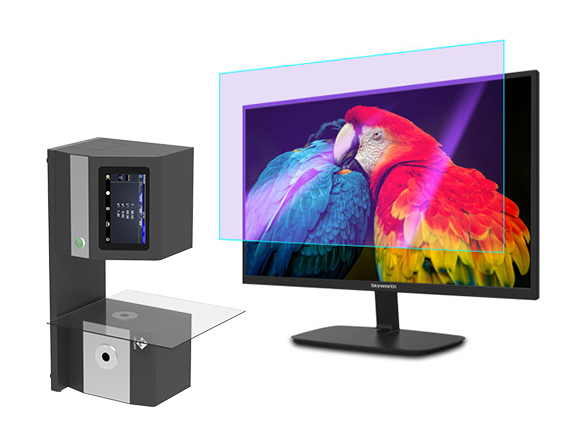

Display Screen Processing: In the manufacturing of displays such as touch screens, LCD modules, and OLED panels, the KS1210 is used to test the optical performance of key materials such as transparent conductive films, polarizers, and cover glass to ensure that the display effect meets design standards.

Display Screen Processing

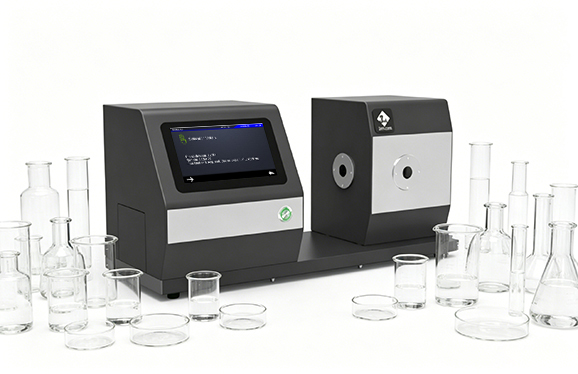

Packaging Industry: Haze detection is used for transparent or semi-transparent packaging materials (such as plastic bottles, composite films, and stretch films) used in food, pharmaceutical, and cosmetic packaging. This ensures that the packaging materials possess good transparency and appearance quality, meeting both food safety and consumer experience requirements.

Packaging Industry


Product Model

KS1210 Haze Meter

Illumination Method

Transmittance 0/D (Parallel light illumination, diffuse viewing);
Conform to the standards: ASTM D1003/1044, ISO 13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136

Characteristics

The instrument can easily perform ASTM D1003 uncompensated method and ISO 13468 compensated method tests for total transmittance and haze.

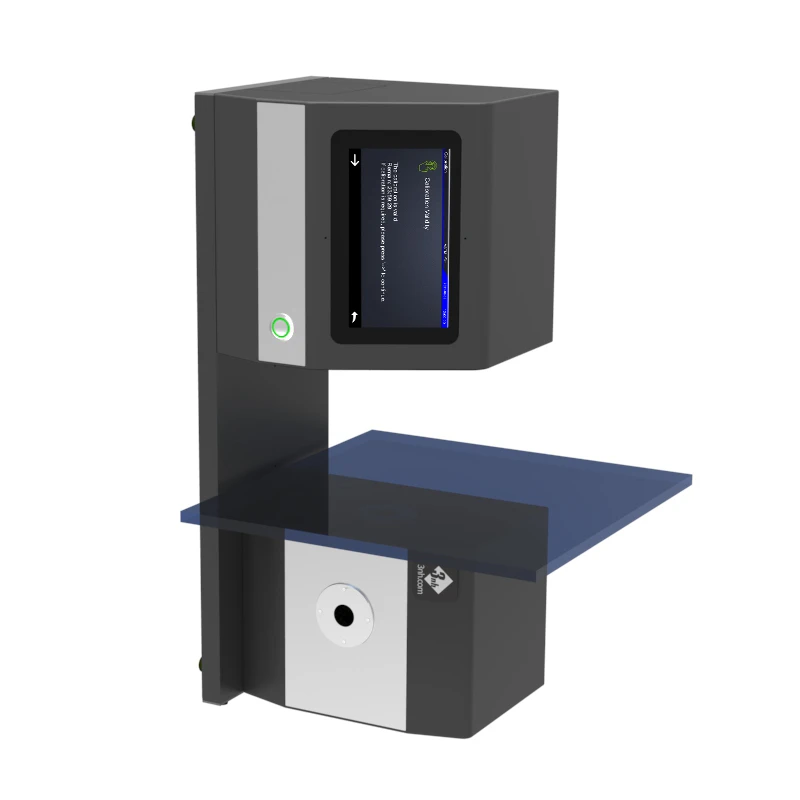

Open measurement area, suitable for both vertical and horizontal testing.
It is widely used in transmittance and haze detection in industries such as glass processing, plastics processing, film processing, display screen processing, and packaging.

Integrating Sphere Size

154mm

Light Source

400~700nm combined LED light

Spectrophotometric Method

Nanoscale integrated spectral devices

Sensor

Silicon photodiode array (dual-row, 18 groups)

Measurement Wavelength Range

400~700nm

Wavelength Interval

10nm

Half Bandwidth

10nm

Measurement Aperture

20mm/15mm/8mm (Select a single aperture)

Sample Size

Thickness less than 105mm

Color Space

/

Color Difference Formula

/

Other Chromaticity Indicators

Haze (ASTM D1003/1044, ISO 13468), Transmittance T (ISO), Transmittance T (ASTM), Clarity

Observer Angle

/

Observation Light Source

/

Display

Pass/Fail results

Measurement Time

Approx. 1.5s

Haze Resolution

0.01 unit

Haze Repeatability

20mm aperture, within 0.03 (After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 30 for 30 times were taken at intervals of 5s.)

Transmittance Measurement Range

0~100%

Transmittance Resolution

0.01 unit

Transmittance Accuracy

Better than ±1%

Transmittance Repeatability

20mm aperture, within 0.03 (After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 30 for 30 times were taken at intervals of 5s.)

Color Difference Repeatability

/

Platinum-Cobalt Chromaticity Resolution

/

Platinum-Cobalt Chromaticity Accuracy

/

Platinum-Cobalt Chromaticity Range

/

Turbidity Range

/

Dimensions

L x W x H = 487 x 260 x 298mm

Weight

Approx. 8.0kg

Power Supply

DC 24V, 3A power adapter

Light Source Lifespan

5 years, more than 3 million times measurements

Display

7-inch TFT color LCD, Capacitive Touch Screen

Interface

USB, Print serial port, Bluetooth

Storage

Standard 5000pcs, Sample 20000pcs

Language

Simplified Chinese, Traditional Chinese, English

Operating Environment

0~40℃ (32~104℉), 0~85%RH

Storage Environment

-20~50℃ (-4~122℉), 0~85%RH

Standard Accessories

Power Adapter, User Guide, Quality Management Software (download from the official website), USB cable, 0% calibration box, measuring aperture

Optional Accessories

Micro-printer, Test fixture, standard haze sheet, foot switch

Note:

Subject to change without notice




Our Valued Clients

  • Cincinnati Gasket glass company
  • Customer Smart Glass Country
  • our customer OHARA INC
  • Mo Sci LLC company
  • Cornwall Glass company
  • Customer Visilume Ltd
  • Dreamwalls company
  • customer BOROSIL

FAQs About KS1210 Haze Meters

We provide professional training to customers along with user manuals for the proper operation and maintenance of haze meters. If you have any problems during use, you can contact our experts who will quickly help you solve the problem


Follow the calibration steps form 3nh. Don’t touch the sample and drop the measurement light to eliminate external light.


Haze Meters are utilized in production and quality assurance in the plastics, glass, films, and coatings industries, where transparency and example are essential.


Samples should be cleaned, dried, and scratched-free to obtain consistent haze measurements.


A haze meter should be calibrated every 6 months, or more frequently if used for certain quality control processes.
