Spectrophotometry is the measurement system that measures light in relation to its interaction with other objects. Light interacts with objects differently based on the light’s type and the material’s chemical structure, and these properties are incredibly useful for identifying a material.

So, industries that need high material accuracy for production often rely on spectrophotometry to identify the material. Naturally, measuring spectral properties can have many other use cases, but many people aren’t very familiar with spectrophotometry itself. So, in this article, we’re taking a deep dive into the intricacies of spectrophotometry and the tools used in this field.

What Is Spectrophotometry?

Spectrophotometry is a spectral analysis system that measures the absorbance and transmittance of light on various objects. It is a fundamental process for determining material properties and sees widespread usage where material integrity is paramount.

The way it works is simple. The machine, often a spectrophotometer, The specific wavelengths of lights on the sample and measures the change in light's intensity after it comes into contact with the sample. This data can then be used to determine the material color or density and its other properties.

There are several types of spectrophotometers, all specialized for specific purposes or to serve specific industry needs. UV and infrared spectrophotometers are the most widespread variants. The core concept of spectrophotometry relies on the Beer-Lambert to determine light properties.

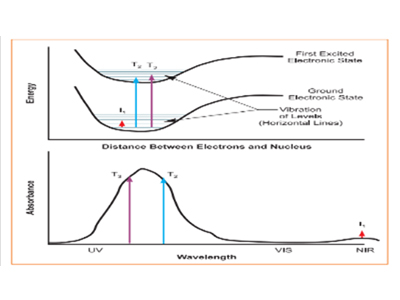

The method based on absorption spectrum analysis is also known as absorptiometry. Spectrophotometry isn’t only for examining known substances. It can also be used to measure unknown objects. Scientists and researchers can extrapolate data about unknown objects by comparing it to known standards and samples.

Why Is Spectrophotometry Important?

The demand and widespread use of spectrophotometry in a large number of industries has it do with its ability to provide fast, accurate, and non-destructive analysis of samples. Here are the reasons why Spectrophotometry is so widely used:

1. Precise Analytical Capacity

Precision is a necessary quality when it comes to measuring sensitive materials. One of the main reasons people use spectrophotometry is because it is an incredibly accurate way to measure things.

While the accuracy can vary based on the quality of equipment. Most high-quality spectrophotometers adhere to strict quality control during the manufacturing process. That's why devices like the spectrophotometer are somewhat expensive. Still, for sensitive work, it's best to spend the extra money on a guaranteed high-quality product.

2. Extremely Versatile and Efficient

Another reason behind spectrophotometry's widespread usage has to do with its incredible versatility. Let's be real here, there are countless measurement systems for determining material properties, and many have the same accuracy level of spectrophotometry.

But what makes spectrophotometry unique is that it can work on any material that interacts with light. And that’s basically every material under the sun, except for a few extremely rare outliers.

It can also work using both visible and invisible light. Invisible light refers to the light that has a wavelength the human eye can't pick up. Infrared light is a good example. We can't see this light, but a spectrophotometer can. It can be used as an analysis tool to check the interior of certain objects.

3. Non-Destructive

Accuracy and versatility are important, but they aren't too unique in and of themselves. The most important quality that allows spectrophotometry to reign supreme is its non-destructive measuring methods.

Measuring spectral data with spectrophotometry leaves no traces, nor does it harm the sample. This is a major requirement for industries that deal with extremely precious materials.

For example, materials used in the nuclear enrichment program are all expensive but also hazardous. Analyzing the condition of these types of materials with a contact tool is dangerous. And it’s not viable to waste such material for simple tests. Spectrophotometry is the only solution in such cases.

Which Industries Require Spectrophotometry?

Spectrophotometry is used in many industries. It sees the most use in the pharmaceutical and chemical industry. This industry regularly deals with complicated material and requires routine analysis of said material.

Drug formulation, purity testing, and other experimental procedures always require constant monitoring of the chemical compounds. Most labs use spectrophotometry to identify such changes.

Spectrophotometry sees significant usage in the environmental science field. Geologists and people who research natural materials often need to check the exact chemical makeup of the samples. Such operations help determine the level of organic pollutants or other hazardous substances in the soil or rock sample for example.

Using spectrophotometry to check for various compounds in soil is a common practice in modern agriculture as well. It helps people determine soil conditions so they can apply the appropriate fertilizers for maximum harvest.

Speaking of agriculture, the food industry also uses spectrophotometry to check food and beverages to monitor nutrient content, additives, and contaminants.

Devices Needed For Spectrophotometry

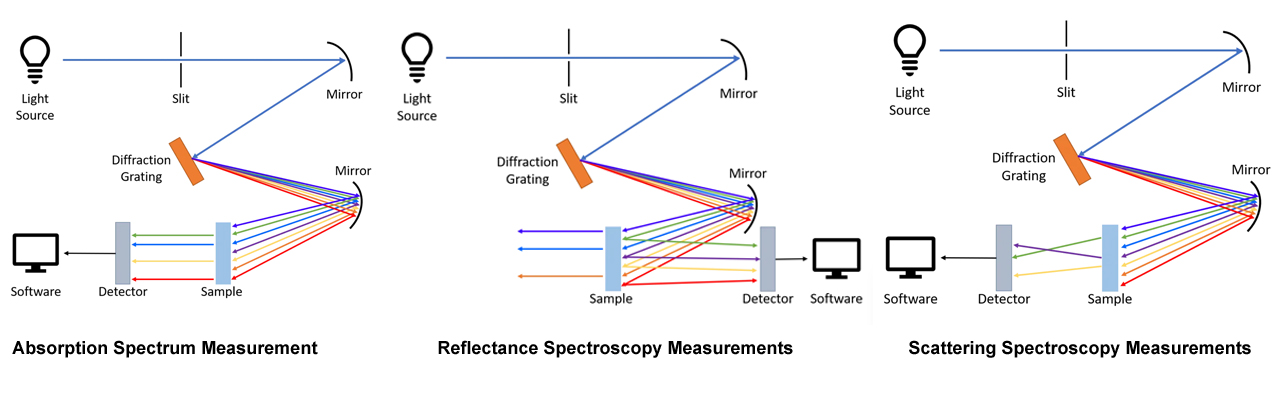

The main device you need for spectrophotometry is a spectrophotometer. A spectrophotometer is a spectral measurement device. It can determine the samples color or material compound of a sample by measuring the absorbance and transmittance of light.

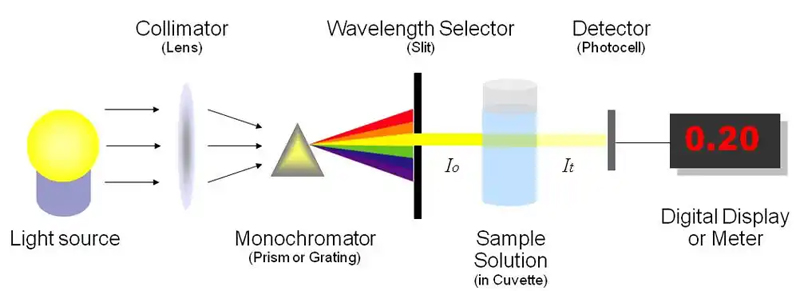

This gadget works by firing a beam of visibal, UV light or infrared light, this light then passes through a filter which separates the necessary wavelength for the test. The filtered light then hits the sample, and the device measures how the light interacts with the sample.

Spectrophotometers come in many shapes and sizes and with various specifications. The high-quality professional-grade spectrophotometers usually have a dual-beam system, which has enhanced analytical capabilities. That being said, you can still measure some of these things with other devices as well.

A spectrometer, for example, has very similar capabilities but has limited analytical power compared to a spectrophotometer. The key difference is that a spectrometer only offers data using a fixed range of wavelength. A spectrophotometer covers the entirety of the light spectrum.

 Spectrophotometry and colorimetry for color measurement

Spectrophotometry and colorimetry stand as the dual pillars of precise color measurement, empowering industries to achieve unparalleled color accuracy. By combining spectral analysis with visual perception-based quantification, these technologies deliver comprehensive data that bridges the gap between objective color data and subjective human vision. For 3nh, integrating both methodologies into our color measurement instruments ensures that every device meets the rigorous demands of quality control, product development, and color consistency across global supply chains.

Spectrophotometry - By measuring the reflectance/transmittance of objects to light of different wavelengths, it accurately analyzes the spectral composition of colors. As one of the highest-precision technologies in color measurement, it is widely applied in high-end instruments and equipment, learn more about spectrophotometry equipment.

Photoelectric Integrating Method -The Photoelectric Integrating Method (also known as Tristimulus Colorimetry or Filter Colorimetry) is a color measurement technique that directly outputs XYZ tristimulus values by weighting and integrating the spectral power of the measured light. It uses a combination of filters and photoelectric detectors, whose spectral response is matched to the CIE standard colorimetric observer tristimulus value curves (x̄(λ), ȳ(λ), z̄(λ)).

Its working principle relies on three sets of correction filters to adjust the detector’s (e.g., silicon photocell, photodiode) spectral response to be consistent with the CIE 1931 standard observer’s x̄, ȳ, and z̄. A single exposure completes full-band integration, and the detector outputs electrical signals proportional to the tristimulus values, which are directly converted into chromaticity parameters such as L*a*b* and ΔE. A key condition for its accuracy is that the filters must meet the Luther condition to ensure spectral matching precision.

Typical instruments applying this method include colorimeters, portable/economical color measuring instruments, and integrating sphere photoelectric colorimeters. It boasts advantages of ultra-fast measurement speed (millisecond-level, suitable for high-speed on-line detection), simple structure, low cost, portability, and direct output of chromaticity values without spectral analysis.

However, it has limitations: limited accuracy (lower than spectrophotometry, dependent on filter matching), inability to measure spectra and identify metamerism, and large systematic errors for complex surfaces such as metallic paint, pearlescent, and fluorescent materials.  In industrial scenarios, it is widely used for rapid color difference detection and batch consistency control in plastic/resin molding, coatings/inks, automotive interior and exterior parts, cosmetics, and food packaging.

Colorimetry -Based on the visual characteristics of the human eye, it quantifies colors into measurable parameters (such as Lab*, RGB, etc.). Focusing on the restoration of visual color perception, it features convenient operation and moderate cost, Learn more about colorimetry equipment.

Conclusion

Hopefully, you now have a better understanding of spectrophotometry. It's an incredibly versatile field of analytics that helps multiple industries operate efficiently. Spectrophotometers are the primary tool used for spectrophotometry because it's the only tool capable of testing with the full spectrum of light.
