What Does a Spectrophotometer Measure and How Does It Work

Accuracy is more crucial in science and industry than ever before. We need accurate tools, whether it is in determining the color of a label on a soft drink bottle, or it is determining the purity of a chemical. The spectrophotometer is one of such useful tools. It is also one of the well-known instruments by which the interaction between materials and light is studied.

So, what does a spectrophotometer measure? It views the level of thickness of light taken in, given off, or emitted by a sample. It provides considerable detail of the color, concentration, and other media optical characteristics of the substance.

So how does this powerful tool work, what is it used for, and how best can it be utilized?

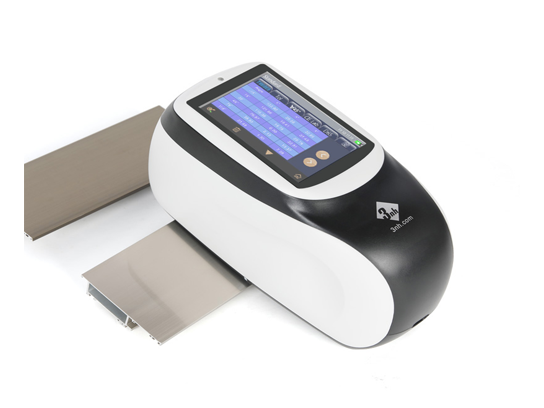

What Does a Spectrophotometer Measure?

The spectrophotometer measures the amount of light that is either absorbed, transmitted, or reflected by a sample. It does so on a broad spectrum of the electromagnetic spectrum. The emerging data helps in quantification of color, concentration, and structure of the chemicals.

The instruments measure spectral light that has some values of the intensity of light at various wavelengths. This makes spectrophotometers the most favorable when studying the color and transparency of solid, liquid, or translucent materials.

Using a spectrophotometer allows measuring precise color details of virtually any sort of sample plastic, clothes, paint, or clear fluids.

How Does a Spectrophotometer Work?

The spectrophotometer takes the form of an illumination on or through a sample. It then identifies the transmission, reflection, or absorption of wavelengths or light.

Here’s a simplified breakdown of the process:

1. Light is produced by a light source on a wide variety of wavelengths.

3. Specific wavelengths are obtained by passing the light through a monochromator.

5. The sample comes into contact with the filtered light.

7. The amount of light that is being absorbed or transmitted is caught by a detector.

9. The system computes and measures the intensity of light.

This data provides it with a fingerprint of such a sample, which can be analyzed regarding its color, concentration, or anything.

What Are Spectrophotometers Used For?

Spectrophotometers find use when color purity and continuity are imperative. They find use when color purity and continuity are imperative. Spectrophotometers have wide applications in industries and may be crucial in respect of quality control and research.

Common Applications Include:

● Paint and coatings: Ensuring color consistency between batches.

● Textiles: Measuring dyes and pigments on fabrics.

● Plastics and packaging: Monitoring color in molded parts and containers.

● Pharmaceuticals: Measuring chemical concentrations in drug formulations.

● Food and beverages: Verifying color quality in liquids and solids.

● Environmental testing: Monitoring pollutants and water quality.

● Laboratories: Performing enzyme assays, DNA analysis, and protein quantification.

How to Use a Spectrophotometer

Using a spectrophotometer involves a few straightforward steps:

1. Turn on the device and let it warm up.

2. Select the mode (transmission or reflectance) based on your sample type.

3. Calibrate the machine using a blank or reference sample.

4. Insert the test sample in the holder.

5. Choose the wavelength to measure or scan across a range.

6. Initiate the scan and record results.

Always handle samples and cuvettes carefully to avoid contamination or error.

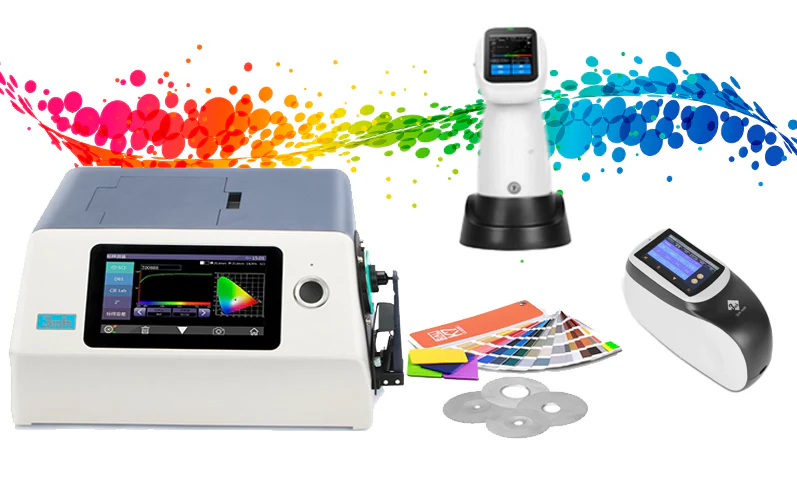

Color Measurement by Spectrophotometer

https://cdn.shopify.com/s/files/1/0356/8248/4360/files/spectro-vs-colorimeters_d328ab76-6f25-4d51-85b8-d2ba9ed10e99.jpg?v=1705439365/

One of the most important tasks that is carried out using spectrophotometers is measuring color. They observe the ways a sample absorbs or reflects the visible light that is between 400 and 700 nanometers.

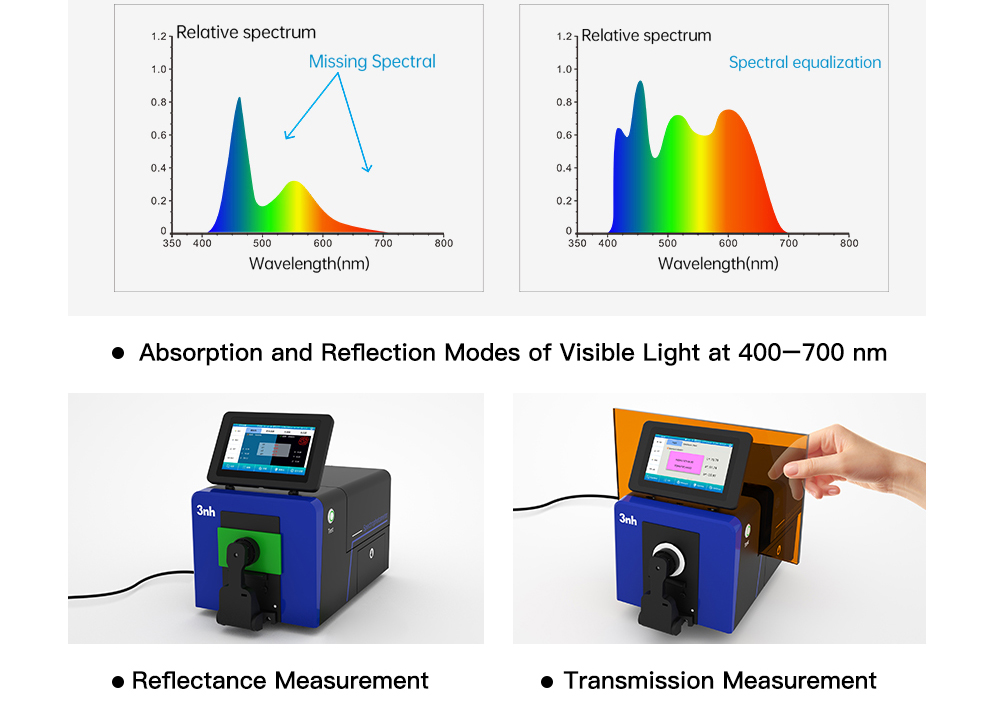

Two types of color measurements are commonly used:

1. Reflectance Measurement (Solid Samples)

Furnish on non-reflective surfaces like fabrics or paint.  The device quantifies how much light bounces back from the surface.

2. Transmission Measurement (Liquid or Transparent Samples)

Deposited over clean plastics or solutions. The instrument determines the amount of light that is passing through the substance.

The result of such measurement is usually depicted in the form of an image of the visual reflectance spectrum, a specific signature of any prototype of color.

Lab Spectrophotometer: Role in Science and Research

Spectrophotometers are important equipment in laboratory work, which analyzes the concentration of chemicals. They are used in different spectrophotometric tests in labs, e.g.,

● Protein and enzyme quantification

●

● DNA and RNA analysis

●

● Measuring bacterial growth

●

● Monitoring pH-sensitive dyes

●

UV-Vis spectrophotometers are sometimes known as laboratory spectrophotometers because these devices can measure both the ultraviolet (185-400 nm) and visible (400-700 nm) regions. They are useful in both photobiology and vision labs.

Spectrophotometer Uses in the Laboratory

They permit non-destructive study, rapid testing, and provide high sensitivity, which makes them excellent instruments in both routine and intricate studies. Lab spectrophotometers can be found in:

● Biology and microbiology labs

●

● Clinical laboratories

●

● Environmental testing labs

●

● Food and beverage research facilities

●

● Chemical and pharmaceutical labs

How Absorbance Is Measured

The absorbance value is the amount of Incident light absorbed in a sample at the particular wavelength of light. The higher the concentration of a compound, the more light it will absorb.

Measuring Absorbance:

1. The device sends light through a sample.

2.

3. A detector measures how much light reaches the other side.

4.

5. The difference is calculated and expressed as absorbance.

6.

Concentration is directly proportional to the absorbance, and this can be explained by the "Beer-Lambert law," which states that absorbance is directly proportional to concentration and the length.

Units of Absorbance in Spectrophotometer

The dimensionless absorbance is often idiomatically written "A". It is not linked to any physical units, so it is mathematically calculated as:

A = log10 (I₀ / I)

Where:

● I₀ is the incident light intensity

●

● I is the transmitted light intensity.

●

Values typically range from 0.0 to 2.0, with higher values indicating more absorption.

What Is Absorbance Measured in a Spectrophotometer?

In spectrophotometry, the absorbance does not have a unit such as grams or liters. It is, however, computed logarithmically to measure the amount of light that is taken up by a sample.

This will enable scientists to find out concentrations of chemicals without any substitution or destruction of the sample.

Definition of Spectrophotometry

Spectrophotometry is a scientific measurement of the amount of light that a substance emits. This is concerned with using light to focus on a sample and passing on how the sample reacts to the light.

The method assists in detecting chemical composition, concentration, and optical properties.

Both qualitative and quantitative analyses are possible in spectrophotometry in chemistry, physics, biology, and material sciences.

Wavelength Measuring Instrument

A spectrophotometer is also referred to as a wavelength measuring instrument. It sequentially goes through the various wavelengths and determines at which wavelength the sample will absorb most strongly.

Various light-absorbing compounds absorb light at different wavelengths. Determination of this maximum wavelength is important when looking to detect and measure the presence of certain substances.

What Units Are Used to Measure Wavelength?

Wavelength is measured in nanometers (nm). One nanometer equals one-billionth of a meter.

In spectrophotometry:

● UV range = 185 to 400 nm

●

● Visible range = 400 to 700 nm

●

Each chemical or dye has a specific wavelength at which it absorbs maximum light, known as its λmax (lambda max).

Different Types of Spectrophotometers

Samples are not created equally: some are shiny, some textured, transparent, or turned. The variety of the samples has resulted in the creation of various spectrophotometer designs, which are conditioned by concrete requirements in the measurements.

The material and the level of accuracy of the required application of the spectrophotometers are necessary to select the right spectrophotometer, depending on their surface finish. The major types and the way each of them works can be found below.

1. 45°/0° Spectrophotometers

Directional spectrophotometers, also referred to as geometric ones, are specifically implemented to mimic the way the human eye views color on flat surfaces by their shape. The angle of light projection is 45 degrees, and the reading of reflected light is 0 degrees (or opposite perpendicular of the sample).

This setup removes gloss on the surface, and it renders better readings of colors without sensitivity to pleasant shine or glare. It is especially applicable to industries such as printing, packaging, and textiles, in which the color analysis can be disrupted by the reflection of the surface..

2. Sphere Spectrophotometers

Sphere or integrating sphere spectrophotometers are intended to measure either diffuse reflectance or specular reflectance. These tools involve a hollowed and coated ball to disperse light directions be able to receive light reflected in all directions.

They can be specular gloss included or excluded, and depend on the measurement condition (SCI: Specular Component Included or SCE: Specular Component Excluded). A sphere instrument is best when analyzing rough or smooth shiny surfaces, with textured paint, metals, gloss papers, carpets, and molded plastics.

They are very competent and, as such, are widely sought after in quality control laboratories and production settings.

3. Multi-Angle Spectrophotometers

These are special-engineered devices and are designed for special effect coating, metallic paints, iridescent inks, or pearlized finishes. All multi-angle spectrophotometers mimic the effect of light reflection at varying angles of view, just the same as a person might tilt or turn a sample.

They generally measure color at several different angles (e.g., 15°, 25°, 45°, 75°, 110°) and are common in, e.g., automotive coatings (where color would be changing with viewing direction), cosmetics, and high-end consumer goods. These tools are used to standardize color in varying lighting and viewing angle conditions.

4. Single Beam vs. Double Beam Spectrophotometers

● Single Beam Spectrophotometers

A single beam spectrophotometer can measure the intensity of the light before and after the sample. It does this in a procedural order of first measuring the baseline (blank or reference), then the sample. Although they may be cheaper and easier to operate, these models may be prone to drift in the long run, particularly when conducting lengthy measurement exercises.

They are best suited to rapid, routine, and mass testing, especially in the simplest of quality control tests or in education.

● Double Beam Spectrophotometers

Spectrophotometers are more sophisticated in the form of the double beam. They divide the light into two beams, one going through the sample and the other going through a reference (or blank). The two measurements occur simultaneously; this minimizes error in measuring and takes into consideration changes in the intensity of the light source.

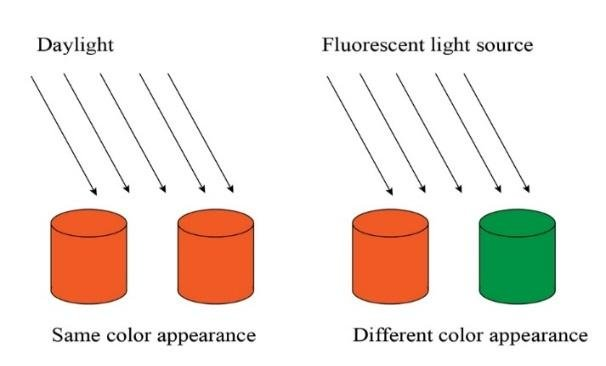

What Is a Metameric Pair?

Two colors which appear identically using one type of light but not another are said to form a metameric pair.

Spectrophotometers assist in the detection of any such issues by the way of comparing their reflectance curve. When they intersect at more than one point, the samples may be said to be metameric.

This is significant in any industry where color match is critical to lighting variations, such as automotive paint or textile fabrics.

What Does a Spectrometer Measure?

Even though it is often used interchangeably, a spectrometer is a wider term. It involves equipment for gauging the various attributes of the electromagnetic field.

Spectrometers measure:

● Wavelengths

●

● Intensity

●

● Absorption

●

● Emission

●

Spectrophotometers are a subcategory of a Spectrometer, namely devoted to the absorption or reflectance of light.

Spectral Reflectance Curve Explained

When a sample is scanned by a spectrophotometer, a graph, known as a spectral reflectance curve, is created. The curve represents the level of light reflected at different wavelengths within the visible range of light, which tends to be between 400 to 700 nanometers.

The reflectance curves of any given material are unique to that material. They are rather like a fingerprint of that material, so that subtle colorations can be distinguished easily. Comparison of the spectral curves of two samples allows for to identification of even the slightest color changes that cannot be observed with the naked eye.

The curves are critical to the use in applications where close color matching is desired, like in printing, automobile paint, and textiles. They can also be used to determine metameric pairs of samples that look identical in one light source but less so under another. The greater the overlap between two curves, the closer visually the colors will be viewed with different lighting sources.

In quality control functions, spectral reflectance curves are applied to observe batch-to-batch consistency, ensure that it meets standards, and minimise waste produced by color inaccuracy.

Conclusion

A spectrophotometer is a useful instrument for every person who may need to measure the color, light, or chemical concentration. It is an accurate objective technique that determines the interaction of samples with light in the visible or ultraviolet wavelengths.

Whether in industrial manufacture or the scientific laboratory, spectrophotometry is used to provide repeatable control over quality and to develop new products and make discoveries. Be it fabric, liquid, or pharmaceutical work, there is a spectrophotometer that meets your professional needs.

Buy Precision 3NH Spectrophotometers for Reliable Color Measurement.

Our high-tech 3NH spectrophotometers ensure the accurate, repeatable color readings of all materials. They are designed with the needs of quality control, research, as well as manufacturing. Buy now, get long-term trusted performance.

Frequently Asked Questions (FAQs)

Q1: What does the spectrophotometer measure?

It determines the strength of the light absorbed, reflected, or transmitted through a sample.

Q2: How does a spectrophotometer work?

It illuminates a sample through it and monitors alterations in the intensity of light.

Q3: What units are used in spectrophotometry?

Absorbance has no unit. The wavelengths will be recorded in nanometers (nm).

Q4: Is spectrophotometry used only in labs?

No. It's used in manufacturing, packaging, pharmaceuticals, textiles, and more.

Q5: What’s the difference between a spectrometer and a spectrophotometer?

Every spectrophotometer is a spectrometer, but every spectrometer is not a spectrophotometer. Spectrophotometers are instruments that are used to quantify light absorbance and reflectance specifically.

Q6: Can a spectrophotometer measure both solids and liquids?

Yes. The reflectance mode is used for solids, and the transmission mode is used for liquids.

Q7: What is the wavelength range of a UV-Vis spectrophotometer?

It usually covers 185-400 nm for UV light and visible light, and it is 400-700 nm

Q8: Why is calibration important in spectrophotometry?

Calibration provides a reference against which measurement is checked to enhance accuracy.

Q9: What industries rely most on spectrophotometers?

They are intensively used in such industries as pharmaceuticals, food, textiles, paints, and environmental testing.

Q10: Can spectrophotometers detect metamerism?

Yes. They use spectral curves to compare to see which colors match with each light but not another.
