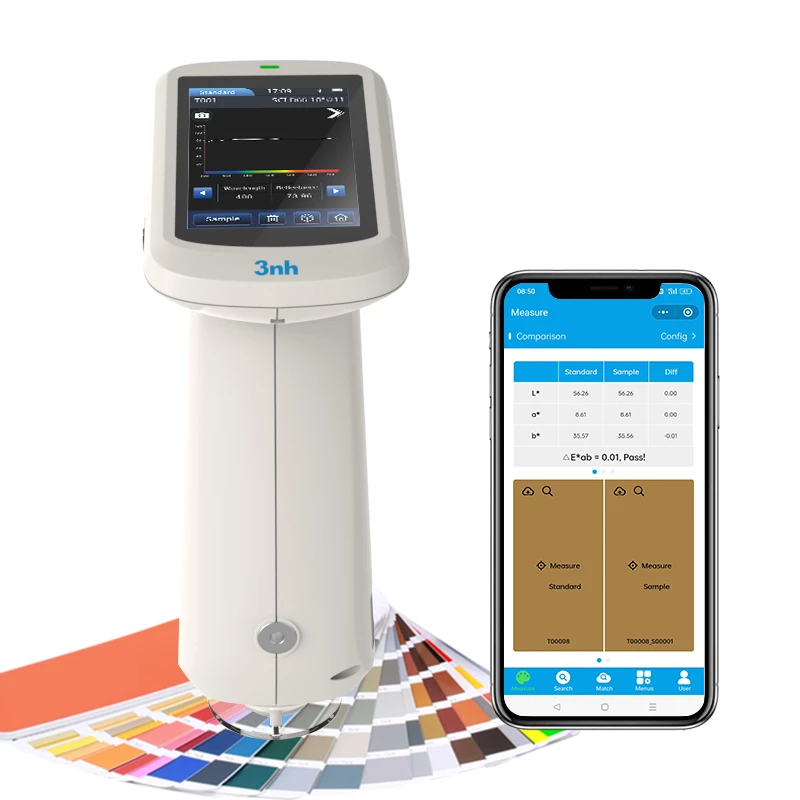

KS-500 Spectrophotometer

KS-500 Spectrophotometer Instructions Operating Manual KS-500 Spectrophotometer PDF
This KS-500 Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

The 3NH KS-500 is an industrial-grade, high-precision color difference measurement instrument. Its core advantages are its high-standard accuracy and massive data storage capacity. It delivers a repeatability of ΔEab ≤ 0.025 and an inter-instrument agreement of ΔEab ≤ 0.3. Featuring nano-integrated spectral technology and backed by first-grade metrology certification, it ensures authoritative data. Equipped with 6 measurement apertures adaptable to various sample forms, it supports storage for 15,000 samples and 500 standards. Paired with multi-platform quality management software, it is ideal for industrial-grade color quality control in mass production.

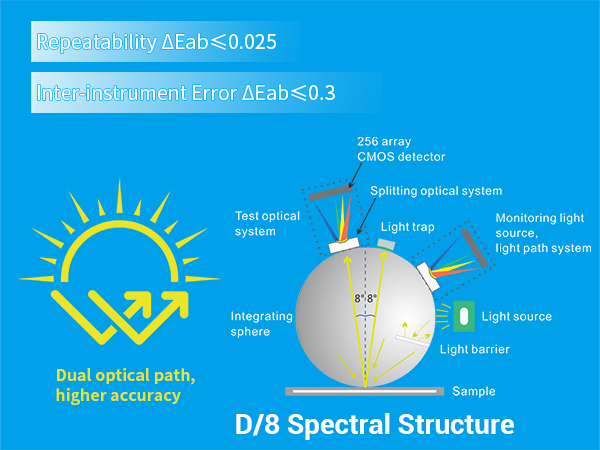

Industrial-Grade High Precision

1.High-Precision Performance: Delivers a repeatability of ΔEab ≤ 0.025 and an inter-instrument agreement of ΔEab ≤ 0.3, ensuring high color consistency in batch production.

2.Advanced Optical System: Features a dual-beam optical system with nanoscale spectroscopic capability and 10nm optical resolution. It monitors light source energy fluctuations to minimize interference, further enhancing stability and repeatability.

3.Standard Compliance: Adheres to D/8 SCI/SCE technology, compliant with international standards CIE, ISO, and ASTM. First-grade metrology certification ensures data traceability to national metrology institutes.

一、Industrial-Grade High Precision.jpg

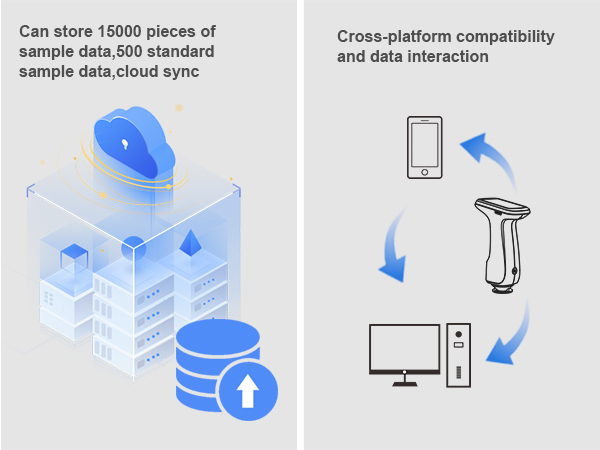

Massive Data Management and Collaboration

1.Large Storage Capacity: Supports storage for 15,000 samples and 500 standards, with cloud synchronization for creating a personal database.

2.Cross-Device Data Sharing: Enables data sharing across devices (APP, mini-program, PC). Eliminates the need for physical color cards, facilitating team collaboration and long-term traceability.

二、Massive Data Management and Collaboration.jpg

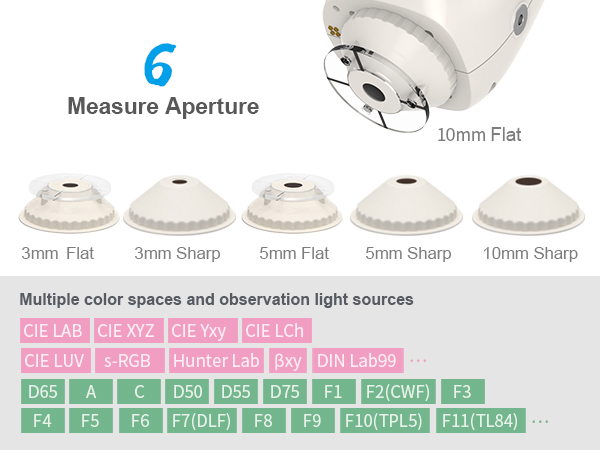

Professional Adaptability (Multi-Scenario Coverage)

1.Comprehensive Aperture Options: Equipped with 6 measurement apertures (3mm/5mm/10mm platform + pointed tip), suitable for various sample forms including flat, curved, concave-convex surfaces, and small areas.

2.Diverse Measurement Indices: Supports over 13 colorimetric indices, 32 evaluation illuminants, and 8 color spaces to meet different measurement condition requirements.

3.Broad Industry Application: Adaptable to industries such as plastics, textiles, ceramics, and printing, with switchable measurement modes for diverse scenarios.

三、Professional Adaptability (Multi-Scenario Coverage).jpg

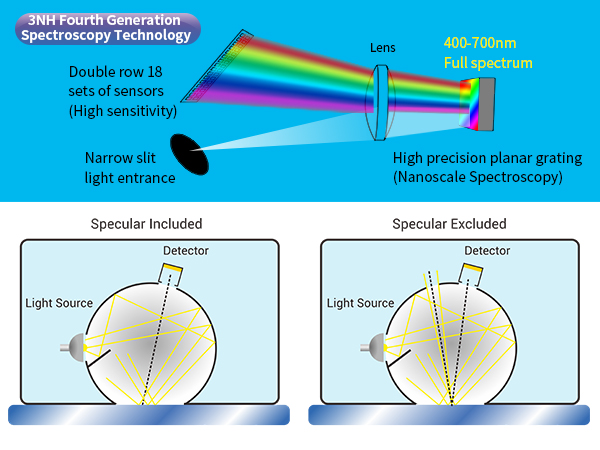

Powerful Hardware Configuration

1.Dual-row 18-group silicon photodiode array with a spectral response range of 400-700nm (10nm interval) and a reflectance measurement range of 0-200%.

2.Full-band balanced LED light source (no spectral gaps) combined with a nano-integrated spectral device to ensure data accuracy across all wavelength bands.

3.Supports simultaneous measurement of SCI (Specular Component Included) and SCE (Specular Component Excluded) spectra, balancing speed and stability.

四、Powerful Hardware Configuration.jpg

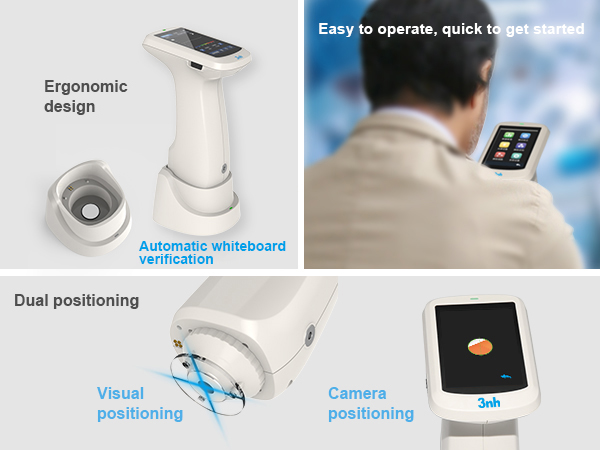

Convenient Operation Experience

1.Ergonomic design featuring a large touchscreen and optimized grip to suit different user habits.

2.Dual targeting system with a stabilizer plate and camera for precise positioning of the measurement area, reducing operational errors.

3.Non-contact automatic white board calibration (standard white board reflectance R% ≥ 95%) for consistently accurate data.

4.Clean and intuitive interface enables quick mastery for beginners without complex training.

五、Convenient Operation Experience.jpg

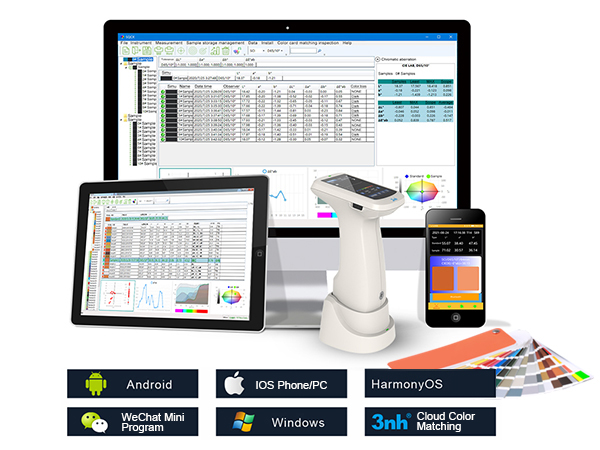

Expanded Application Support

1.Multi-system compatibility covering Android, iOS, Windows, HarmonyOS, and WeChat Mini-Programs.

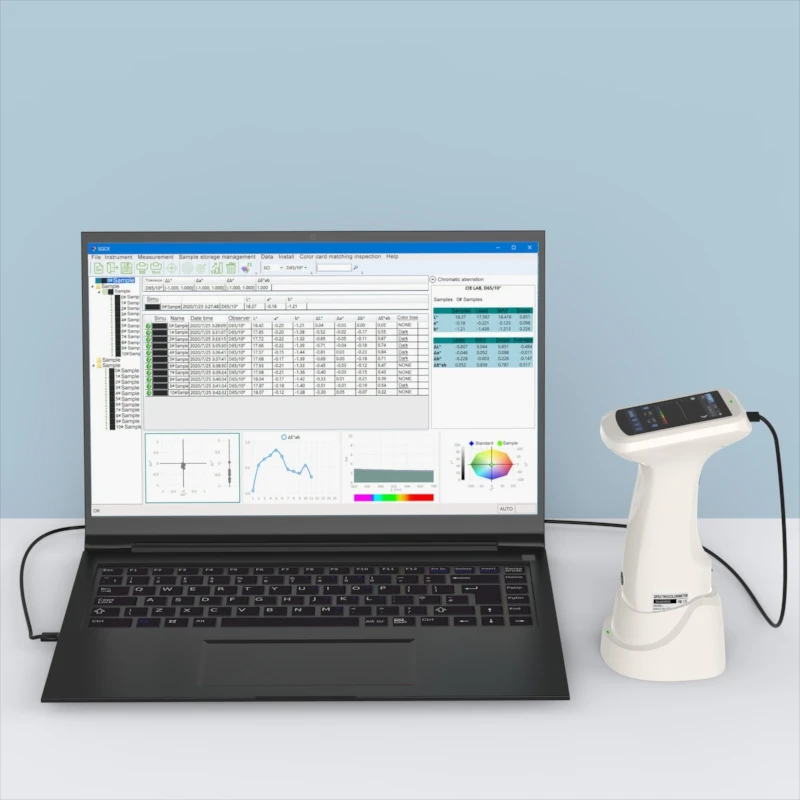

2.Includes quality management software for generating test reports, comparing color difference data, and customizing color management workflows.

3.Supports the Color Matching Cloud platform to meet industrial-grade quality control needs in mass production.

六、Expanded Application Support.jpg


Model KS-500 Spectrophotometer
Illumination/Viewing Geometry D/8 (Diffuse illumination, 8° viewing), SCI/SCE (Specular Component Included/Excluded). Compliant with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7.
Features Utilizes a dual-path silicon photodiode array. Ideal for color difference quality control in industries such as plastics, electronics, paints and inks, textile dyeing and printing, printing, and ceramics
Light Source Combined Full-Spectrum LED Light Source, UV Light Source
Integrating Sphere Size Φ40mm
Spectral Device Nano-integrated spectral device
Sensor Silicon photodiode array (dual-row, 18 groups)
Wavelength Range 400-700nm
Wavelength Interval 10nm
Measurement Aperture 6 Apertures:3mm platform+3mm pointed tip+5mm platform+ 5mm pointed tip+10mm platform+10mm pointed tip
Specular Mode Simultaneous measurement
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,DINΔE99,ΔE(Hunter)
Other Color Indices Spectral Reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), Metamerism Index MI, Staining Fastness, Shade Change Fastness, Strength, Opacity, 555 Shade Classification, Munsell (C/2), Blackness (My, dM), Color Density CMYK, Tint (Some functions realized via PC software)
Observer Angle 2°/10°
Calibrated Illuminants D65,A,B,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50,ID65 ,LED-B1,LED-B2,LED-B3, LED-B4,LED-B5,LED-BH1,LED-RGB1, LED-V1,LED-V2 (Partially realized via PC software)
Display Data Spectral graph/data, sample color values, color difference values/graph, pass/fail results, color simulation, color bias
Measurement Time Approx. 1 second
Repeatability Chromaticity Value: Within ΔE*ab 0.025 (Standard deviation) for MAV/SCI (after warm-up and calibration, average of 30 readings of white board at 5s intervals).
Spectral Reflectance: Within 0.1% standard deviation for MAV/SCI (within 0.2% for 400-700nm).
Inter-Instrument Error Within ΔE*ab 0.3 for MAV/SCI (average of 12 BCRA Series II color tiles).
Displayed Accuracy 0.01
Reflectance Range 0-200%
Reflectance Resolution 0.01%
Measurement Mode Single measurement, average measurement (2-99 times).
Targeting Stabilizer plate positioning + Camera framing.
White Calibration Non-contact type white calibration.
Dimensions 120*75*207mm
Weight 367g(without calibration base)
Battery Lithium-ion battery, 3.7V, 3200mAh, supports 8000 measurements within 8 hours.
Light Source Life Over 1.2 million measurements for 10 years.
Display TFT true color 3.5-inch capacitive touch screen.
Interface USB,Bluetooth
Data Storage 500 standards, 15,000 samples (SCI/SCE data included in one record). Mass storage via APP/PC.
Software Support Android, iOS, Windows, WeChat Mini-Program, HarmonyOS.
Languages Simplified Chinese, English, Traditional Chinese
Operating Environment Temperature: 0~40℃, Humidity: 0~85% RH (non-condensing), Altitude: below 2000m.
Storage Environment Temperature: -20~50℃, Humidity: 0~85% RH (non-condensing).
Accuracy Guarantee Ensured first-grade metrology certification
Standard Accessories Power adapter, data cable, user manual, quality management software (download from official website), white calibration box, protective cover, wrist strap, measurement apertures.
Optional Accessories Micro-printer, powder test box.
Note Specifications are subject to change without prior notice.


Our Valued Clients

  • university mississippi
  • DTU Technical Denmark University
  • LUND UNIVERSITY
  • UPORTO
  • Vilnius University
  • YONSEI UNIVERSITY
  • Lubrizol
  • university mississippi

FAQs About  Spectrocolorimeter

L*a*b* is an L*a*b* color space. The L* is a measure of lightness (as 0 = black, 100 = white), a* indicates the green to red axis, and b* indicates the blue to yellow axis. It is also common in color measurement in terms of precision and reliability.


A colorimeter is a quick and inexpensive method to measure color and to control color in a material or solution. It is used to maintain color consistency during production and to check the chemical concentration. It also assists with the quality control of labs, food, textiles, and pharmaceuticals.


A colorimeter measures the amount of light and the wavelength that is absorbed by a solution. It is a sign that colored compounds are present and the level of their concentration. It is applied in the laboratory and industry to check the concentrations of chemicals, the color of products, and purity.


A colorimeter is sufficient when measuring similar materials or batches with stable conditions. Suitable for fast, low-cost color checks where high precision is not required. Quick quality control in plastics, paint batch consistency, food color grading (e.g., fruit ripeness), and basic printing checks.

A spectrophotometer is recommended when you need professional, maximum color accuracy or when testing materials with variable surfaces – such as glossy or textured samples. Like textile dye formulation, cosmetic shade matching, medical device color calibration, high-end printing (e.g., packaging for luxury goods), and material spectral research. learn more Understanding Spectrophotometric Parameter Measurement


The accuracy of colors is determined by comparing the values of the colors (L*a*b*) of a sample with a standard reference sample using tools such as spectrophotometers. The variation is measured as ΔE. The smaller the value of ΔE, the more accurate, the nearer to the target color.
